Volta is the quintessential high performance LED architectural recessed downlight. Volta housings can be specified with one of three (15W, 25W, 36W) serviceable drivers to plan your project in accordance with energy and lighting requirements up to 3,000 Lumens. Available in New Construction IC Rated Airtight or Remodel Non-IC Airtight with Emergency backup battery and Chicago Plenum Safety options. Volta trims include an LED Light Engine with a replaceable High Powered LED module and are available in a variety of options including Round, Square, Adjustable, Wall Wash, Shallow Regressed, or a sleek flangeless trim which can be spackled directly up to the aperture. Tool-less in-field adjustable glare control and optic system can be used for louvers, lens, and beam control.
- Finish: White or Black
- Made of Die Cast Aluminum
- Shade/Glass: Textured Glass Lens
- Shade Made of Glass
- (1) 15-25-36W LED Module Bulb
- Bulb Included
- Voltage: 120-240-277 Universal
- Dimmable: Yes
- Bulb Shape: LED Module
- Lumens: 1415-2911
- Lumens Delivered: 1415-2911
- Beam: Wide Flood 60, Flood 45, Narrow 25
- Average Hours: 70000
- Volta trim includes LED Light Engine with replaceable High Powered LED module. Energy Star certified and CEC Title 24 compliant (Title 24 only in 90CRI version).

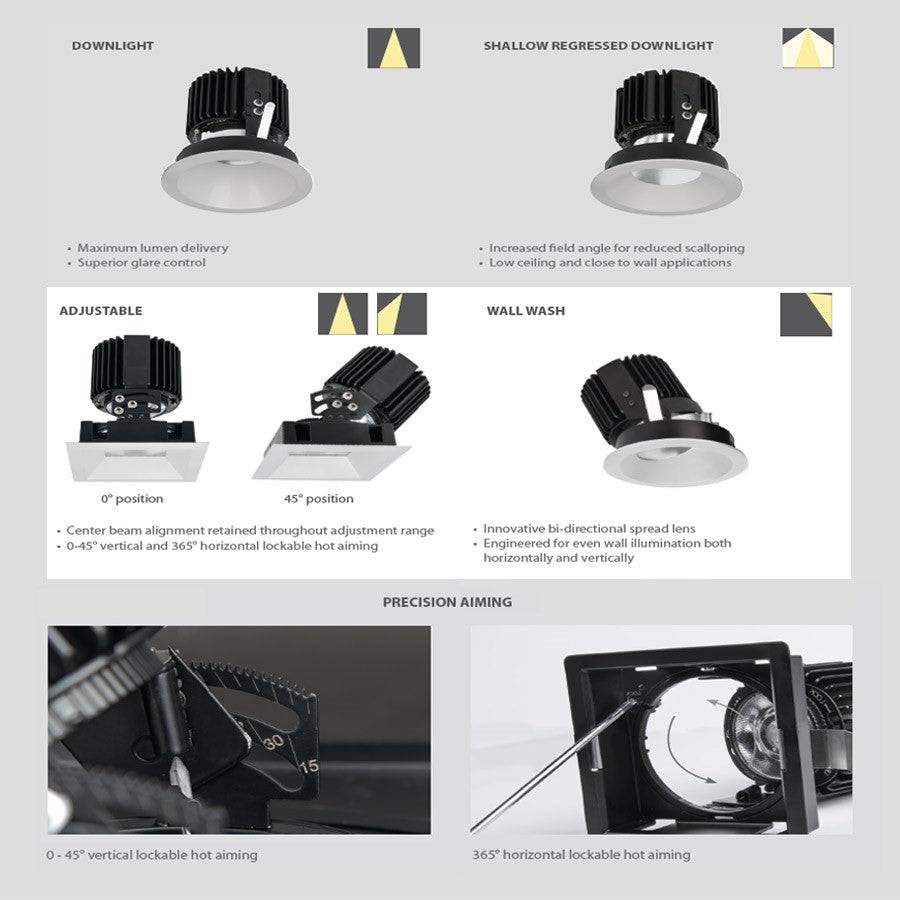

- Available in Round, Square, Adjustable, Wall Wash, Shallow Regressed, and a sleek flangeless trim option which can be spackled directly up to the Aperture.
- Smooth and continuous dimming to 1% with an Electronic Low Voltage Dimmer or 0-10V dimmer.

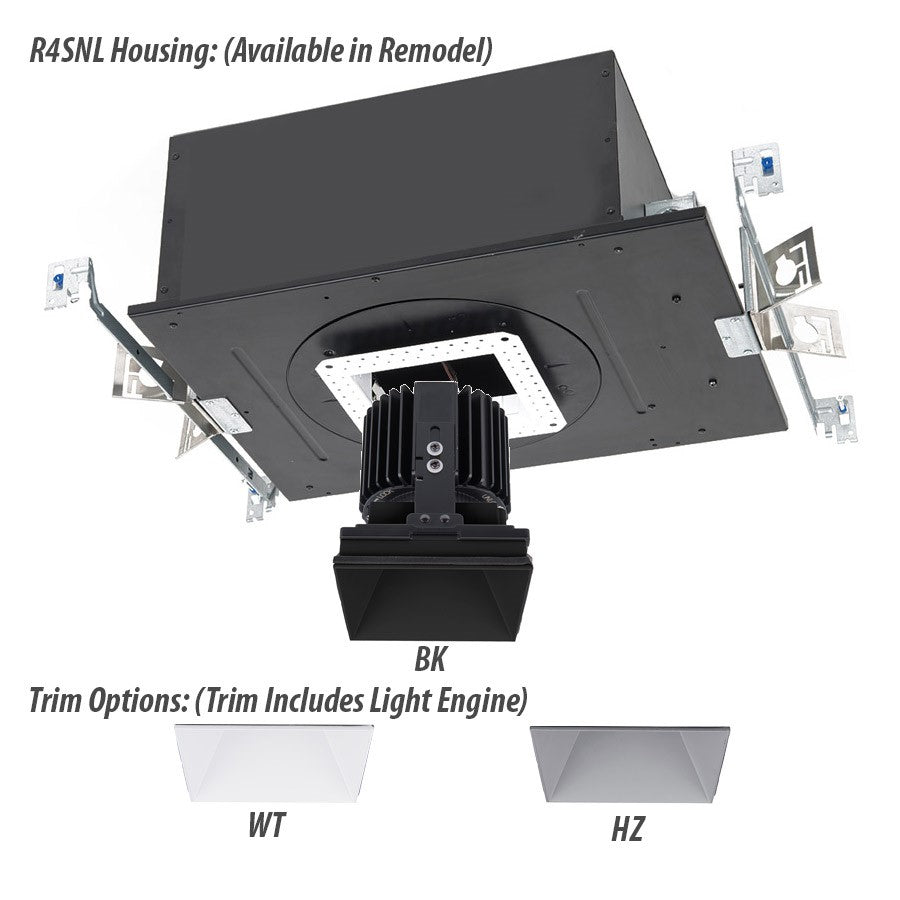

- Available in New Construction IC Rated Airtight or Remodel Non-IC Airtight versions (Invisible Trim only available on New Construction Models). Chicago Plenum Safety Rating and Emergency Backup battery options.
- High powered replaceable LED: Available in 2700K, 3000K, 3500K, or 4000K Color Temp, 85-90CRI, 50,000 Rated Hours L70 Standards. Can be driven with 15W, 25W, or 36W driver for varying lumen output.
- Standards: ETL & cETL Wet Location Listed. All Volta trims are Wet Location standard.
- Hardwired
- Energy Star
- ADA Compliant
- Theme: Contemporary
- Part of the Volta Collection
- For Interior Use
- For Use in Wet Locations
- Safety Rating: ETL, cETL
- Warranty Info: 5 Years Functional, 2 Years Finish
Overall Dimensions: 5.75"(L) x 5.75"(W) x 6.39"(H)
Backplate/Canopy Dimensions: Aperture: 4.5"(D) x Trim Size: 5.75"(W) x Cutout: 5.13"(H)
Item Weight: 2.24 lbs.
