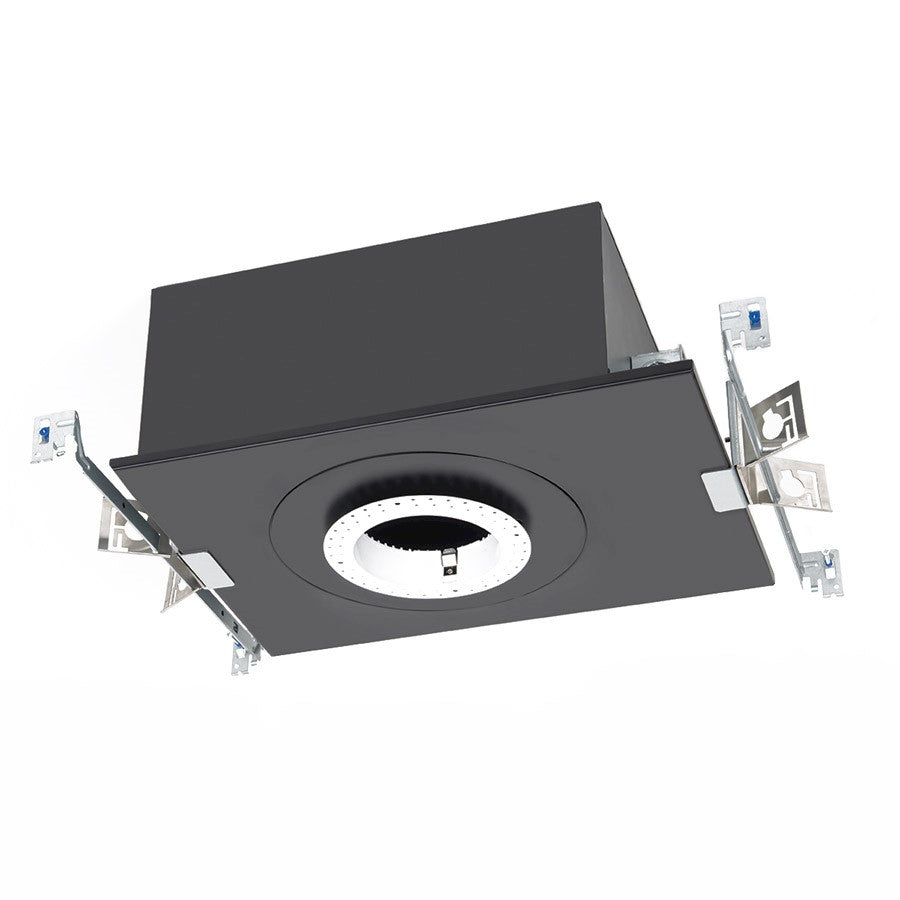

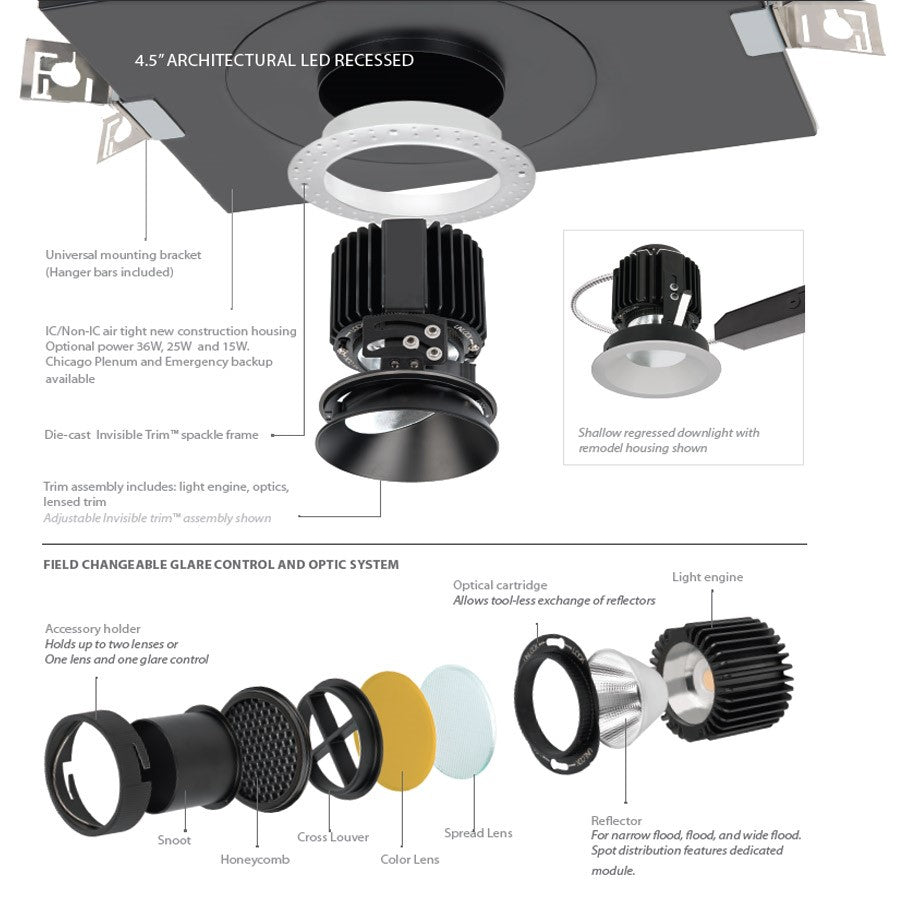

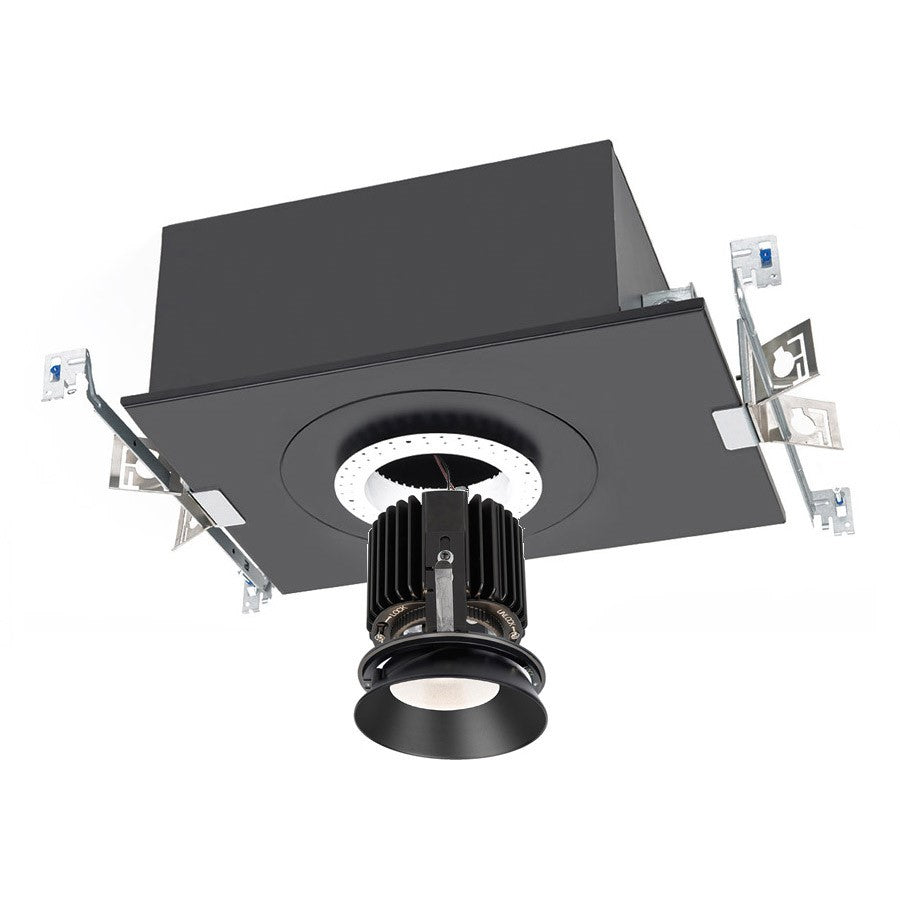

Volta is the quintessential high performance LED architectural recessed downlight. Volta housings can be specified with one of three (15W, 25W, 36W) serviceable drivers to plan your project in accordance with energy and lighting requirements up to 3,000 Lumens. Available in New Construction IC Rated Airtight or Remodel Non-IC Airtight with Emergency backup battery and Chicago Plenum Safety options. Volta trims include an LED Light Engine with a replaceable High Powered LED module and are available in a variety of options including Round, Square, Adjustable, Wall Wash, Shallow Regressed, or a sleek flangeless trim which can be spackled directly up to the aperture. Tool-less in-field adjustable glare control and optic system can be used for louvers, lens, and beam control.
- Finish: Aluminum
- Made of Aluminum
- 15W/25W/36W LED Module Bulb(
- Bulb Not Included
- Voltage: 120-240-277 Universal
- Dimmable: Yes
- Bulb Shape: LED Module
- Trim shape and driver output must be specified with housing. Built-in indexing allows for quick and simple trim alignment. Universal mounting brackets with hangar bars included.
- For use with round Volta trims. Energy Star qualified and Title 24 Compliant (Title 24 when used with 90CRI Trim).
- Smooth and continuous dimming to 1% with an Electronic Low Voltage Dimmer or 0-10V dimmer.
- Available in New Construction IC Rated Airtight or Remodel Non-IC Airtight versions (Invisible Trim only available on New Construction Models). Chicago Plenum Safety Rating and Emergency Backup battery options.
- 15W, 25W, or 36W universal 120V-220V-277V Driver. Choose the housing with driver load to fit your specification.
- Standards: ETL & cETL Listed. All Volta trims are Wet Location standard.
- Hardwired
- Energy Star
- Title 24 Compliant
- ADA Compliant
- Theme: Contemporary
- Part of the Volta Collection
- For Interior Use
- For Use in Wet Locations
- Safety Rating: ETL, cETL
- Warranty Info: 5 Years Functional, 2 Years Finish

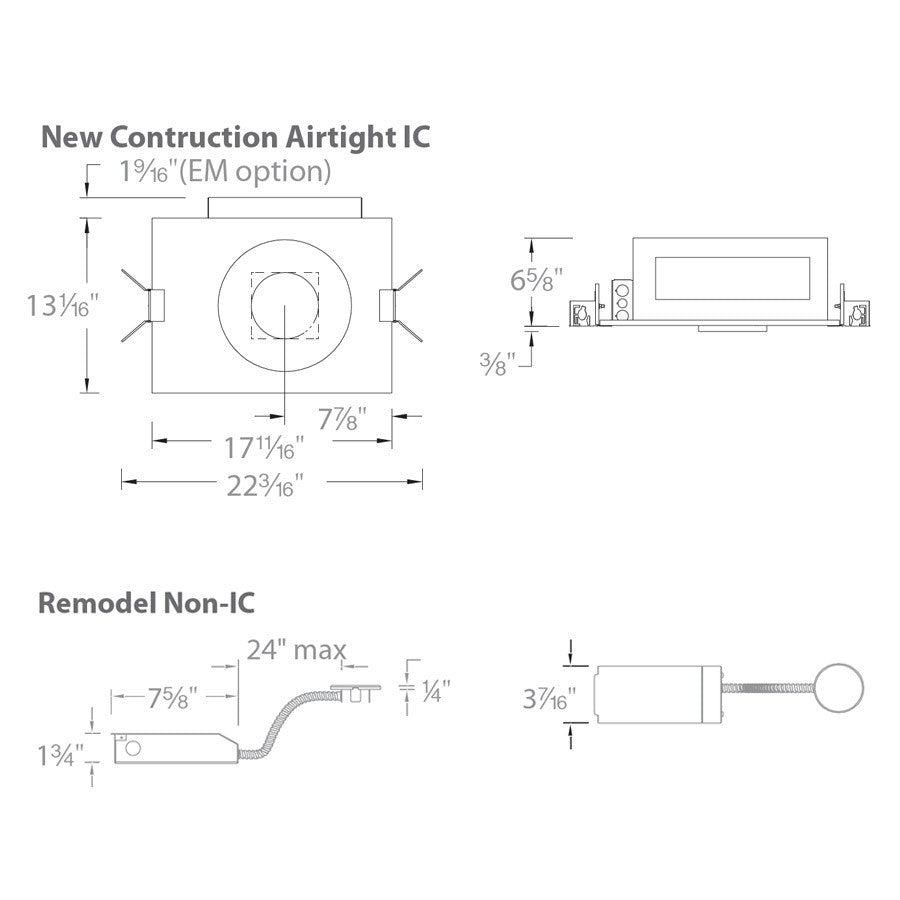

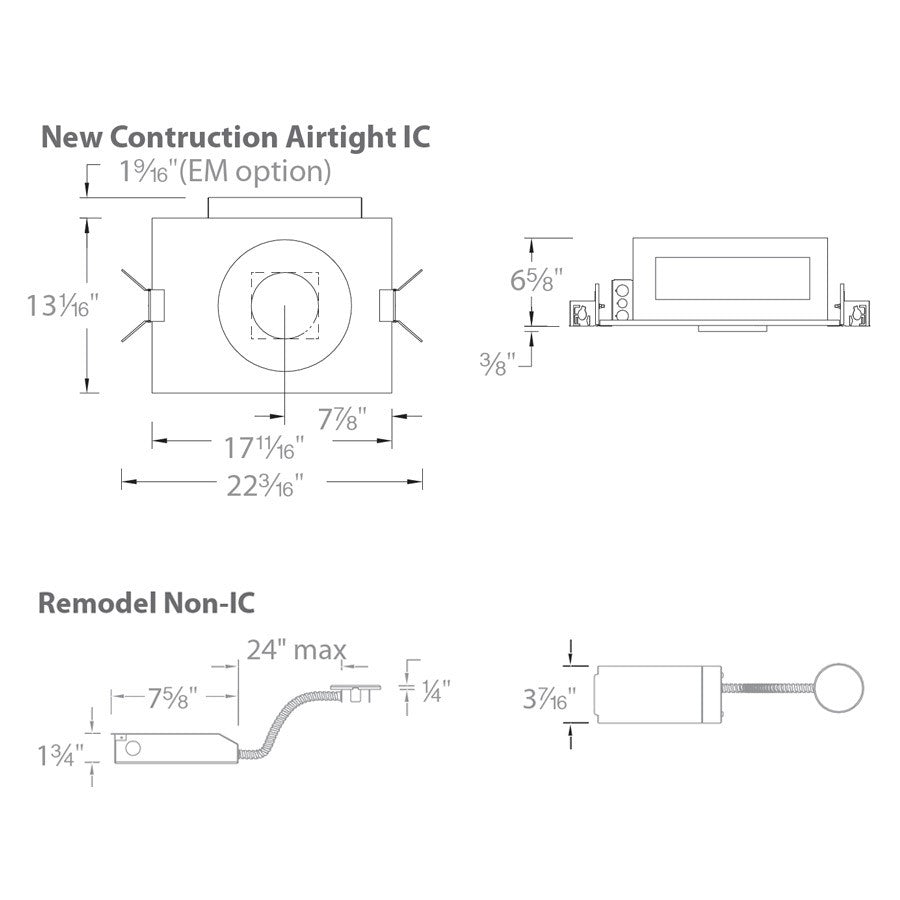

Overall Dimensions: 17.69"(L) x 13.13"(W) x 6.65"(H)
Backplate/Canopy Dimensions: Trim Size: 5.75"(W) x Cutout: 5.13"(H)
Item Weight: 4.6 lbs.
