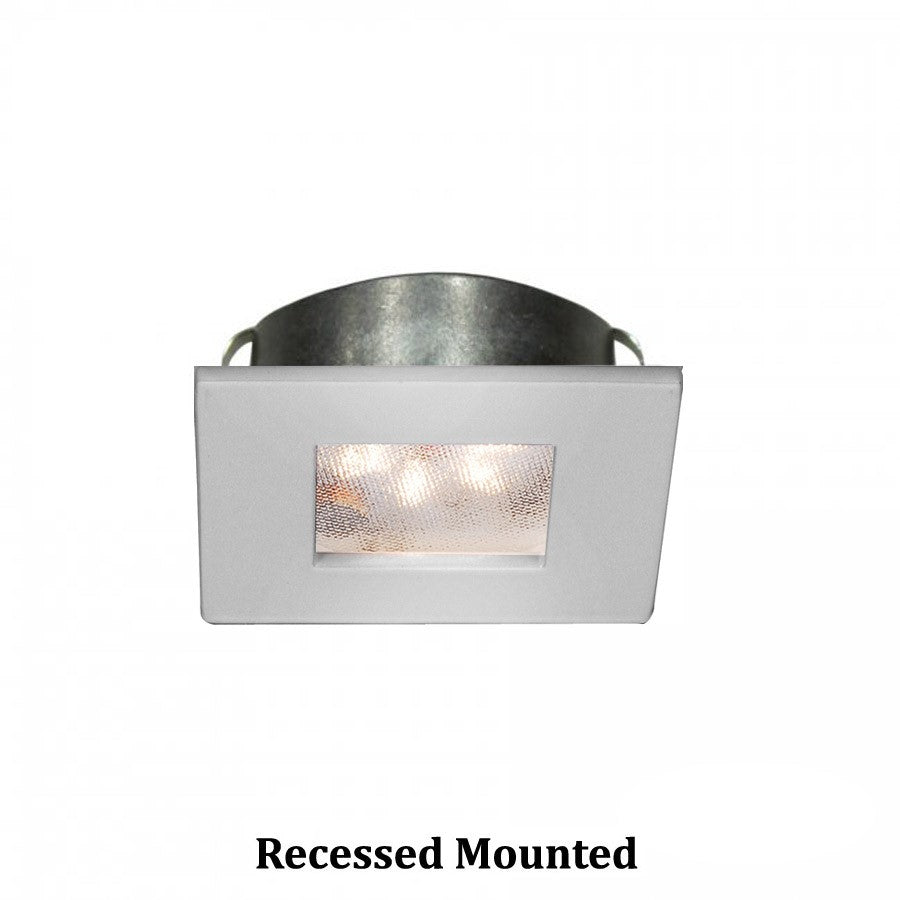

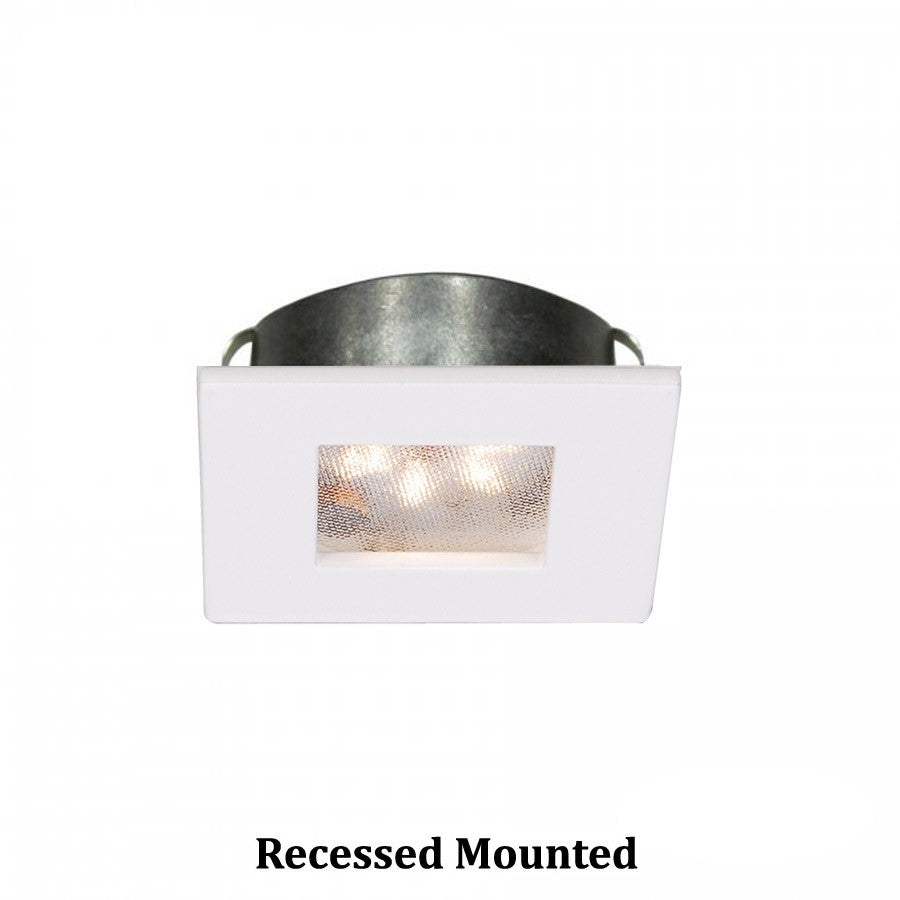

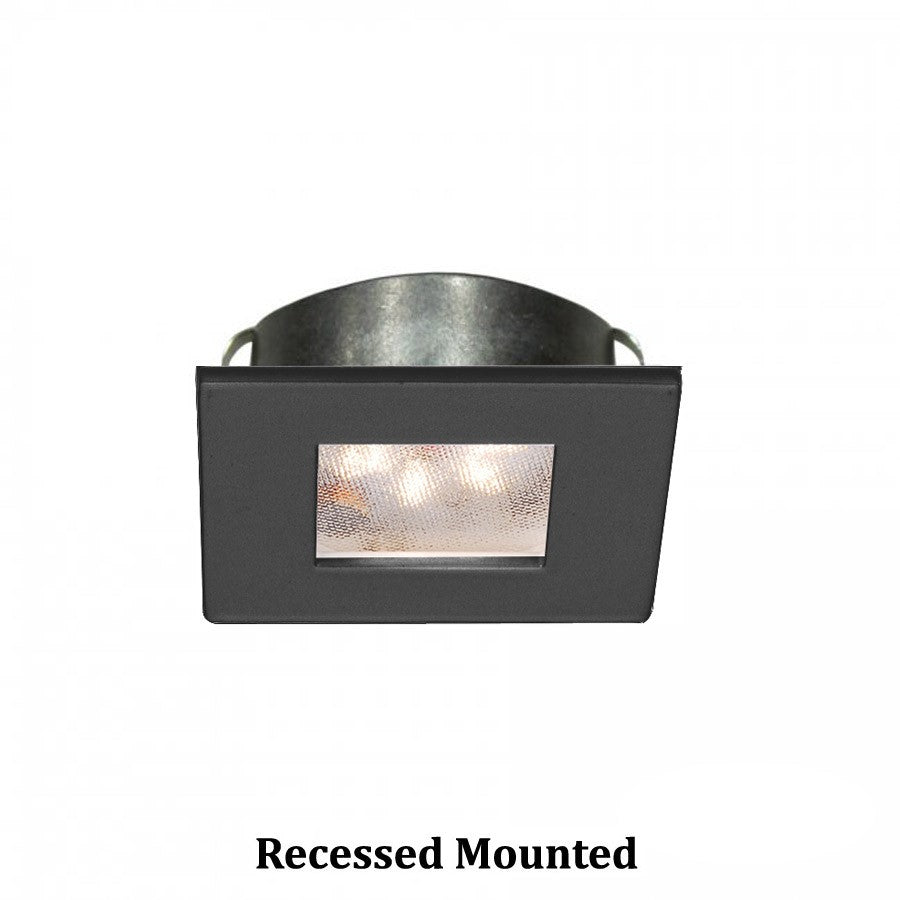

WAC Lighting Square LED Button Light

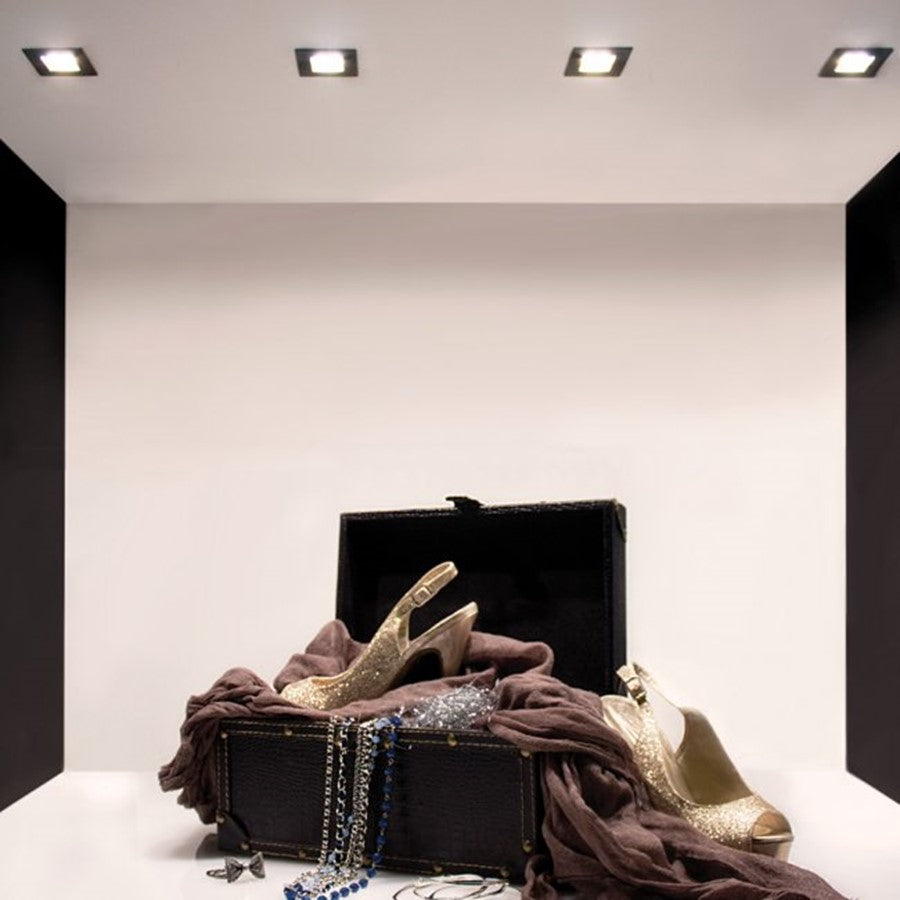

Designed with a low profile and shallow installation depth for tight spaces in recessed or surface mounted installations, the innovative LED87 Button Lights offer a low profile and shallow installation depth can be surface mounted or recessed for a built-in look within shelves, under and inside cabinets, curios and displays in fine residential and retail environments delivering strong light output with the latest in LED technology. Includes 72 inches of wire, button lights can be wired in a series to one another up to the maximum load on the power supply used. Class II, 24V remote and plug-in transformers allow up to 20 button lights to be wired together.
  • Made of Steel
  • Shade/Glass: Frosted Glass Lens
  • Shade Made of Glass
  • (1) 4.8W LED Module Bulb(s)
  • Bulb(s) Included
  • Voltage: 24
  • Dimmable: Yes
  • Bulb Shape: LED Module
  • Reversible: Yes
  • Color Temperature: 2700
  • CRI: 85
  • Lumens: 155
  • Lumens Delivered: 155
  • Beam: Flood
  • Average Hours: 70000

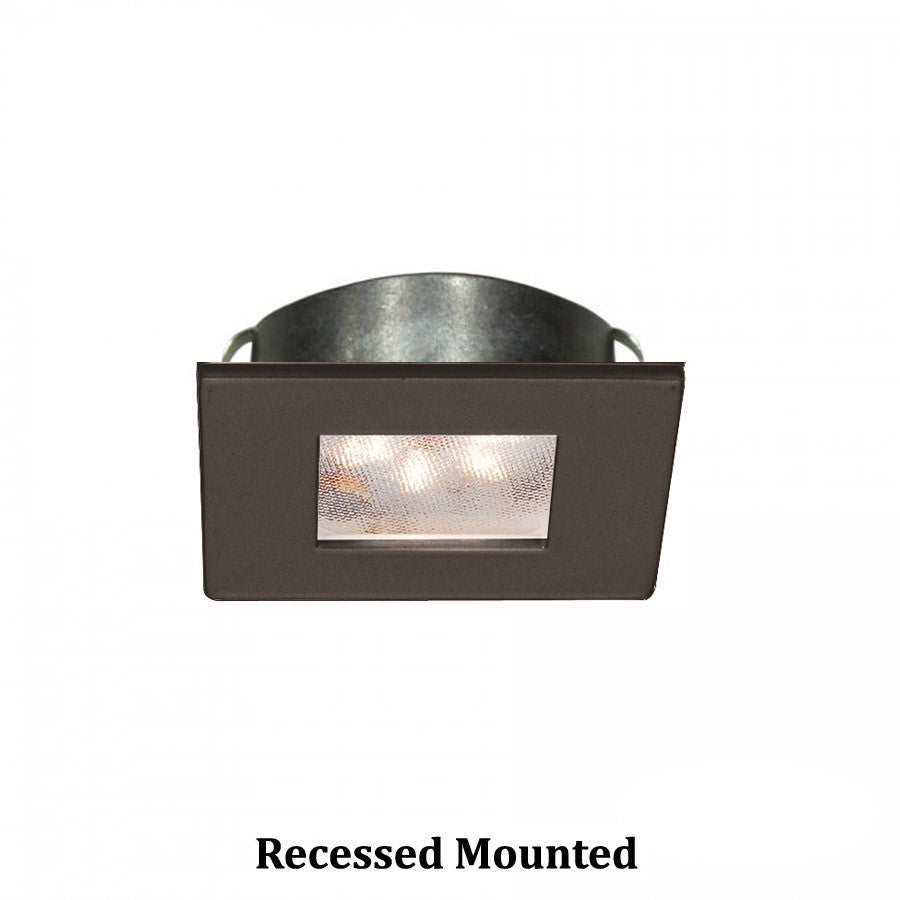

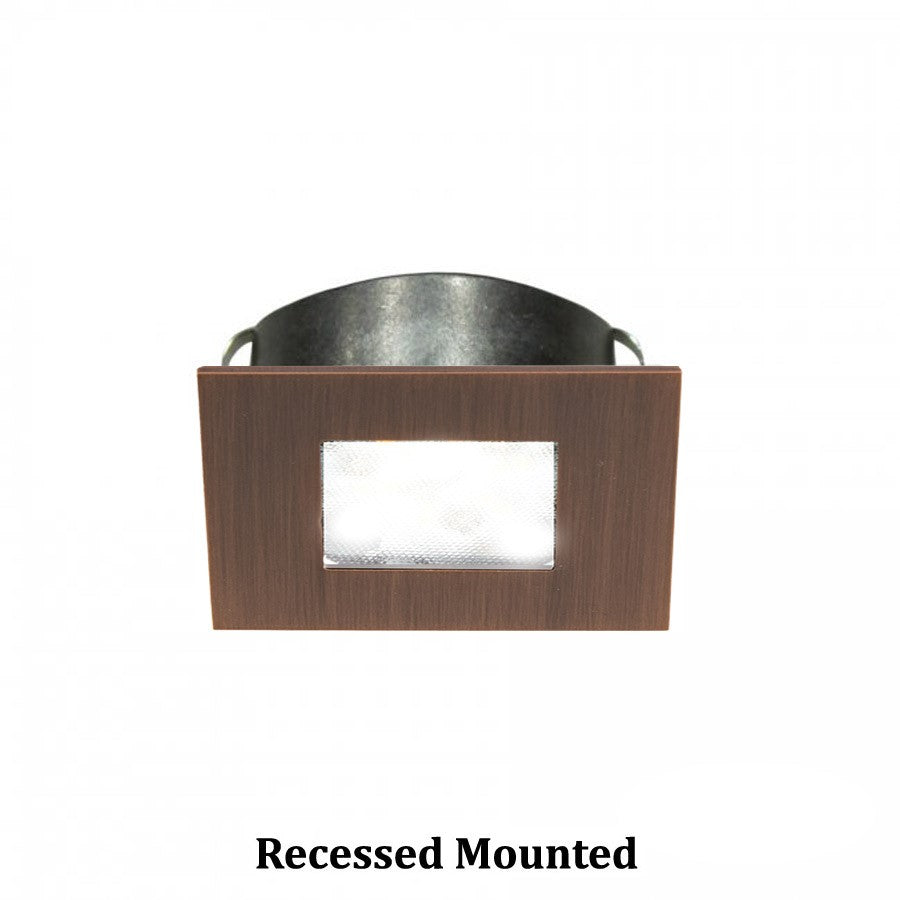

  • All steel construction, can be recessed or surface mounted with all necessary hardware included for either installation.
  • Low profile and shallow installation depth. Smooth and continuous dimming to 15% using an electronic low voltage (ELV) dimmer.
  • Supplied with 72 inch wires, cutout template included for recessed installations.

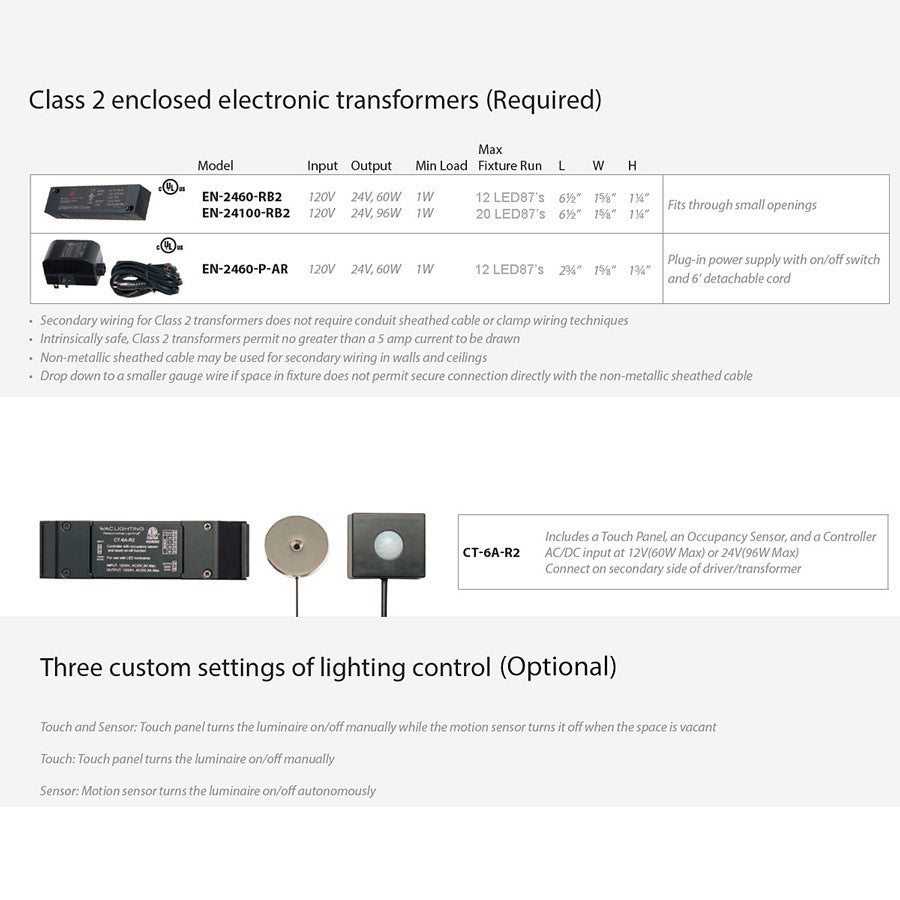

  • Must be used with a Class 2 power supply: EN-2460-RB2, EN-24100-RB2, EN-2460-P-AR, EN-24100-277-RB2-T.
  • 4.8W High Powered LED Included: 2700K - 3000K Color Temperature Options, 24V, 180 Lumens, G4 Base, 70,000 Rated Hours.
  • Standards: UL & cUL Listed for Damp Locations.
  • Hardwired
  • ADA Compliant
  • Theme: Contemporary
  • Part of the LED Button Light Collection
  • For Interior Use
  • For Use in Damp Locations
  • Safety Rating: UL, cUL
  • Warranty Info: 5 Years Functional, 2 Years Finish

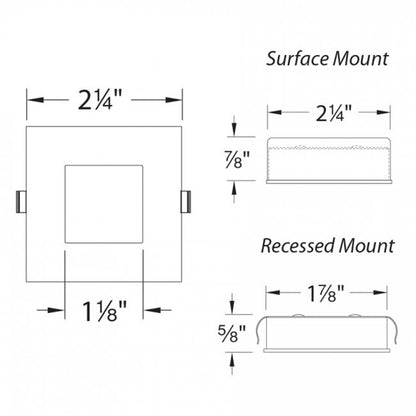

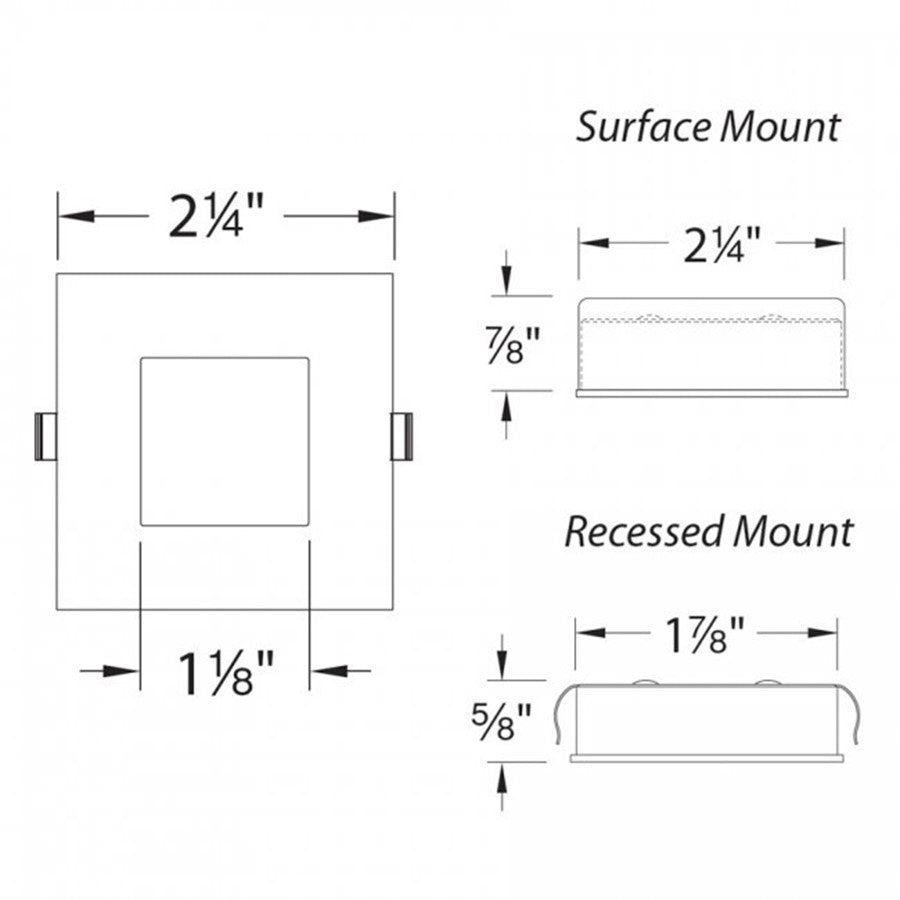

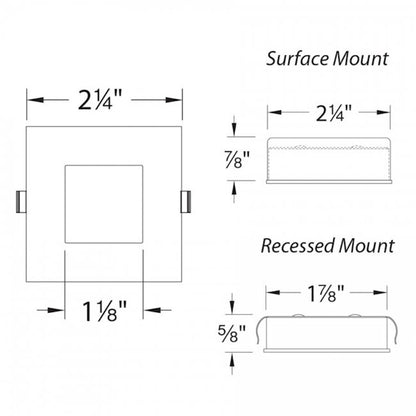

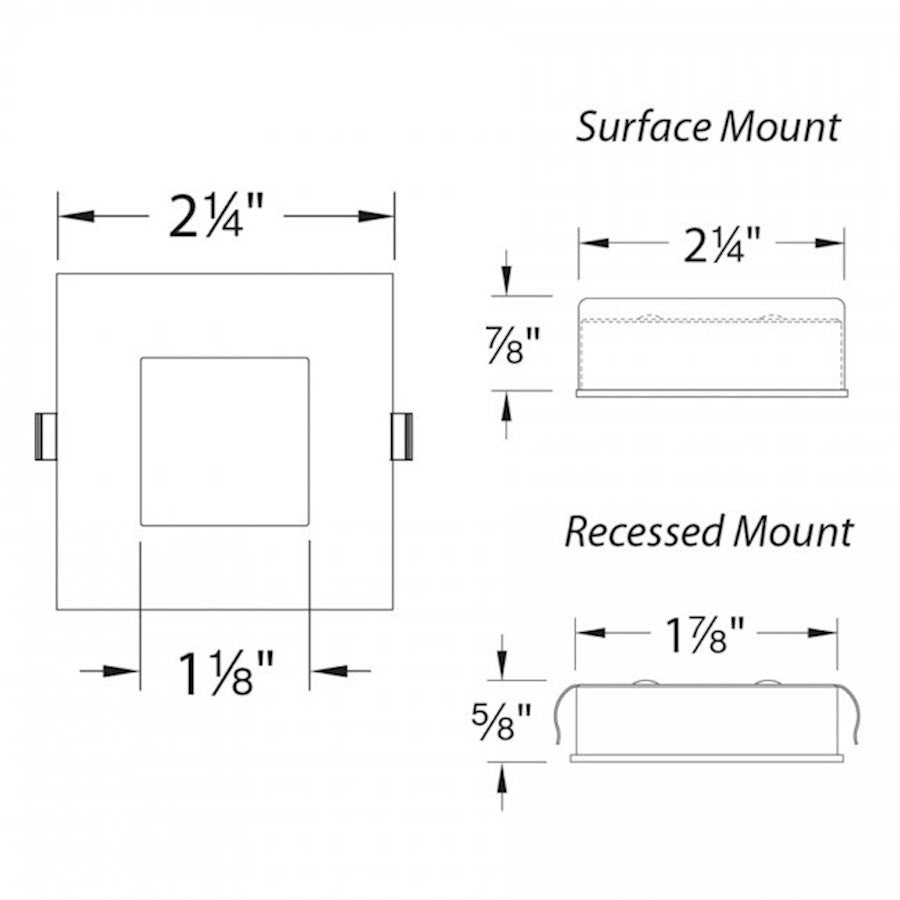

Overall Dimensions: 2.25"(L) x 2.25"(W) x 0.88"(H)

Shade/Glass Dimensions: 2.25"(L) x 2.25"(Dia) x 2.25"(W)

Backplate/Canopy Dimensions: 2.25"(W) x 2.25"(H)

Wire Length: 72

Item Weight: 0.4 lbs.
