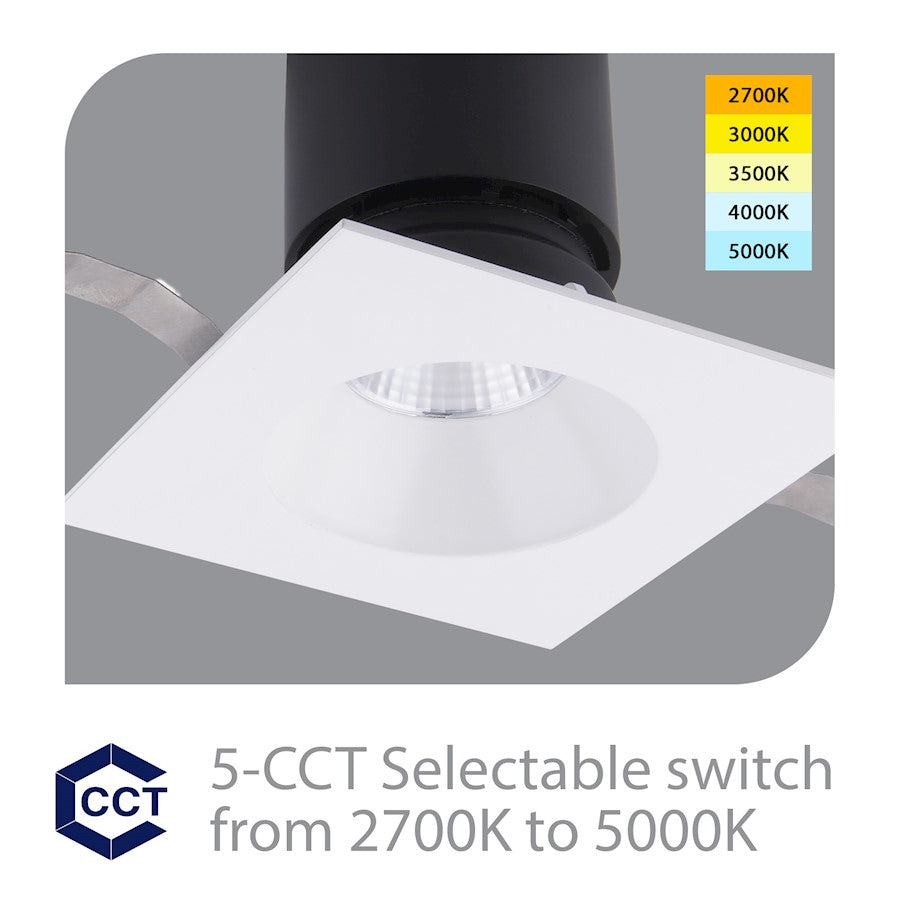

Minimum profile downlight with driver and electrical connection box attached for easy remodel or new construction installation. on-board 5-CCT selectable switch allows you to toggle between different color temperatures to find the perfect setting for your space. Change between 2700K Warm - 3000K Warm White - 3500K White - 4000K Cool White - 5000K Natural White all at the flick of a switch. The color temperature selectable switch can be accessed during, before, and after installation - it is safely concealed inside the electrical box of the fixture.
- Part of the Patriot Collection
- Finish: White
- Made of Aluminum
- Style: Functional
- (1) 12W LED Bulb
- Bulbs Included
- Bulb Base: LED Module - Universal Driver
- Bulb Color Temp: 2700-3000-3500-4500-5000
- Bulb Average Hours: 50000
- Bulb Lumens: 1100
- Bulb Beam Spread: Adjustable 25, 45
- Bulb Shape: LED Module
- Bulb CRI: 90
- Delivered Lumens: 1035
- Voltage: 120-240-277
- Construction: Die-cast aluminum with frosted TIR lens. Available in Round or Square trim with adjustable or straight downlight options. 45 degree flood beam spread lens can be removed to convert into a 25 degree narrow beam spread.
- Optional frame-in kit sold separately (R3H-FRAME) for new construction applications when pre-framing is required. Patriot can be installed in remodel and new construction applications.
- Installs into ceiling thickness between 0.5in and 1.5in. Universal input driver 120V-220V-277V. Electrical wiring box includes 24in of wire with twist-lock connector to detach from light engine for ease of service.
- Smooth and continuous dimming with an electronic low voltage (ELV) or TRIAC dimmer.
- High Powered LED's up to 1080 Lumens for 50,000 hours and a 5-CCT selectable switch that allows you to toggle between 2700K Warm - 3000K Warm White - 3500K White - 4000K Cool White - 5000K Natural White all at the flick of a switch.
- Standards: ETL & cETL Wet location listed in the USA and Canada. Energy Star 2.0 Certified, and Title 24 JA8-2016.
- Dimmable: ELV, TRIAC
- Height (Min-Max): 14.5-24.5
- Length of the Wire: Airtight: Yes"
- Safety Rating: ETL, cETL, CSA CAN, Title 24, Energy Star
- For Use in Wet Locations
- Warranty Info: 5 Years Functional, 2 Years Finish
Overall Dimensions: 4.75"(L) x 4.75"(W) x 4.13"(H) x 4.75"(Dia)
Back plate/Canopy Dimensions: Cutout: 4.13"(L) x Trim Size: 5"(W) x Aperture: 3"(D) x IC Rating: Yes"(Dia)
Ships from our warehouse in 1-4 Business Days
