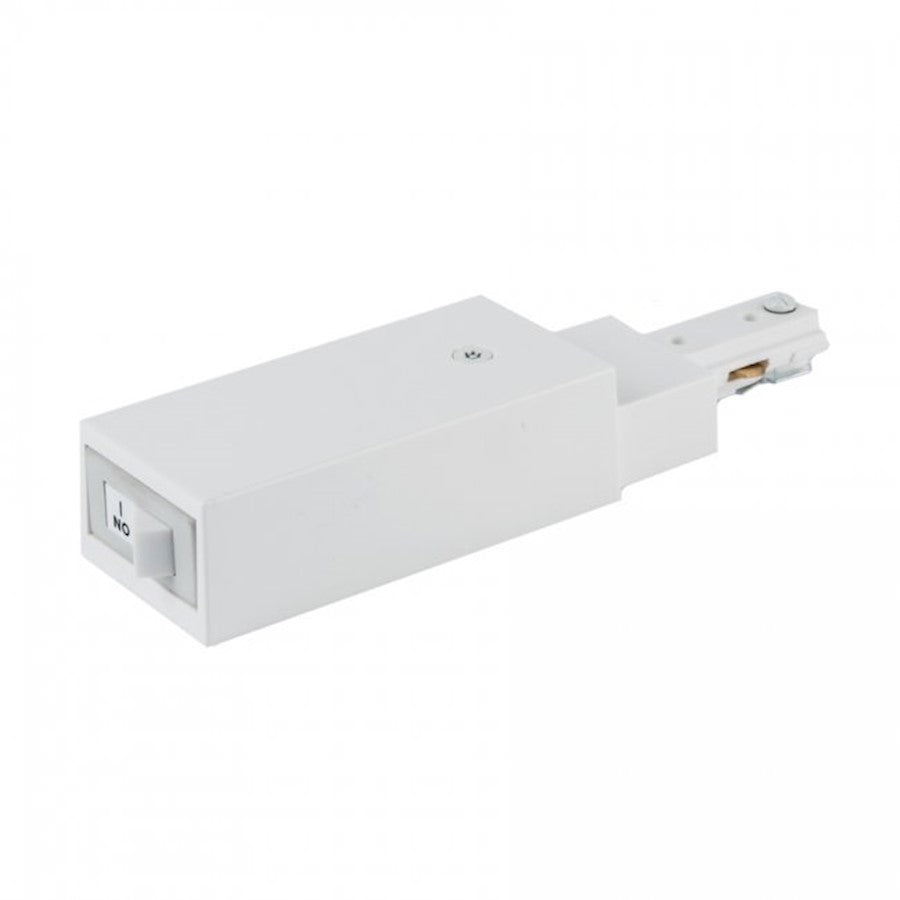

120V Track systems are modular and can be designed for multiple applications in nearly any interior environment. Track current limiters are used to limit the total load on a track system - these can be required in certain applications or municipalties based on energy conservation requirements. Available in a variety of sytles and total load ratings.
- Part of the H Track Collection
- Finish: Black, Nickel, Bronze or White
- Made of Aluminum
- 24W Bulb(s)
- Bulb Voltage: 120V
- ASHRAE 90.1 and IECC Requirements: The greater of the sum of the maximum rated wattage of the luminaires OR 30 watts per linear ft of track circuit. Current limiters eliminate the need for calculation and testing, and ensures the track system alsways stays in compliance.
- California’s Title 24 requirement: The greater of either: The sum of the maximum rated wattage of the luminaires OR 45 watts per linear ft of track circuit. Current limiters eliminate the need for calculation and testing, and ensures the track system alsways stays in compliance.
- For use with H Track systems only. Available in a variety of finish options and amperage rating.
- Single Circuit 120V track, power per Circuit: 120V, 1920W max per circuit, Operating Current: Rated 20A max.
- Compatible with H track systems by WAC Lighting. Also compatible with H systems from other leading lighting manufacturers.
- Standards: UL & cUL Listed for Dry Locations.
- Warranty Info: 5 Years Functional, 2 Years Finish
Overall Dimensions: 2.5"(L) x 2.5"(W) x 1.8"(H)
Backplate Dimensions: 0.63"(D) x 2.5"(W) x 2.5"(L)
Item Weight: 1.93 lbs.
