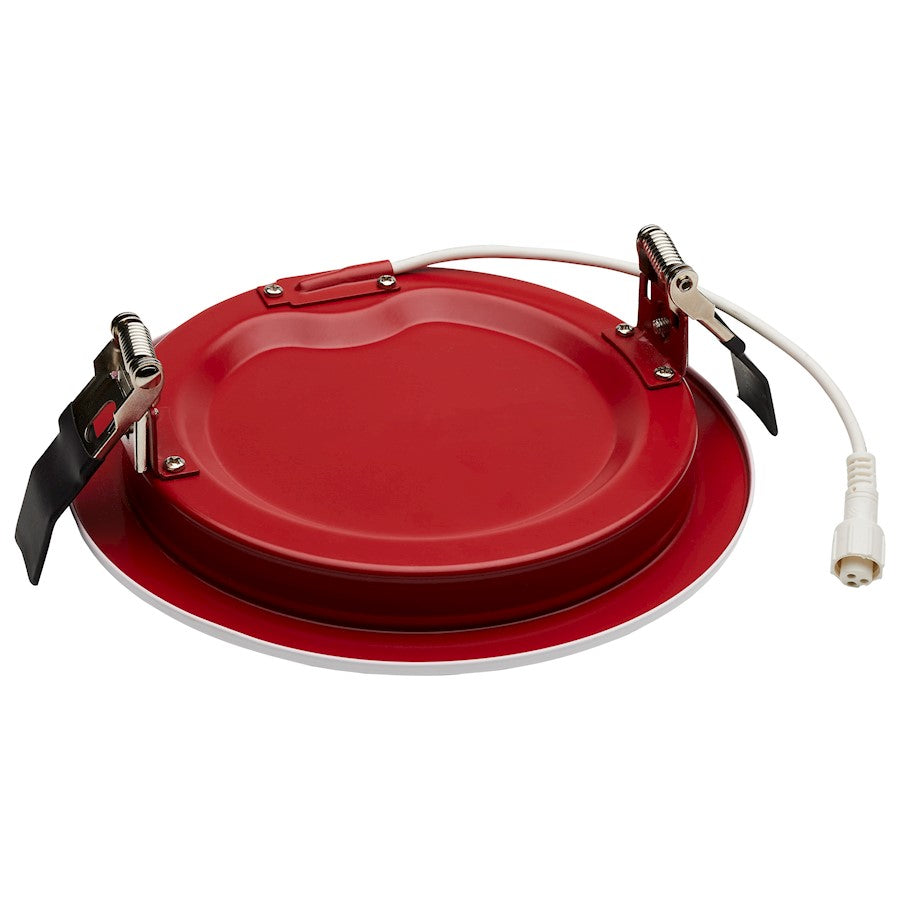

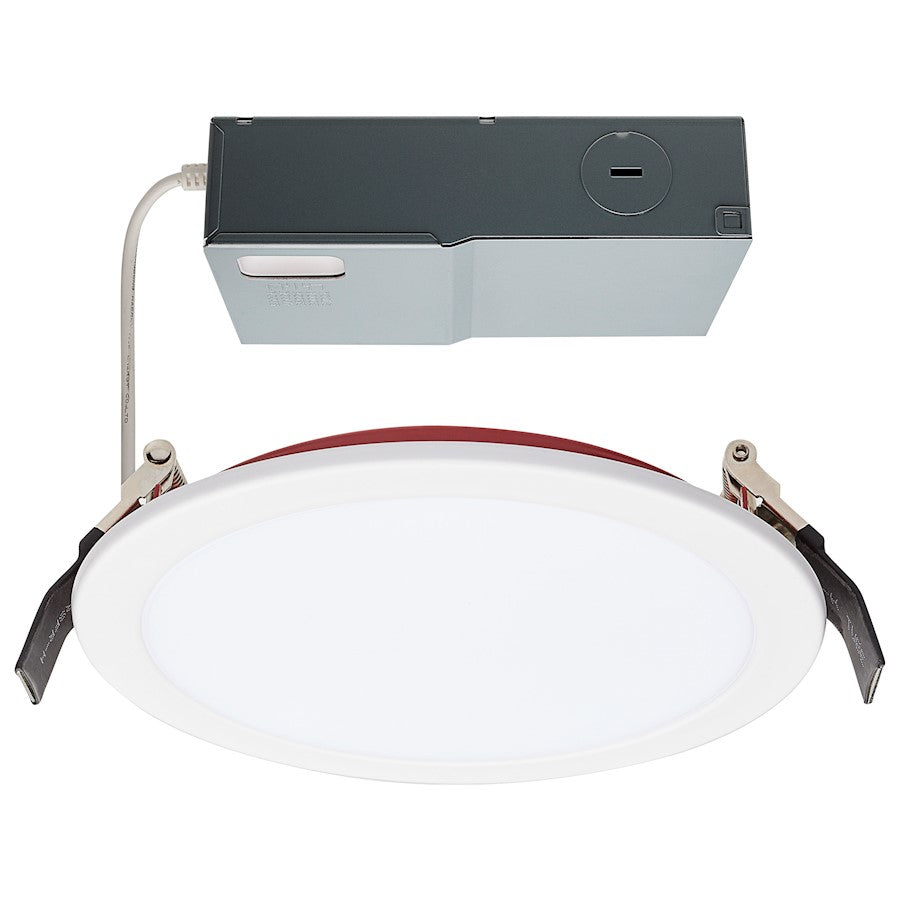

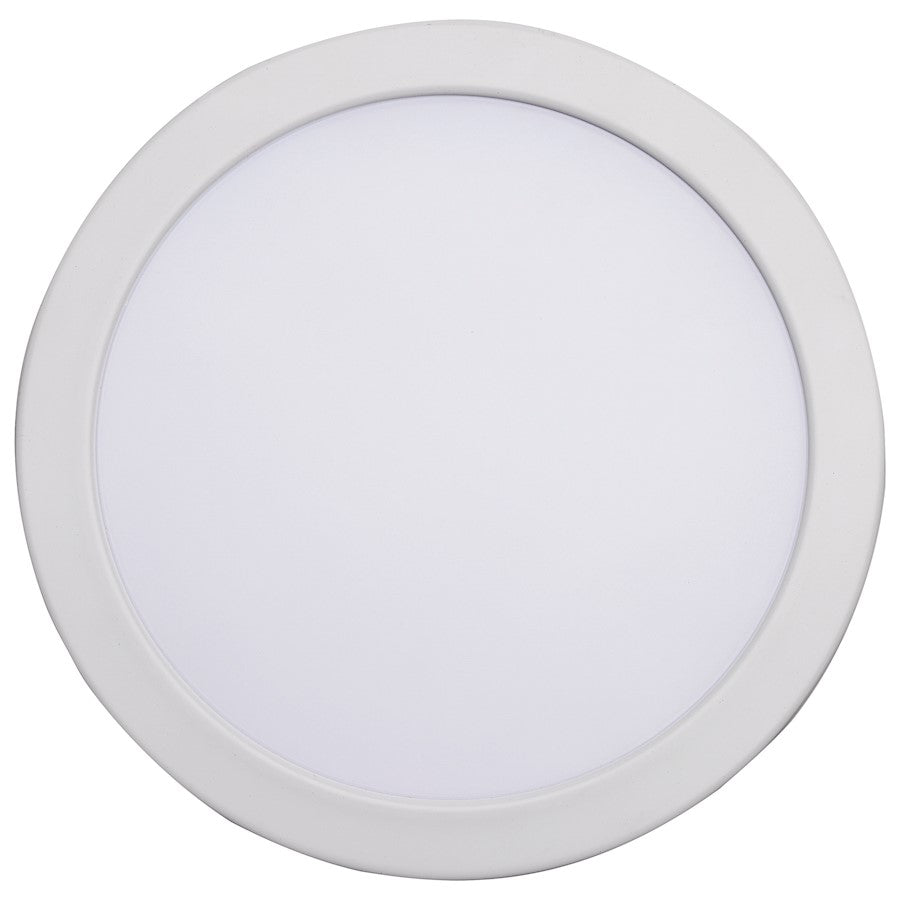

A 6-inch LED fire-rated downlight for kitchens, bathrooms, and low-clearance ceilings, finished in white with a red backplate for fire identification.
Nuvo's Dual Mode 6-inch Flat Lens Fire Rated Downlight is designed for installations with low ceiling clearance. It provides exceptional illumination and two hours of fire protection, increasing safety in residential, multifamily, and commercial applications. The white trim and red backplate make it easy to identify as a fire-rated fixture.
Best for
- Kitchens and bathrooms with low ceiling clearance where a slim profile is needed
- Residential and commercial spaces requiring fire-rated protection between floors
- New construction or retrofit installations with 120-277V wiring
- Wet locations such as showers or covered outdoor areas
- Spaces needing 0-10V dimmable LED lighting for energy efficiency
Not ideal for
- Spaces with ceilings over 8 ft where a deeper housing might be preferred for better light distribution
- Applications requiring a decorative trim or adjustable gimbal
How bright is it?
1050 lumens - about as bright as a 75W incandescent bulb, suitable for general room lighting in kitchens, bathrooms, and hallways. It provides ample illumination for task areas but may be supplemented with additional fixtures in larger rooms.
Light color and feel
Color temperature not specified by manufacturer; typical for this type is 3000K-4000K. The fixture is dimmable with 0-10V dimming for adjustable ambiance. CRI not specified.
Sizing and fit
Overall dimensions: 6.81 in wide x 0.69 in high x 6.81 in deep. Designed for 6-inch cutouts. The ultra-slim profile (0.69 in) fits low-clearance ceilings. IC rated for direct contact with insulation.
Specifications
- Finish: White and Red
- Style: Specialty
- Bulb Wattage: 13W
- Bulb Average Hours: 50000
- Bulb Lumens: 1050L
- Voltage: 120V-277V
- Red painted backplate for easy identification
- IC Rated
- Dimmable: Yes
- Dimmer Type: 0-10V Dimming
- Assembly Required: Assembly Required
- For Use in Wet Locations
- Safety Rating: UL - Certified
- Warranty Info: 5 Year Limited - Fixtures
- Overall Dimensions: 6.81"(W) x 0.69"(H) x 6.81"(D)
- Item Weight: 1.55 lbs.
Frequently asked
Is the bulb included? Yes, the LED is integrated and not replaceable.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable with a 0-10V dimmer (not included).
Can I install this in a bathroom or outdoors? Yes, it is rated for wet locations.
What's the warranty? 5-year limited warranty.
Does this require a housing or junction box? It is a direct-wire fixture with a junction box included; no separate housing needed.
