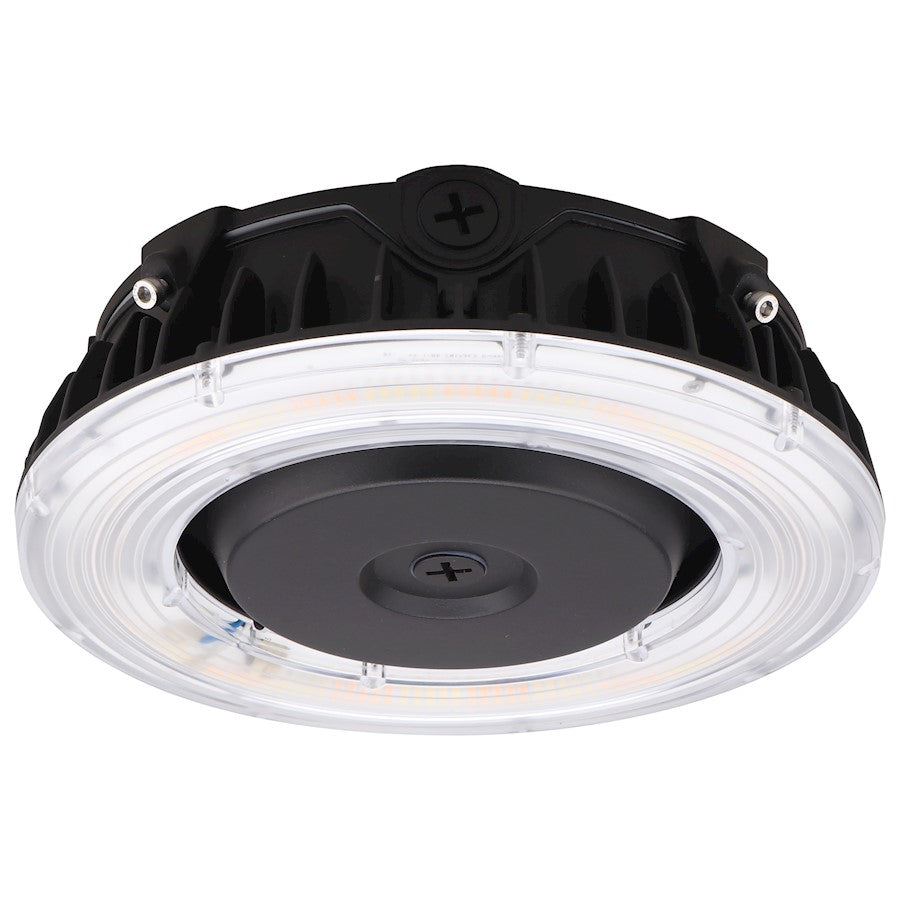

A 10-inch round LED canopy light in bronze finish, designed for outdoor wet locations like parking garages, loading docks, and covered entryways, with ColorQuick technology for easy color temperature selection.
The Nuvo Lighting 65-628R1 is a durable and versatile LED canopy light built from premium die-cast aluminum with an IK08 impact rating and 4kV surge protection. Its integrated sensor port allows for easy addition of microwave or PIR motion sensors. With an efficacy of up to 151 lumens per watt and ColorQuick technology, you can select your preferred color temperature on the fly. This fixture is wet location rated and dimmable via 0-10V dimming, making it a robust choice for demanding outdoor environments.
Best for
- Outdoor covered areas such as entryways, patios, and carports requiring wet location rated lighting
- Parking garages and loading docks needing durable, impact-resistant fixtures with high lumen output
- Commercial or residential spaces where adjustable color temperature (ColorQuick) is desired
- Areas requiring motion sensor integration via the built-in sensor port
- Energy-efficient replacements for older canopy lights, with 55W LED consuming less power than traditional fixtures
Not ideal for
- Indoor-only applications where a decorative flush mount is preferred over a utility-style canopy
- Spaces requiring a dimmer that is not 0-10V compatible
- Low-ceiling areas under 8 ft where the 3.15-inch height may still be acceptable, but the utility aesthetic may not suit
How bright is it?
This fixture delivers up to 8,284 lumens (depending on color temperature setting), which is comparable to a 400W halogen floodlight. It is extremely bright, suitable for illuminating large outdoor areas, parking lots, or loading docks. For reference, a typical 60W incandescent bulb produces about 800 lumens.
Light color and feel
With ColorQuick technology, you can select from multiple color temperatures (likely 3000K, 4000K, 5000K) to achieve warm white, neutral white, or cool daylight. The 0-10V dimming allows smooth adjustment from 100% to 10% brightness. CRI is not specified but typical for commercial LED fixtures is 80+.
Sizing and fit
The fixture measures 10.04 inches in diameter and 3.15 inches in height, with a weight of 4.41 lbs. It is designed for surface mounting on junction boxes and is suitable for ceilings as low as 8 ft. The round shape and compact profile make it unobtrusive while providing broad light distribution.
Specifications
- Finish: Bronze
- Style: Utility
- Bulb Wattage: 55W
- Bulb Average Hours: 50000
- Bulb Lumens: 7733L/8284L/8072L
- Voltage: 120V-277V
- Bronze Finish
- Sensors: Optional Add-On
- Dimmable: Yes
- Dimmer Type: 0-10V Dimming
- Assembly Required: Assembly Required
- For Use in Wet Locations
- Safety Rating: CULUS - Listed
- Warranty Info: 5 Year Limited - Fixtures
- Overall Dimensions: 10.04"(W) x 3.15"(H) x 10.04"(D)
- Item Weight: 4.41 lbs.
Frequently asked
Is the bulb included? Yes, the LED is integrated and not replaceable.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable using a 0-10V dimmer (not included).
Can I install this in a bathroom or outdoors? Yes, it is wet location rated, suitable for outdoor and damp indoor areas.
What's the warranty? 5-year limited warranty on the fixture.
How does the ColorQuick technology work? It allows you to select the color temperature (e.g., 3000K, 4000K, 5000K) via a switch on the fixture, without needing different bulbs.
