A 6-inch square LED downlight with emergency battery backup for commercial remodel and new construction, featuring field-selectable wattage and color temperature.

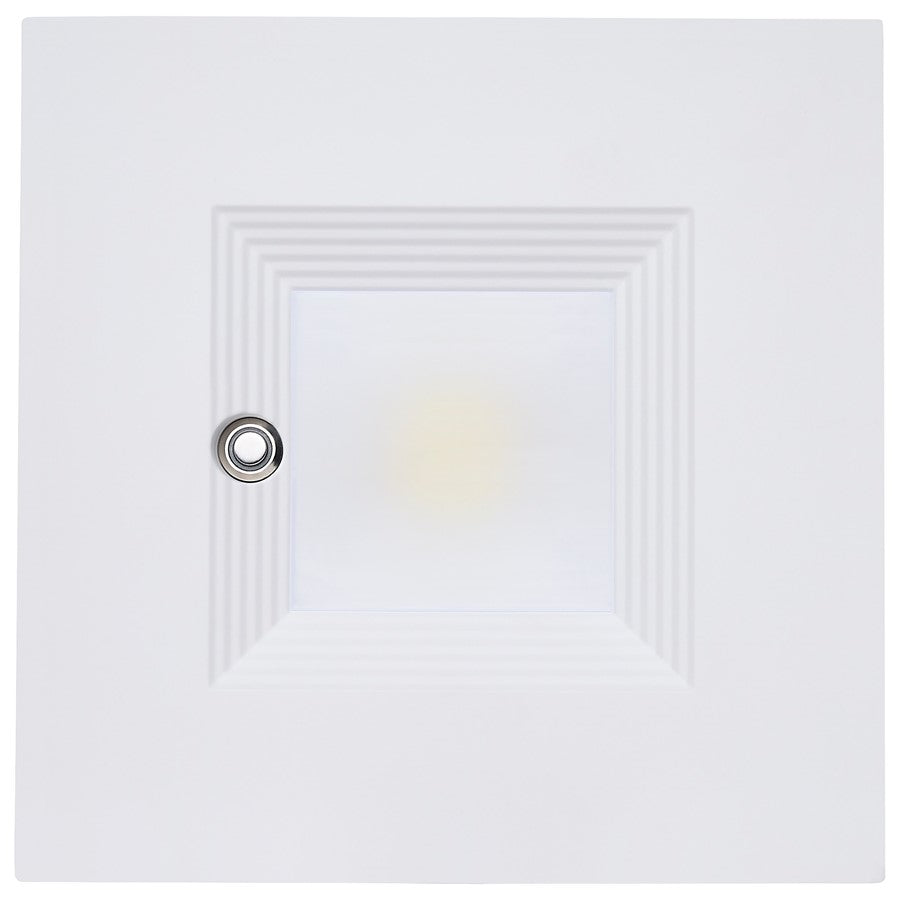

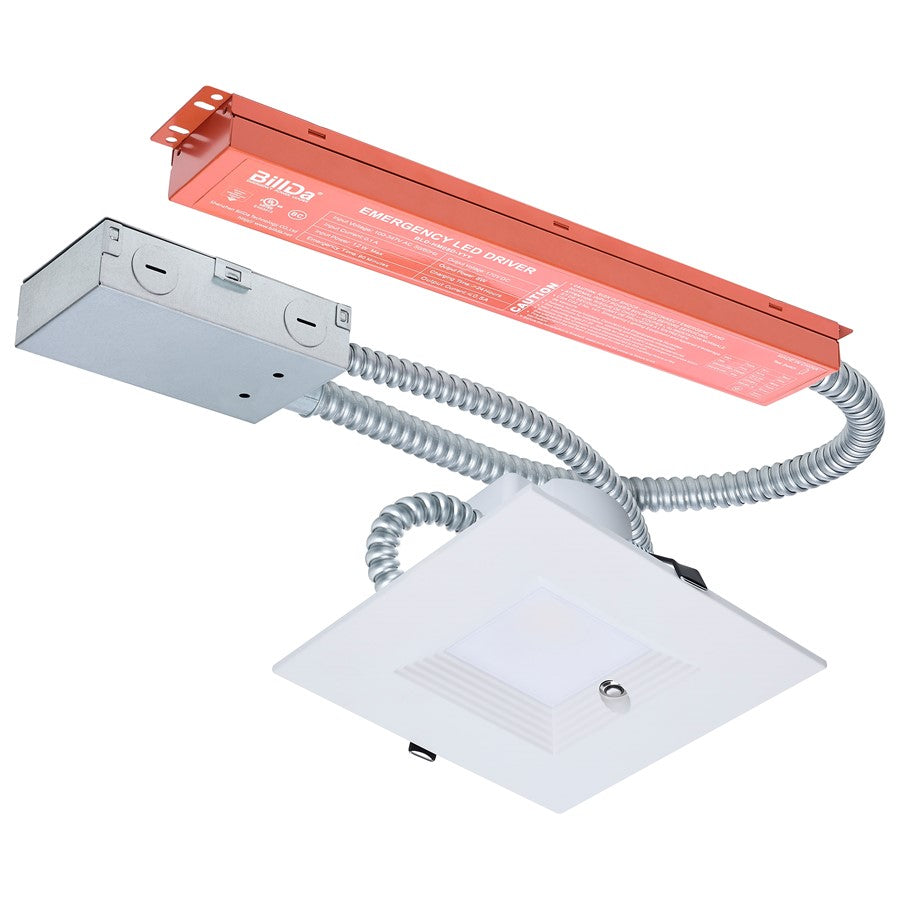

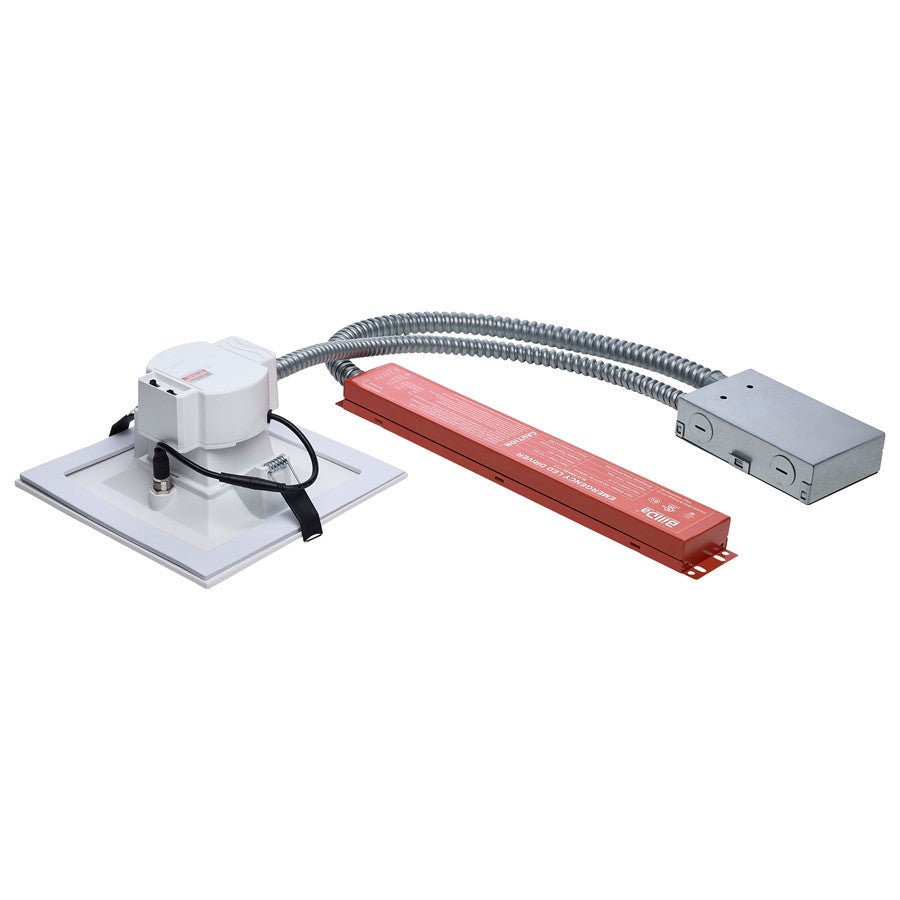

The Nuvo Satco Plus Series S21613 is a versatile commercial downlight designed for both remodel and new construction applications. Its white painted aluminum regressed baffle and frosted lens reduce glare while providing comfortable illumination. With field-selectable wattage (20.5W/18.2W/16.3W) and five color temperatures (2700K-5000K), this fixture adapts to various lighting needs. The integrated emergency battery backup with self-diagnostic functionality ensures 90 minutes of runtime during power outages.
Best for
- Commercial offices, hallways, and open-plan workspaces requiring emergency lighting compliance
- Retail stores and showrooms needing adjustable brightness and color temperature for product displays
- Educational facilities and healthcare settings where 90+ CRI and dimming are important
- New construction or retrofit projects with 120V-347V electrical systems
- Damp-rated locations such as covered entryways or laundry rooms
Not ideal for
- Residential living rooms or bedrooms where a decorative fixture is preferred over a utilitarian downlight
- Wet locations (showers, outdoor uncovered areas) - rated for damp locations only
- Spaces with ceilings under 8 feet if glare from the regressed baffle is a concern
How bright is it?
2200 lumens at 20.5W - comparable to a 150W incandescent bulb, suitable for general ambient lighting in medium to large rooms. Lower settings (1800L and 1400L) provide flexibility for task or accent lighting.
Light color and feel
Field-selectable from 2700K (warm white) to 5000K (daylight). 2700K-3000K offers a cozy, incandescent-like glow; 3500K-4000K is neutral and crisp for workspaces; 5000K simulates daylight for high-alert environments. With 90+ CRI, colors appear vivid and accurate.
Sizing and fit
Overall dimensions: 7.4 x 7.4 x 3.43 inches. Fits standard 6-inch square openings. The 18-inch electrical whip provides flexibility for junction box placement. Suitable for ceilings with standard joist spacing.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 2700K/3000K/3500K/4000K/5000K
- Bulb Wattage: 20.5W/18.2W/16.3W
- Bulb Average Hours: 50000
- Bulb Lumens: 2200L/1800L/1400L
- Lamp Shape: Integrated LED
- Bulb CRI: 90+
- Voltage: 120V-347V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Color Temperature: Warm White to Natural Light
- Field Selectable - 5 CCT and 3 Wattage
- 6-Inch Square, Emergency Battery Backup Model
- Dual Dimming
- Regress Baffle Design for Reduced Glare
- 18 Inch Electrical Whip
- EM Model includes self-diagnostic emergency feature
- Dimmable: True
- Driver Included: Yes
- Assembly Required: Yes
- Safety Rating: CETLUS Listed
- For Use in Damp Locations
- Warranty Info: 5-Years
- Overall Dimensions: 7.4"(D) x 7.4"(W) x 3.43"(H)
- Item Weight: 3.3 lbs.
Frequently asked
Is the bulb included? Yes, the LED is integrated and not replaceable.
Is it dimmable, and what dimmer should I use? Yes, it is dual dimmable. Use a compatible LED dimmer (e.g., Lutron or Leviton).
Can I install this in a bathroom or outdoors? It is rated for damp locations, so it can be used in bathrooms (not directly in shower spray) or covered outdoor areas.
What's the warranty? 5-year warranty.
How does the emergency battery backup work? The integrated lithium-ion battery provides 90 minutes of emergency runtime. The self-diagnostic feature automatically tests the battery and indicator light.
