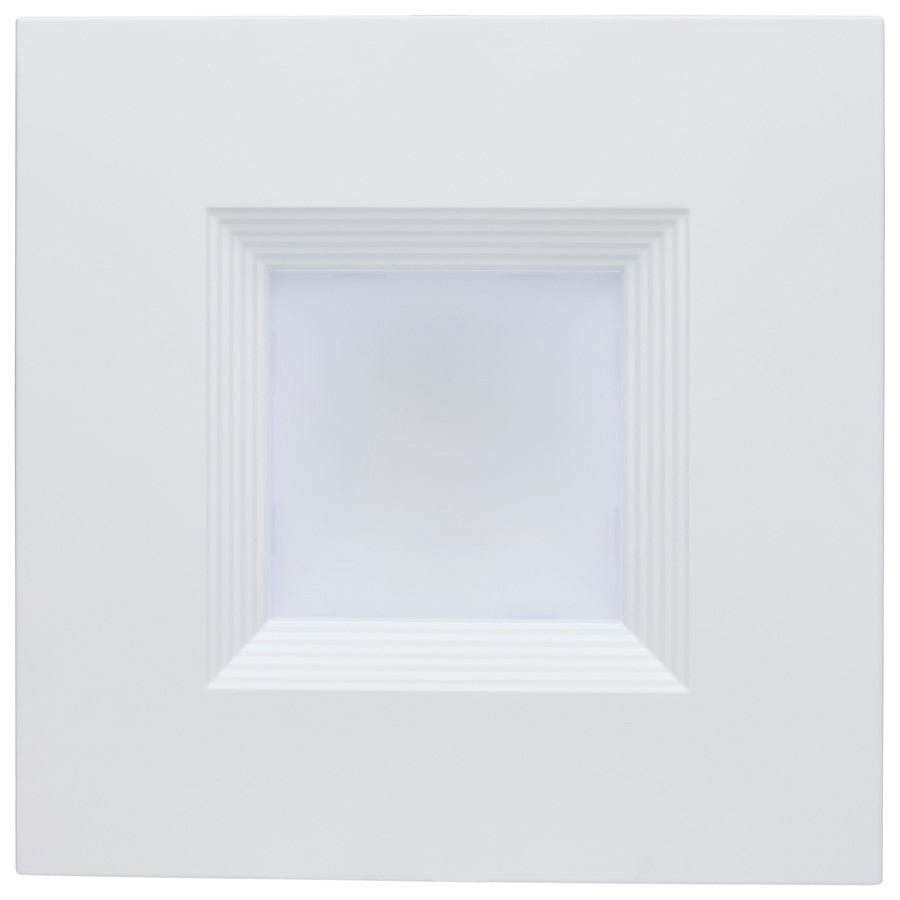

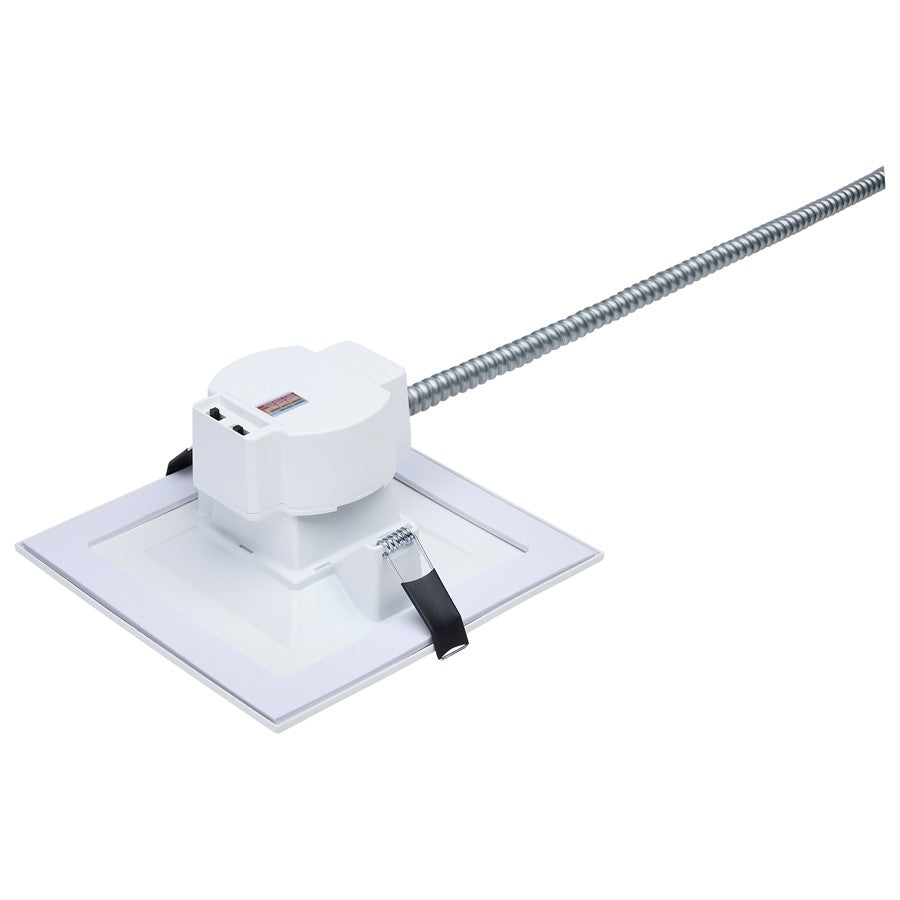

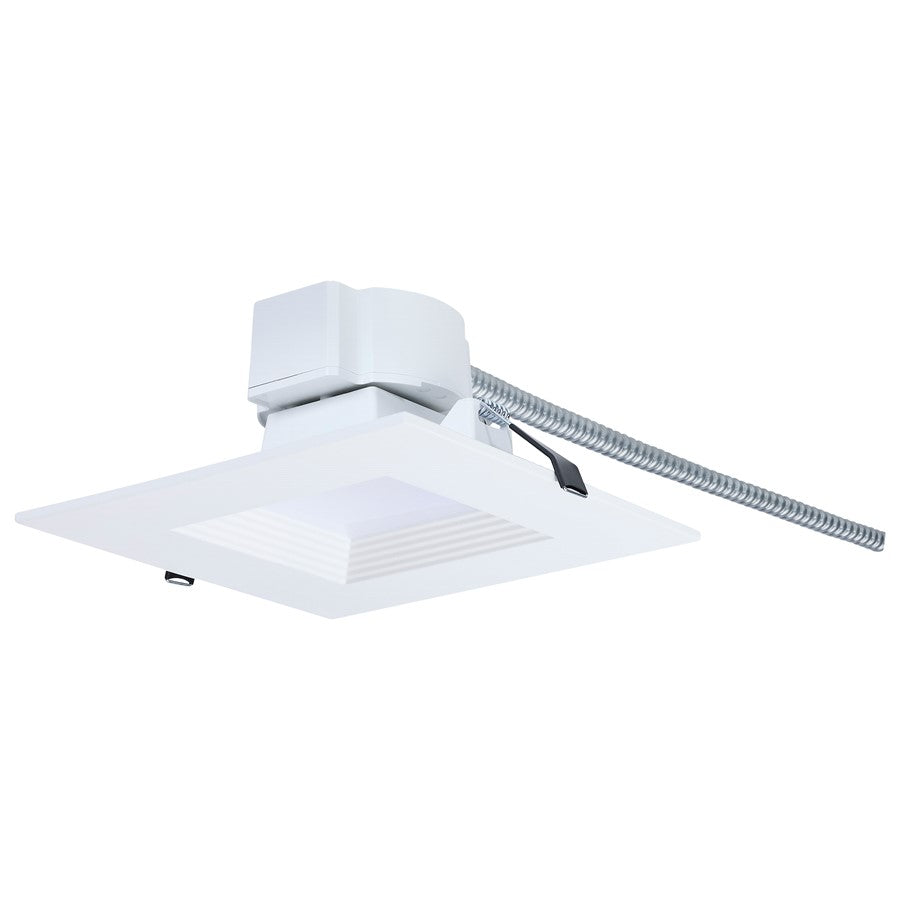

A 6-inch square LED downlight for commercial remodels and new construction, featuring field-selectable wattage and color temperature in a white finish.
Nuvo Lighting's Satco Plus Series delivers exceptional performance and versatility for today's commercial environments. This 6-inch square fixture features field-selectable wattage (18.5W/15.7W/13.2W) and CCT (2700K-5000K), 90 CRI illumination, and dual dimming for optimal flexibility. The white-painted aluminum regressed baffle and frosted lens reduce glare for enhanced comfort.
Best for
- Commercial offices and retail spaces requiring adjustable light output and color temperature
- Remodel projects where a square downlight with a clean, modern look is desired
- Damp locations such as covered patios or bathrooms (non-shower)
- New construction with 120-347V electrical systems
- Spaces needing high color rendering (90+ CRI) for accurate color perception
Not ideal for
- Wet locations or direct shower exposure - damp-rated only
- Residential rooms with low ceilings under 8 ft - the 3.43-inch height may protrude
- Applications requiring a round downlight - this is a square model
How bright is it?
Up to 2200 lumens at the highest wattage setting - comparable to a 150W incandescent bulb, suitable for general ambient lighting in commercial spaces. At the lowest setting (1400 lumens), it's similar to a 100W incandescent, ideal for accent or task lighting.
Light color and feel
Field-selectable from 2700K warm white to 5000K natural light. 2700K provides a warm, cozy glow; 3000K is a neutral warm white; 3500K is a balanced white; 4000K is a cool white; 5000K mimics daylight. With 90+ CRI, colors appear vibrant and accurate.
Sizing and fit
Overall dimensions: 7.4 in (D) x 7.4 in (W) x 3.43 in (H). Designed for 6-inch square openings. The regressed baffle reduces glare and fits seamlessly into standard grid ceilings or drywall.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 2700K/3000K/3500K/4000K/5000K
- Bulb Wattage: 18.5W/15.7W/13.2W
- Bulb Average Hours: 50000
- Bulb Lumens: 2200L/1800L/1400L
- Lamp Shape: Integrated LED
- Bulb CRI: 90+
- Voltage: 120V-347V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Color Temperature: Warm White to Natural Light
- Field Selectable - 5 CCT and 3 Wattage
- 6-Inch Square, Standard Model
- Dual Dimming
- Regress Baffle Design for Reduced Glare
- 18 Inch Electrical Whip
- Integrated LED Driver
- Dimmable: True
- Driver Included: Yes
- Assembly Required: Yes
- Safety Rating: CETLUS Listed
- For Use in Damp Locations
- Warranty Info: 5-Years
Frequently asked
Is the bulb included? Yes, the LED is integrated and included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable with dual dimming capability. Use a compatible LED dimmer; consult manufacturer guidelines.
Can I install this in a bathroom or outdoors? It is rated for damp locations, so it can be used in bathrooms (not in direct shower spray) or covered outdoor areas.
What's the warranty? 5-year warranty.
How do I select the wattage and color temperature? The fixture has field-selectable switches on the driver, allowing you to choose between 3 wattage and 5 CCT settings before installation.
