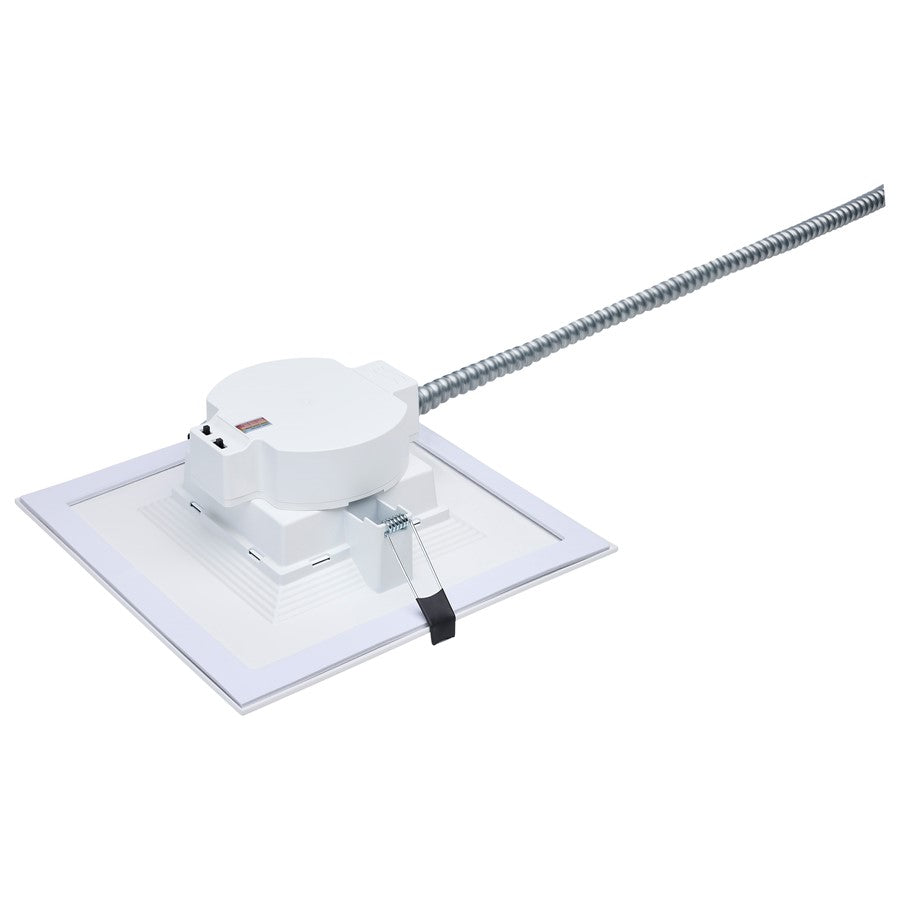

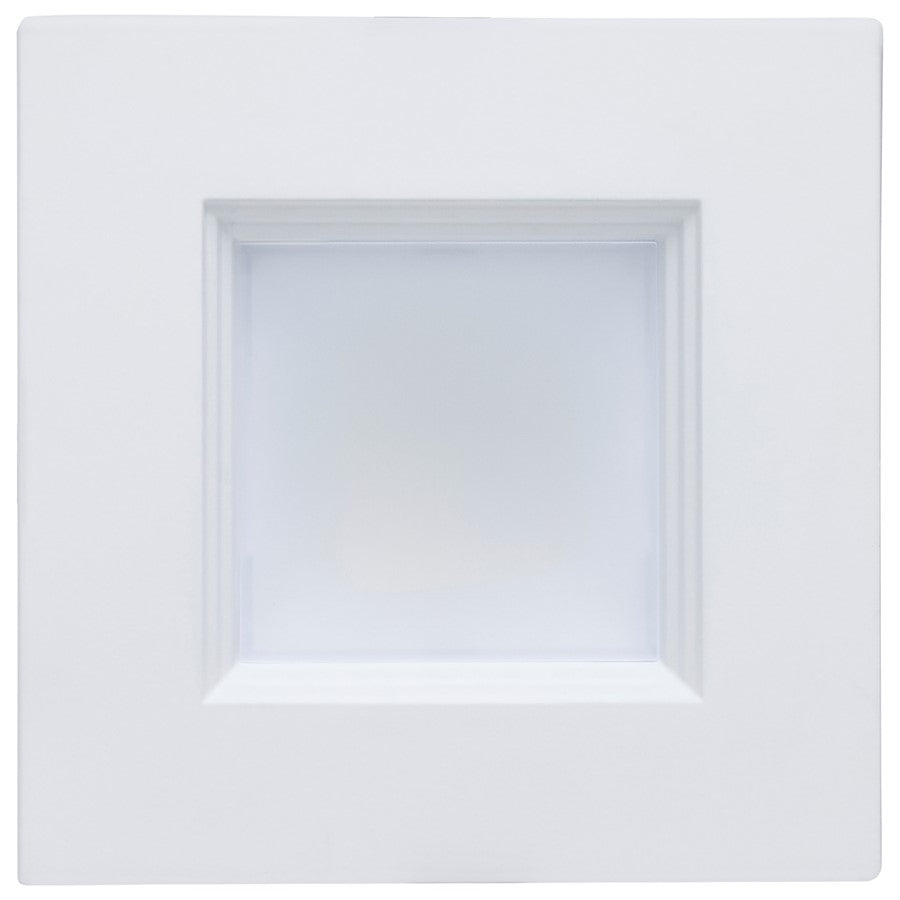

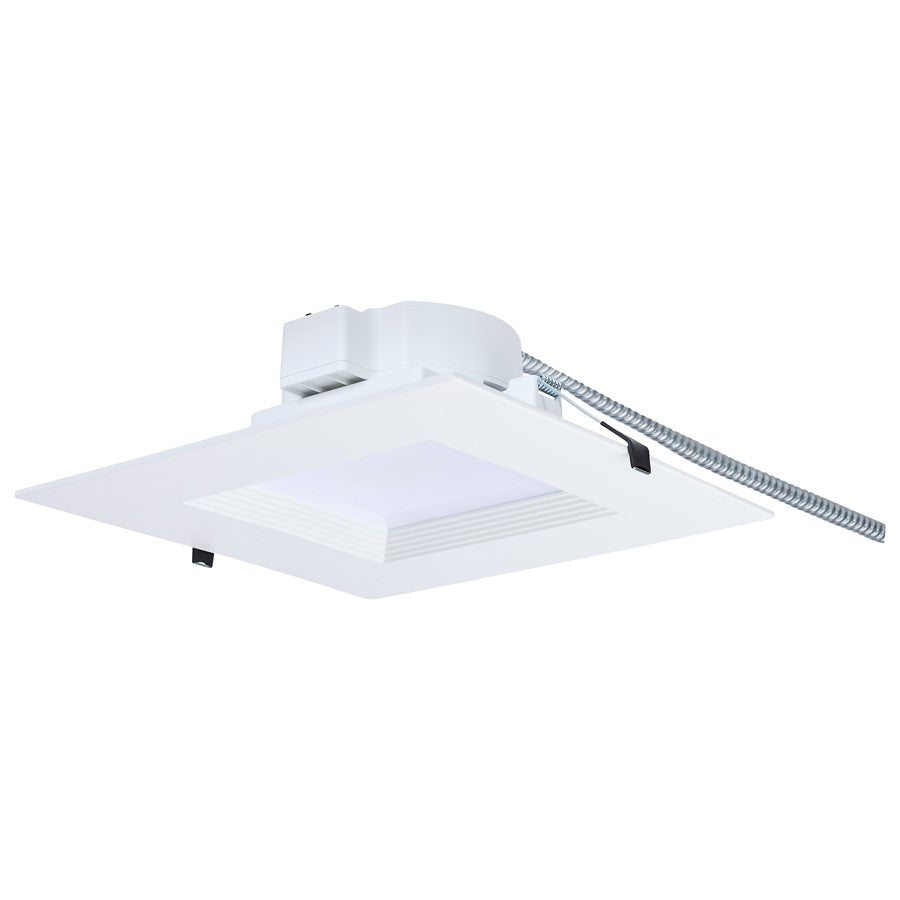

A 10-inch square LED downlight for commercial and remodel recessed lighting, featuring field-selectable wattage and color temperature in a white aluminum regressed baffle design.
Nuvo Lighting's Satco Plus Series delivers exceptional performance and versatility for today's remodel or new construction commercial environments. This 10-inch square fixture features field-selectable wattage (35W/29W/24W) and CCT (2700K-5000K) settings, 90+ CRI illumination, and dual dimming for optimal flexibility. The white-painted aluminum regressed baffle and frosted lens reduce glare and enhance comfort. Field-installable trim accessories are available in black, bronze, or silver.
Best for
- Commercial offices and retail spaces needing adjustable brightness and color temperature
- Kitchens and bathrooms in damp locations (CETLus listed for damp locations)
- New construction or remodel projects requiring a square downlight with integrated LED
- Spaces where high color rendering (90+ CRI) is important, such as art studios or showrooms
- Areas with 120-277V electrical systems, suitable for both low and high voltage
Not ideal for
- Wet locations such as outdoor uncovered areas or shower interiors (damp location rated only)
- Spaces requiring a round downlight or smaller aperture (this is a 10-inch square)
- Applications where a non-dimmable fixture is preferred (this is dual dimming capable)
How bright is it?
Selectable output: 3200 lumens (24W), 3700 lumens (29W), or 4200 lumens (35W). At the highest setting, 4200 lumens is comparable to a 300W incandescent bulb, suitable for primary lighting in medium to large rooms. The lowest setting (3200 lumens) is similar to a 200W incandescent, ideal for accent or task lighting.
Light color and feel
Field-selectable color temperature from 2700K (warm white, soft golden tone) to 5000K (daylight, crisp and energizing). With 90+ CRI, colors appear vibrant and accurate, making it ideal for retail displays or art. Dual dimming allows smooth adjustment from bright to subtle ambiance.
Sizing and fit
Overall dimensions: 11.26 x 11.26 x 3.61 inches. Fits standard 10-inch square grid ceilings or remodel housings. The 18-inch electrical whip provides flexible connection. Suitable for ceilings with standard joist spacing.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 2700K/3000K/3500K/4000K/5000K
- Bulb Wattage: 35W/29W/24W
- Bulb Average Hours: 50000
- Bulb Lumens: 4200L/3700L/3200L
- Lamp Shape: Integrated LED
- Bulb CRI: 90+
- Voltage: 120V-277V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Color Temperature: Warm White to Natural Light
- Field Selectable - 5 CCT and 3 Wattage
- 10-Inch Square, Standard Model
- Dual Dimming
- Regress Baffle Design for Reduced Glare
- 18 Inch Electrical Whip
- Integrated LED Driver
- Dimmable: True
- Driver Included: Yes
- Assembly Required: Yes
- Safety Rating: CETLUS Listed
- For Use in Damp Locations
- Warranty Info: 5-Years
- Overall Dimensions: 11.26"(D) x 11.26"(W) x 3.61"(H)
- Item Weight: 2.33 lbs.
Frequently asked
Is the bulb included? Yes, the LED is integrated and included.
Is it dimmable, and what dimmer should I use? Yes, it features dual dimming. Use a compatible LED dimmer for best performance.
Can I install this in a bathroom or outdoors? It is rated for damp locations, so it can be used in bathrooms (not directly in shower spray) and covered outdoor areas, but not in wet locations.
What's the warranty? 5-year warranty.
How do I select the wattage and color temperature? The fixture has field-selectable switches on the driver, allowing you to choose between 3 wattages and 5 CCTs before installation.
