A field-selectable 8-inch square LED downlight with emergency battery backup for commercial spaces, offering adjustable wattage and color temperature in a white finish.

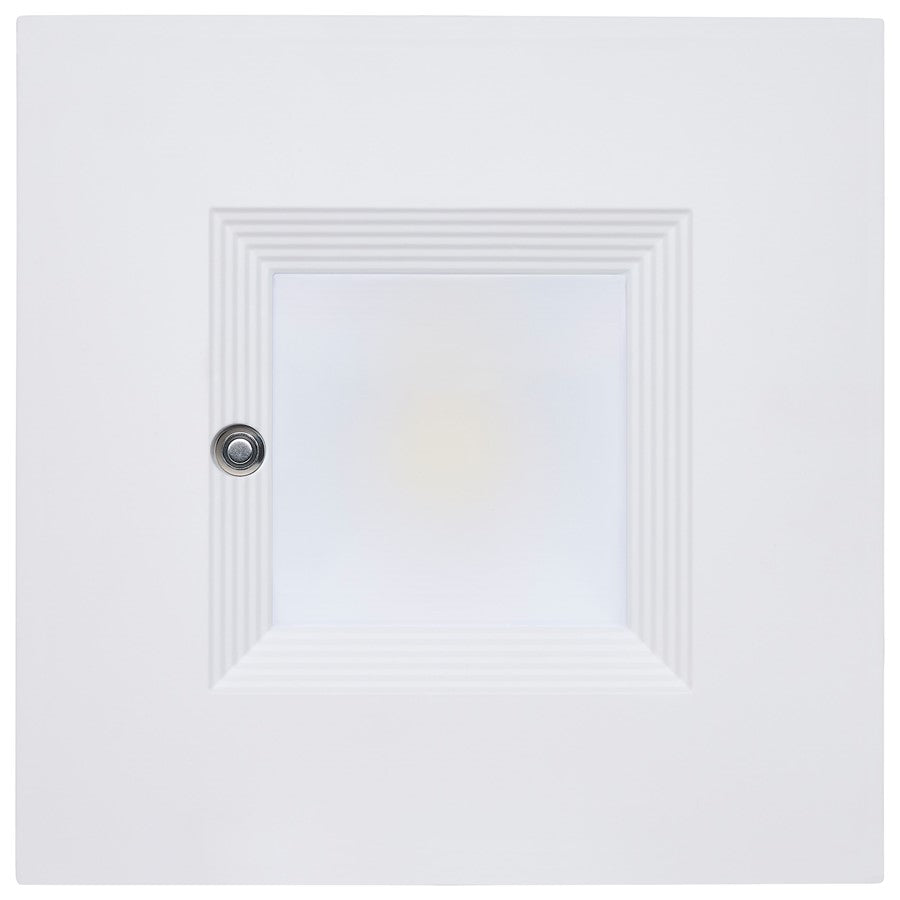

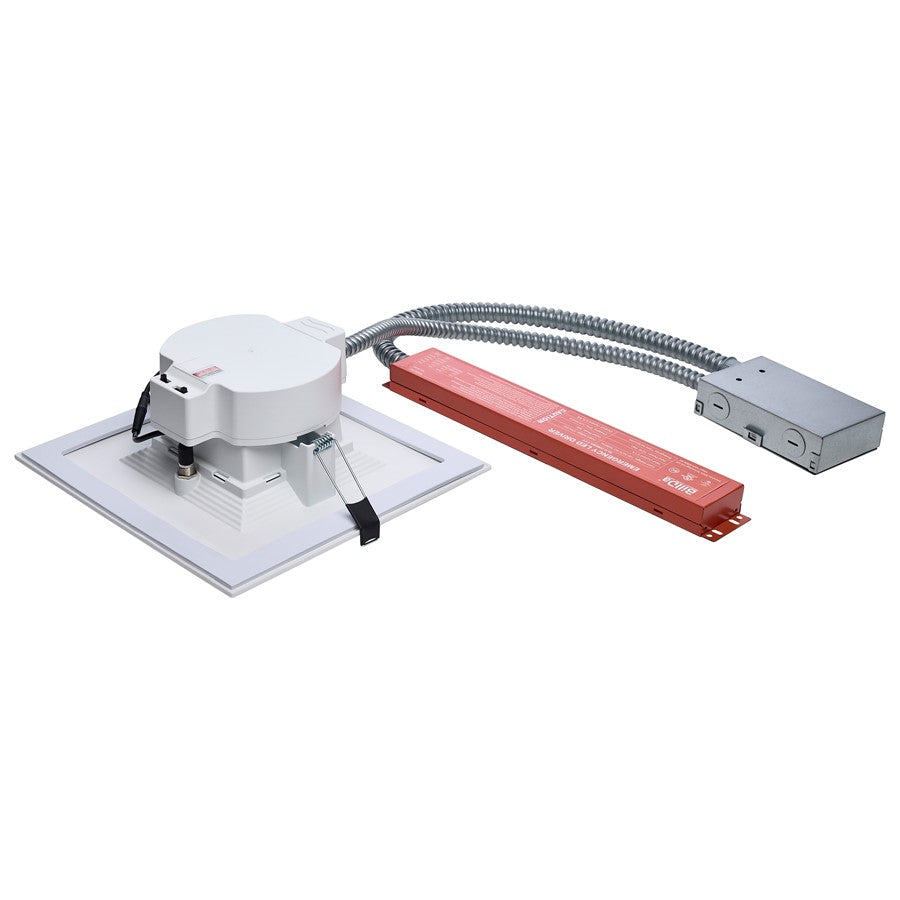

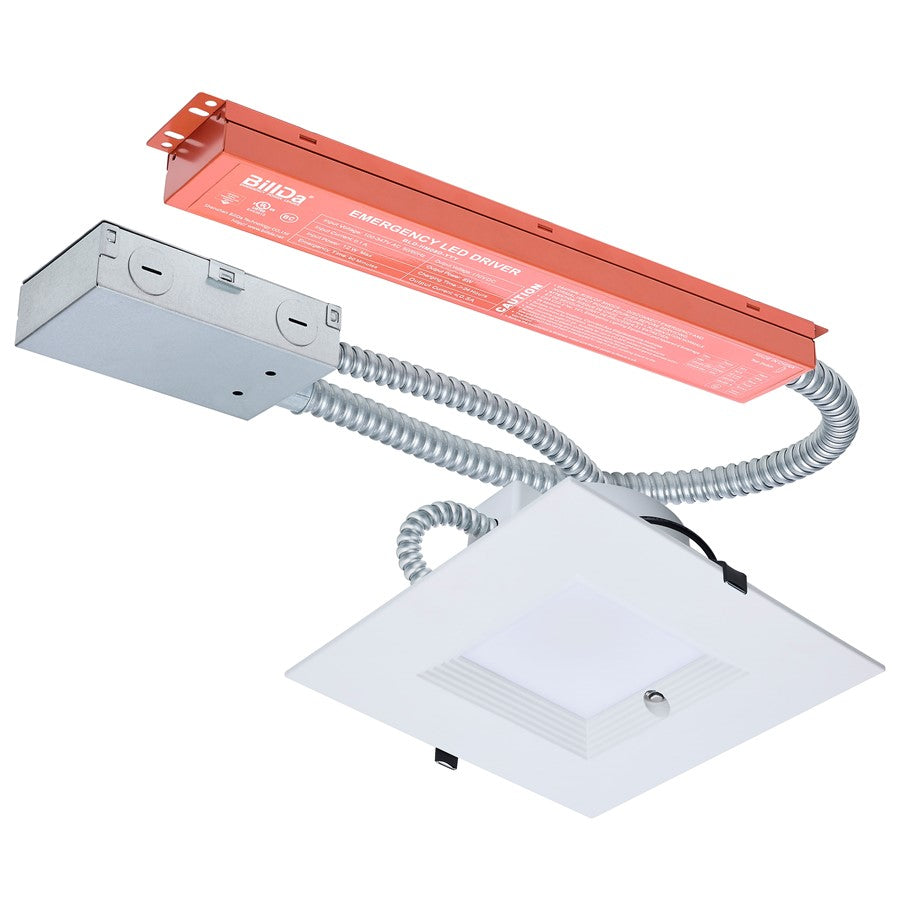

The Nuvo Lighting Satco Plus Series S21614 is a versatile commercial downlight designed for new construction or remodel projects. Featuring field-selectable wattage (20W/25W/28W) and CCT (2700K-5000K), this fixture adapts to various lighting needs. The white-painted aluminum regressed baffle and frosted lens reduce glare, while the integrated emergency battery backup provides 90 minutes of runtime. Dual dimming and 90+ CRI ensure quality illumination.
Best for
- Commercial offices and retail spaces requiring emergency lighting compliance
- Corridors, lobbies, and break rooms with 8-10 ft ceilings
- Damp locations such as covered entryways or bathrooms
- New construction or retrofit projects needing adjustable CCT and wattage
- Spaces where glare reduction is important (regressed baffle design)
Not ideal for
- Residential living rooms or bedrooms where a decorative fixture is preferred
- Outdoor wet locations (rated for damp locations only)
- Spaces with ceilings under 8 ft (fixture depth is 3.61 in)
How bright is it?
Up to 3200 lumens at 28W - comparable to a 200W incandescent bulb, suitable for general ambient lighting in medium to large rooms. Lower wattage settings (2200-2900 lumens) work for smaller areas or task lighting.
Light color and feel
Field-selectable from 2700K (warm white) to 5000K (daylight). 2700K-3000K provides a cozy, incandescent-like glow; 4000K offers neutral white for task areas; 5000K mimics natural daylight for high-viz spaces. 90+ CRI ensures accurate color rendering for retail or art displays. Dual dimming compatible with most LED dimmers.
Sizing and fit
Overall dimensions: 9.76 in (D) x 9.76 in (W) x 3.61 in (H). Fits standard 8-inch square grid or cutout. Includes 18-inch electrical whip. Suitable for ceilings 8 ft or higher.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 2700K/3000K/3500K/4000K/5000K
- Bulb Wattage: 28W/25W/20W
- Bulb Average Hours: 50000
- Bulb Lumens: 3200L/2900L/2200L
- Lamp Shape: Integrated LED
- Bulb CRI: 90+
- Voltage: 120V-347V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Color Temperature: Warm White to Natural Light
- Field Selectable - 5 CCT and 3 Wattage
- 8-Inch Square, Emergency Battery Backup Model
- Dual Dimming
- Regress Baffle Design for Reduced Glare
- 18 Inch Electrical Whip
- EM Model includes self-diagnostic emergency feature
- Dimmable: True
- Driver Included: Yes
- Assembly Required: Yes
- Safety Rating: CETLUS Listed
- For Use in Damp Locations
- Warranty Info: 5-Years
- Overall Dimensions: 9.76"(D) x 9.76"(W) x 3.61"(H)
- Item Weight: 4 lbs.
Frequently asked
Is the bulb included? Yes, integrated LED - no replacement needed.
Is it dimmable, and what dimmer should I use? Yes, dual dimming compatible with most LED dimmers (e.g., Lutron, Leviton).
Can I install this in a bathroom or outdoors? Rated for damp locations - suitable for bathrooms, covered patios, but not direct rain.
What's the warranty? 5-year limited warranty.
How do I select the wattage and CCT? Via switches on the fixture before installation - no additional tools needed.
