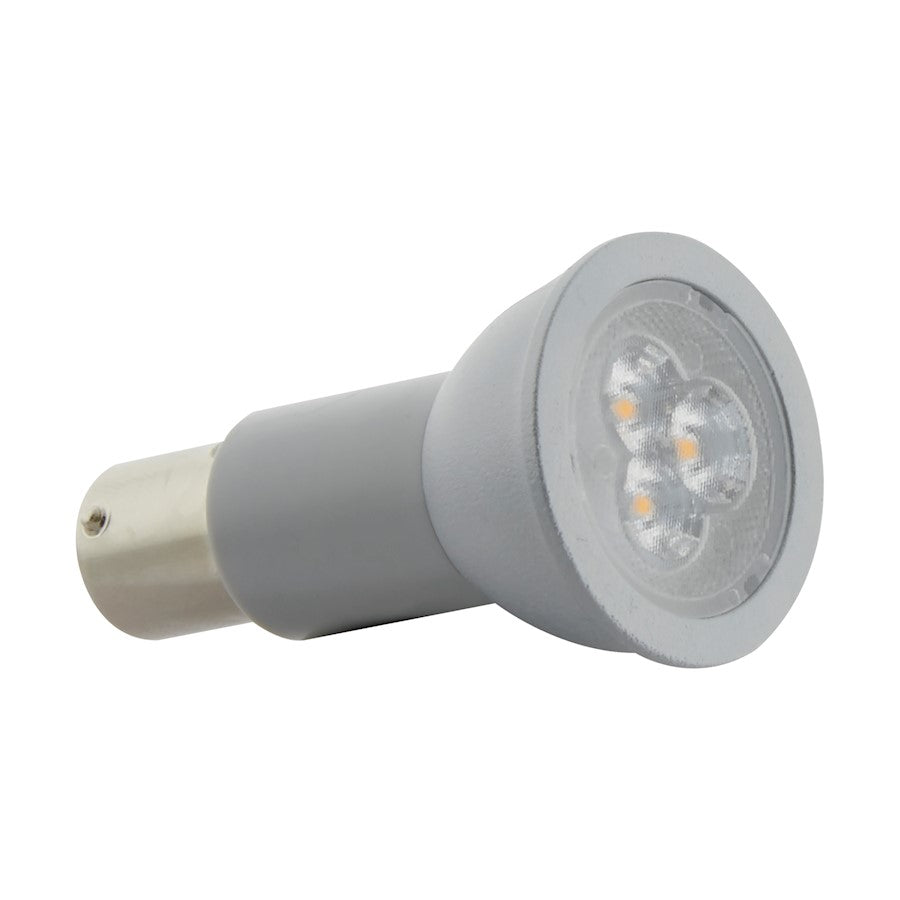

A 3-watt R12 LED replacement lamp for elevator and display case lighting, finished in gray with a BA15s bayonet single-contact base.
This Satco LED lamp is designed as a direct replacement for older halogen and HID bulbs in elevators, display cases, and other enclosed fixtures. It reduces heat buildup while cutting energy and maintenance costs. With improved thermal management and current LED technology, it delivers reliable performance in damp-rated indoor locations.
Best for
- Elevator cabs and shafts where low heat output and long life are critical
- Display cases and showcases needing a compact, directional light source
- Damp indoor locations such as covered entryways or bathroom vents
- Retrofit applications replacing 20W HID or incandescent R12 bulbs
- California-compliant installations requiring Title 20 efficiency
Not ideal for
- Outdoor exposed areas without a weatherproof fixture - damp rated only, not wet rated
- High-ceiling general room lighting - this is a specialty accent lamp, not a primary light source
- Dimmable applications - this lamp is not specified as dimmable
How bright is it?
220 lumens - about as bright as a 20W incandescent bulb, suitable for accent or task lighting in small enclosed spaces. Not intended as a primary room light.
Light color and feel
3000K warm white - a soft, golden tone similar to traditional incandescent. 80 CRI provides decent color rendering for general display use, though not ideal for color-critical applications like art galleries.
Sizing and fit
Dimensions: 1.38 inches wide by 2.5 inches tall. Fits standard R12 fixtures with a BA15s bayonet single-contact base. Compact enough for tight enclosures.
Specifications
- Finish: Gray
- Voltage: 12V
- 3W LED R12 lamp BA15s Bayonet Single Contact Base: Equivalent to 20W HID/20W Incandescent
- 80 CRI and 220 Lumens and 3000 Kelvins
- Rated for 15000 hours of use
- Damp location rated
- Lawful for sale in California
- Quantity in pack: 1
- Warranty: 3 Year Limited - 10 hr per day
- Rated for Indoor use
- Assembly Required: No
- Overall Dimensions: 1.38"(W) x 2.5"(H)
- Item Weight: 0.06 lbs.
Frequently asked
Is the bulb included? Yes, this is the bulb itself - one lamp per pack.
Is it dimmable, and what dimmer should I use? Dimmability is not specified; assume non-dimmable unless tested.
Can I install this in a bathroom or outdoors? It is damp-rated for indoor damp locations like bathrooms, but not for direct outdoor exposure.
What's the warranty? 3-year limited warranty based on 10 hours per day use.
Does this work in a 12V AC system? Yes, it is designed for 12V AC/DC systems typical in elevators and display cases.
