A 7-watt LED PLC replacement lamp for commercial and residential fixtures, ideal for upgrading old CFL installations.

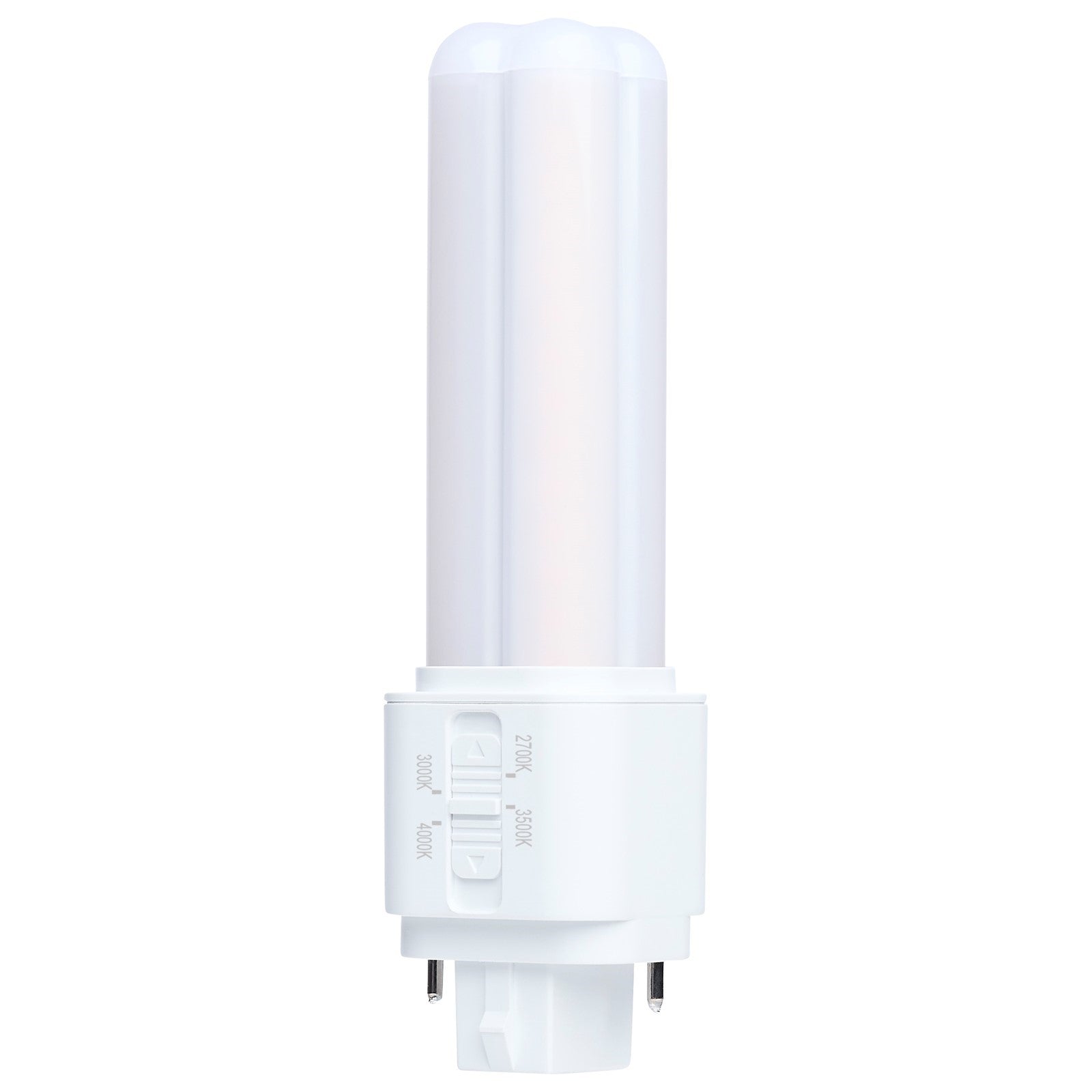

This Nuvo Lighting S29898 LED PLC lamp delivers 900 lumens of efficient light while using just 7 watts. With a GX32d base and dual-mode Type A+B operation, it works with existing ballasts or in ballast bypass applications, offering flexible installation. The selectable color temperature (2700K/3000K/3500K/4000K) lets you choose the perfect white light for your space, from warm to cool white.
Best for
- Commercial spaces like offices, retail stores, and warehouses upgrading from 22W CFL PLC lamps
- Enclosed fixtures rated for damp locations, such as bathroom vanity lights or covered outdoor sconces
- Facilities looking for a non-dimmable, energy-efficient replacement with a 50,000-hour rated life
- Applications requiring a broad voltage range (120V-277V) for compatibility with various electrical systems
- Food service areas needing NSF-rated lighting for safety and sanitation
Not ideal for
- Dimmable lighting setups - this lamp is non-dimmable and requires a standard on/off switch
- Fixtures with a GX24d or G24q base - this lamp uses a GX32d base, which is not compatible
- Spaces with limited compartment size - requires a minimum of 11.81 in length, 6.31 in width, and 2.75 in height
How bright is it?
900 lumens - about as bright as a 22W CFL or a 60W incandescent bulb. This is suitable for accent lighting or smaller spaces, such as hallways, closets, or task lighting in offices.
Light color and feel
Selectable color temperature from 2700K (warm white) to 4000K (cool white). 2700K offers a warm, cozy glow ideal for living spaces; 3000K is a soft white for bedrooms; 3500K is a neutral white for workspaces; 4000K is a cool white for task-oriented areas. With a CRI of 80+, colors appear natural and vibrant.
Sizing and fit

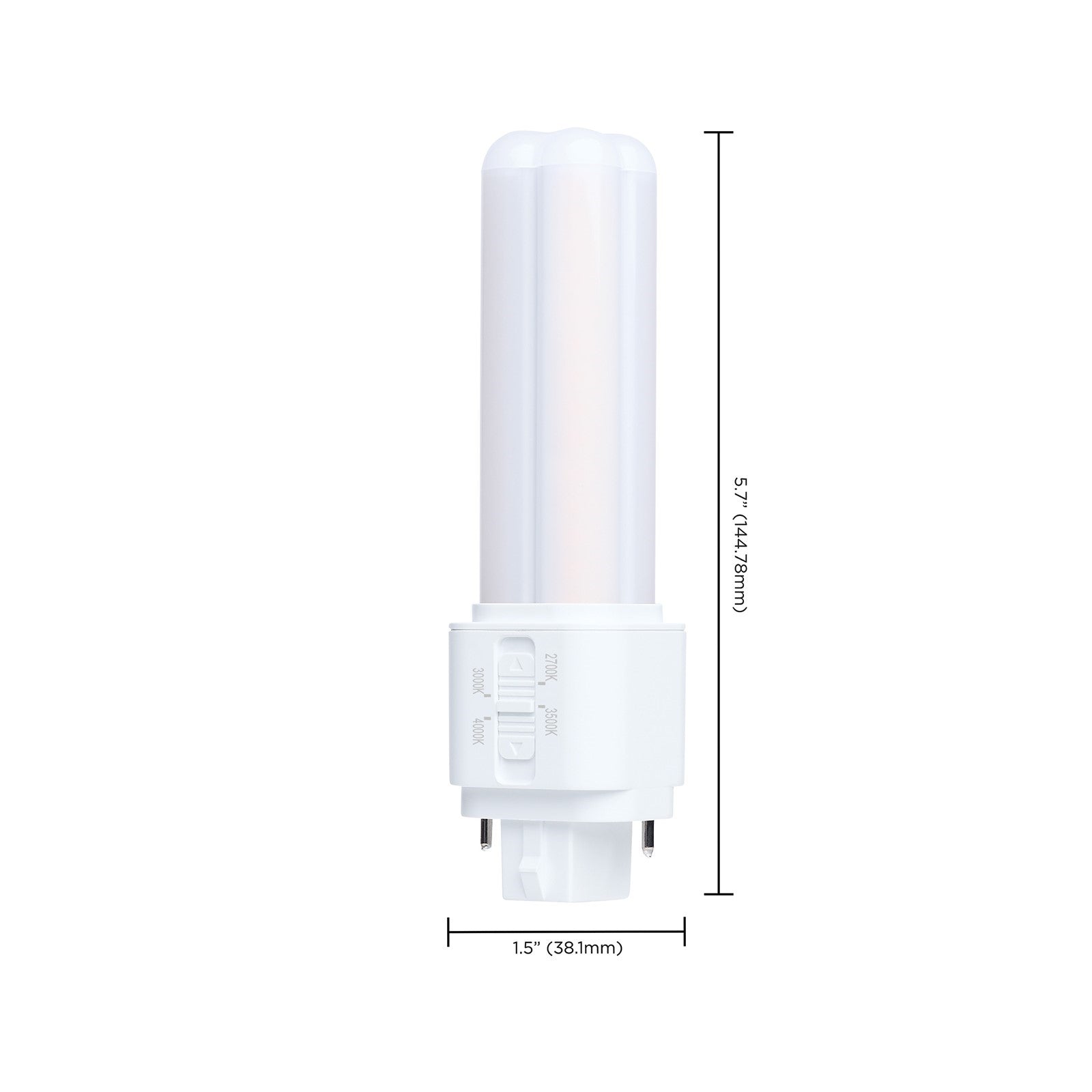

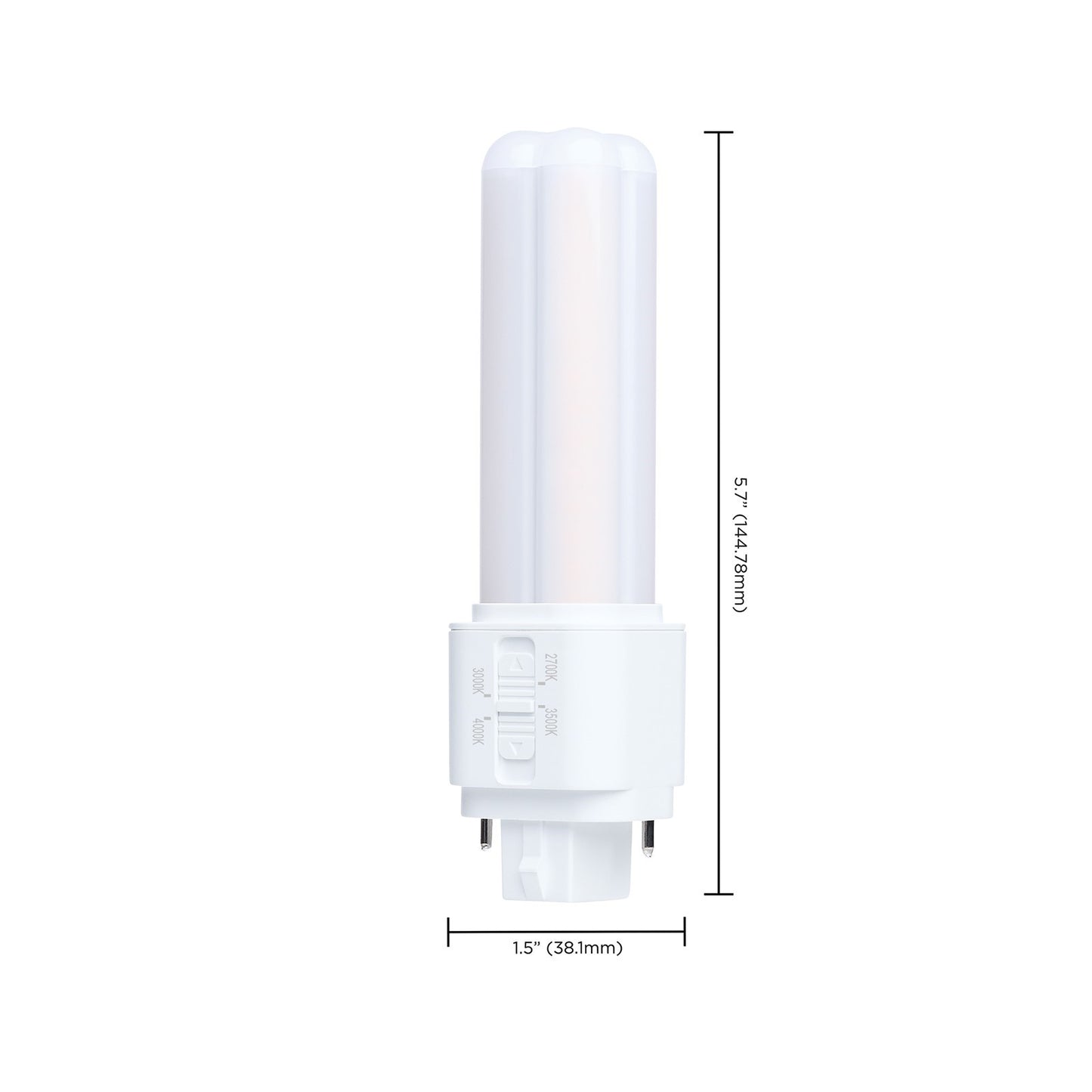

Dimensions: 5.7"(D) x 1.5"(W) x 1.5"(H). This compact PLC lamp fits most standard GX32d fixtures. Ensure your fixture's compartment meets the minimum size requirements (11.81 in L x 6.31 in W x 2.75 in H) for enclosed use.
Specifications
- Fixture Finish: White
- Bulb Wattage: 7W
- Lamp Shape: PLC
- ANSI Base: GX32d
- Lamp Base: GX32d (2-Pin)
- Ballast Type: Type A/B
- Rated for Enclosed Fixture: True
- Minimum Compartment Size: Length 11.81 in. Width 6.31 in. Height: 2.75 in.
- Dimmable: Non-Dimmable
- Voltage: 120V-277V
- Lumens: 900L
- Color Temperature: 2700K/3000K/3500K/4000K K
- Color Temperature: Warm to Cool White
- CRI: 80+
- Average Hours Rated: 50000
- CCT Selectable: True
- Operating Temperature: -4F to +113F (-20C to +45C)
- Fluorescent Equivalent: 22WW
- 7W PLC Lamp, 22W CFL Replacement
- Dual Mode: Type A+B
- CCT Selectable: 2700K/3000K/3500K/4000K
- GX32d Base
- 120V-277V Range Voltage
- Frosted Plastic Lens
- NSF Rated
- Damp Location Rated
- Rated for use in Enclosed Fixtures
- 5 Year Warranty
- Assembly Required: True
- Country of Manufacture: China
- Location Rating: Damp
- Safety Location: CULUS - Certified
- Title 20: Exempt
- CEC: Lawful for sale in California
- CA Prop 65: True
- Warranty: 5-Years
Frequently asked
Is the bulb included? Yes, this is the bulb itself.
Is it dimmable, and what dimmer should I use? No, this lamp is non-dimmable. Use with a standard on/off switch only.
Can I install this in a bathroom or outdoors? Yes, it is rated for damp locations, making it suitable for bathrooms and covered outdoor areas.
What's the warranty? 5-year warranty.
Does it work with existing ballasts? Yes, this lamp is dual-mode Type A+B, so it can work with existing ballasts or in ballast bypass applications.
