A 17-watt LED PLT replacement lamp for commercial and residential fixtures, ideal for upgrading old CFL installations.

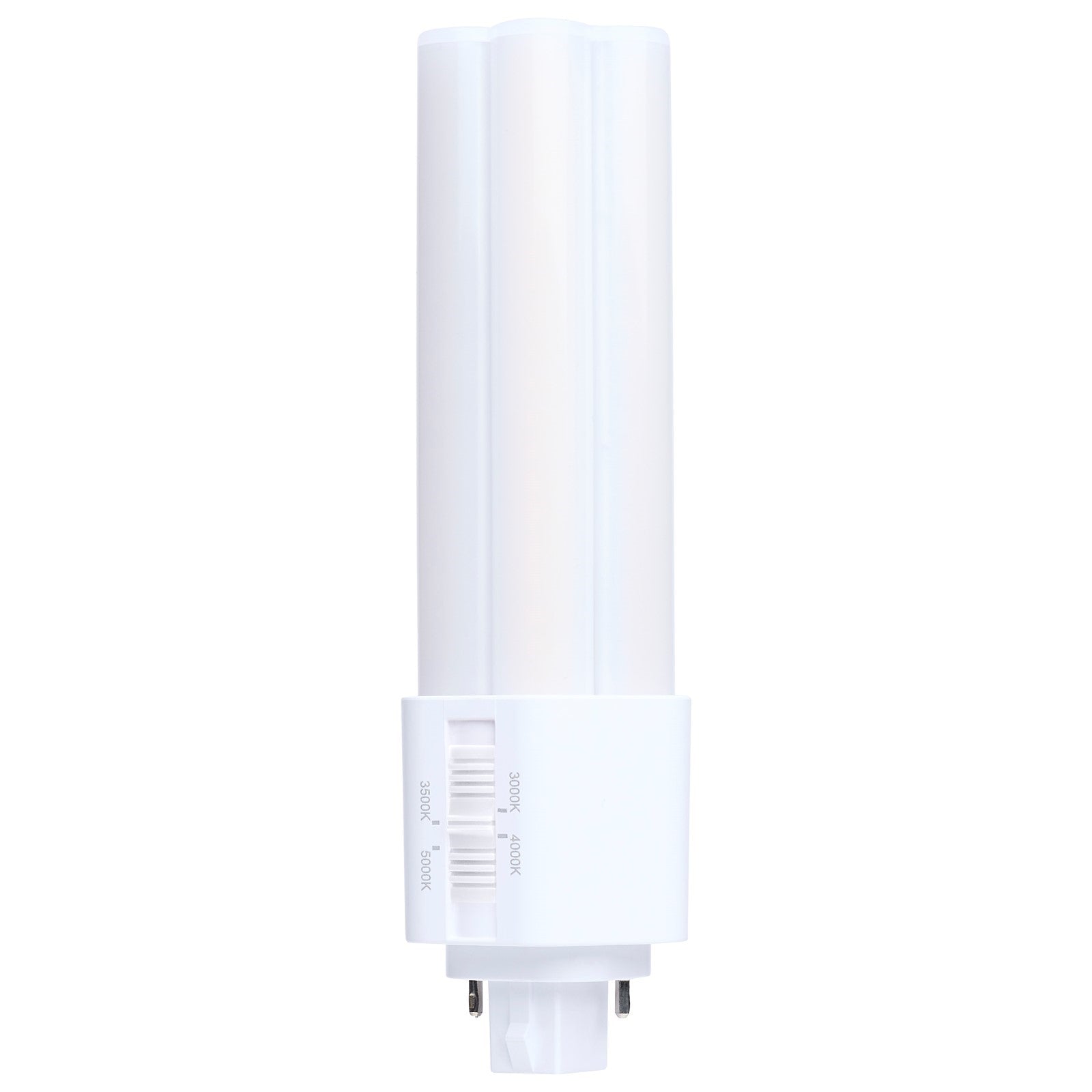

This Nuvo Lighting S29888 LED PLT lamp delivers 2500 lumens of bright, efficient light while using just 17 watts. With a GX24d base and Type B ballast bypass operation, it simplifies retrofits by working directly with line voltage. The selectable color temperature (3000K/3500K/4000K/5000K) lets you choose the perfect white light for your space, from soft warm to natural daylight.
Best for
- Commercial spaces like offices, retail stores, and warehouses upgrading from 42W CFL PLT lamps
- Enclosed fixtures rated for damp locations, such as bathroom vanity lights or covered outdoor sconces
- Facilities looking for a non-dimmable, energy-efficient replacement with a 50,000-hour rated life
- Applications requiring a broad voltage range (120V-277V) for compatibility with various electrical systems
- Food service areas needing NSF-rated lighting for safety and sanitation
Not ideal for
- Dimmable lighting setups - this lamp is non-dimmable and requires a standard on/off switch
- Fixtures with a GX24q or G24q base without checking compatibility - while listed as compatible, always verify socket fit
- Spaces with limited compartment size - requires a minimum of 11.81 in length, 6.31 in width, and 2.75 in height
How bright is it?
2500 lumens - about as bright as a 42W CFL or a 150W incandescent bulb. This is suitable for general lighting in medium to large rooms, such as open offices or kitchens, providing ample illumination for tasks and daily activities.
Light color and feel
Selectable color temperature from 3000K (soft white) to 5000K (natural daylight). 3000K offers a warm, cozy glow ideal for living spaces; 3500K is a neutral white for workspaces; 4000K is a cool white for task-oriented areas; 5000K mimics daylight for detailed work. With a CRI of 80+, colors appear natural and vibrant.
Sizing and fit

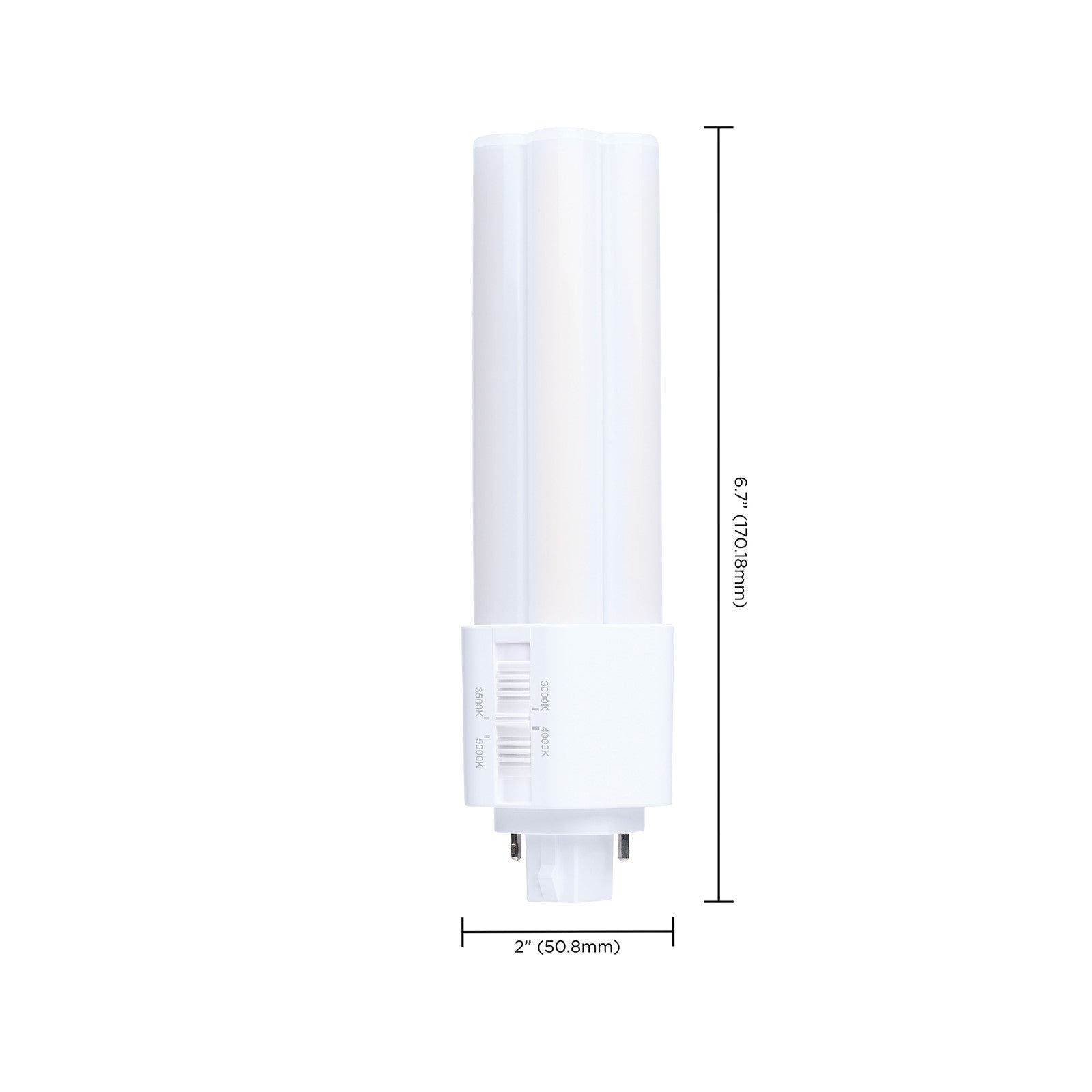

Dimensions: 6.7"(D) x 2"(W) x 2"(H). This compact PLT lamp fits most standard GX24d fixtures. Ensure your fixture's compartment meets the minimum size requirements (11.81 in L x 6.31 in W x 2.75 in H) for enclosed use.
Specifications
- Fixture Finish: White
- Bulb Wattage: 17W
- Lamp Shape: PLT
- ANSI Base: GX24d
- Lamp Base: GX24d (2-Pin)
- Ballast Type: Type B
- Rated for Enclosed Fixture: True
- Minimum Compartment Size: Length 11.81 in. Width 6.31 in. Height: 2.75 in.
- Dimmable: Non-Dimmable
- Voltage: 120V-277V
- Lumens: 2500L
- Color Temperature: 3000K/3500K/4000K/5000K K
- Color Temperature: Soft White to Natural Light
- CRI: 80+
- Average Hours Rated: 50000
- CCT Selectable: True
- Operating Temperature: -4F to +113F (-20C to +45C)
- Fluorescent Equivalent: 42WW
- 17W PLT Lamp, 42W CFL Replacement
- Ballast Bypass: Type B
- CCT Selectable: 3000K/3500K/4000K/5000K
- GX24d Base, Compatible with GX24q, G24d, G24q
- 120V-277V Range Voltage
- Frosted Plastic Lens
- NSF Rated
- Damp Location Rated
- Rated for use in Enclosed Fixtures
- 5 Year Warranty
- Assembly Required: True
- Country of Manufacture: China
- Location Rating: Damp
- Safety Location: CULUS - Certified
- Title 20: Exempt
- CEC: Lawful for sale in California
- CA Prop 65: True
- Warranty: 5-Years
Frequently asked
Is the bulb included? Yes, this is the bulb itself.
Is it dimmable, and what dimmer should I use? No, this lamp is non-dimmable. Use with a standard on/off switch only.
Can I install this in a bathroom or outdoors? Yes, it is rated for damp locations, making it suitable for bathrooms and covered outdoor areas.
What's the warranty? 5-year warranty.
Does it work with existing ballasts? No, this is Type B (ballast bypass). It requires rewiring to line voltage.
