A 10-inch round LED downlight for commercial or residential recessed lighting, with field-selectable wattage and color temperature, rated for damp locations.
Nuvo Lighting's Plus Series S21603 is a versatile LED downlight designed for both new construction and remodel applications. Its regressed baffle and frosted lens reduce glare while delivering high-quality 90+ CRI illumination. The fixture is field-selectable among five color temperatures (2700K-5000K) and three wattages (24W/29W/35W), making it adaptable to various lighting needs. The white painted aluminum construction suits utility and commercial spaces.
Best for
- Commercial offices and retail spaces needing adjustable color temperature and brightness
- Kitchens and bathrooms with damp location requirements
- New construction or remodel projects with standard 10-inch recessed housings
- Spaces where high CRI (90+) is important for accurate color rendering
- Open-plan areas requiring uniform, glare-free ambient light
Not ideal for
- Wet locations such as outdoor uncovered areas or shower interiors
- Small rooms where a 10-inch fixture may be visually overpowering
- Applications requiring a decorative or ornamental fixture
How bright is it?
Selectable from 3200 to 4200 lumens, comparable to a 40W to 60W fluorescent or 200W to 300W incandescent. The lower setting is suitable for accent or task lighting; the higher setting provides ample ambient light for medium-sized rooms.
Light color and feel
Field-selectable from 2700K (warm white, soft and cozy) to 5000K (daylight, crisp and energizing). The 90+ CRI ensures colors appear vibrant and natural, ideal for retail displays or kitchen tasks. Dual dimming compatible with most LED dimmers.
Sizing and fit
Overall dimensions: 11.77 inches diameter by 4.49 inches height. Fits standard 10-inch recessed housings. The 18-inch electrical whip provides flexible installation. Suitable for ceilings with standard joist spacing.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 2700K/3000K/3500K/4000K/5000K
- Bulb Wattage: 35W/29W/24W
- Bulb Average Hours: 50000
- Bulb Lumens: 4200L/3700L/3200L
- Lamp Shape: Integrated LED
- Bulb CRI: 90+
- Voltage: 120V-277V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Color Temperature: Warm White to Natural Light
- Field Selectable - 5 CCT and 3 Wattage
- 10-Inch Round, Standard Model
- Dual Dimming
- Regress Baffle Design for Reduced Glare
- 18 Inch Electrical Whip
- Integrated LED Driver
- Dimmable: True
- Driver Included: Yes
- Assembly Required: Yes
- Safety Rating: CETLUS Listed
- For Use in Damp Locations
- Warranty Info: 5-Years
- Overall Dimensions: 11.77"(D) x 11.77"(W) x 4.49"(H)
- Item Weight: 2.1 lbs.
Frequently asked
Is the bulb included? Yes, the LED is integrated and included.
Is it dimmable, and what dimmer should I use? Yes, it is dual dimmable. Use a standard LED-compatible dimmer.
Can I install this in a bathroom or outdoors? It is rated for damp locations, suitable for bathrooms but not wet locations like uncovered outdoors.
What's the warranty? 5-year warranty.

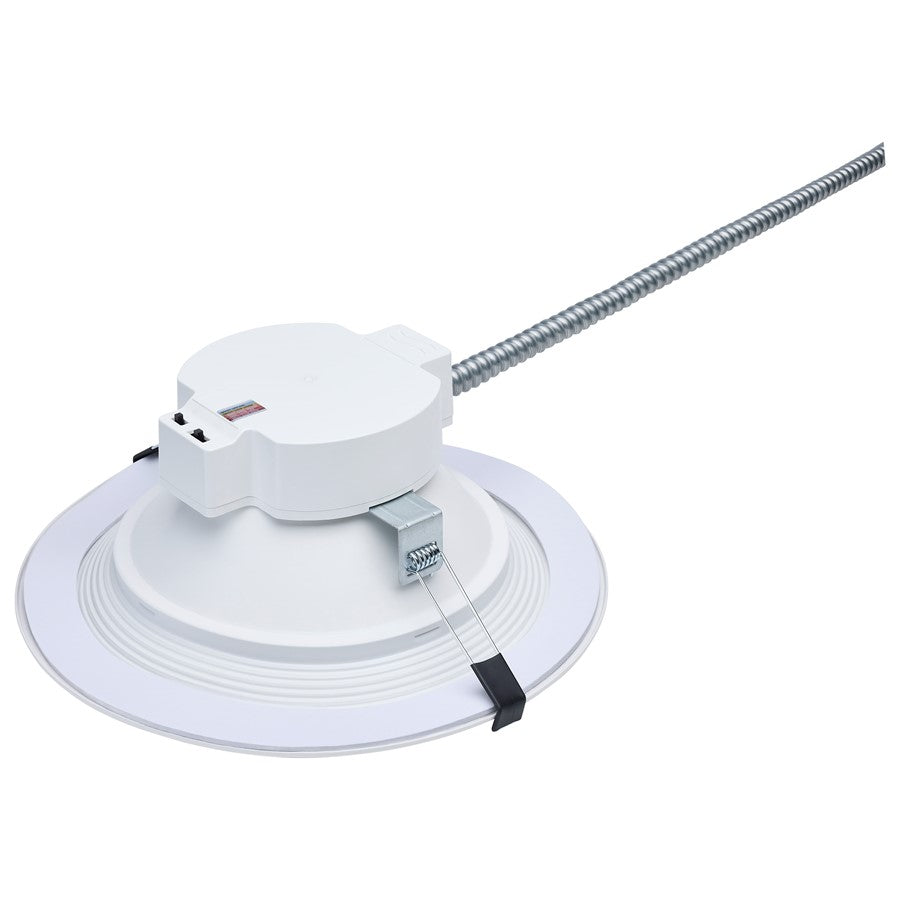

How do I select the wattage and color temperature? The fixture has field-selectable switches on the driver; adjust before installation.
