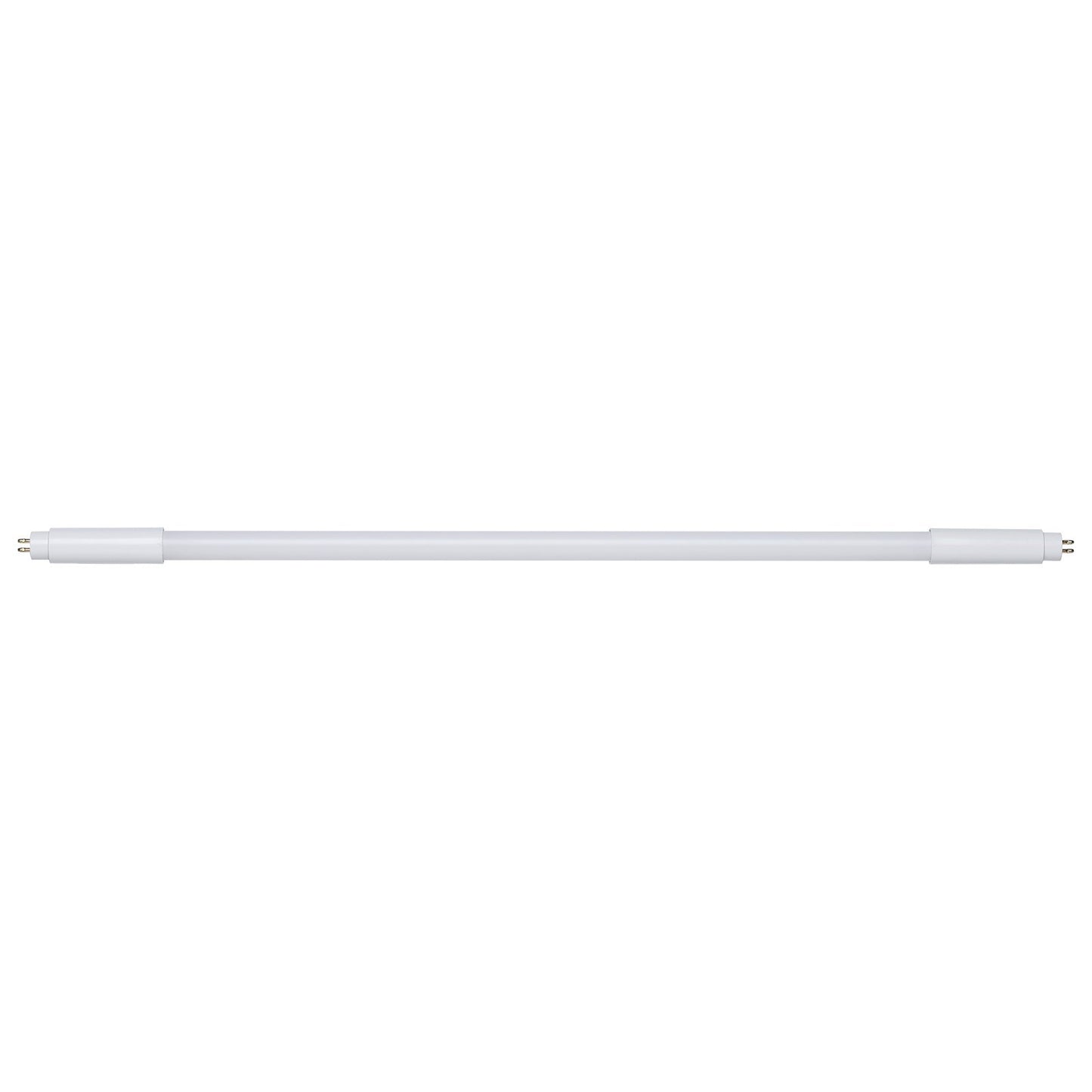

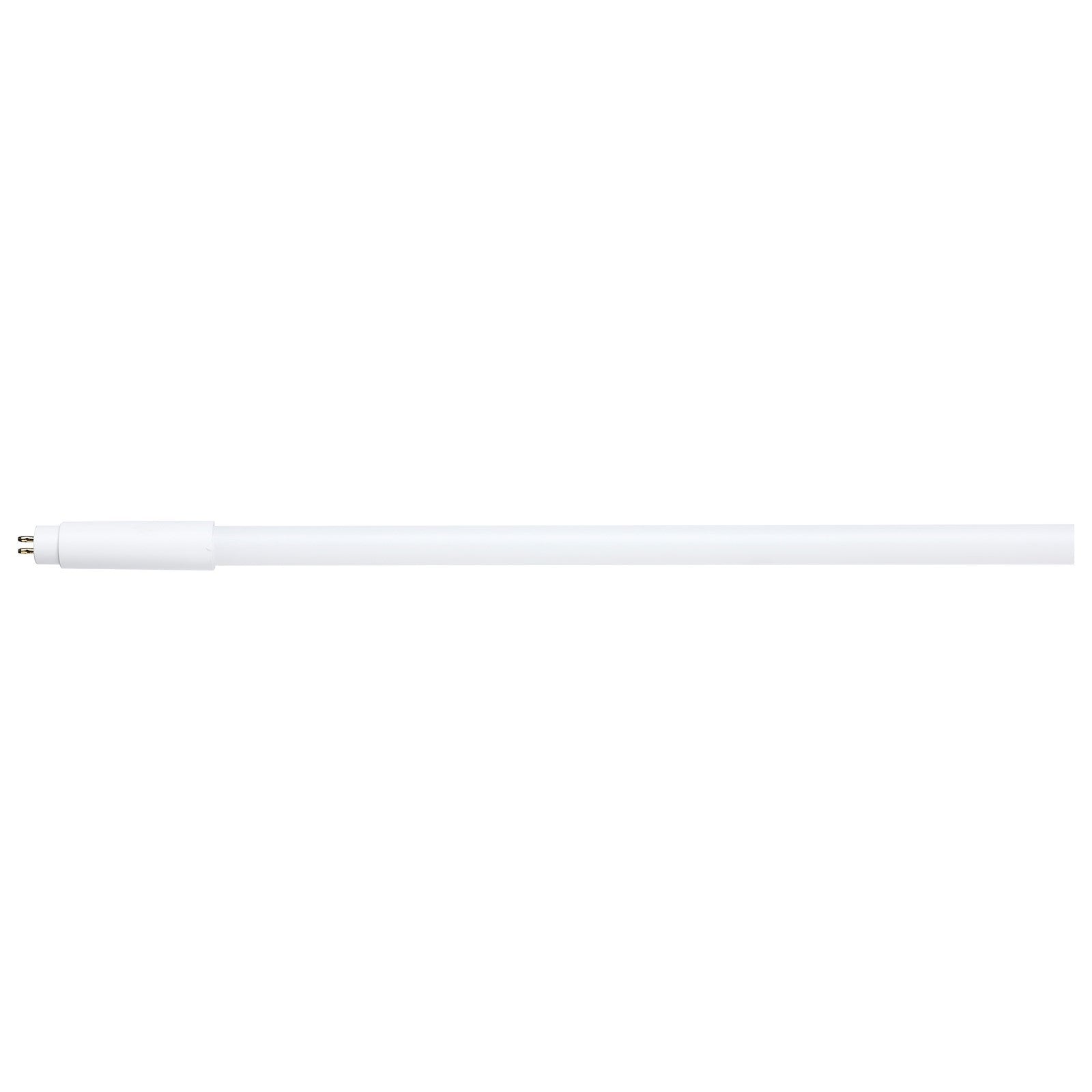

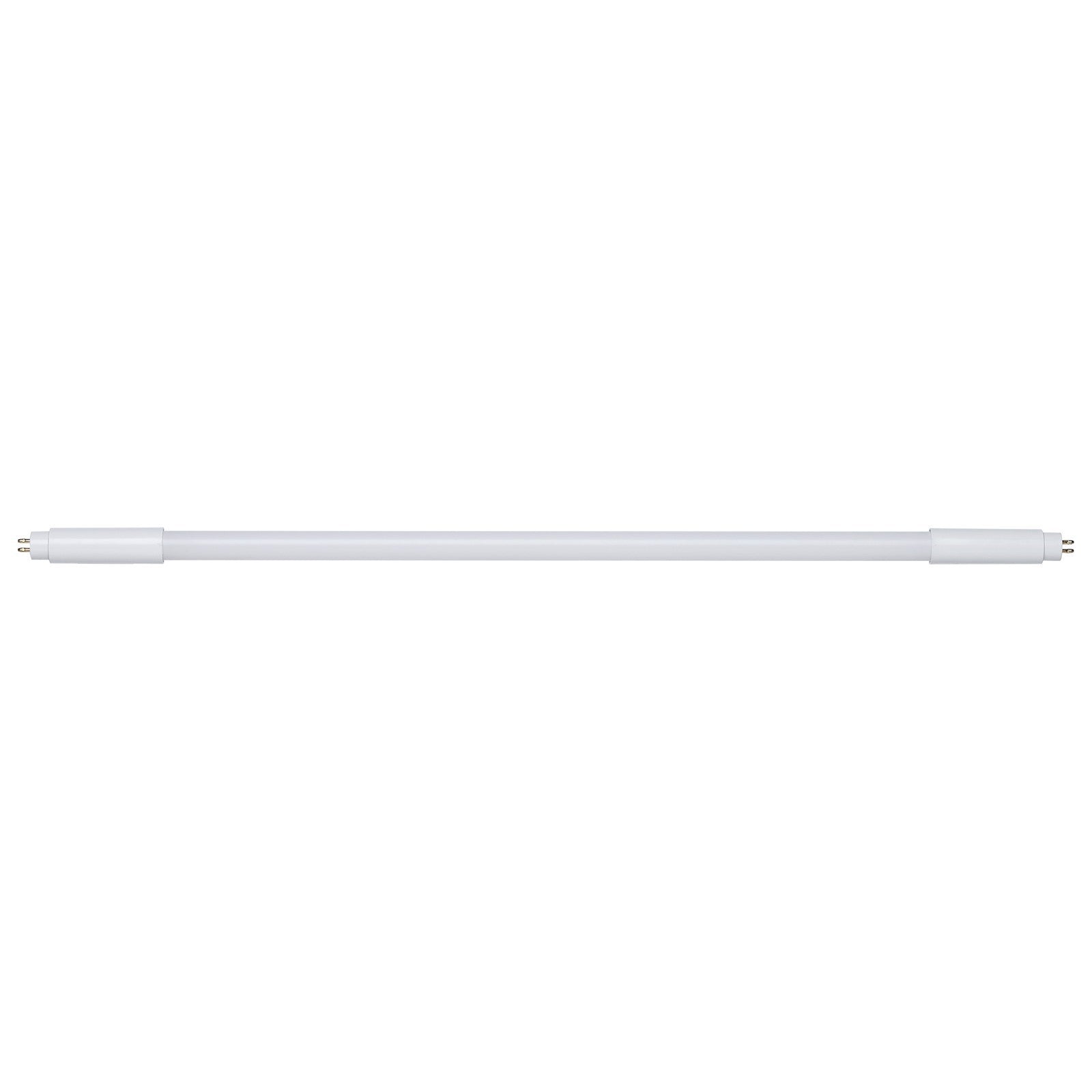

A 24-inch T5 LED tube lamp for offices, retail spaces, and task lighting, offering 4000K cool white light with Type A+B dual-mode installation flexibility.
Upgrade your linear lighting with the Nuvo Lighting S19953 LED T5 Dual Mode Lamp, engineered for maximum installation flexibility and long-term efficiency. Featuring Type A+B dual-mode operation, these lamps can be installed directly with existing ballasts or converted to ballast-bypass for simplified maintenance and improved energy savings. Durable PET-coated frosted glass provides shatter resistance without sacrificing light quality, making these lamps ideal for offices, retail spaces, warehouses, and task lighting applications. With a wide voltage range, high efficacy, and long rated life, this LED T5 lamp delivers reliable, modern performance for both retrofit and new installations.
Best for
- Offices and cubicle areas needing bright, cool white light for focused work
- Retail stores and showrooms where accurate color rendering (CRI 80+) matters
- Warehouses and industrial spaces requiring shatter-resistant, enclosed-fixture-rated lighting
- Task lighting applications like workbenches and inspection stations
- Damp locations such as covered loading docks or wash-down areas
Not ideal for
- Residential living rooms or bedrooms where a warmer, softer light is preferred
- Outdoor locations exposed to direct rain or moisture - rated for damp, not wet, locations
- Fixtures that require a screw-in (E26) base - this uses a G5 miniature bi-pin base
How bright is it?
1620 lumens - roughly equivalent to a 24-watt fluorescent T5 tube, providing ample light for task and general ambient lighting in commercial spaces. It's bright enough to illuminate a small office or retail display area.
Light color and feel
4000K cool white - a crisp, invigorating light that enhances alertness and visibility, ideal for workspaces and retail environments. With a CRI of 80+, colors appear natural and accurate, suitable for tasks requiring color discrimination.
Sizing and fit
Measures 22.13 inches in length and 0.62 inches in diameter, fitting standard T5 fixtures with G5 bases. The slim profile works in most linear lighting fixtures, including enclosed troffers and strip lights.
Specifications
- Fixture Finish: White
- Bulb Wattage: 12W
- Lamp Shape: T5

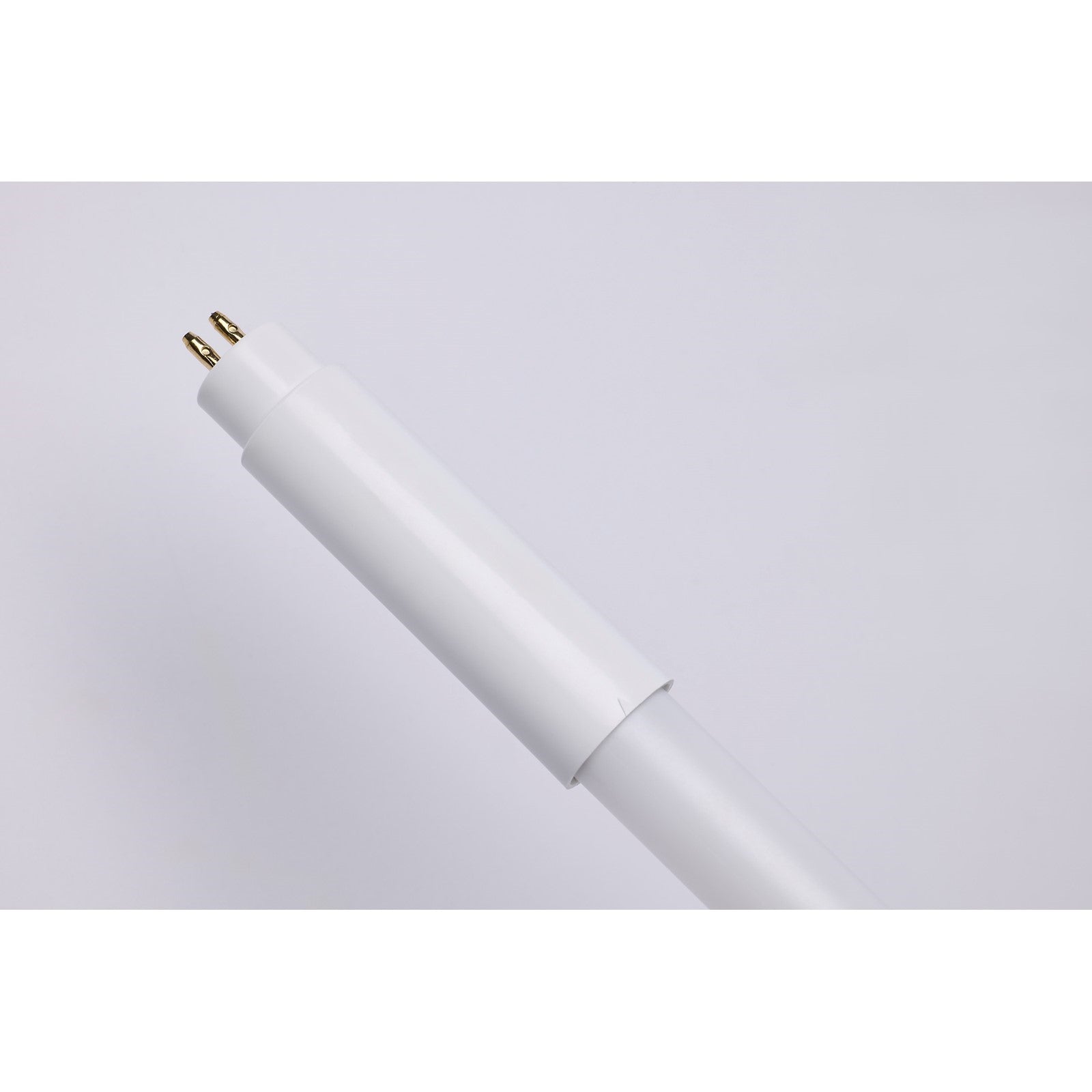

- ANSI Base: G5
- Lamp Base: Miniature Bi Pin
- Ballast Type: Type A/B
- Rated for Enclosed Fixture: True
- Dimmable: Yes-Dimmable
- Dimmable Text: Reverse Phase; 120V only
- Voltage: 120V-277V
- Lumens: 1620L
- Color Temperature: 4000K
- Color Temperature: Cool White
- CRI: 80+
- Average Hours Rated: 50000
- Operating Temperature: -4F to +113F (-20C to +45C)
- Fluorescent Equivalent: 24WW
- 2-Foot Length
- Direct replacement for traditional fluorescent T5 lamps
- Dual Mode Type A+B operation allows ballast-compatible or ballast-bypass installation
- PET-coated frosted glass tube for added shatter resistance and safety
- 4000K CCT
- Rated for use in enclosed fixtures
- Rated for use in damp locations
- NSF Rated
- Dimmable with Compatible Ballasts
- Assembly Required: True
- Country of Manufacture: China
- Location Rating: Damp
- Safety Location: CULUS - Certified/CULUS - Classified/CRUUS - Recognized Component
- Title 20: Exempt
- CEC: Lawful for sale in California
- Warranty: 5-Years
Frequently asked
Is the bulb included? This is the bulb itself - it's a T5 LED tube lamp, not a fixture.
Is it dimmable, and what dimmer should I use? Yes, it's dimmable with compatible ballasts. For ballast-bypass operation, use a reverse-phase dimmer at 120V only.
Can I install this in a bathroom or outdoors? It's rated for damp locations, so it's suitable for bathrooms and covered outdoor areas, but not for direct exposure to rain or wet conditions.
What's the warranty? 5-year warranty.
Can I use this with my existing fluorescent ballast? Yes, Type A+B means it works with compatible ballasts (Type A) or can be wired for ballast-bypass (Type B).
