A 10-watt LED PLL T5 replacement lamp with a 2G11 base, designed for commercial and food service lighting where reliability and efficiency matter.
This Nuvo Lighting LED PLL lamp delivers 1250 lumens while replacing a traditional 24W fluorescent tube, making it an energy-saving upgrade for offices, retail spaces, and food service environments. With Type A+B ballast compatibility, it works with most electronic ballasts or can be wired for direct line voltage, simplifying retrofits. The all-glass T5 construction with PET coating ensures durability and safety, while the NSF approval makes it suitable for sensitive environments.
Best for

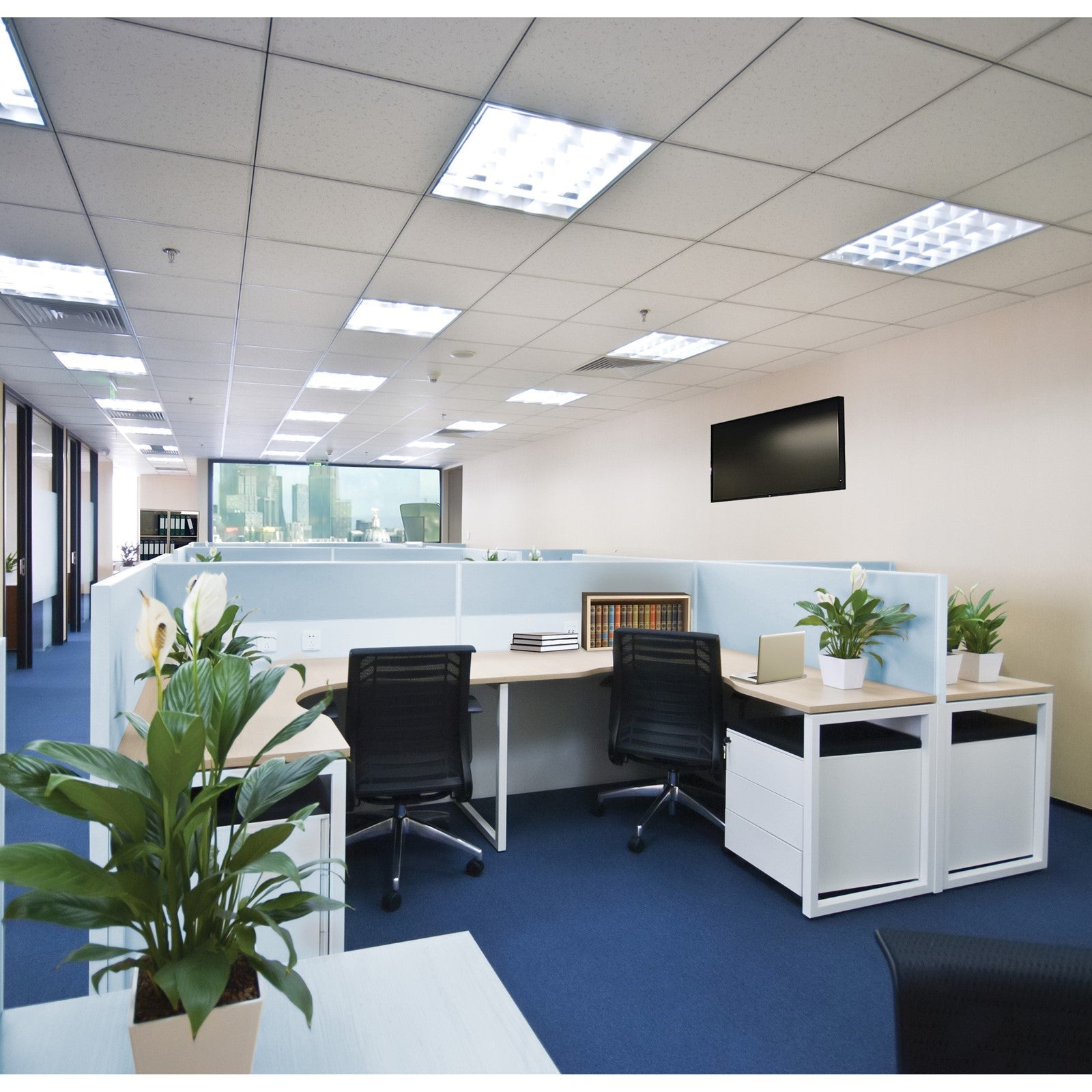

- Commercial offices and retail spaces needing a reliable, energy-efficient T5 replacement
- Food service and sensitive environments where NSF approval is required
- Enclosed fixtures, as it is rated for use in enclosed fixtures
- Damp locations such as covered patios or wash-down areas
- Retrofit projects where Type A+B ballast compatibility simplifies installation
Not ideal for
- Residential accent lighting where a smaller, decorative bulb is preferred
- Outdoor locations exposed to direct rain or moisture, as it is only damp-rated
- Spaces requiring high CRI for color-critical tasks, as CRI is 80+
How bright is it?
1250 lumens - about as bright as a 24W fluorescent tube, suitable for general ambient lighting in commercial spaces. Not intended as a primary task light for detailed work.
Light color and feel
Selectable CCT from 3000K (soft white) to 6500K (daylight) allows you to tailor the ambiance from warm and inviting to crisp and energizing. CRI of 80+ provides decent color rendering, suitable for most commercial applications. Dimmable with reverse phase dimmers at 120V only.
Sizing and fit

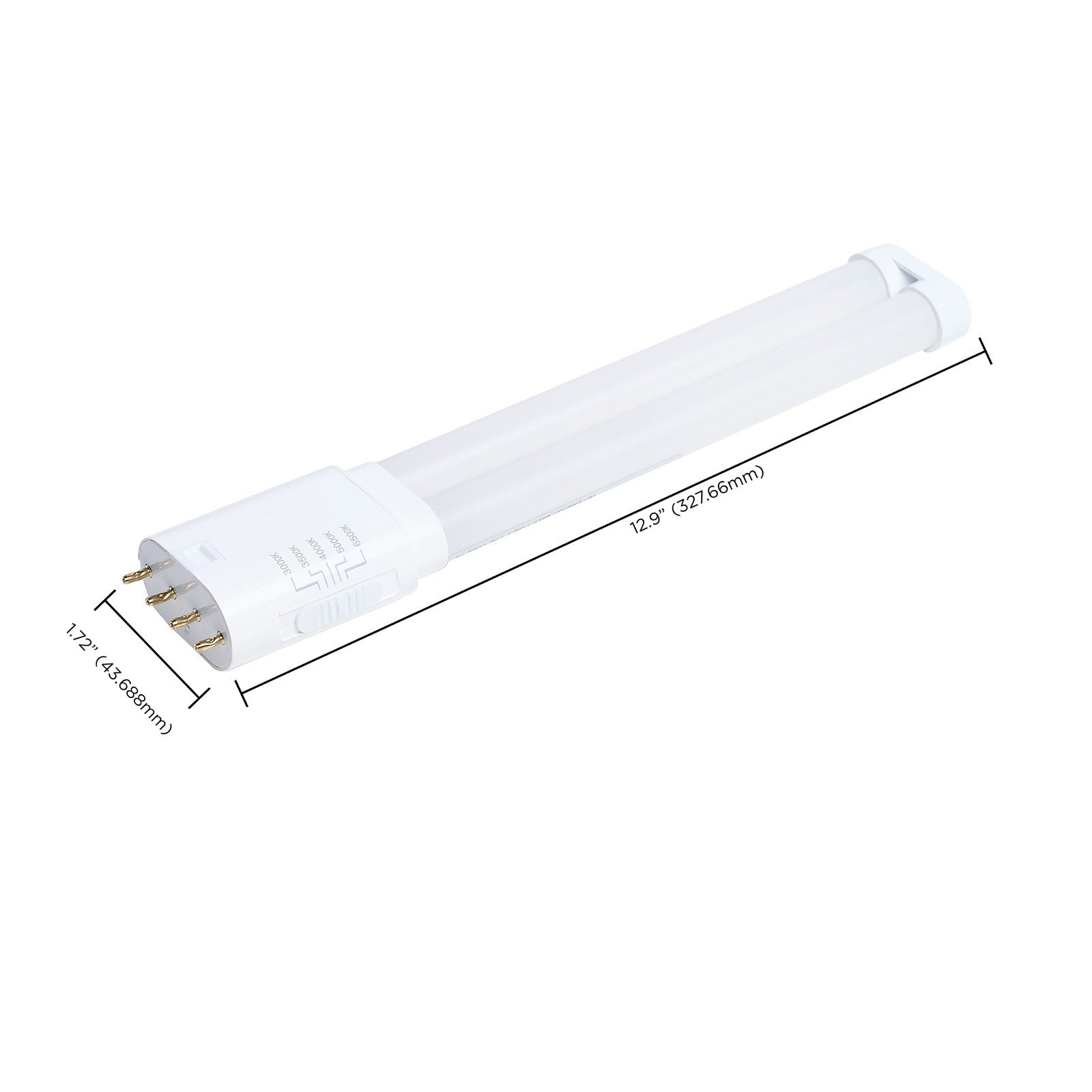

Dimensions: 12.9"(D) x 1.72"(W) x 1.72"(H). This T5 lamp fits standard 2G11 fixtures and is suitable for enclosed fixtures. The compact size makes it easy to install in a variety of commercial luminaires.
Specifications
- Fixture Finish: White
- Bulb Wattage: 10W
- Lamp Shape: T5
- ANSI Base: 2G11
- Lamp Base: 2G11 (4-Pin)
- Ballast Type: Type A/B
- Rated for Enclosed Fixture: True
- Dimmable: Yes-Dimmable
- Dimmable Text: Reverse Phase; 120V only
- Voltage: 120V-277V
- Lumens: 1250L
- Color Temperature: 3000K/3500K/4000K/5000K/6500K K
- Color Temperature: Soft White to Daylight
- CRI: 80+
- Average Hours Rated: 50000
- CCT Selectable: True
- Operating Temperature: -4F to +113F (-20C to +45C)
- Fluorescent Equivalent: 24WW
- 5 CCT Selectable
- Type A+B Ballast Compatibility
- NSF Approved for Food Service and Sensitive Environments
- PET Coated Glass Tubing
- T5 Construction with 2G11 Base
- 10W Replaces Traditional 24W Fluorescent Tube
- Damp Location Rated
- Suitable for Use in Enclosed Fixtures
- 50,000 Hour Functional Life
- 5 Year Warranty
- Assembly Required: True
- Country of Manufacture: China
- Location Rating: Damp
- Safety Location: CULUS - Certified/CULUS - Classified
- Title 20: Exempt
- CEC: Lawful for sale in California
- Warranty: 5-Years
Frequently asked
Is the bulb included? Yes, this is the bulb itself.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable with reverse phase dimmers at 120V only. Use a compatible LED dimmer.
Can I install this in a bathroom or outdoors? It is damp-rated, so it can be used in damp locations like covered patios or bathrooms with ventilation, but not in direct wet areas.
What's the warranty? 5-year warranty.
Does it work with any ballast? It is Type A+B, meaning it works with most electronic ballasts or can be wired for direct line voltage (Type B).
