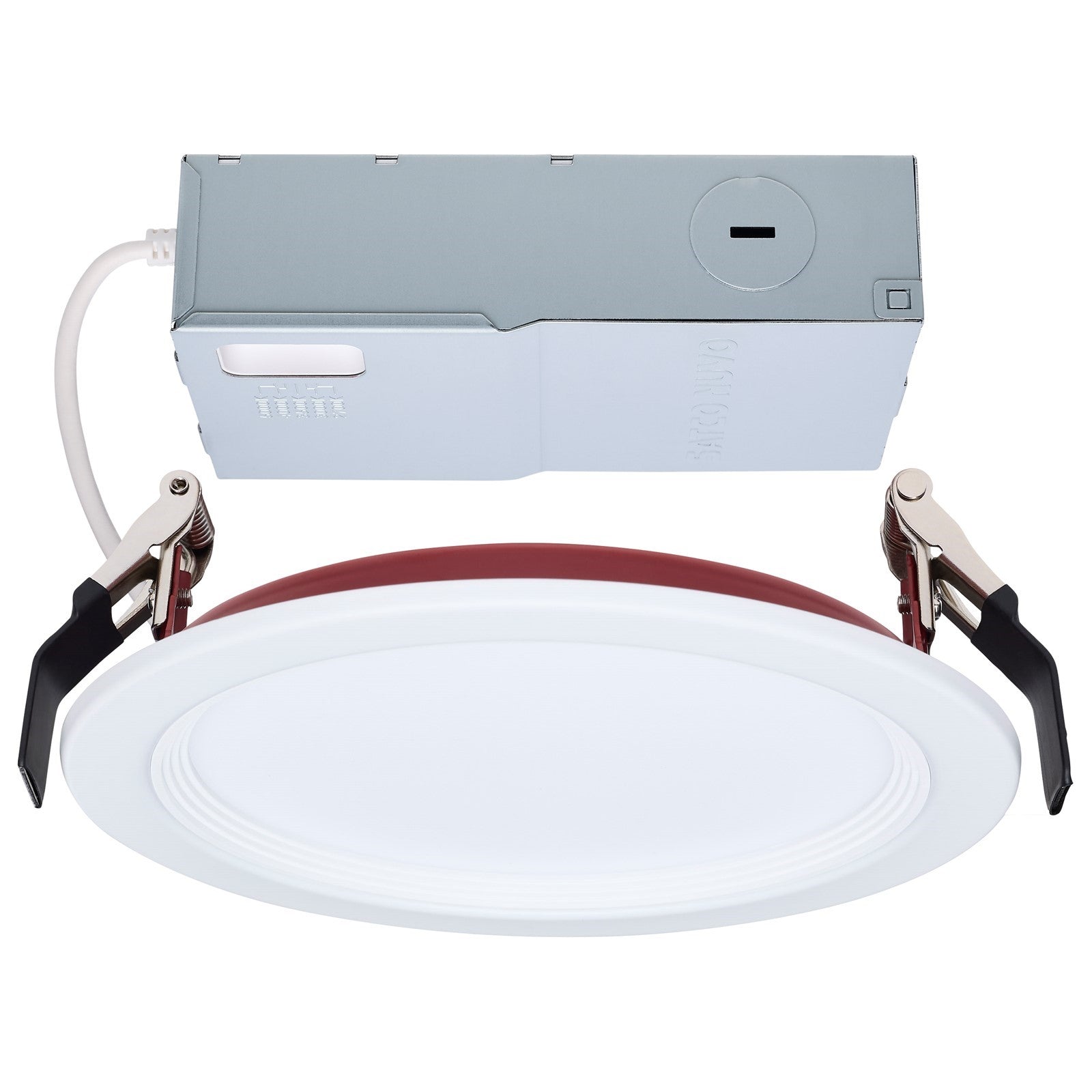

A 6-inch fire-rated LED downlight with a stepped baffle lens, designed for fire-resistant ceilings and providing bright, energy-efficient illumination for kitchens, living rooms, and more.
This Nuvo Lighting downlight is engineered for fire-rated ceiling assemblies, offering 2-hour fire protection. With its slim profile and integrated LED, it delivers 1100 lumens at 13 watts, replacing a 75-watt incandescent. The red-painted backplate makes identification easy, and the CCT selectable feature lets you choose from five color temperatures to suit your space.
Best for
- Kitchens and living rooms needing bright, general lighting
- Fire-rated ceiling assemblies in residential, multi-family, or commercial buildings
- New construction or remodel projects where slim, IC-rated, airtight fixtures are required
- Spaces with 8-foot or higher ceilings, thanks to its low-profile design
- Dimmable applications with TRIAC or reverse-phase dimmers
Not ideal for
- Outdoor installations - this fixture is rated for indoor use only
- Ceilings thicker than 2 3/8 inches, as the housing may not fit
- Spaces where you need a gimbal or adjustable trim for directional lighting
How bright is it?
1100 lumens - about as bright as a 75W incandescent bulb, suitable for primary room lighting in kitchens, living rooms, and bedrooms.
Light color and feel
Selectable color temperature from 2700K (warm white) to 5000K (daylight), letting you match the ambiance from cozy to crisp. With a CRI of 90+, colors appear vibrant and accurate, ideal for kitchens and art displays.
Sizing and fit

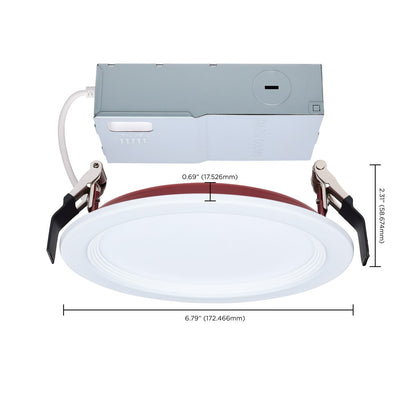

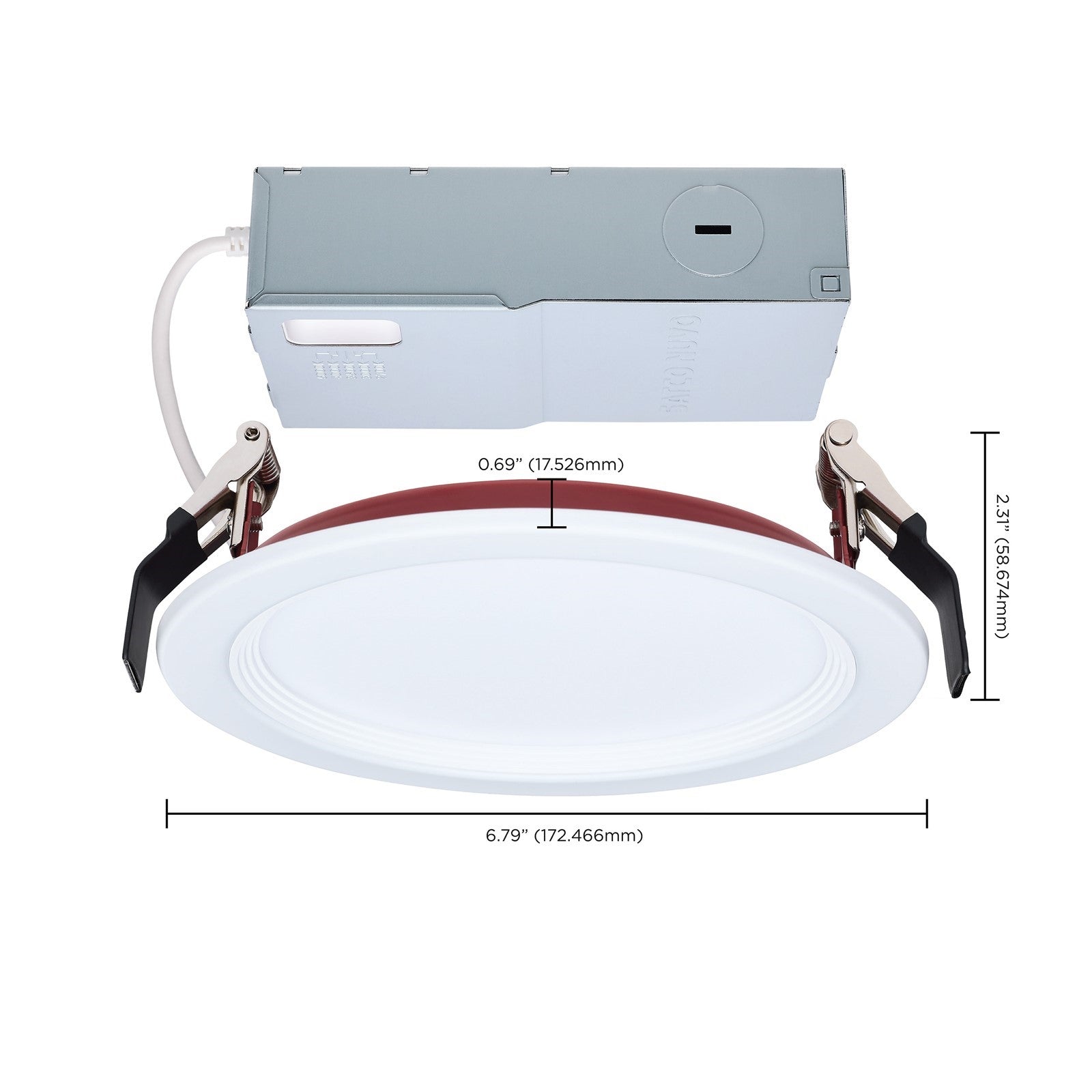

This 6-inch downlight has a compact footprint of 6.79 inches in diameter and just 0.88 inches in height, fitting into tight ceiling spaces. It's designed for fire-rated assemblies up to 2 3/8 inches thick, making it versatile for various construction types.
Specifications
- Fixture Finish: White / Red
- Style: Specialty
- Bulb Wattage: 13W
- Lamp Shape: Integrated LED
- ANSI Base: Integrated
- Lamp Base: Integrated
- Bulb Included: Integrated
- Dimmable: True
- Dimmable: Forward (TRIAC) or Reverse Phase; 120V only
- Voltage: 120V
- Lumens: 1100L
- Color Temperature: 2700K/3000K/3500K/4000K/5000K K
- CRI: 90+
- Fire Rated up to 2-Hours
- Red Painted Backplate for Easy Identification
- 5 CCT Selectable
- 90 CRI High Quality Illumination
- 6" Stepped Baffle Lens Model
- 120 Volts with Phase-Cut Dimming
- Wet Location Rated
- IC Rated and AirTight
- 50,000 Hour Functional Life
- 5 Year Warranty
- Assembly Required: True
- Location Rating: Wet
- Safety Location: CULUS - Certified
- Indoor/Outdoor: Indoor
- CA Prop 65: Lead
- Energy Star: True
- Warranty: 5-Years
- Incandescent Equivalent: 75WW
- Color Temperature: Warm White to Natural Light
- Average Hours Rated: 50000
- CCT Selectable: True
- Operating Temperature: -4F to +104F (-20C to +40C)
- Title 20: Exempt
- Title 24: True
- CEC: Lawful for sale in California
Frequently asked
Is the bulb included? Yes, the LED is integrated.
Is it dimmable, and what dimmer should I use? Yes, dimmable with forward (TRIAC) or reverse phase dimmers at 120V.
Can I install this in a bathroom or outdoors? It's rated for wet locations, but it's listed for indoor use only. For bathrooms, ensure it's installed away from direct water spray.
What's the warranty? 5-year warranty.
Is this fixture IC rated? Yes, it's IC rated and airtight, so it can be safely installed in contact with insulation.
