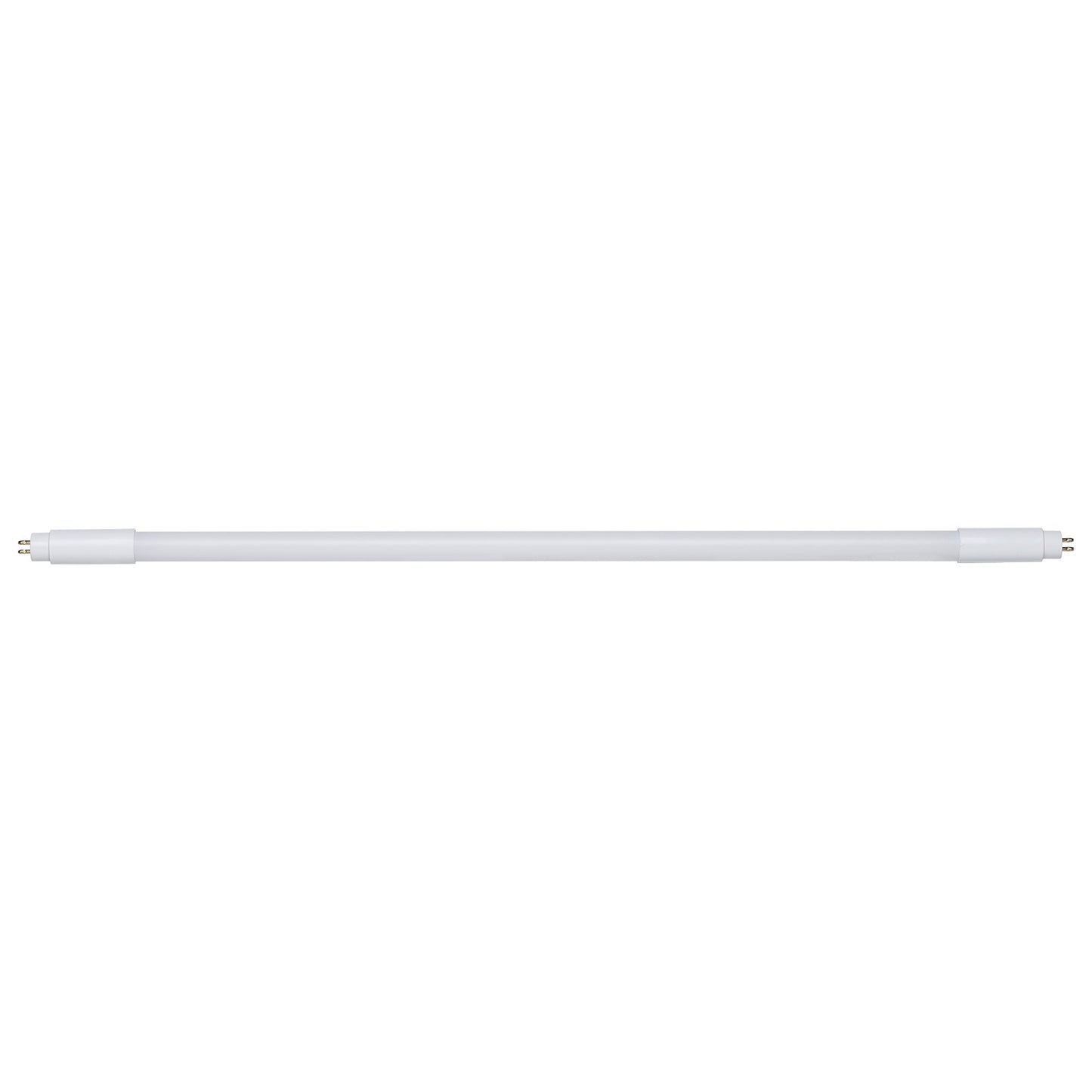

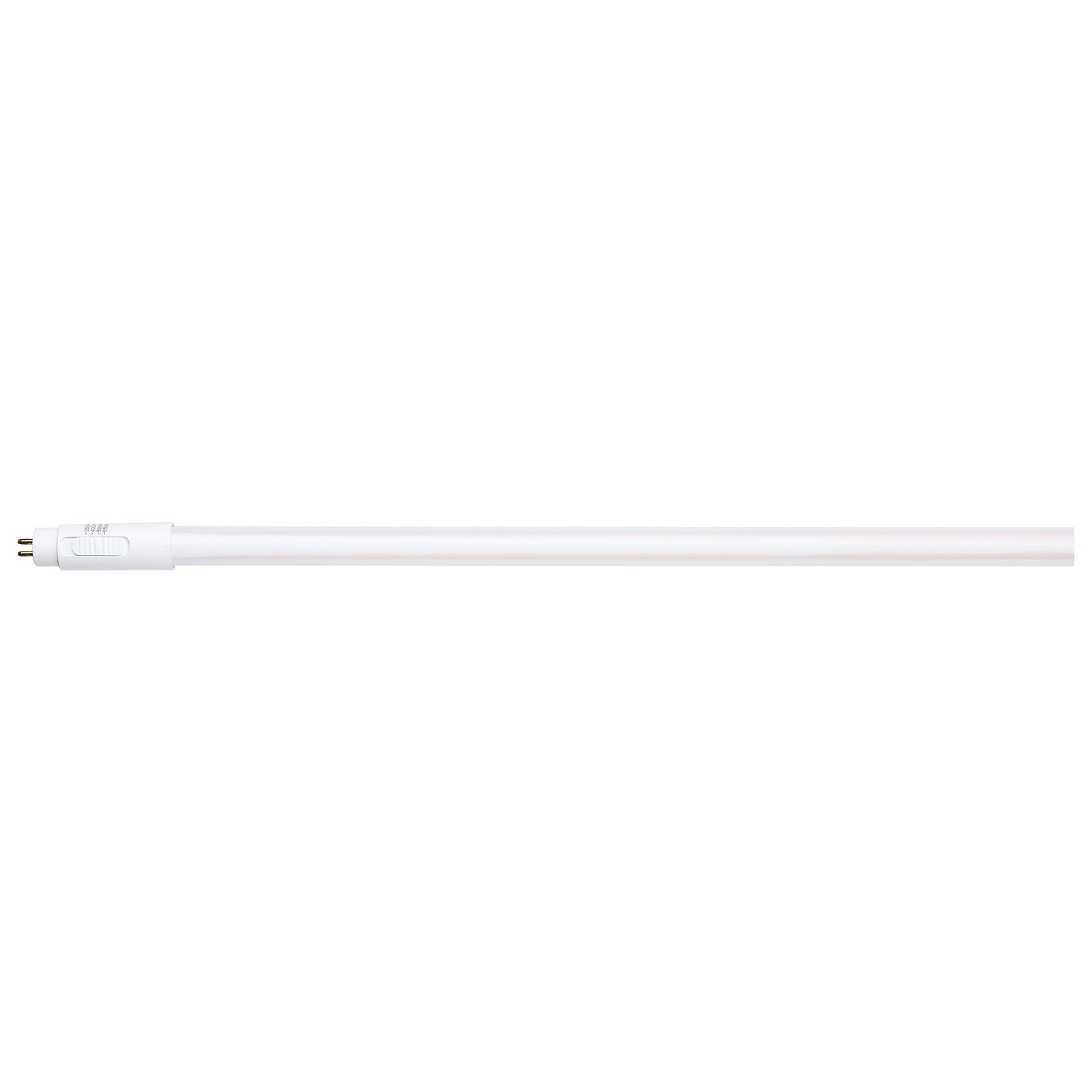

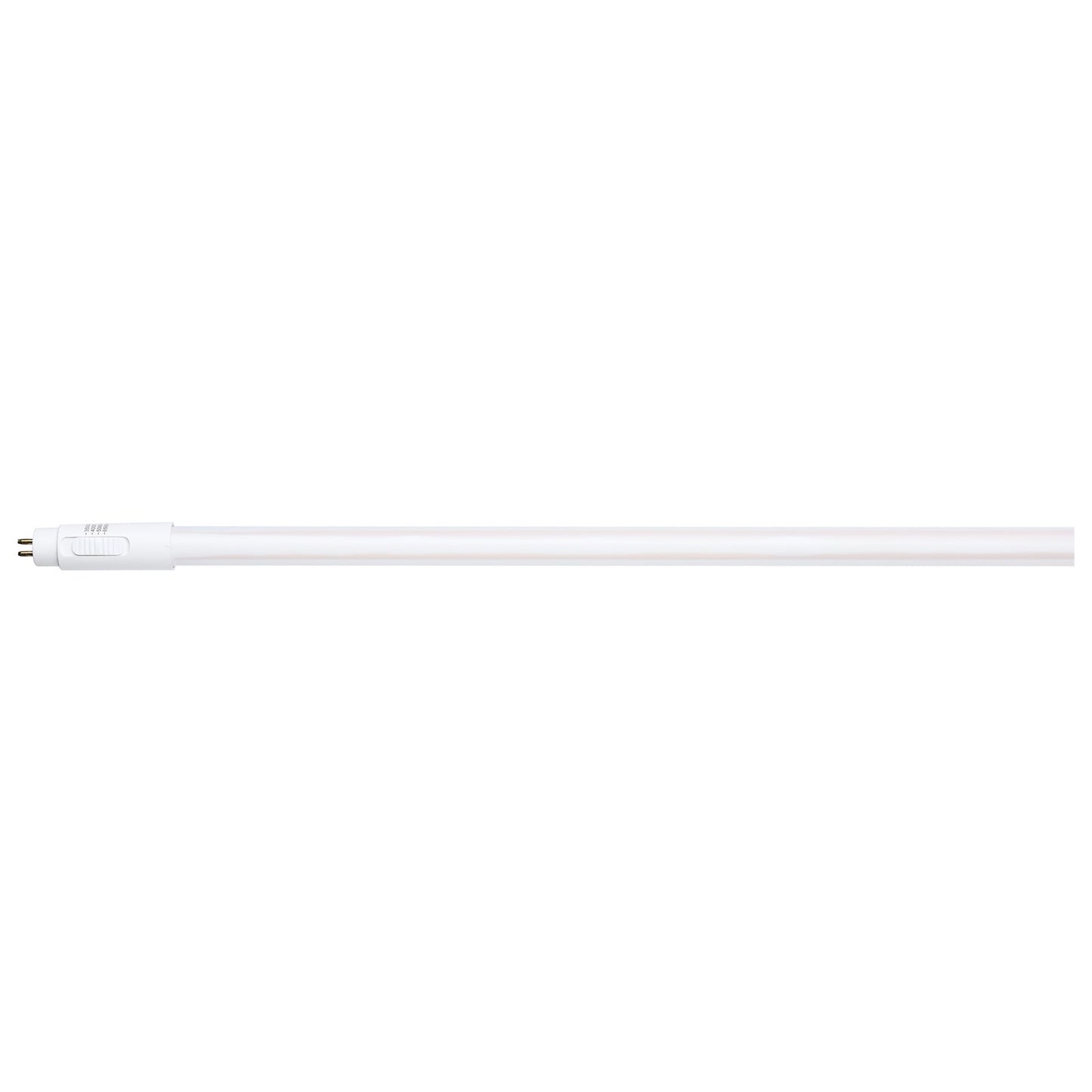

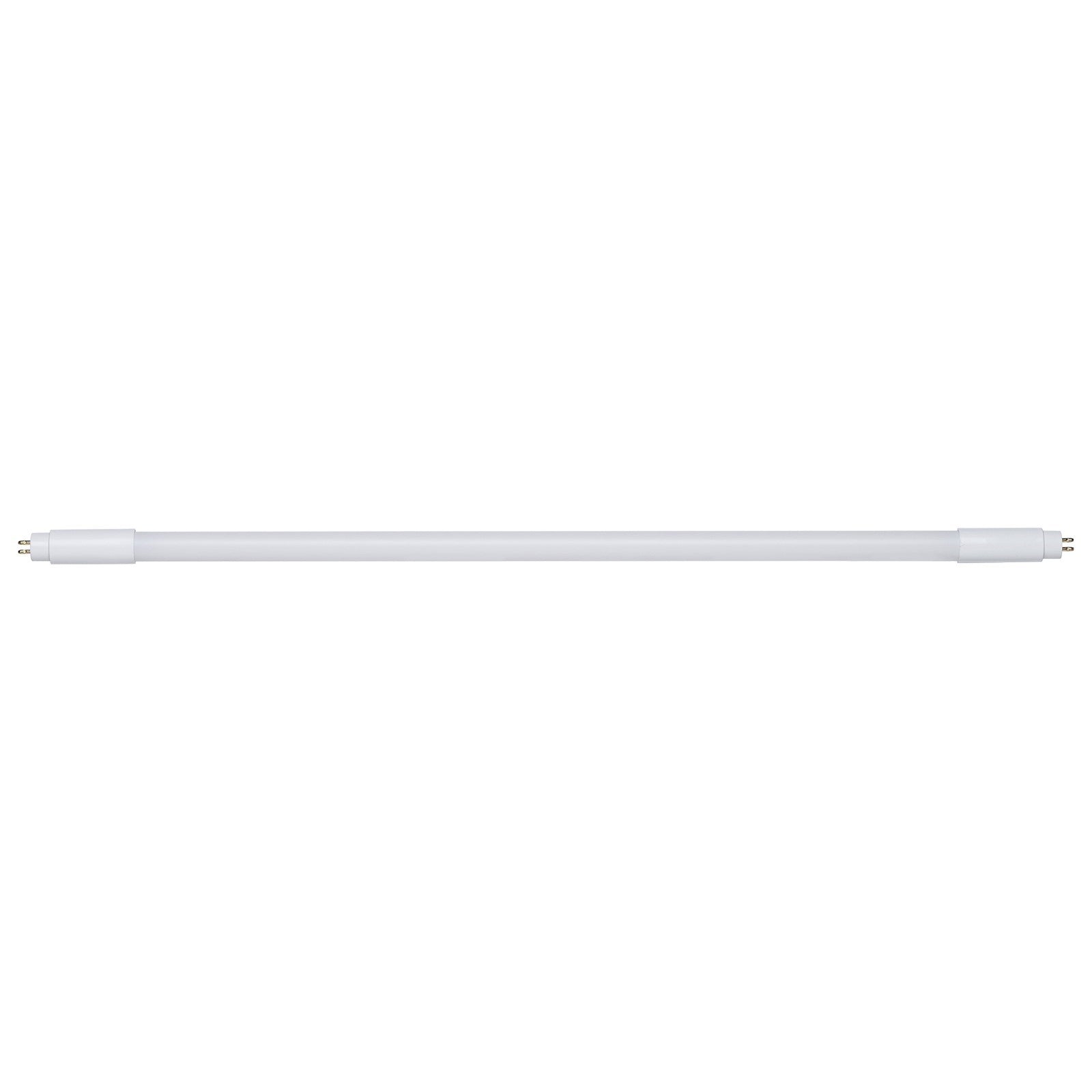

A 7-watt LED T5 tube with a G5 base, designed for direct-wire (Type B) installations in commercial and task lighting applications.
This Nuvo Lighting LED T5 tube delivers 900 lumens while replacing a traditional 14W fluorescent tube, making it an energy-saving upgrade for offices, retail spaces, and task areas. With Type B ballast bypass, it simplifies maintenance and enhances system reliability. The PET-coated frosted glass provides durability and safety, while the four selectable CCT options (3500K/4000K/5000K/6500K) let you tailor the light from neutral white to daylight.
Best for
- Offices and retail spaces needing a reliable, energy-efficient T5 replacement
- Task areas such as workbenches or under-cabinet lighting
- Enclosed fixtures, as it is rated for use in enclosed fixtures
- Damp locations such as covered patios or wash-down areas
- Retrofit projects where Type B ballast bypass simplifies installation
Not ideal for
- Residential accent lighting where a smaller, decorative bulb is preferred
- Outdoor locations exposed to direct rain or moisture, as it is only damp-rated
- Spaces requiring high CRI for color-critical tasks, as CRI is 80+
How bright is it?
900 lumens - about as bright as a 14W fluorescent tube, suitable for task and ambient lighting in commercial spaces. Not intended as a primary room light.
Light color and feel
Selectable CCT from 3500K (neutral white) to 6500K (daylight) allows you to tailor the ambiance from warm and inviting to crisp and energizing. CRI of 80+ provides decent color rendering, suitable for most commercial applications. Dimmable with reverse phase dimmers at 120V only.
Sizing and fit
Dimensions: 22.13"(D) x 0.62"(W) x 0.62"(H). This 2-foot T5 tube fits standard G5 fixtures and is suitable for enclosed fixtures. The slim profile makes it easy to install in a variety of commercial luminaires.
Specifications
- Fixture Finish: White
- Bulb Wattage: 7W
- Lamp Shape: T5
- ANSI Base: G5
- Lamp Base: Miniature Bi Pin
- Ballast Type: Type B
- Rated for Enclosed Fixture: True
- Dimmable: Yes-Dimmable
- Dimmable Text: Reverse Phase; 120V only
- Voltage: 120V-277V
- Lumens: 900L
- Color Temperature: 3500K/4000K/5000K/6500K K
- Color Temperature: Neutral White to Daylight
- CRI: 80+
- Average Hours Rated: 50000
- CCT Selectable: True
- Operating Temperature: -4F to +113F (-20C to +45C)
- Incandescent Equivalent: 75WW
- Fluorescent Equivalent: 14WW
- 2-Foot Length
- 7W LED, 14W Fluorescent Replacement
- 900 Lumens
- 4 CCT Selectable: 3500K/4000K/5000K/6500K
- Type B: Ballast Bypass
- G5 Miniature Bi-Pin Base
- PET Coated Frosted Glass
- Dimmable with Compatible Dimmers
- Assembly Required: True
- Country of Manufacture: China
- Location Rating: Damp
- Safety Location: CULUS - Classified/CRUUS - Recognized Component
- Title 20: Exempt
- CEC: Lawful for sale in California
- Warranty: 5-Years
Frequently asked
Is the bulb included? Yes, this is the bulb itself.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable with reverse phase dimmers at 120V only. Use a compatible LED dimmer.
Can I install this in a bathroom or outdoors? It is damp-rated, so it can be used in damp locations like covered patios or bathrooms with ventilation, but not in direct wet areas.
What's the warranty? 5-year warranty.
Does it work with any ballast? It is Type B, meaning it requires ballast bypass (direct wire). It does not work with a ballast.
