A 15-inch UFO-style LED high bay for food processing, agriculture, and other sanitary environments requiring washdown durability, with selectable wattage and color temperature, designed for 277-480V operation.

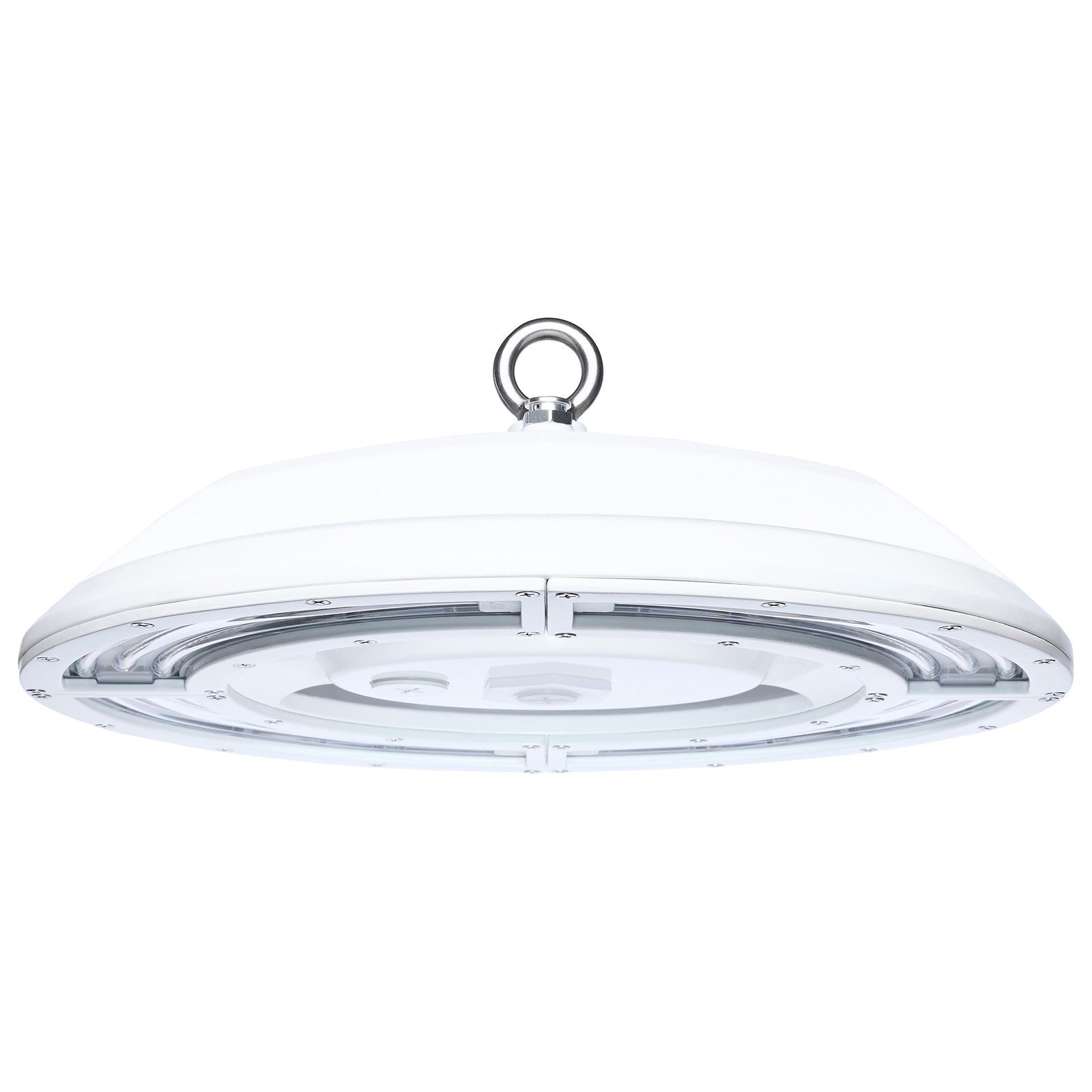

The Nuvo 65-1161 IP69K Rated LED UFO High Bay is engineered for demanding industrial and hygienic environments, operating on 277-480V. NSF approved for sanitation-sensitive applications, this fixture features selectable wattage (200W/150W/100W) and CCT options (4000K/5000K) for on-site lighting customization. Built for harsh conditions, it includes IK10 impact resistance, 6kV surge protection, and an integrated respirator. The fixture is 0-10V dimmable and sensor ready with a 3.5mm auxiliary port, and a 6-foot Class 1 whip with waterproof connector helps maintain its IP69K integrity.
Best for
- Food processing and packaging facilities requiring NSF-approved, IP69K-rated fixtures for high-pressure, high-temperature washdowns, especially in 277-480V installations
- Agricultural buildings such as poultry houses, greenhouses, and livestock barns where moisture and dust are present
- Cold storage and refrigerated warehouses, with an operating range of -40°F to +122°F
- Commercial kitchens and clean rooms needing a sanitary, easy-to-clean lighting solution

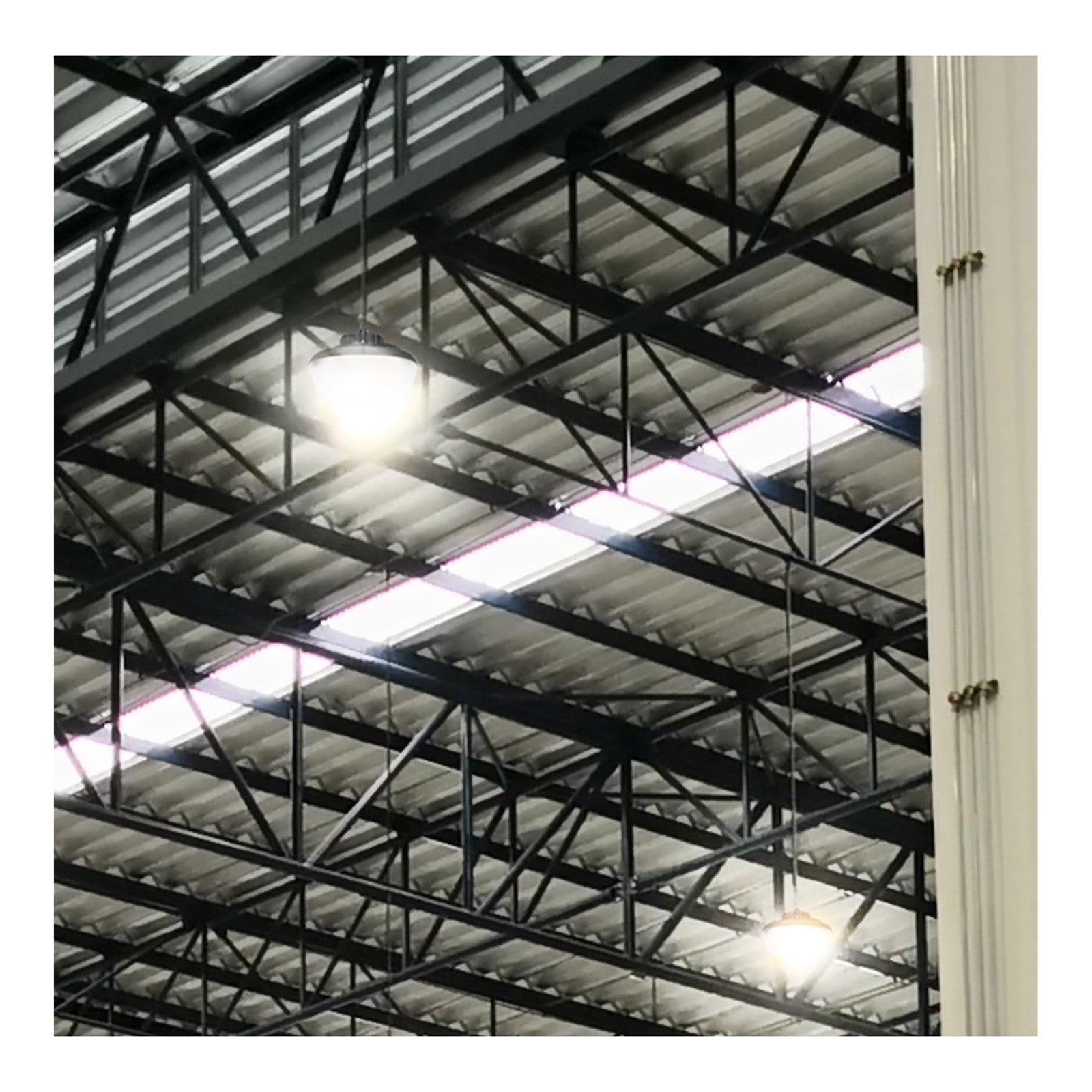

- Industrial facilities with ceiling heights of 15-30 ft, providing focused, high-output illumination
Not ideal for
- Residential living spaces or retail showrooms where a more decorative fixture is desired
- Low ceilings under 12 ft, as the concentrated light may cause glare
- Applications requiring a linear or strip form factor
How bright is it?
Selectable lumen output: 30,000 lumens (200W), 22,500 lumens (150W), or 15,000 lumens (100W). At the highest setting, it's comparable to a 250W metal halide fixture, suitable for illuminating large areas as a primary light source. At the lowest setting, it's similar to a 100W metal halide, ideal for ambient or task lighting.
Light color and feel
Selectable CCT: 4000K (natural white, neutral and crisp) or 5000K (cool white, bright and alert). The 80 CRI provides adequate color rendering for most industrial tasks. The fixture is 0-10V dimmable, allowing further fine-tuning of light levels.
Sizing and fit

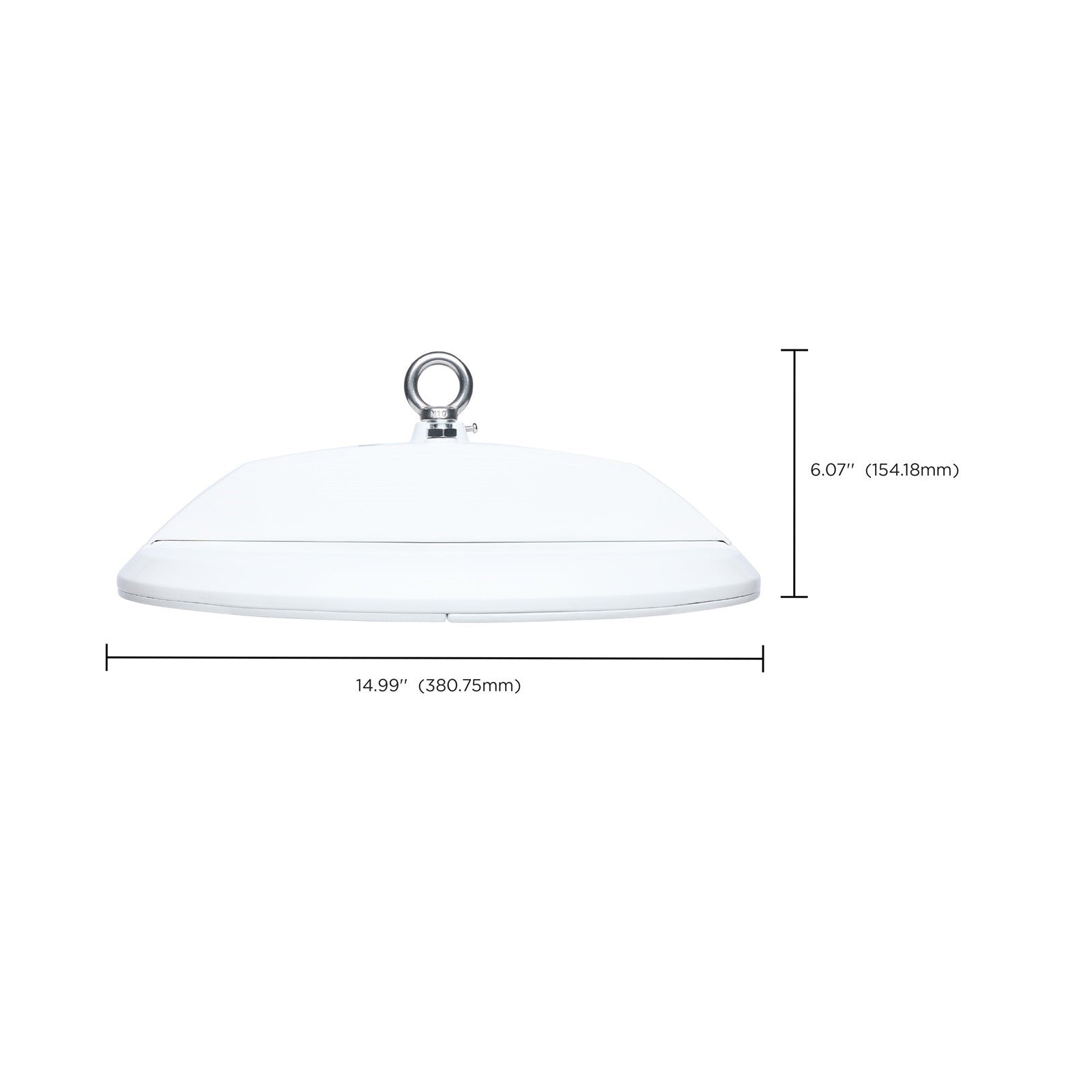

Dimensions: 14.99" (D) x 14.99" (W) x 6.07" (H). Weighs 10.58 lbs. Designed for surface or suspended mounting using the included hardware. Suitable for ceilings 15 ft and higher.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 4000K/5000K
- Bulb Wattage: 200W/150W/100W
- Bulb Average Hours: 50000
- Bulb Lumens: 30000L/22500L/15000L
- Lamp Shape: Integrated LED
- Bulb CRI: 80
- Voltage: 277V-480V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Operating Temperature: -40F to +122F (-40C to +50C)
- Color Temperature: Cool White/Natural Light
- IP69K and IK10 Rated & NSF Approved
- Designed for thermal washdown environments
- Range Voltage 277-480V
- Integrated Sensor Port with Waterproof Plug
- 6kV Surge Protection
- 3 Wattage and 2 CCT Selectable
- 0-10V Dimmable
- 50,000 Life Hours
- 5 Year Warranty
- Dimmable: True
- Driver Included: True
- Assembly Required: True
- Safety Rating: CULUS Listed
- For Use in Wet Locations
- Warranty Info: 5-Years
Frequently asked
Is the bulb included? Yes, the LED is integrated and not replaceable.
Is it dimmable, and what dimmer should I use? Yes, it is 0-10V dimmable. Use a compatible 0-10V dimmer (not a standard TRIAC dimmer).
Can I install this in a bathroom or outdoors? This fixture is rated for wet locations and has an IP69K rating, making it suitable for outdoor covered areas and indoor washdown environments, but not for direct outdoor exposure without cover.
What's the warranty? 5-year limited warranty.
Does it come with mounting hardware? Yes, a 6-foot Class 1 whip with waterproof connector and mounting hardware are included.
