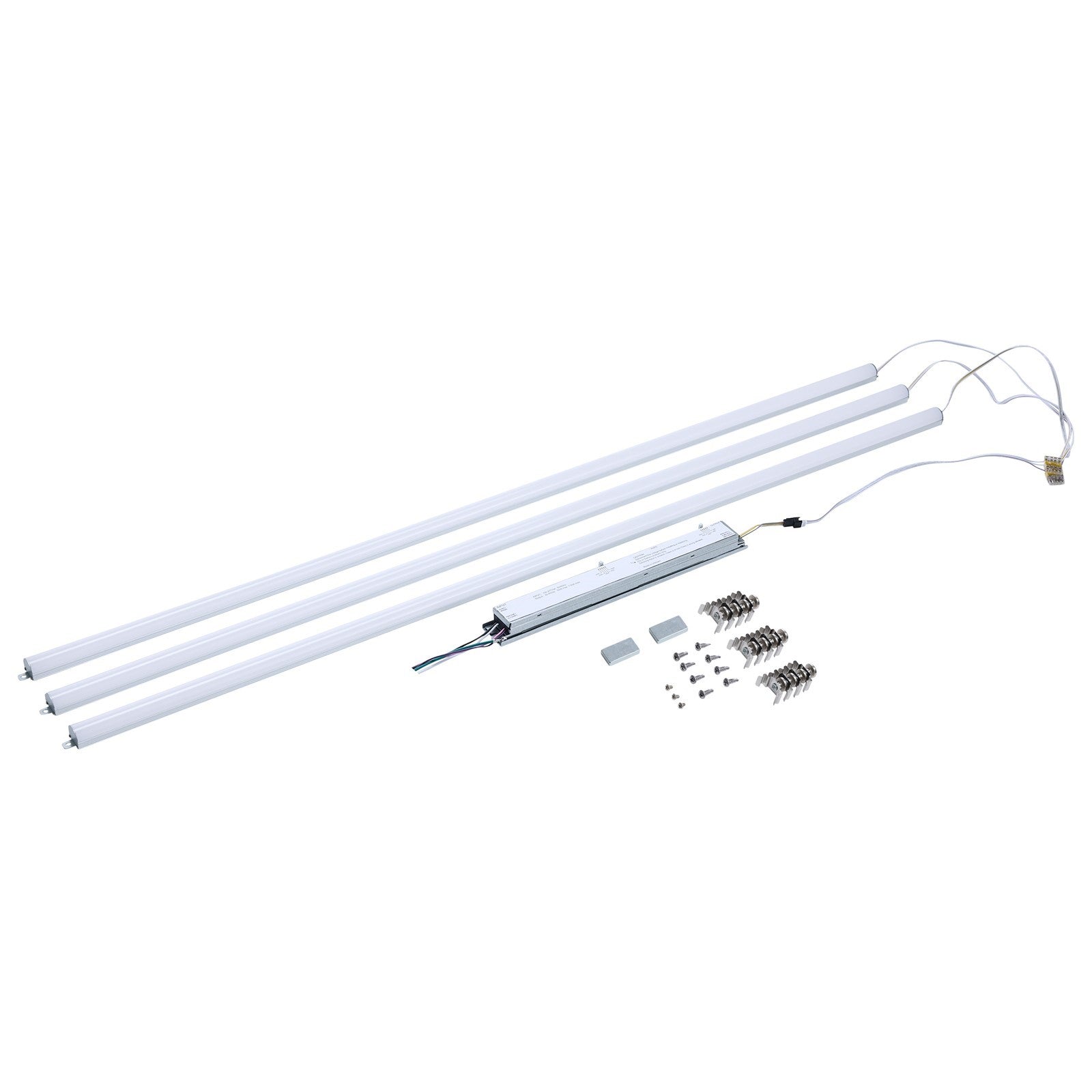

A 4-foot LED retrofit kit with three light bars, designed to convert existing fluorescent fixtures to energy-efficient LED lighting in garages, basements, and workshops.
SATCO NUVO's 65-1336 Retrofit Lightbar Kit replaces 3 x 32W T8 lamps with selectable wattages from 30W to 50W and selectable color temperatures from 3000K to 6500K. The durable aluminum construction with a frosted polycarbonate lens ensures even illumination and reliable operation. Compatible with a wide range of troffers, strips, wraps, and vapor tight fixtures, this kit includes 0-10V dimming and a 50,000-hour lifespan.
Best for
- Garages and workshops needing bright, adjustable overhead lighting for tasks
- Basements and utility rooms converting from fluorescent to LED for energy savings
- Commercial spaces like retail stockrooms or light industrial areas
- Damp locations such as covered patios or laundry rooms (damp rated)
Not ideal for
- Wet locations exposed to direct rain or hose spray (damp rated only)
- Residential living rooms or bedrooms where a decorative fixture is preferred
How bright is it?
Selectable from 3750 to 6250 lumens, equivalent to roughly 30W to 50W fluorescent. The 6250-lumen setting is bright enough for a two-car garage or larger workshop, while lower settings suit smaller spaces.
Light color and feel
Selectable CCT from 3000K (soft white) to 6500K (daylight). 3000K provides a warm, cozy glow; 5000K offers a neutral white; 6500K simulates daylight for task visibility. CRI 80+ ensures decent color rendering.
Sizing and fit

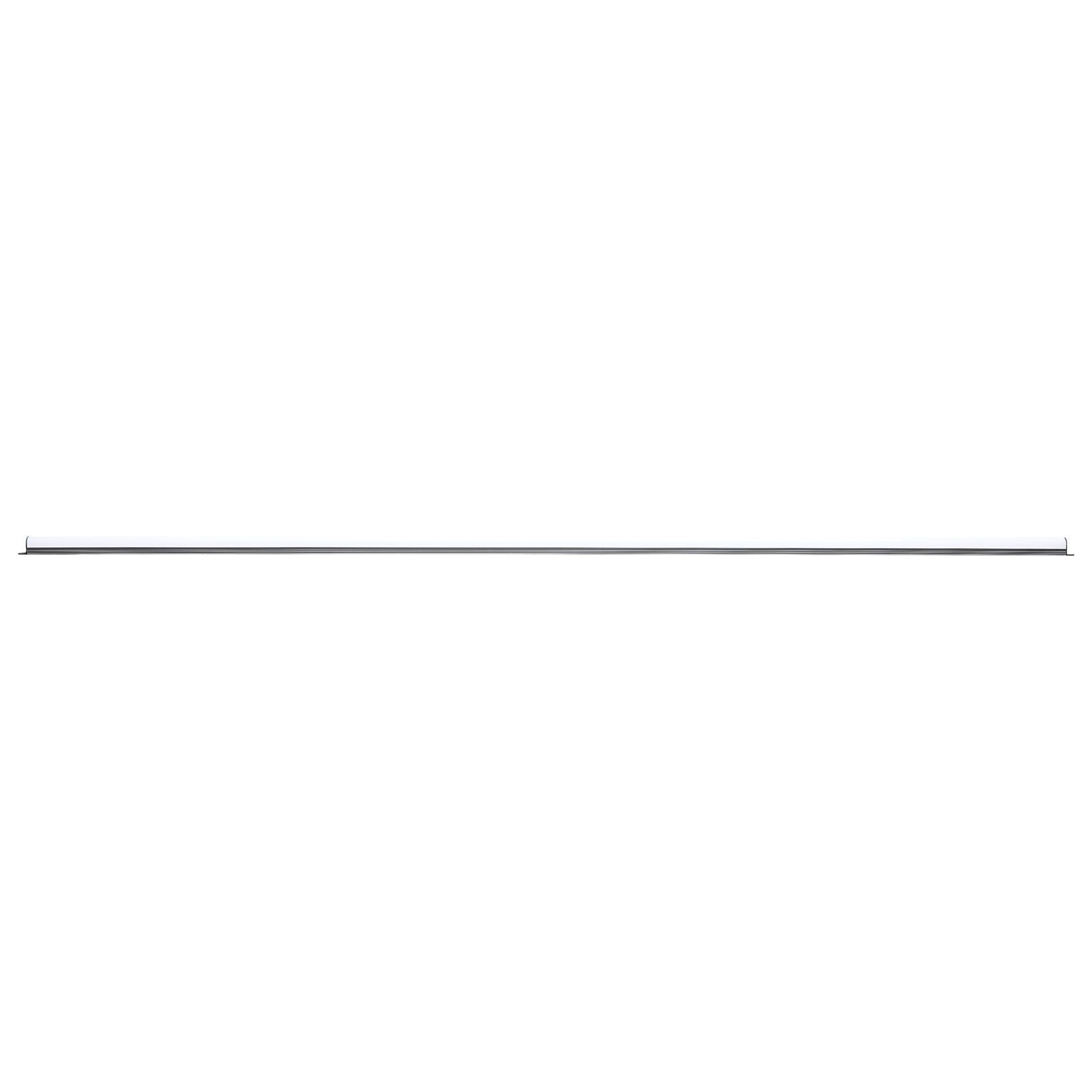

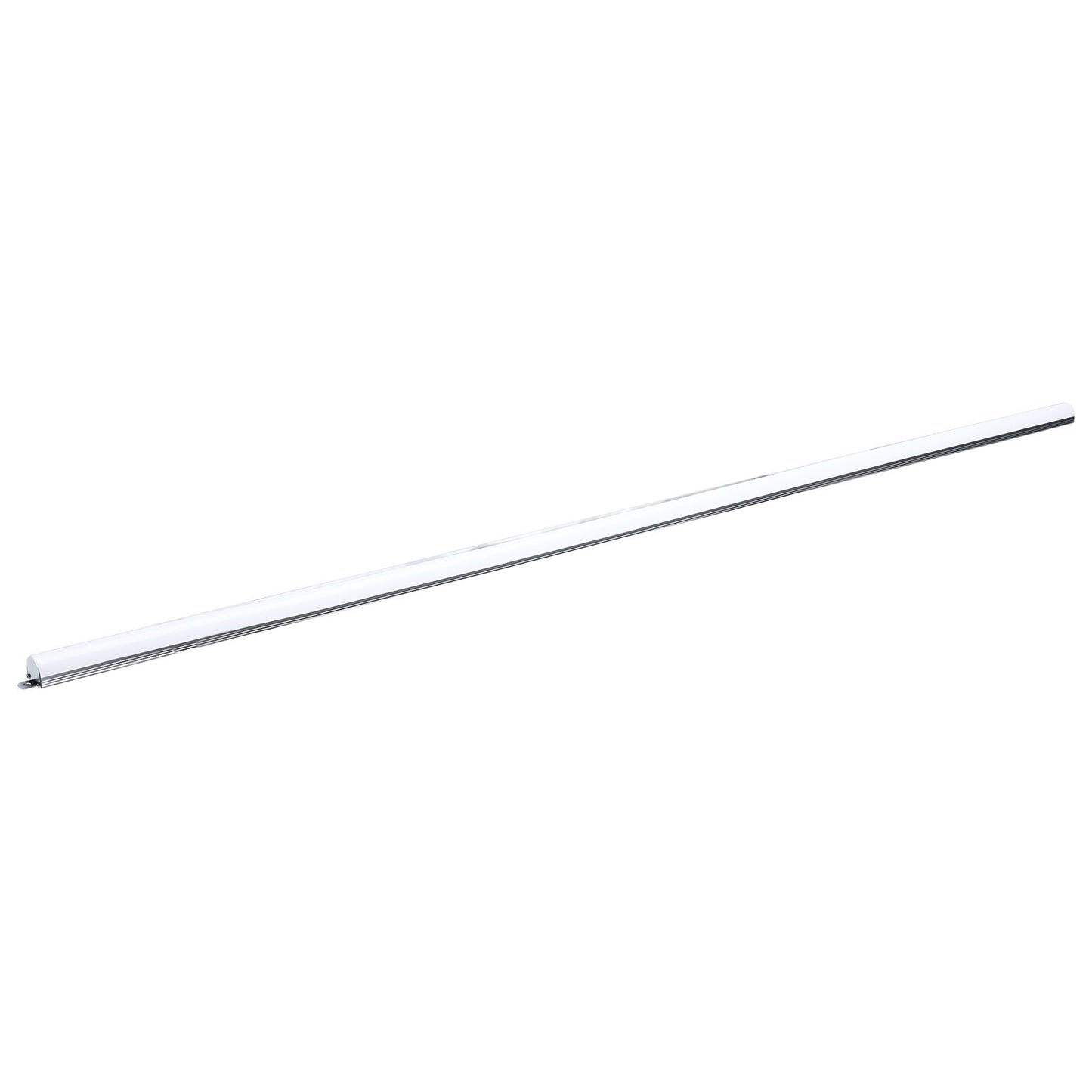

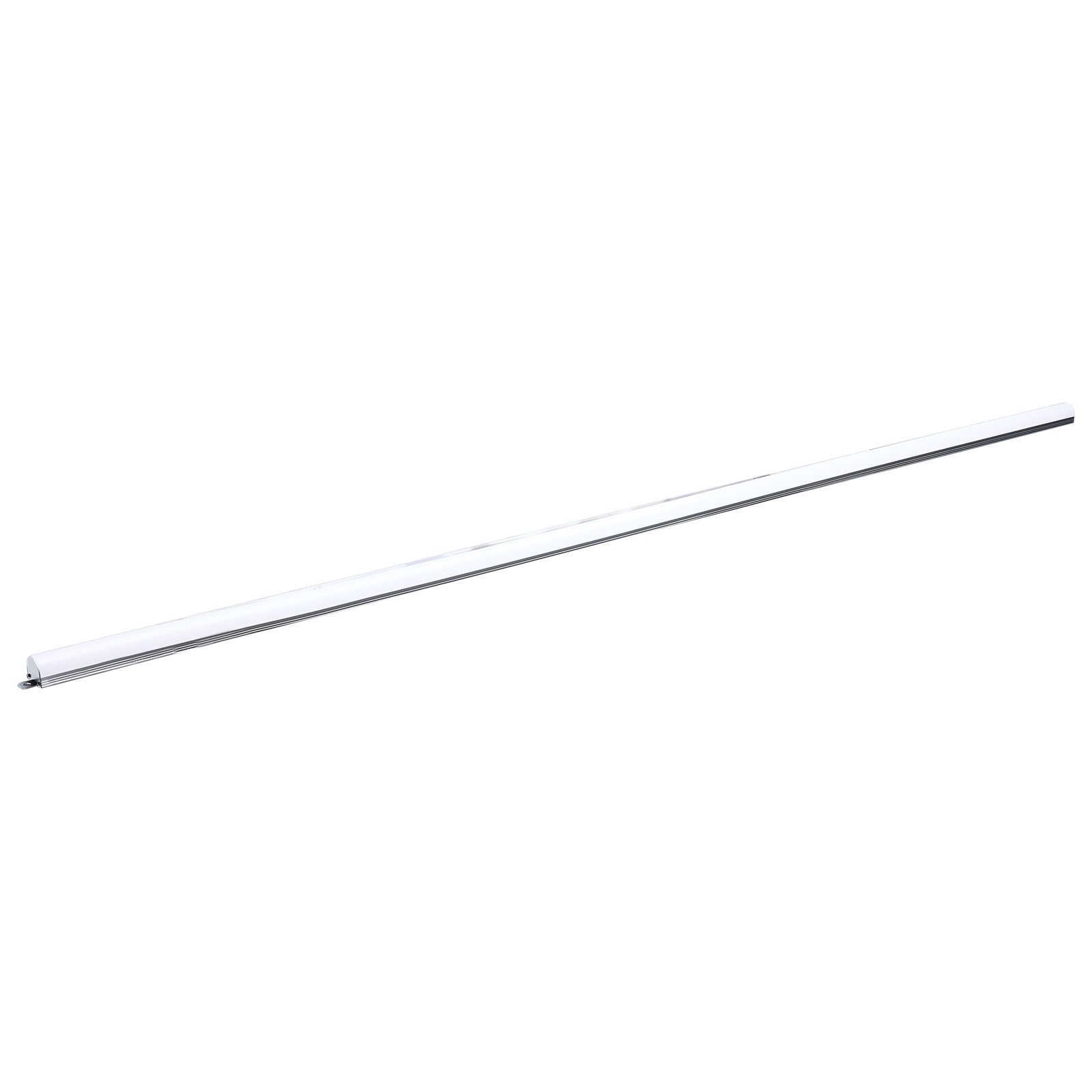

Each bar measures 41.73" long x 0.93" wide x 1.19" high. The kit is designed to fit into standard 4-foot fluorescent troffers and strip fixtures. Magnetic mounting makes installation quick and easy.
Specifications
- Finish: Silver
- Style: Utility
- Bulb Color Temp: 3000K/3500K/4000K/5000K/6500K
- Bulb Wattage: 50W/45W/40W/35W/30W
- Bulb Average Hours: 50000
- Bulb Lumens: 6250L/5625L/5000L/4375L/3750L
- Lamp Shape: Integrated LED
- Bulb CRI: 80+
- Voltage: 120V-277V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Operating Temperature: -4F to +113F (-20C to +45C)
- Color Temperature: Soft White to Daylight
- Field Selectable (5 wattages and 5 CCT)
- Reduces Upgrade Material Waste
- 4 Foot, 3 Light Bars Aluminum & PC Construction
- 0-10V Dimmable
- Fully Pre-Wired Driver
- Quick & Easy Magnetic Installation
- Damp Location Rated
- 50,000 Hour Functional Life
- 5 Year Warranty
- Dimmable: True
- Assembly Required: True
- Safety Rating: CULUS - Certified Listed
- For Use in Damp Locations
- Warranty Info: 5-Years
- Overall Dimensions: 41.73"(D) x 0.93"(W) x 1.19"(H)
- Item Weight: 2.1 lbs.
Frequently asked
Is the bulb included? Yes, the LED bars are integrated and included.
Is it dimmable, and what dimmer should I use? Yes, it is 0-10V dimmable. Use a compatible 0-10V dimmer.
Can I install this in a bathroom or outdoors? It is rated for damp locations, so it can be used in bathrooms (not directly in shower spray) or covered outdoor areas.
What's the warranty? 5-year warranty.
Does it work with existing fluorescent ballasts? No, this is a direct-wire retrofit that bypasses the ballast. It connects directly to line voltage.
