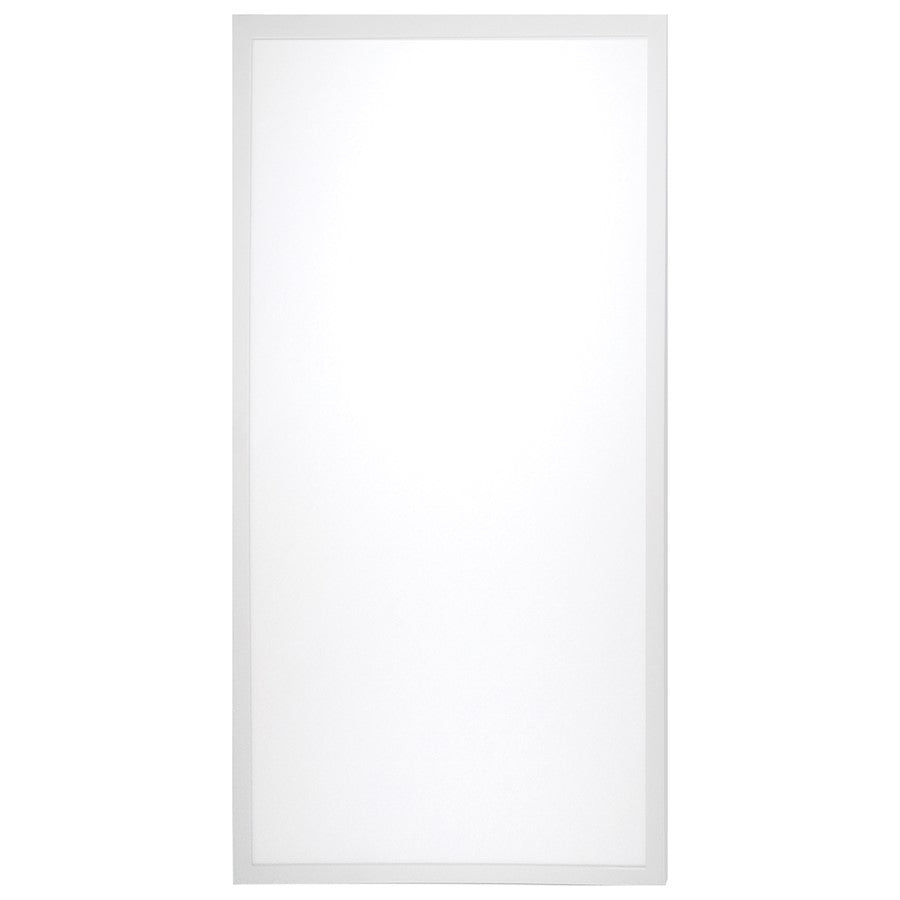

A 48-inch LED backlit flat panel with emergency battery backup for offices, retail, and education spaces, offering selectable wattage and color temperature in a white finish.
The SATCO|NUVO LED Backlit 2X4 Flat Panel 65-586R1 features ColorQuick and PowerQuick technologies, allowing you to choose from three wattages (30W, 40W, 50W) and three CCT options (3500K, 4000K, 5000K) at installation. Advanced manufacturing ensures even light distribution with a flicker-free driver, reducing strobing for comfortable long-term task lighting. The integrated emergency battery backup provides 90 minutes of light at 8W and 1000 lumens, keeping you safe during outages.
Best for
- Offices and conference rooms needing adjustable brightness and color temperature for task lighting
- Retail spaces requiring even, flicker-free illumination to highlight merchandise
- Educational facilities like classrooms and libraries where long-lasting, energy-efficient lighting is essential
- Hospitality areas such as lobbies and hallways that benefit from selectable color temperatures
- Spaces requiring emergency lighting with 90-minute battery backup
Not ideal for
- Residential rooms with low ceilings under 8 ft - the 2x4 ft panel may be too large
- Outdoor or wet locations - rated for damp locations only
- Spaces requiring a decorative fixture - this is a utility-style panel
How bright is it?
Selectable from 3300 to 5750 lumens, equivalent to roughly 30W to 50W fluorescent or 150W to 250W incandescent. At 5750 lumens, it's bright enough for a 200 sq ft office or classroom as primary lighting. The 1000-lumen emergency backup is comparable to a 60W incandescent, sufficient for safe egress.
Light color and feel
Choose from 3500K (warm white, similar to halogen), 4000K (neutral white, crisp and clean), or 5000K (daylight, bright and energizing). The flicker-free driver reduces eye strain, and 0-10V dimming allows smooth adjustment. CRI is not specified but typical for DLC-listed panels is 80+.
Sizing and fit
Dimensions: 47.72" L x 23.75" W x 2.88" H. Designed for standard 2x4 ft grid ceilings or surface mounting. Works in rooms with ceilings 8 ft or higher. Weight: 11.46 lbs.
Specifications
- Finish: White
- Style: Utility
- Wattage: 30W/40W/50W Selectable
- Bulb Average Hours: 50000
- Bulb Lumens: 3300L-5750L
- Voltage: 100V-347V
- 3500K/4000K/5000K CCT Selectable
- Integrated emergency battery backup with 90-minute run time
- Flicker Free, Even Light Distribution
- 0-10V Dimmable
- 50,000 average rated hours of use
- DLC Listed
- Title 20 Compliant
- Higher 120-347 Voltage Range
- Dimmable: True
- Sensor: No Photocell
- Assembly Required: Yes
- Safety Rating: CETLUS Listed
- For Use in Damp Locations
- Warranty Info: 5 Year Limited - Fixtures
- Overall Dimensions: 47.72"(L) x 23.75"(W) x 2.88"(H)
- Item Weight: 11.46 lbs.
Frequently asked
Is the bulb included? Yes, LEDs are integrated; no bulb replacement needed.
Is it dimmable, and what dimmer should I use? Yes, 0-10V dimmable. Use a compatible 0-10V dimmer (not a standard phase-cut dimmer).
Can I install this in a bathroom or outdoors? It is rated for damp locations, so it can be used in bathrooms (not directly in shower spray) but not outdoors.
What's the warranty? 5-year limited warranty on the fixture.
How do I select the wattage and color temperature? The fixture has switches on the driver for selecting 30W/40W/50W and 3500K/4000K/5000K before installation.
