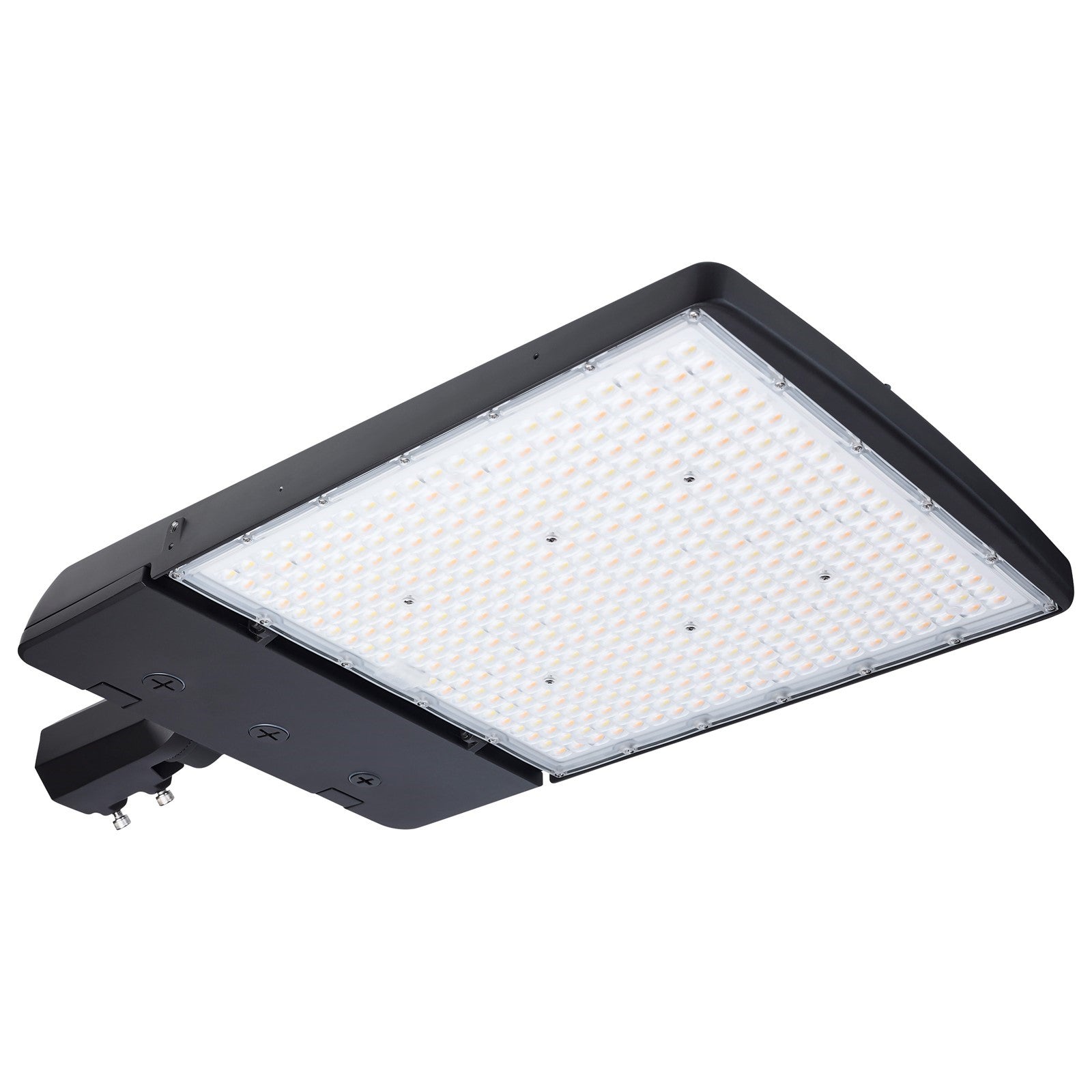

An LED area light for parking lots, roadways, and large outdoor spaces, finished in bronze, with 277-480V input.
The Nuvo Lighting 65-1528 is a high-output LED area light designed for large-scale exterior applications requiring higher voltage. It features selectable beam distributions (Type III, IV, V), selectable CCTs (3000K, 4000K, 5000K), and selectable wattage (200W, 240W, 300W) to deliver 31,289 to 47,198 lumens. The die-cast aluminum housing and IK08-rated polycarbonate lens ensure durability, and the integrated sensor port allows for future upgrades.
Best for

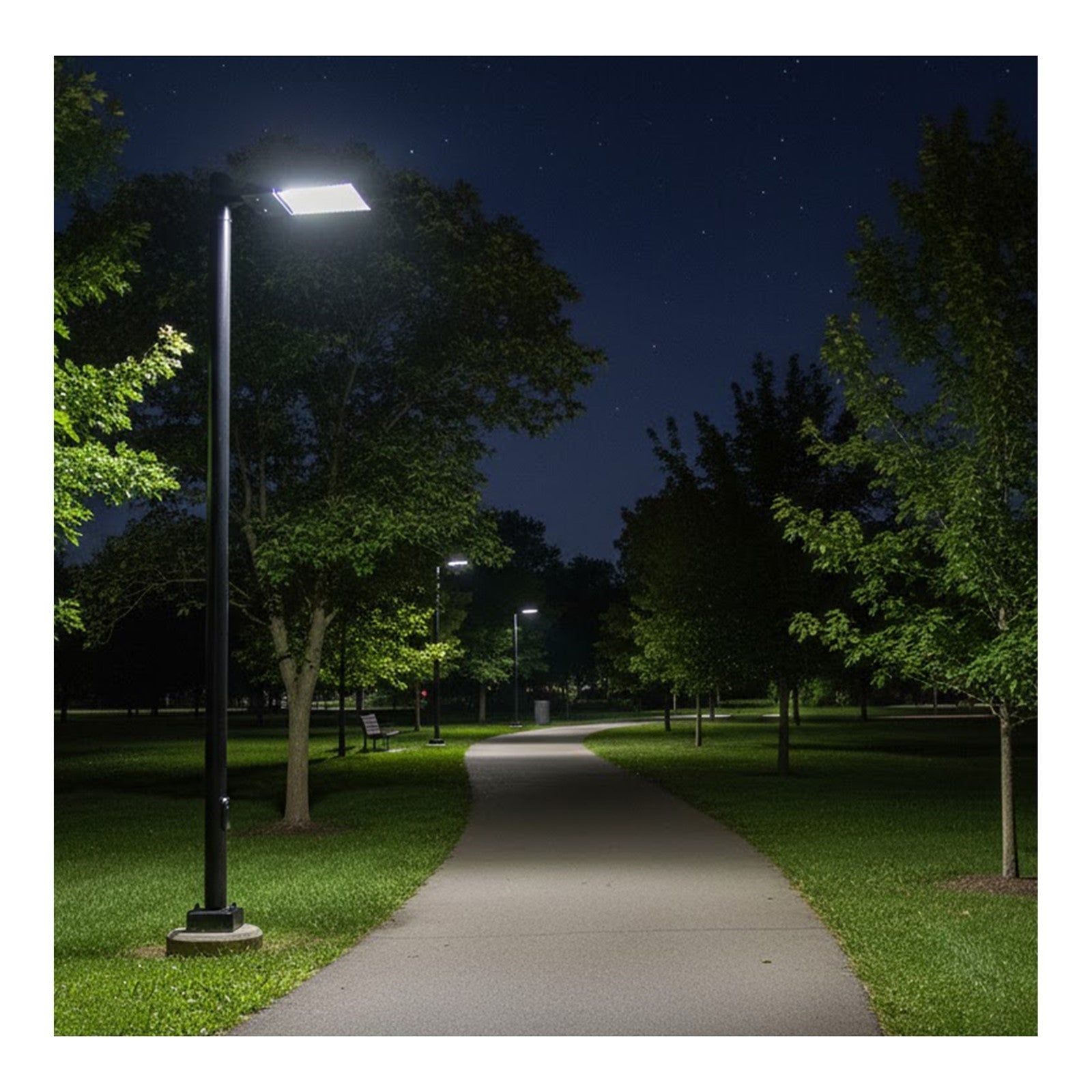

- Parking lots and garages needing bright, uniform illumination
- Roadways and streets where light distribution is critical
- Large outdoor areas like stadiums, loading docks, and industrial yards
- Security lighting for commercial properties
- Areas requiring wet-location rated fixtures
Not ideal for
- Residential gardens or small patios where a decorative fixture is preferred
- Indoor spaces where a lower-output, more compact light is needed
How bright is it?
This fixture produces 31,289 to 47,198 lumens depending on the wattage setting. That's equivalent to a 1500W-2500W incandescent bulb, making it extremely bright for large outdoor areas.
Light color and feel
Choose from 3000K (soft white), 4000K (natural white), or 5000K (daylight) to suit the environment. The 80 CRI ensures adequate color rendering. It's dimmable with 0-10V dimming for energy savings.
Sizing and fit

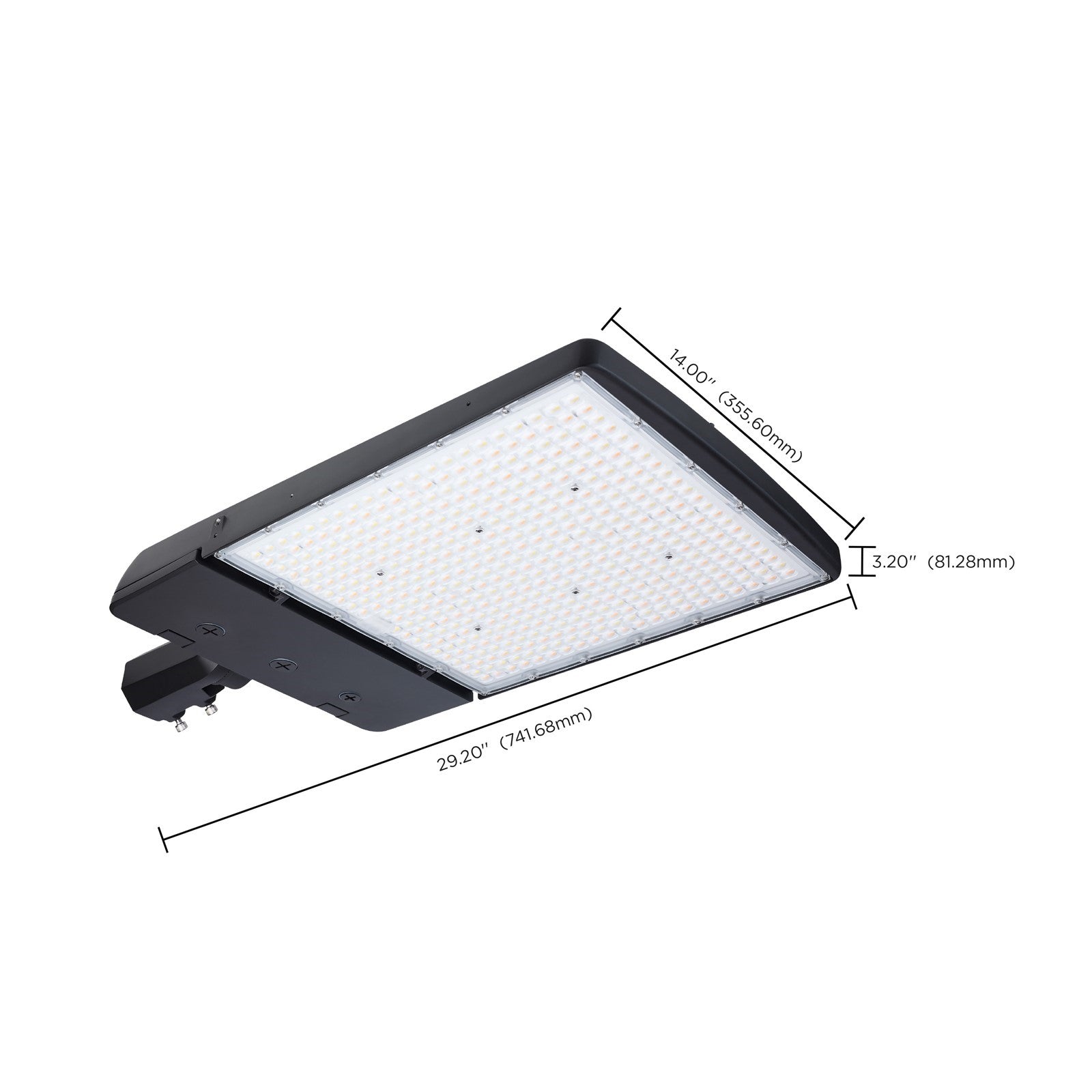

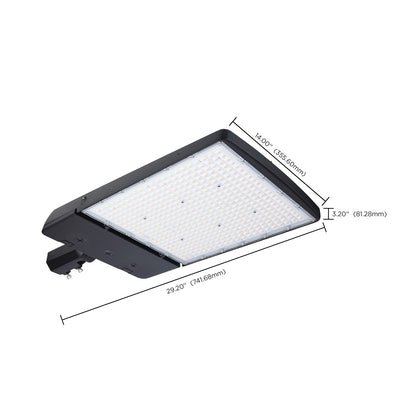

This area light measures 29.2 inches in diameter, 14 inches wide, and 3.2 inches high. It's designed for pole mounting with a standard 2-3/8" slip fitter. The robust construction handles outdoor conditions.
Specifications
- Fixture Finish: Bronze
- Style: Utility
- Bulb Wattage: 300W/240W/200W
- Lamp Shape: Integrated LED
- ANSI Base: Integrated
- Lamp Base: Integrated
- Bulb Included: Integrated
- Dimmable: True (0-10V Dimming)
- Voltage: 277V-480V
- Lumens: 31289L-47198L
- Color Temperature: 3000K/4000K/5000K
- CRI: 80
- Beam Selectable (Type III/IV/V)
- 3 CCT Selectable (3000K/4000K/5000K)
- 3 Wattage Selectable (300W/240W/200W)
- 6kV Surge Protection
- IP65 Rated
- Die-Cast Aluminum Housing with IK08 Rated PC Lens
- Integrated Sensor Port
- 277-480V Range Voltage and 0-10V Dimmable
- 50,000 Life Hours
- 5 Year Warranty
- Assembly Required: True
- Location Rating: Wet
- Safety Location: CULUS - Listed
- Indoor/Outdoor: Outdoor
- CA Prop 65: Lead
- Warranty: 5-Years
- Incandescent Equivalent: 1500W-2500W
- HID Equivalent: 250W-750W
- Average Hours Rated: 50000
- Wattage Selectable: True
- CCT Selectable: True
- Driver Included: True
- Operating Temperature: -40F to +122F (-40C to +50C)
- DLC: True
- Title 20: Exempt
- CEC: Lawful for sale in California
Frequently asked
Is the bulb included? Yes, the LED is integrated.
Is it dimmable, and what dimmer should I use? Yes, it's dimmable with 0-10V dimming.
Can I install this in a bathroom or outdoors? It's rated for wet locations, so it's suitable for outdoor use.
What's the warranty? 5-year warranty.
What beam angles are available? It's selectable between Type III, IV, and V distributions.
