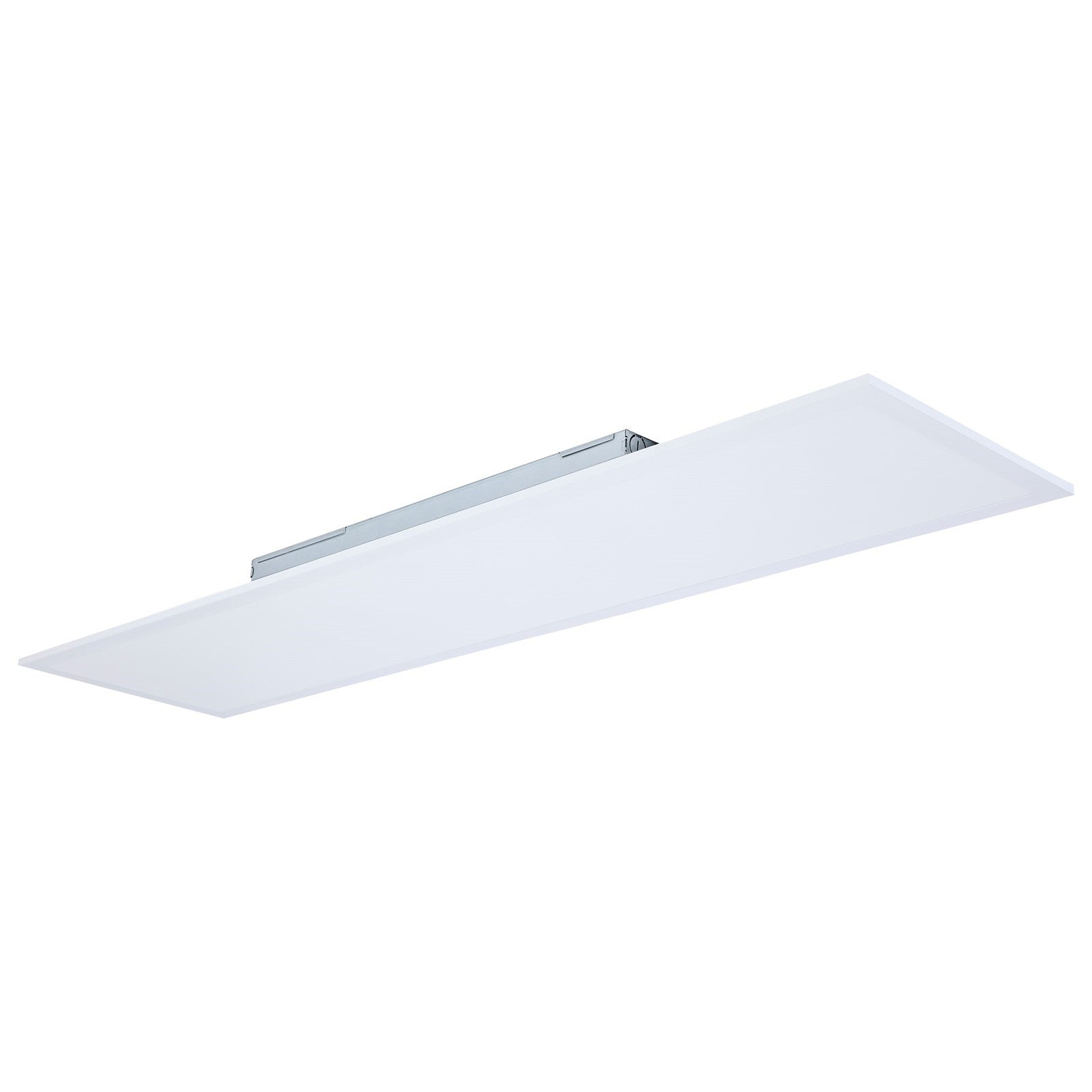

A 1x4 foot LED backlit panel for commercial and office spaces, finished in white with selectable wattage and color temperature.
The Nuvo Lighting 65-1663 Backlit Panel delivers reliable performance with selectable wattages of 20W, 30W, or 40W and CCT options of 3500K, 4000K, or 5000K. The steel body with die-cast aluminum trim ensures seamless corners and no light leakage, while the polystyrene lens provides uniform illumination. Rated for damp locations and featuring 0-10V dimming down to 10%, this panel is ideal for offices, classrooms, and commercial interiors.
Best for
- Office spaces and conference rooms needing even, glare-free lighting
- Commercial corridors and lobbies with 1x4 grid ceilings
- Classrooms and training rooms requiring selectable color temperature
- Damp locations like covered entryways or basements
- Spaces with 120V-277V electrical systems
Not ideal for
- Residential living rooms or bedrooms - designed for commercial grid ceilings
- Outdoor uncovered areas - damp location rated, not wet location
- Spaces requiring very high brightness (over 5000 lumens)
How bright is it?
Selectable from 2500 to 5000 lumens depending on wattage. At 40W, 5000 lumens is equivalent to a 300W incandescent, bright enough for general office lighting. At 20W, 2500 lumens is like a 150W incandescent, suitable for ambient light.
Light color and feel
Selectable CCT: 3500K (neutral warm), 4000K (cool white), 5000K (daylight). 3500K provides a warm, inviting glow; 4000K is crisp and neutral; 5000K simulates daylight. CRI 80+.
Sizing and fit
Panel measures 47.76" x 11.93" x 1.38", designed to fit standard 1x4 foot drop ceilings. Slim profile for low-profile installation.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 3500K/4000K/5000K
- Bulb Wattage: 20W/30W/40W
- Bulb Average Hours: 50000
- Bulb Lumens: 2500L/3750L/5000L
- Lamp Shape: Integrated LED
- Bulb CRI: 80+
- Voltage: 120V-277V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Operating Temperature: +1.4F to +113F (-17C to +45C)
- Color Temperature: Neutral White to Natural Light

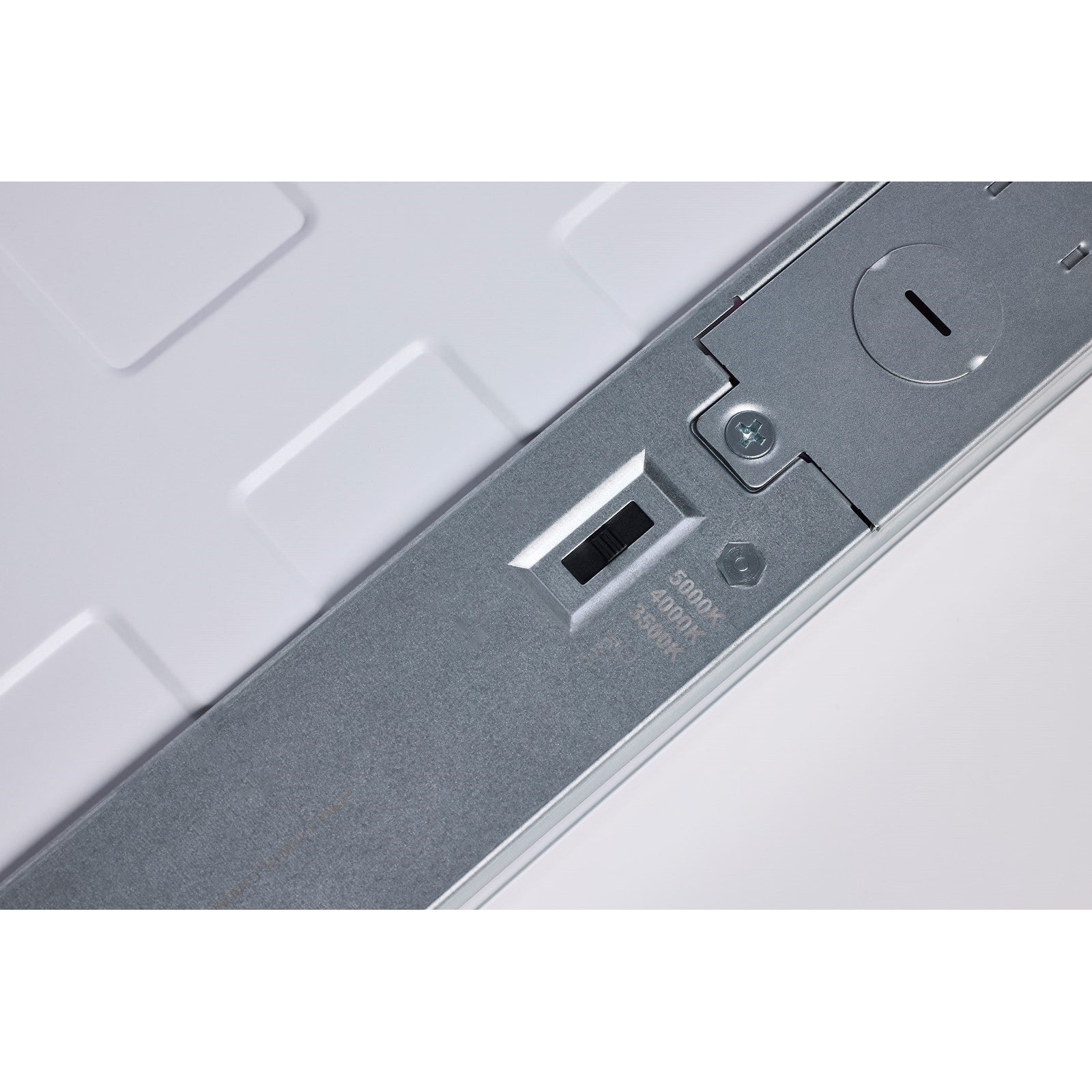

- Field Selectable - 3 CCT and 3 Wattage
- 1X4 Panel
- Standard Model
- 120-277 Voltage
- Steel Body with Die-cast Aluminum Trim for Seamless Corners
- TAA Compliant
- Damp Location Rated
- 5 Year Warranty
- 50,000 Hour Functional Life
- Dimmable: True
- Assembly Required: True
- Safety Rating: CULUS - Certified Listed
- For Use in Damp Locations
- Warranty Info: 5-Years
- Overall Dimensions: 47.76"(D) x 11.93"(W) x 1.38"(H)
- Item Weight: 4.25 lbs.
Frequently asked
What is it made of? Steel body with die-cast aluminum trim and polystyrene lens.
Where in the home does this work best? This is a commercial-grade panel, best for offices, classrooms, and commercial spaces with drop ceilings.
How is it mounted or assembled? Designed for grid ceiling installation; assembly required.
What's the warranty? 5-year warranty.
Can I use this in a bathroom? Yes, it is damp location rated, suitable for bathrooms with no direct water spray.
