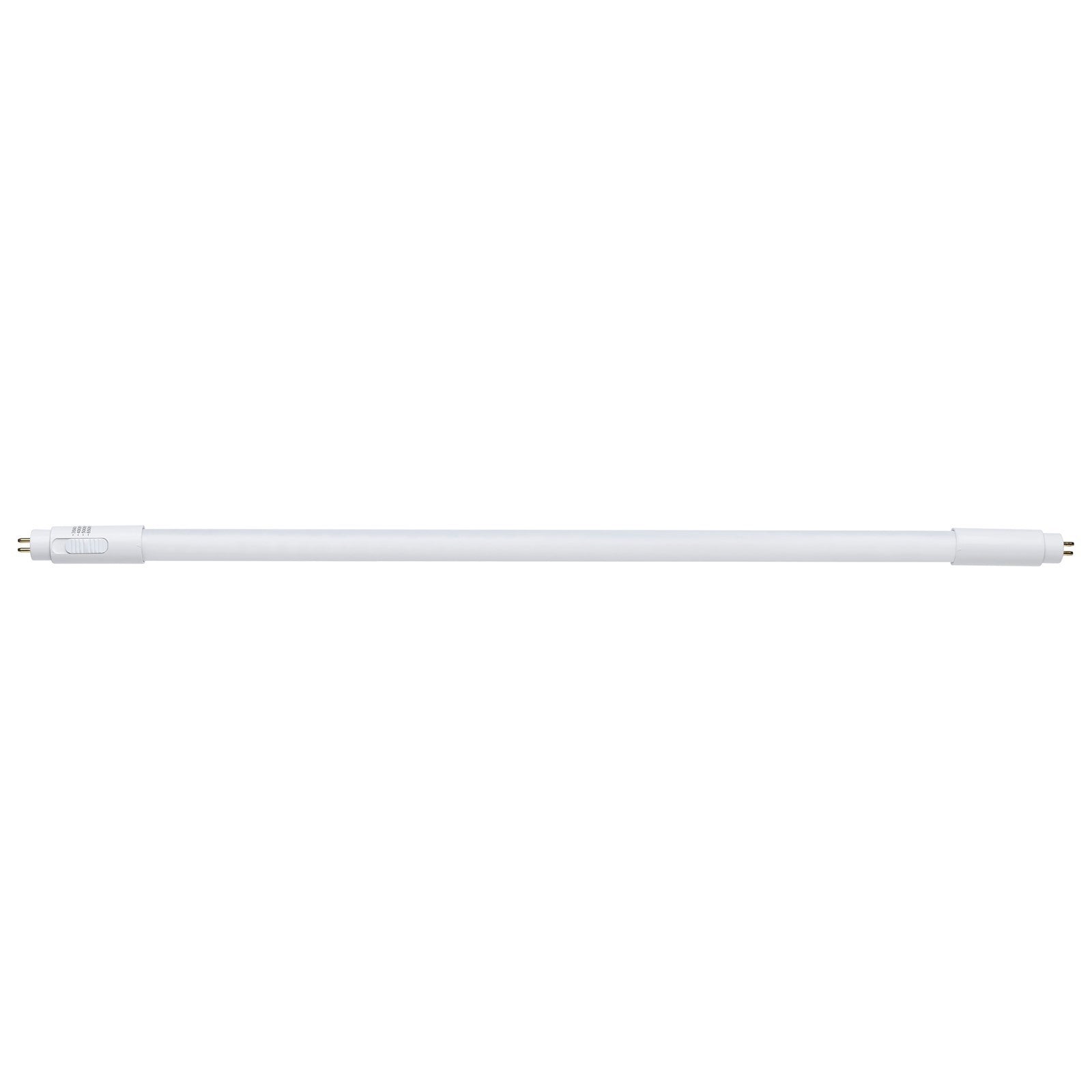

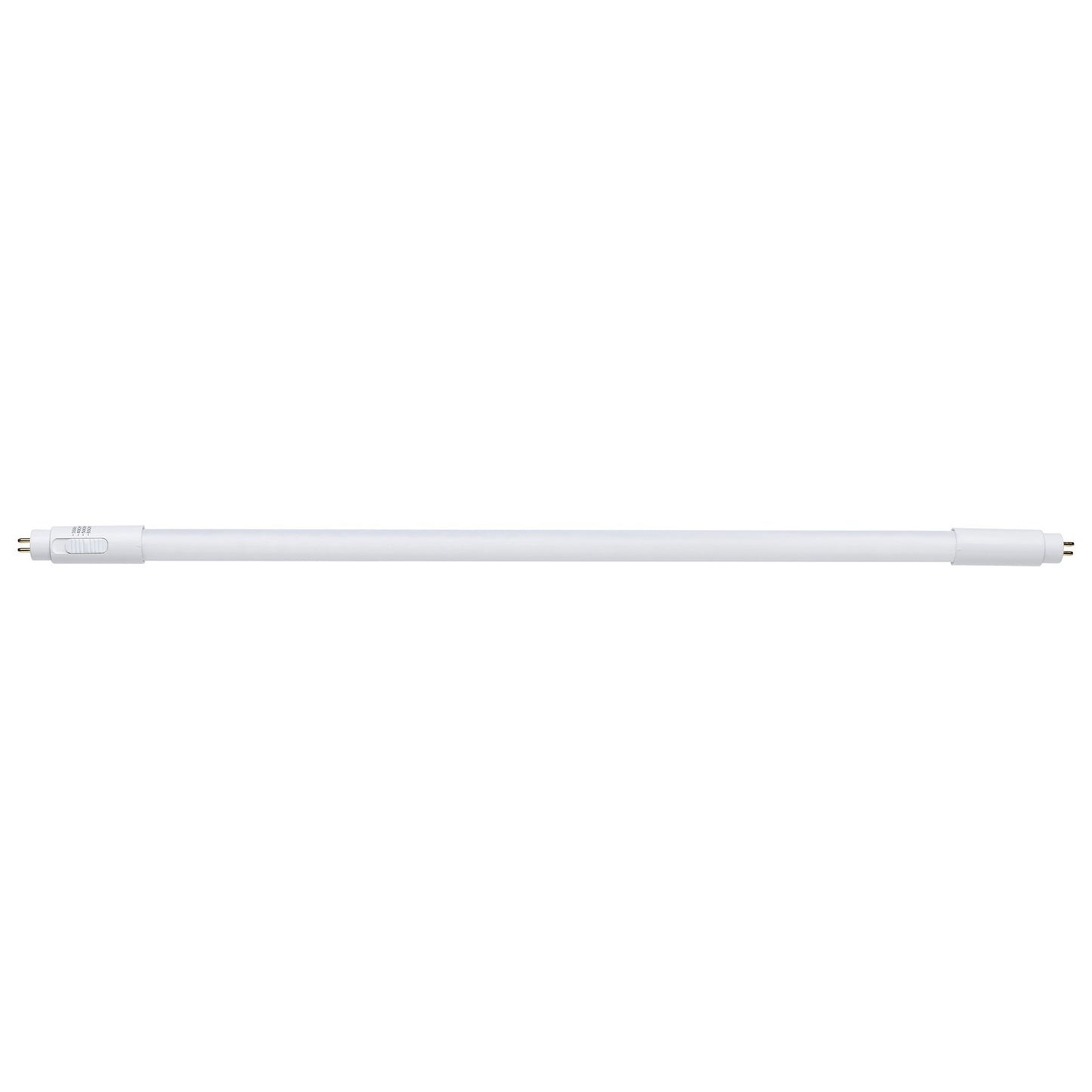

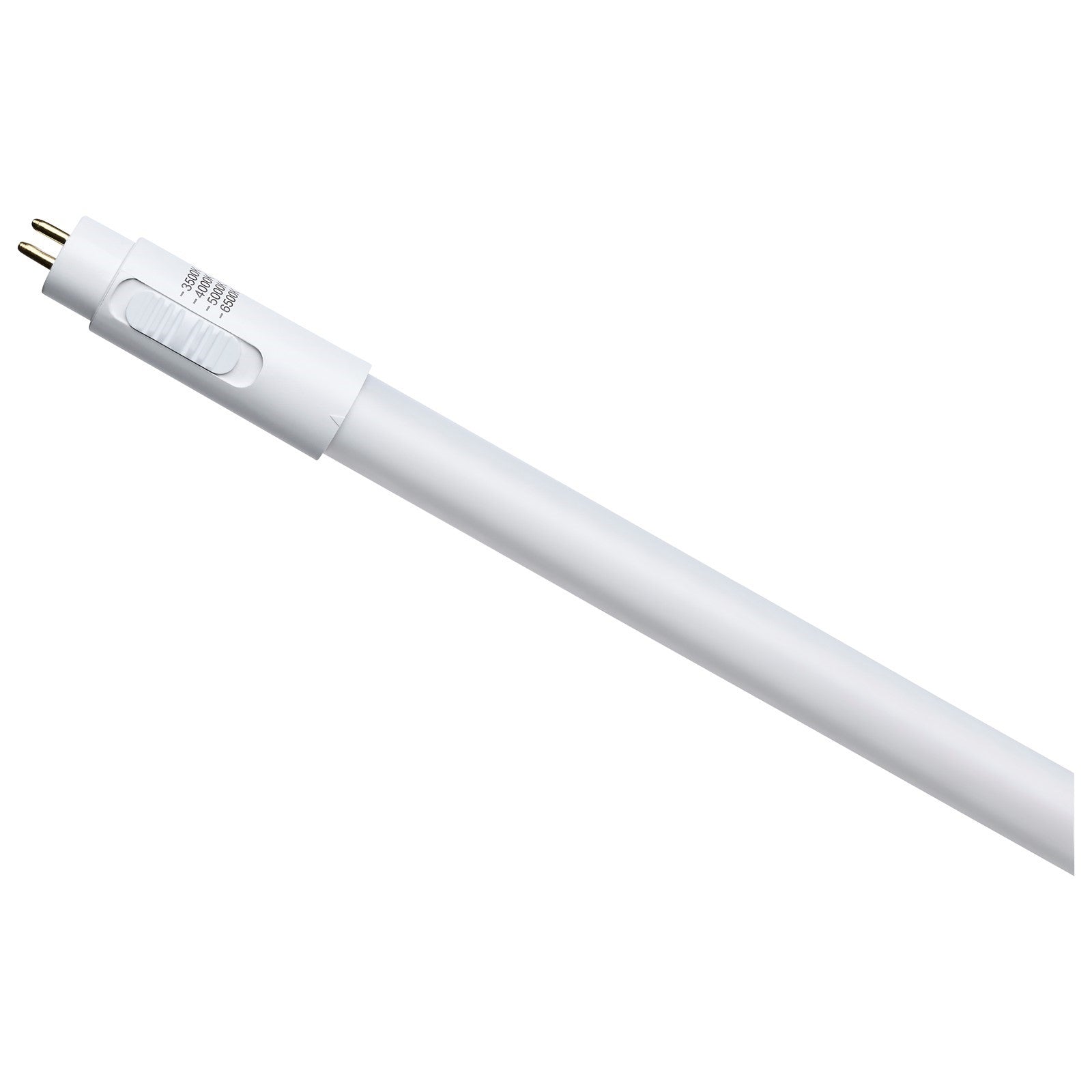

A 12-inch, 6W LED T5 linear lamp in frost finish, designed for undercabinet, vanity, and task lighting applications as a direct replacement for F8T5 fluorescent tubes.
This Nuvo Lighting S16513 LED T5 lamp offers a convenient retrofit solution with Type A ballast compatibility, eliminating the need for rewiring. The durable PET-coated frosted glass construction and four selectable color temperatures (3500K/4000K/5000K/6500K) provide flexibility for various environments. Ideal for damp locations, this lamp delivers reliable, energy-efficient illumination.
Best for
- Undercabinet lighting in kitchens, providing bright task light for food prep
- Vanity lighting in bathrooms or dressing areas, with selectable CCT to match decor
- Workshop or garage task lighting where damp-rated fixtures are needed
- Retrofit projects replacing existing F8T5 fluorescent tubes without rewiring
- Display case or shelf lighting in retail or commercial settings
Not ideal for
- Spaces requiring high brightness (over 700 lumens) as primary room lighting
- Applications needing a warm-only or cool-only fixed CCT without selectability
- Fixtures that require a non-ballast-compatible (Type B) lamp
How bright is it?
700 lumens - comparable to a 60W incandescent bulb, suitable for task and accent lighting in small to medium areas. Not intended as a primary room light source.
Light color and feel
Selectable CCT from 3500K (neutral white) to 6500K (daylight). 3500K offers a warm neutral tone, while 6500K provides a crisp, cool daylight feel. CRI 83 ensures decent color rendering for most tasks.
Sizing and fit
Dimensions: 0.62"W x 11.91"H. Fits standard T5 fixtures with G5 miniature bi-pin base. Designed for 12-inch linear fixtures.
Specifications
- Finish: Frost
- Bulb Color Temp: 3500K/4000K/5000K/6500K
- Bulb Wattage: 6W
- Bulb Average Hours: 36000
- Bulb Lumens: 700L
- Lamp Shape: T5
- Bulb CRI: 83
- Voltage: Ballast Dependent
- Lamp Base: Miniature Bi Pin
- Operating Temperature: -20C (-4F) to +45C (+113F)
- Color Temperature: Neutral White to Daylight
- 12-Inch Tube
- Type A Ballast Compatible
- 120V-277V Range Voltage
- 6W LED Replaces F8T5 Fluorescent
- CCT Selectable: 3500K/4000K/5000K/6500K
- 700 Lumens
- G5 Miniature Bi-Pin Base
- Double-Ended Wiring
- PET Coated Frosted Glass
- Damp Location Rated
- Quantity in Pack: 1
- Assembly Required: True
- Safety Rating: CETLUS - Listed Listed
- For Use in Damp Locations
- Warranty Info: 3-Years
Frequently asked
Is the bulb included? Yes, this is the LED lamp itself.
Is it dimmable, and what dimmer should I use? Dimmability depends on the ballast; check ballast compatibility. Not specified as dimmable.
Can I install this in a bathroom or outdoors? Yes, it is damp location rated, suitable for bathrooms and covered outdoor areas.
What's the warranty? 3-Year warranty.
Does this work with existing T5 ballasts? Yes, it is Type A ballast compatible for easy retrofit.
