A 10-inch square LED canopy fixture for covered patios, entryways, and utility areas, with selectable wattage and color temperature in a durable bronze finish.

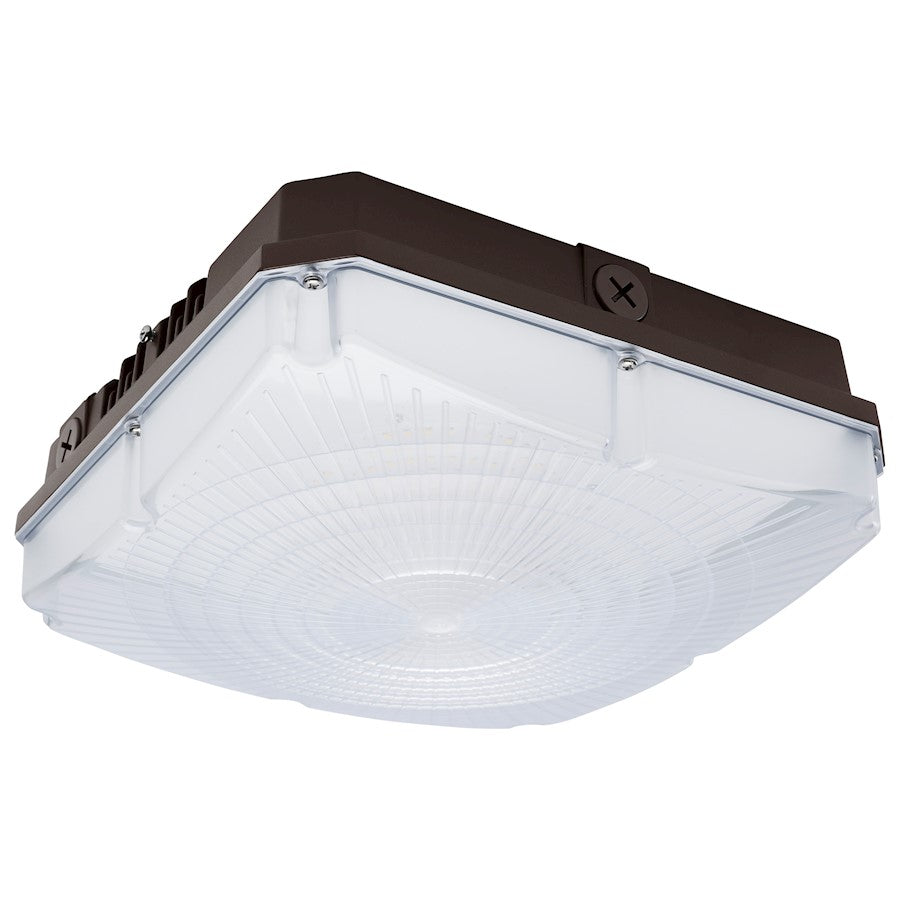

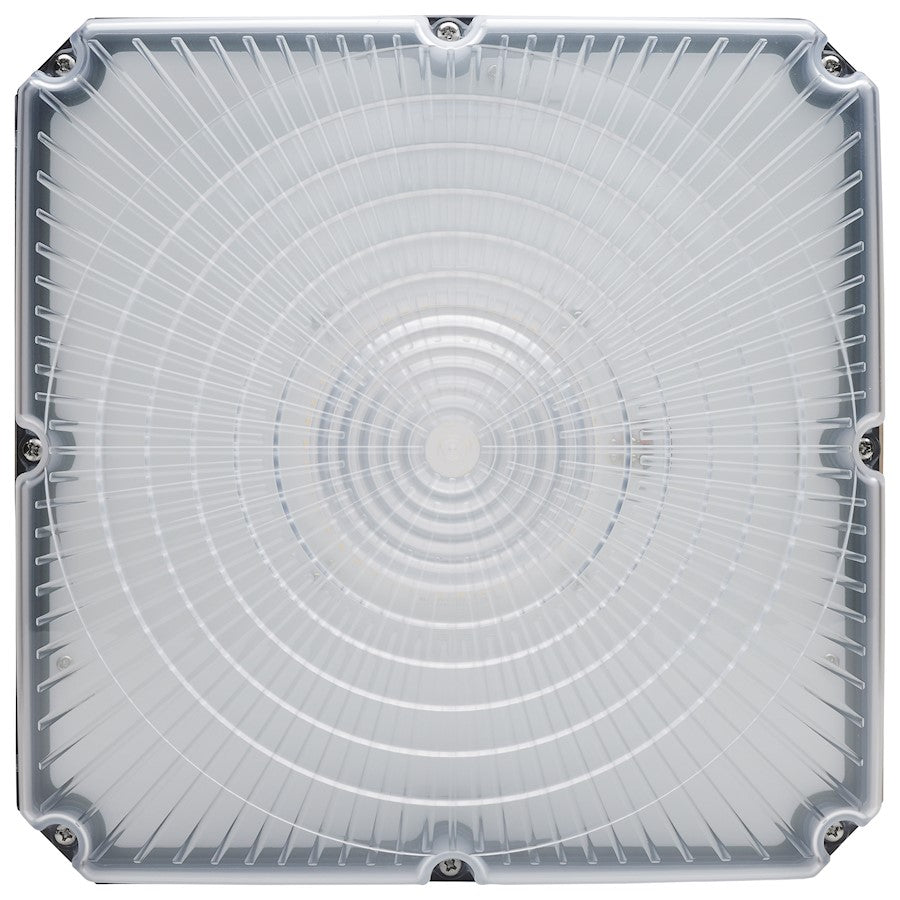

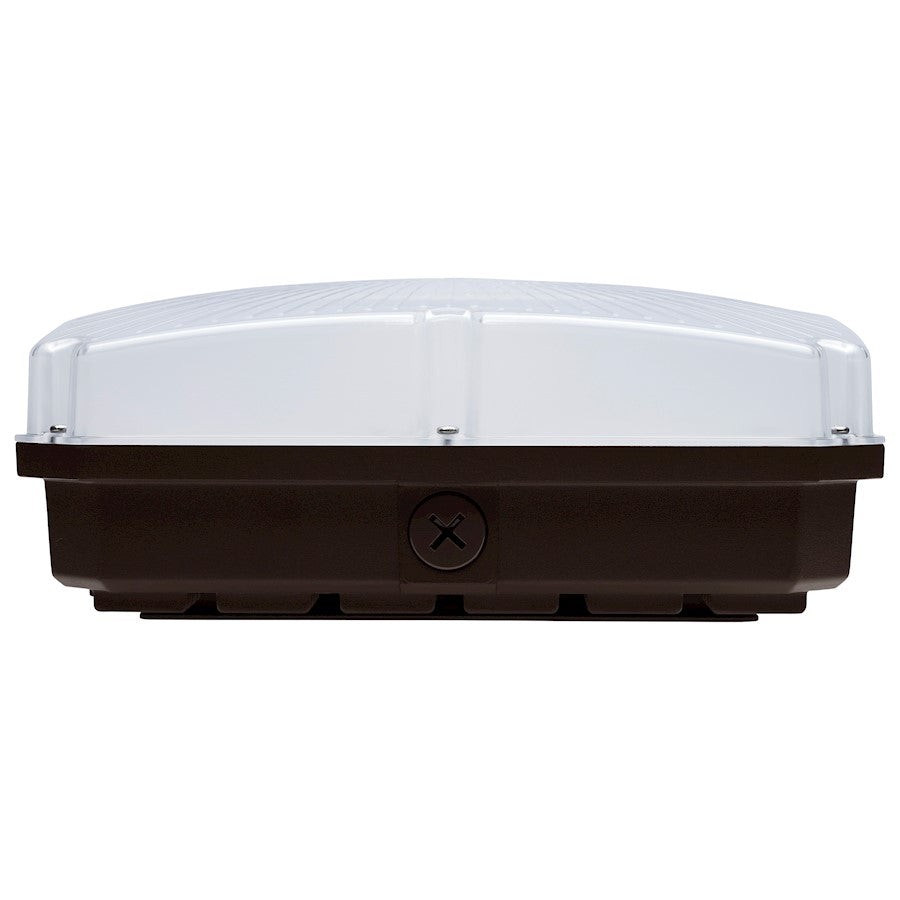

The Nuvo Lighting 65-981 Field Selectable Canopy Fixture combines rugged construction with installation flexibility. The bronze die-cast aluminum housing and vandal-resistant polycarbonate lens are rated IP65 for wet locations and IK08 for impact resistance, making it ideal for outdoor and high-traffic indoor spaces. Choose from three wattages (45W, 60W, 70W) and three color temperatures (3000K, 4000K, 5000K) during installation, and mount it to a ceiling or suspend it using the included pendant kit.
Best for
- Covered patios, porches, and entryways where wet location rating is required
- Utility areas, garages, and workshops needing bright, adjustable light
- Commercial or multi-family building corridors and stairwells
- Vandal-prone locations such as parking garages or public walkways
- Spaces with 8-12 ft ceilings, surface or pendant mounted
Not ideal for
- Interior living rooms or bedrooms where a decorative fixture is preferred
- Spaces with ceilings under 8 ft if pendant mounted (adds about 6 inches)
- Applications requiring a warm, incandescent-like glow at full brightness (minimum 3000K)
How bright is it?
Selectable output from 5625 to 9450 lumens, depending on the wattage setting. At 45W (5625 lumens), it's comparable to a 60W incandescent floodlight - suitable for accent or general ambient light in a small room. At 70W (9450 lumens), it rivals a 100W incandescent and can serve as primary lighting for a two-car garage or large covered patio.
Light color and feel
Choose from 3000K (soft white, warm and cozy), 4000K (cool white, crisp and neutral), or 5000K (daylight, bright and energizing). The 80 CRI provides decent color rendering for most tasks. Fully dimmable via 0-10V dimming for adjustable ambiance.
Sizing and fit
10.06 inches square by 4.19 inches deep. Surface mounts flush to the ceiling with a hinged universal bracket, or pendant mounts with a 3/4-inch threaded pipe (not included). Works best on ceilings 8-12 ft high. Weighs 5 lbs.
Specifications
- Finish: Bronze
- Style: Utility
- Bulb Color Temp: 3000K/4000K/5000K
- Bulb Wattage: 45W/60W/70W
- Bulb Average Hours: 50000
- Bulb Lumens: 5625L-9450L
- Bulb Shape: Integrated LED
- Bulb CRI: 80
- Voltage: 120V-277V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Color Temperature: Soft White to Natural Light
- CCT and Wattage Selectable
- Ceiling or Pendant Mounting
- Hinged Universal Mounting Bracket
- IP65 and IK08 Vandal Resistant
- Wet Location Rated
- 50,000 Hour Functional Life
- 10 Inch Square Fixture
- B3-U3-G3 Rating
- 0-10V Dimming
- Dimmable: Yes-Dimmable
- Assembly Required: Yes
- For Use in Wet Locations
- Safety Rating: CULUS - Certified
- Warranty Info: 5 Year Limited - Fixtures
- Overall Dimensions: 10.06"(D) x 10.06"(W) x 4.19"(H)
- Item Weight: 5.03 lbs.
Frequently asked
Is the bulb included? Yes, the LED is integrated and not replaceable.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via 0-10V dimming. Use a compatible 0-10V dimmer (not included).
Can I install this in a bathroom or outdoors? Yes, it is IP65 wet location rated, suitable for covered outdoor areas and bathrooms with direct water exposure.
What's the warranty? 5-year limited warranty on the fixture.
Can I change the wattage and color temperature after installation? The settings are selected via switches on the fixture during installation and cannot be changed without accessing the wiring.
