An 80W LED large adjustable wall pack for outdoor building perimeters, parking areas, and loading docks, finished in corrosion-resistant bronze.

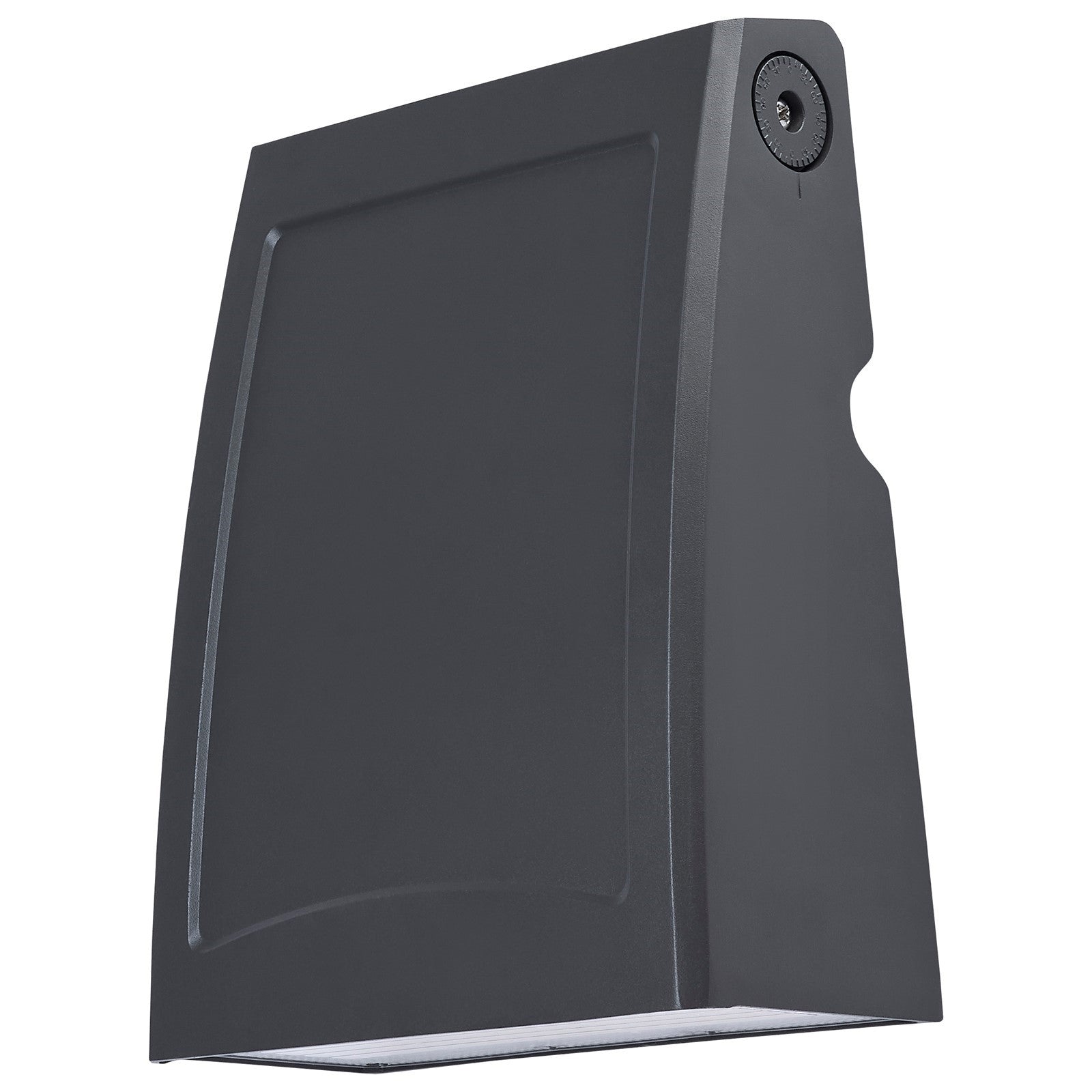

This Nuvo Lighting wall pack delivers targeted outdoor illumination with an adjustable head that rotates up to 90 degrees, letting you aim light exactly where it's needed. Field-selectable wattage (80W/60W/45W) and color temperature (3000K/4000K/5000K) provide flexibility at installation, while the built-in bypassable photocell enables automatic dusk-to-dawn operation. Constructed from durable die-cast aluminum with an impact-resistant polycarbonate lens, it's built for demanding environments.
Best for

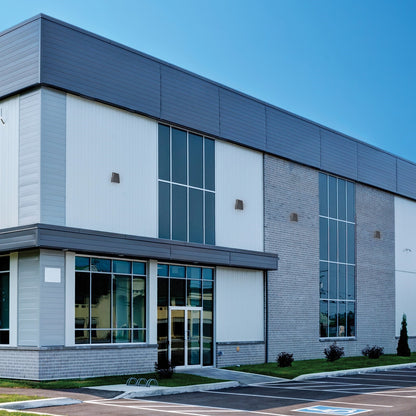

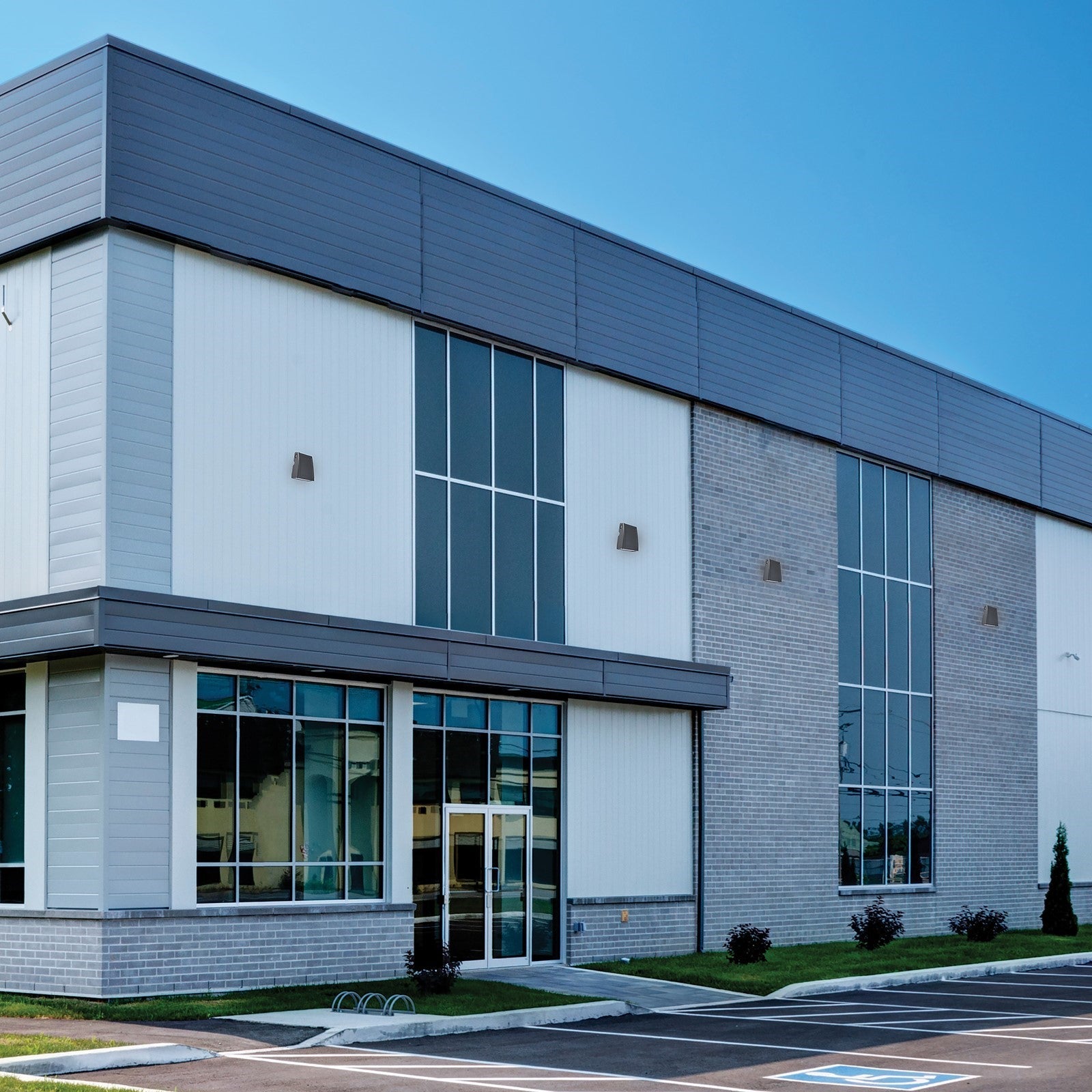

- Outdoor building perimeters and entryways needing directional, adjustable light
- Parking areas and loading docks where wide coverage and high output are required
- Commercial and industrial settings such as warehouses, schools, and office buildings
- Security lighting with dusk-to-dawn photocell operation
Not ideal for
- Indoor residential accent lighting - this is a utility-grade outdoor fixture
- Spaces needing a decorative or low-glare aesthetic
How bright is it?
Output ranges from 6251 to 11264 lumens depending on wattage selection - comparable to a 100W-250W HID fixture, making it suitable for illuminating large outdoor areas.
Light color and feel
Selectable 3000K (soft white), 4000K (neutral white), or 5000K (daylight) - choose the tone that suits your application. CRI 80+ ensures decent color rendering. Dimmable via 0-10V dimming for additional control.
Sizing and fit

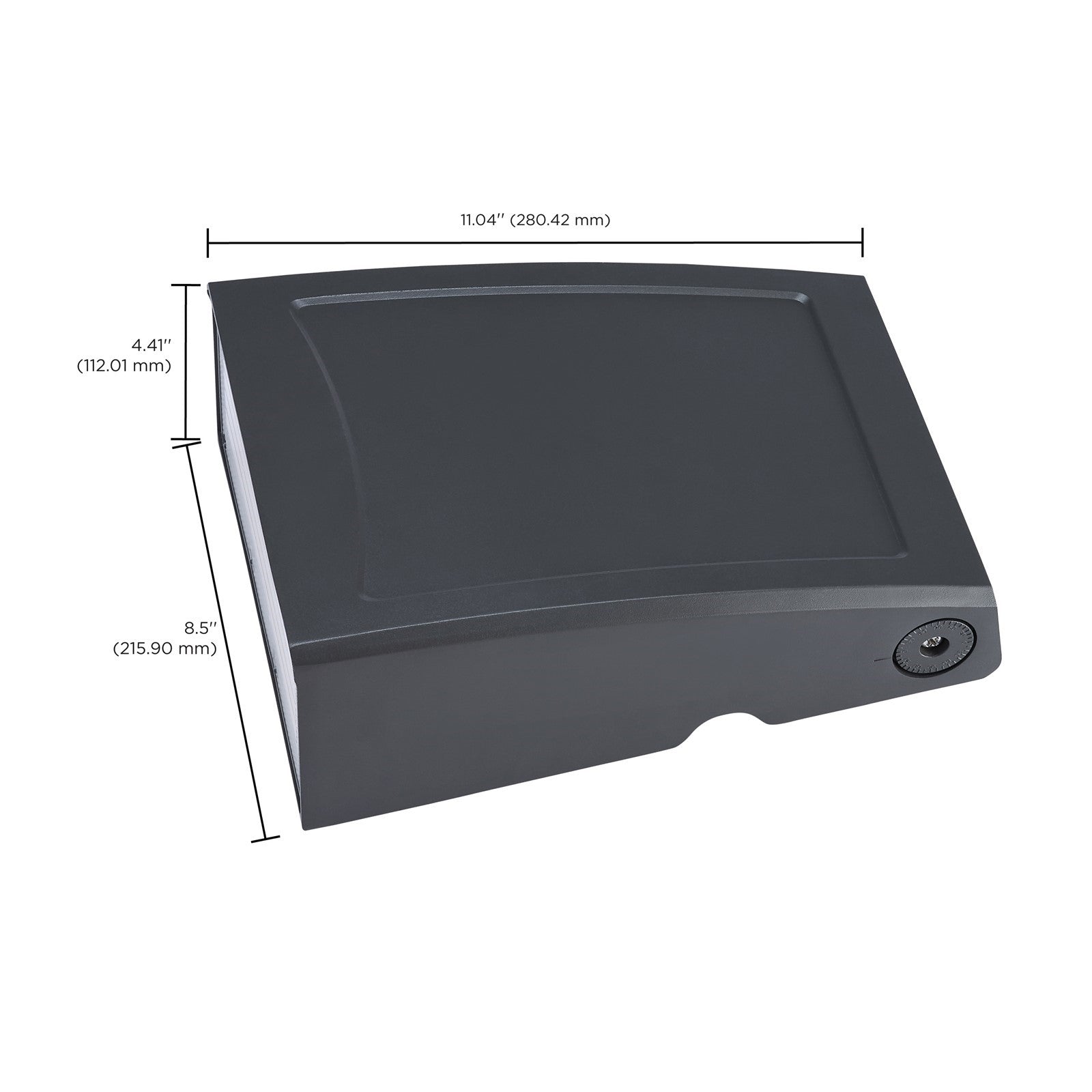

Measures 8.5"W x 11.04"D x 4.41"H and weighs 4.96 lbs. The adjustable head rotates up to 90 degrees for precise aiming. Suitable for wall mounting on commercial buildings.
Specifications
- Fixture Finish: Bronze
- Style: Utility
- Bulb Wattage: 45W/60W/80W
- Lamp Shape: Integrated LED
- ANSI Base: Integrated
- Lamp Base: Integrated
- Bulb Included: Integrated
- Dimmable: True
- Dimmable: 0-10V Dimming
- Voltage: 120V-277V
- Lumens: 6251L-11264L
- Color Temperature: 3000K/4000K/5000K
- CRI: 80+
- 3 Wattage Selectable (80W/60W/45W)
- 3 CCT Selectable (3000K/4000K/5000K)
- Range Voltage 120-277V
- Integrated By-Passable Photocell
- 4kV Surge Protection
- IP65 & IK08 Rated
- 0-10V Dimmable
- 50,000 Life Hours
- 5 Year Warranty
- Assembly Required: True
- Location Rating: Wet
- Safety Location: CULUS - Certified
- Indoor/Outdoor: Outdoor
- CA Prop 65: Lead
- Warranty: 5-Years
- HID Equivalent: 100W-250W
- Color Temperature: Soft White to Natural Light
- Average Hours Rated: 50000
- Wattage Selectable: True
- CCT Selectable: True
- Operating Temperature: -40F to +104F (-40C to +40C)
- DLC: True
- Title 20: Exempt
- CEC: Lawful for sale in California
Frequently asked
Is the bulb included? Yes, the LED is integrated.
Is it dimmable, and what dimmer should I use? Yes, it supports 0-10V dimming.
Can I install this in a bathroom or outdoors? It is rated for wet locations, suitable for outdoor use.
What's the warranty? 5-year warranty.
How does the adjustable head work? The head rotates up to 90 degrees to direct light where needed.
