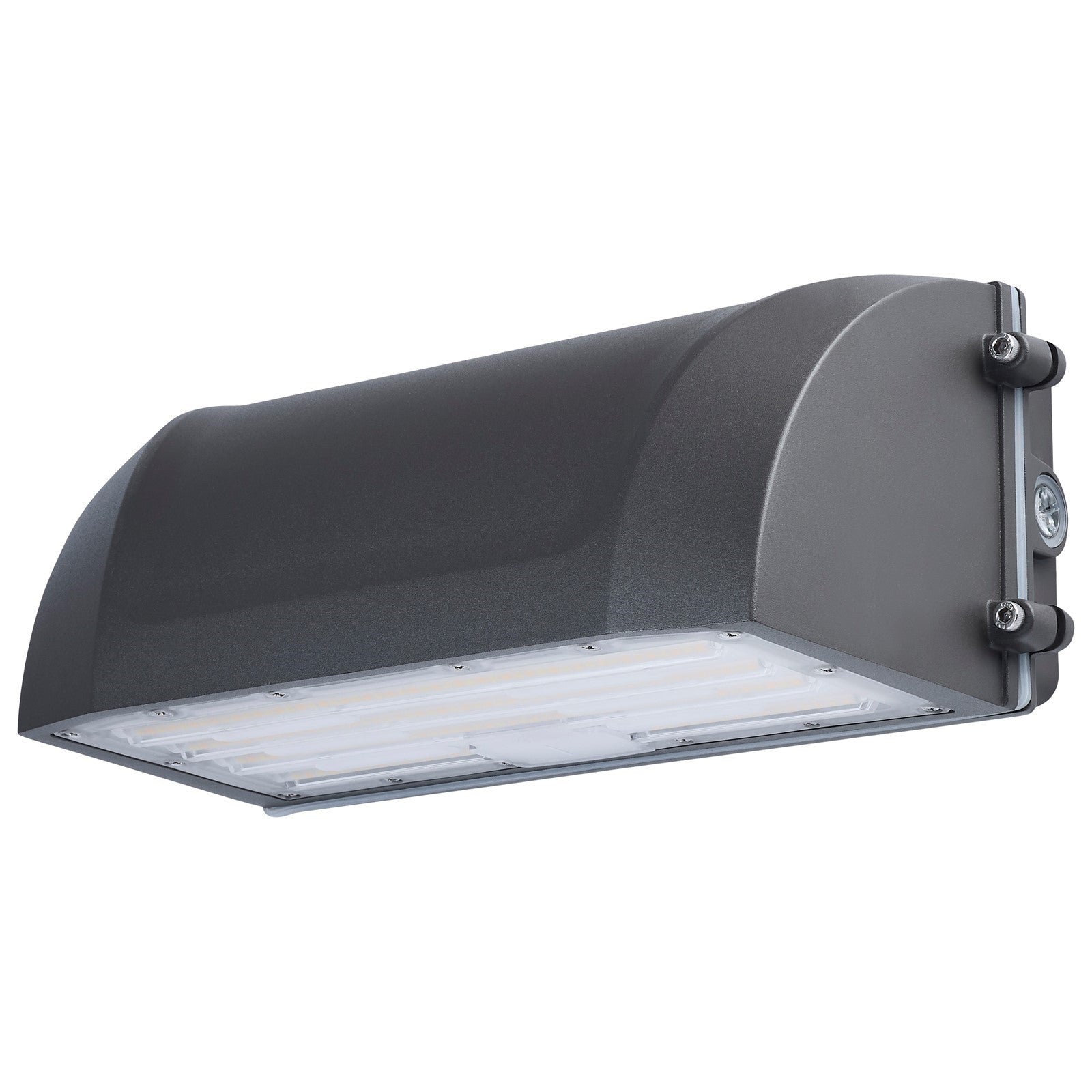

An 80W LED full cutoff wall pack for commercial buildings, walkways, and parking areas, finished in corrosion-resistant bronze.
This Nuvo Lighting wall pack delivers reliable, energy-efficient outdoor lighting with a clean full cutoff design that minimizes glare and light trespass. Field-selectable wattage (80W/60W/45W) and color temperature (3000K/4000K/5000K) provide flexibility at installation. An integrated bypassable photocell enables dusk-to-dawn operation, and 0-10V dimming supports additional control. Built with die-cast aluminum and an impact-resistant polycarbonate lens for long-term durability.
Best for
- Commercial building perimeters and entryways
- Walkways and pathways needing uniform, glare-free illumination
- Parking areas and loading docks
- Schools, warehouses, and office buildings
Not ideal for
- Indoor residential accent lighting - this is a utility-grade outdoor fixture
- Spaces needing a decorative or low-glare aesthetic
How bright is it?
Output ranges from 6972 to 11904 lumens depending on wattage selection - comparable to a 100W-250W HID fixture, suitable for illuminating large outdoor areas.
Light color and feel
Selectable 3000K (soft white), 4000K (neutral white), or 5000K (daylight) - choose the tone that suits your application. CRI 80+ ensures decent color rendering. Dimmable via 0-10V dimming for additional control.
Sizing and fit

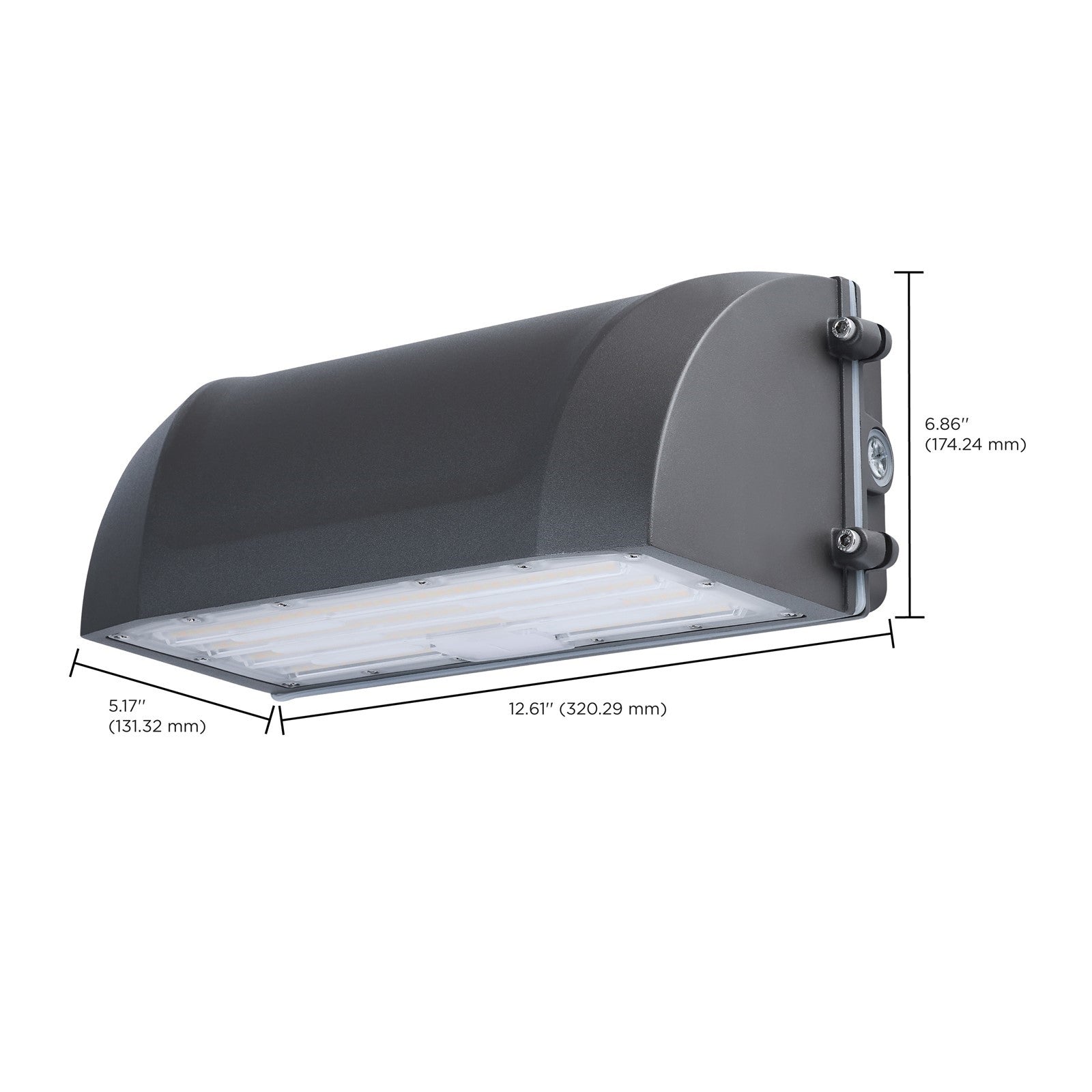

Measures 12.61"W x 5.17"D x 6.86"H and weighs 5.73 lbs. Suitable for wall mounting on commercial buildings.
Specifications
- Fixture Finish: Bronze
- Style: Utility
- Bulb Wattage: 45W/60W/80W
- Lamp Shape: Integrated LED
- ANSI Base: Integrated
- Lamp Base: Integrated
- Bulb Included: Integrated
- Dimmable: True
- Dimmable: 0-10V Dimming
- Voltage: 120V-277V
- Lumens: 6972L-11904L
- Color Temperature: 3000K/4000K/5000K
- CRI: 80+
- 3 Wattage Selectable (80W/60W/45W)
- 3 CCT Selectable (3000K/4000K/5000K)
- Range Voltage 120-277V
- Integrated By-Passable Photocell
- 4kV Surge Protection
- IP65 & IK08 Rated
- 0-10V Dimmable
- 50,000 Life Hours
- 5 Year Warranty
- Assembly Required: True
- Location Rating: Wet
- Safety Location: CULUS - Certified
- Indoor/Outdoor: Outdoor
- CA Prop 65: Lead
- Warranty: 5-Years
- HID Equivalent: 100W-250W
- Color Temperature: Soft White to Natural Light
- Average Hours Rated: 50000
- Wattage Selectable: True
- CCT Selectable: True
- Operating Temperature: -40F to +104F (-40C to +40C)
- DLC: True
- Title 20: Exempt
- CEC: Lawful for sale in California
Frequently asked
Is the bulb included? Yes, the LED is integrated.
Is it dimmable, and what dimmer should I use? Yes, it supports 0-10V dimming.
Can I install this in a bathroom or outdoors? It is rated for wet locations, suitable for outdoor use.
What's the warranty? 5-year warranty.
What is full cutoff? Full cutoff design minimizes glare and light trespass, directing light downward.
