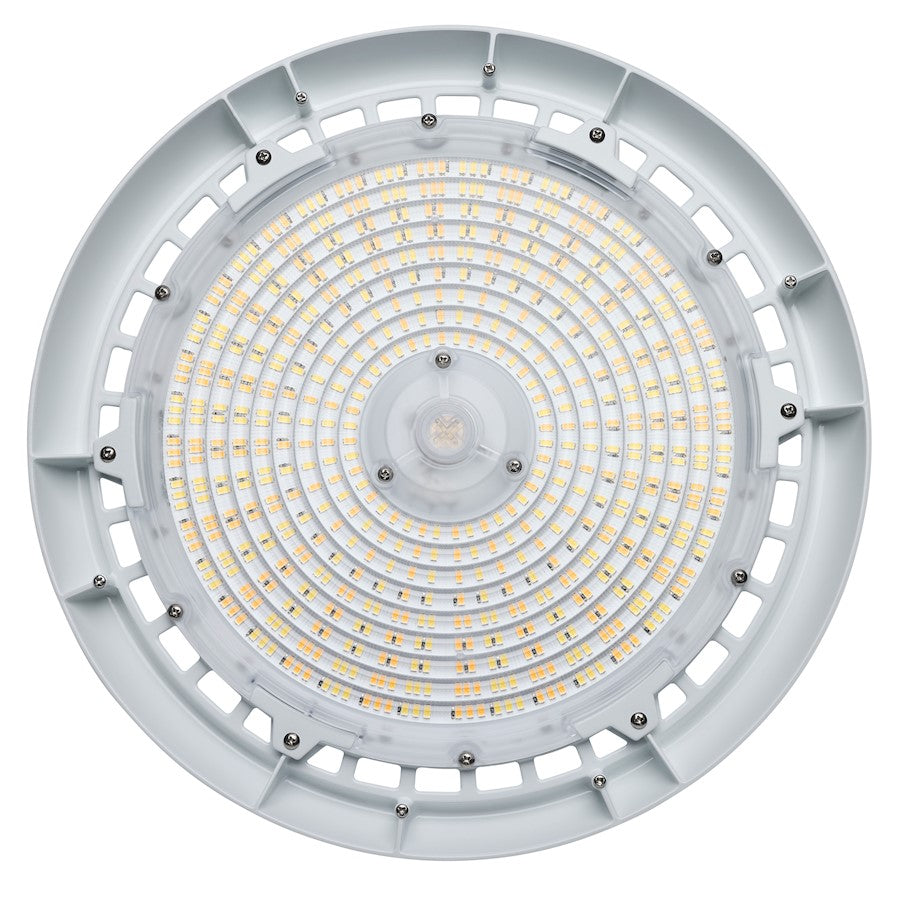

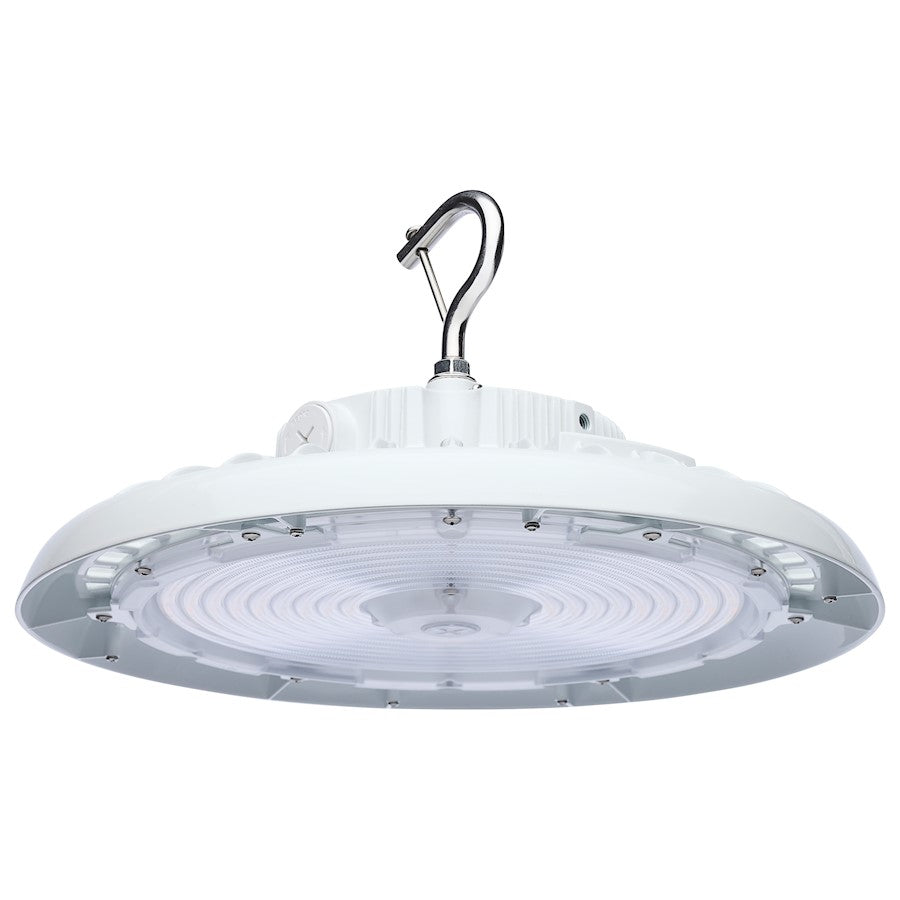

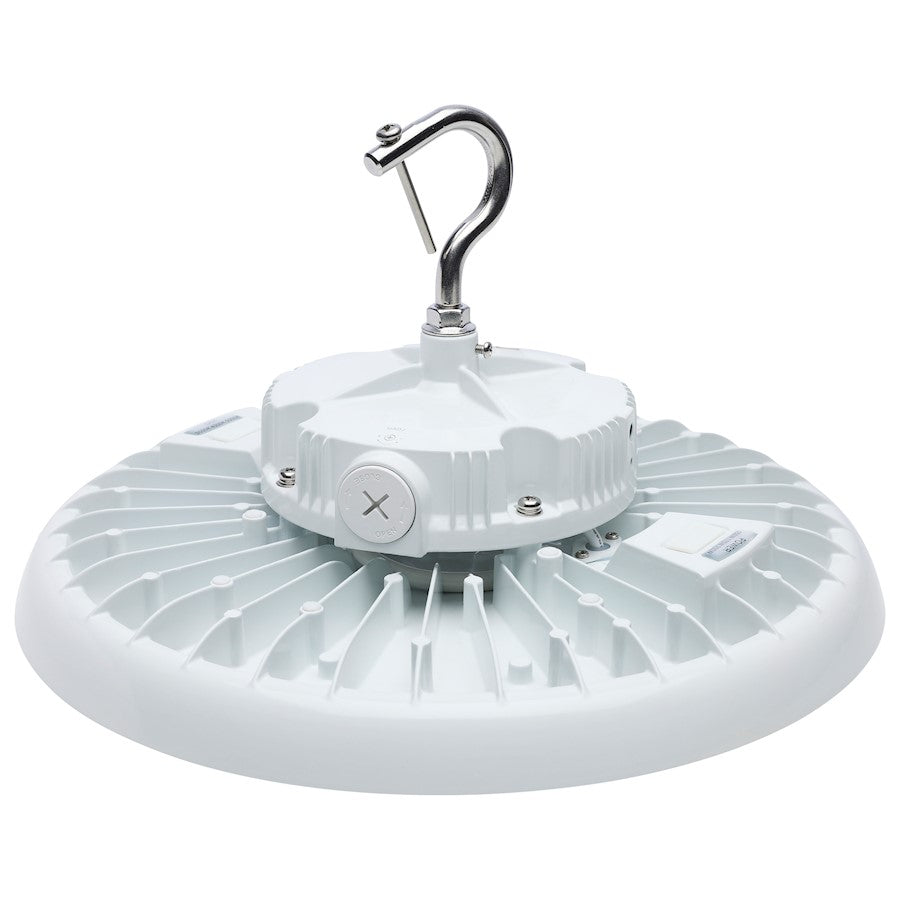

A 13-inch round LED high bay fixture for commercial warehouses, garages, and industrial spaces, with field-selectable wattage and color temperature in a durable white die-cast aluminum housing.
The Nuvo Lighting 65-813 Round High Bay is an energy-efficient, low-maintenance alternative to traditional HID fixtures. Its field-selectable design lets you choose from three wattage settings (150W, 175W, 200W) and three color temperatures (3000K, 4000K, 5000K) during installation, adapting to different lighting needs. Built with a rugged die-cast aluminum housing and an IK08 impact-rated polycarbonate lens, it withstands demanding environments. With 6kV surge protection, 120V-347V range voltage, and NEMA 4X (IP65) wet location rating, this fixture is resilient in various commercial settings.
Best for
- Commercial warehouses and distribution centers with ceiling heights 15-30 ft, providing bright, uniform light for aisles and storage areas
- Garages and workshops needing adjustable brightness and color temperature for detailed tasks
- Industrial facilities such as manufacturing floors and assembly lines where durability and impact resistance are critical
- Retail big-box stores and showrooms requiring high lumen output and energy efficiency
- Covered outdoor areas and wet locations like loading docks or canopies (IP65 rated)
Not ideal for
- Residential living spaces or low ceilings under 10 ft - the high lumen output may be overwhelming
- Spaces requiring a decorative or aesthetic fixture - this is a utilitarian design
- Applications needing integrated motion sensor (sensor is optional add-on, not included)
How bright is it?
22,200 to 28,800 lumens depending on the selected wattage - comparable to a 150W-200W traditional HID fixture. This is very bright, suitable for illuminating large commercial areas as a primary light source. At the lowest setting (150W), it's roughly equivalent to a 400W metal halide; at the highest (200W), it replaces a 500W halogen.
Light color and feel
Field-selectable between 3000K (warm white, soft golden tone), 4000K (neutral white, crisp and balanced), and 5000K (daylight, cool and energizing). The 80 CRI provides adequate color rendering for most commercial tasks. Fully dimmable via 0-10V dimming for flexible light levels.
Sizing and fit
13.4 inches diameter x 7.3 inches height. Ideal for ceiling heights from 15 to 30 feet. The round shape distributes light evenly in a wide pattern. Includes 6-foot supply and low-voltage whips for easy installation.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 3000K/4000K/5000K
- Bulb Wattage: 150W/175W/200W
- Bulb Average Hours: 50000
- Bulb Lumens: 22200L-28800L
- Bulb Shape: Integrated LED
- Bulb CRI: 80
- Voltage: 120V-347V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Sensor: Optional Add-On
- Color Temperature: Warm White to Natural Light
- CCT and Wattage Selectable
- Range Voltage 120V-347V
- Integrated Sensor Port
- 6 Foot Supply and Low Voltage Whips
- 0-10V Dimming
- 6kV Surge Protection and Wet Location Rated
- IP65 and IK08
- 50,000 Hour Functional Life
- White Finish
- 0-10V Dimming Only
- Dimmable: Yes-Dimmable
- Assembly Required: Yes
- For Use in Wet Locations
- Safety Rating: CULUS - Certified
- Warranty Info: 5 Year Limited - Fixtures
- Overall Dimensions: 13.4"(D) x 13.4"(W) x 7.3"(H)
- Item Weight: 6.42 lbs.
Frequently asked
Is the bulb included? Yes, the LED is integrated and included.
Is it dimmable, and what dimmer should I use? Yes, dimmable via 0-10V dimming. Use a compatible 0-10V dimmer (not included).
Can I install this in a bathroom or outdoors? Yes, it is rated for wet locations (IP65) and can be used in covered outdoor areas, but it is not suitable for direct rain exposure unless properly shielded.
What's the warranty? 5-year limited warranty on the fixture.
How do I select the wattage and color temperature? The fixture has switches inside the housing that allow you to choose between 150W, 175W, or 200W and 3000K, 4000K, or 5000K before installation.
