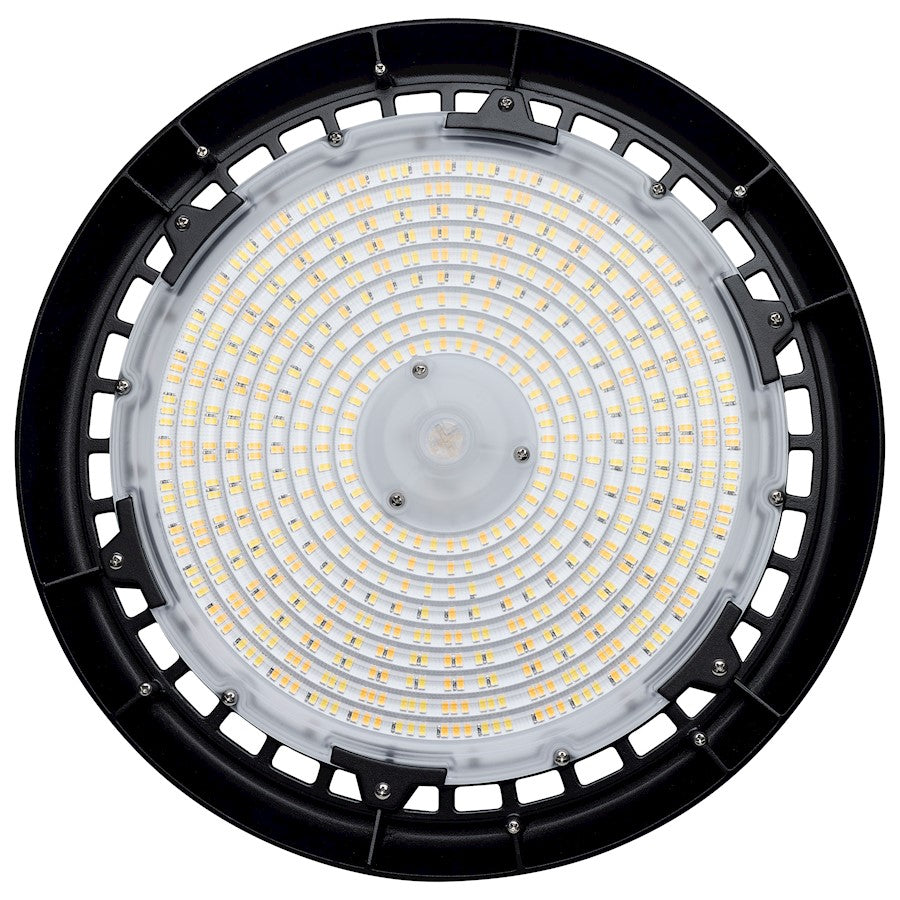

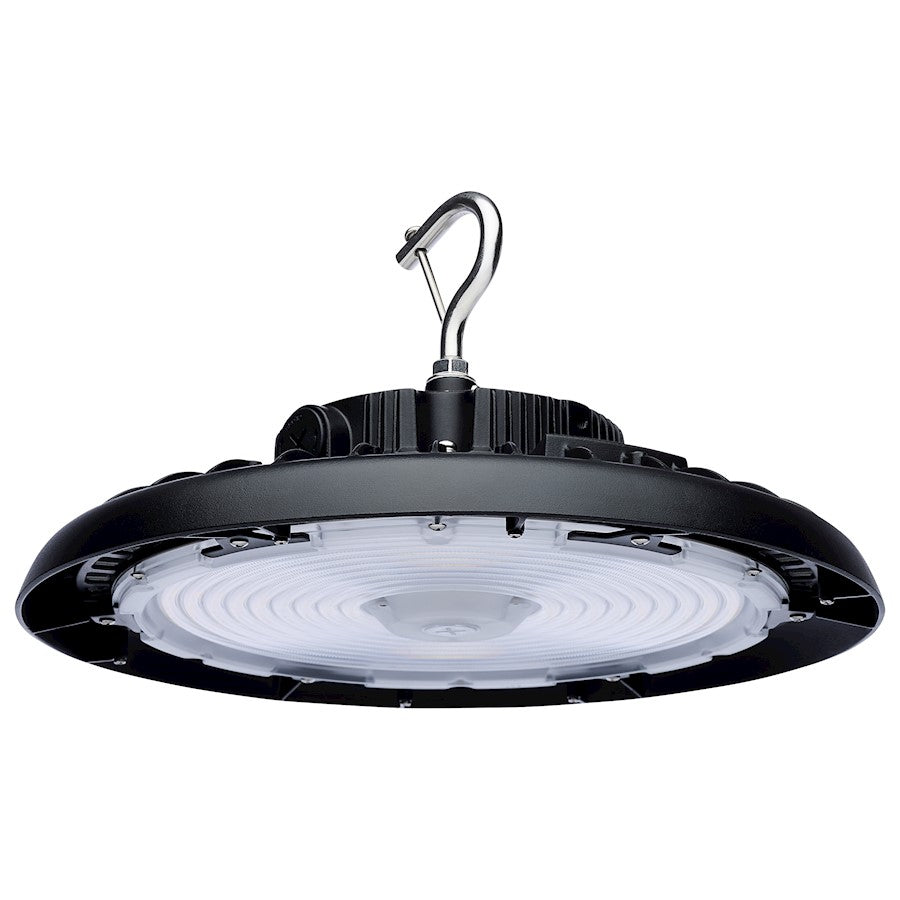

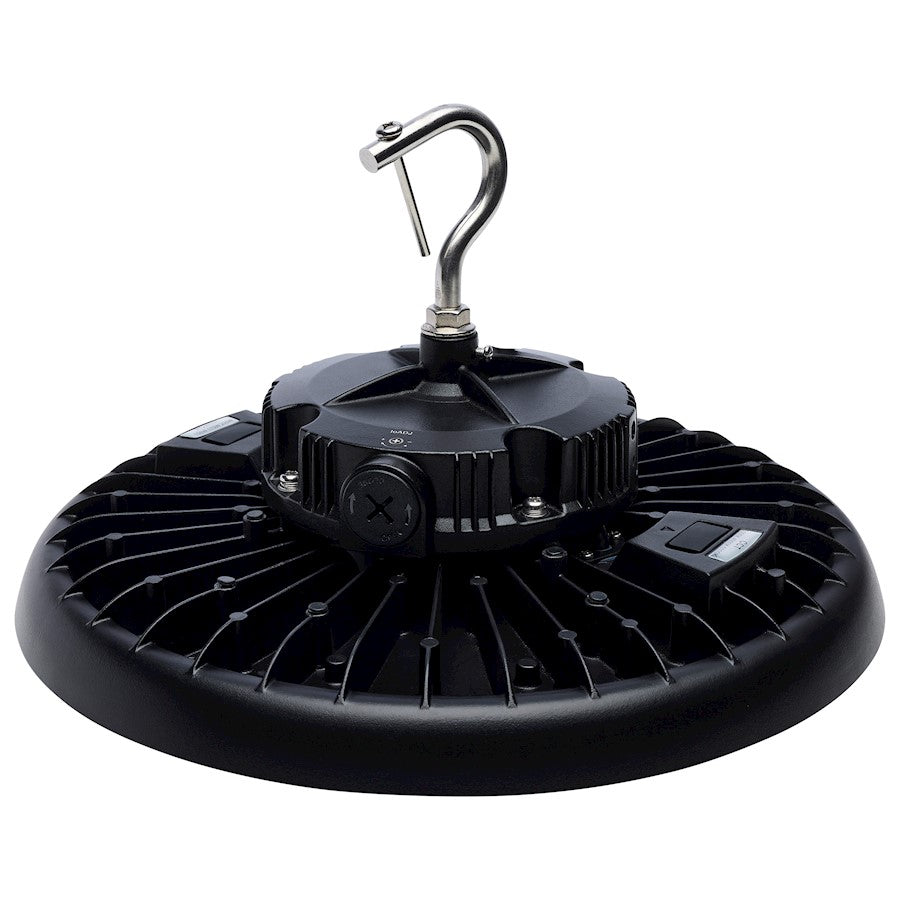

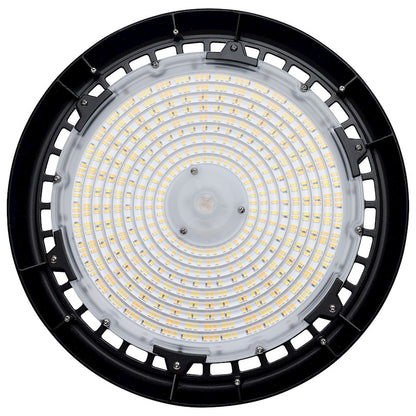

A 13-inch round LED high bay fixture with selectable wattage and color temperature, designed for commercial and industrial spaces like warehouses, garages, and workshops.
The Nuvo Lighting 65-771R3 is a field-selectable LED high bay that replaces traditional HID fixtures with energy-efficient, low-maintenance performance. Its durable die-cast aluminum housing and IK08 impact-rated polycarbonate lens withstand harsh environments, while the NEMA 4X (IP65) wet location rating allows use in damp or wet areas. With 6kV surge protection and a wide voltage range (120V-347V), this fixture is built for reliability in demanding commercial settings.
Best for
- Warehouses and distribution centers with ceiling heights 15-30 ft, providing bright ambient light
- Garages and auto shops where impact resistance and wet location rating are needed
- Manufacturing facilities requiring selectable wattage (150W/175W/200W) and CCT (3000K/4000K/5000K) to adapt to different tasks
- Covered outdoor areas like loading docks or canopies, thanks to wet location rating
- Retail big-box stores needing uniform light distribution and long 50,000-hour life
Not ideal for
- Residential living spaces - the high lumen output (up to 28,800 lumens) is too intense for typical rooms
- Low ceilings under 10 ft - the fixture is designed for high bay applications
- Spaces requiring a decorative or warm aesthetic - this is a utility-grade fixture
How bright is it?
Selectable from 22,200 to 28,800 lumens, equivalent to a 150W-200W LED or roughly 400W-600W traditional HID. This is very bright - suitable for lighting large areas like warehouses or gymnasiums, not for accent or task lighting.
Light color and feel
Field-selectable CCT: 3000K (warm white, soft and inviting), 4000K (neutral white, crisp and clean), or 5000K (daylight, bright and energizing). CRI 80 provides decent color rendering for most commercial tasks. Fully dimmable via 0-10V dimming for flexible control.
Sizing and fit
Dimensions: 13.4 in diameter x 7.3 in height. Weighs 6.42 lbs. Ideal for ceiling heights 15-30 ft. The included 6 ft supply and low voltage whips simplify installation. Compatible with optional accessories (sold separately) for mounting customization.
Specifications
- Finish: Black
- Style: Utility
- Bulb Color Temp: 3000K/4000K/5000K
- Bulb Wattage: 150W/175W/200W
- Bulb Average Hours: 50000
- Bulb Lumens: 22200L-28800L
- Bulb Shape: Integrated LED
- Bulb CRI: 80
- Voltage: 120V-347V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Sensor: Optional Add-On
- Color Temperature: Warm White to Natural Light
- CCT and Wattage Selectable
- Range Voltage 120V-347V
- Integrated Sensor Port
- 6 Foot Supply and Low Voltage Whips
- 0-10V Dimming
- 6kV Surge Protection and Wet Location Rated
- IP65 and IK08
- 50,000 Hour Functional Life
- Black Finish
- 0-10V Dimming Only
- Dimmable: Yes-Dimmable
- Assembly Required: Yes
- For Use in Wet Locations
- Safety Rating: CULUS - Certified
- Warranty Info: 5 Year Limited - Fixtures
- Overall Dimensions: 13.4"(D) x 13.4"(W) x 7.3"(H)
- Item Weight: 6.42 lbs.
Frequently asked
Is the bulb included? Yes, integrated LED - no bulb replacement needed.
Is it dimmable, and what dimmer should I use? Yes, dimmable via 0-10V dimming (requires compatible 0-10V dimmer, not included).
Can I install this in a bathroom or outdoors? Yes, it is wet location rated (NEMA 4X/IP65), suitable for covered outdoor areas and damp indoor spaces.
What's the warranty? 5-year limited warranty on the fixture.
How do I select the wattage and color temperature? The fixture has a small switch on the housing that lets you choose between 150W, 175W, or 200W and 3000K, 4000K, or 5000K before installation.
