A 2ft x 4ft LED troffer delivering 6543 lumens of bright, energy-efficient light for commercial and utility spaces, with a damp-rated design for covered areas.

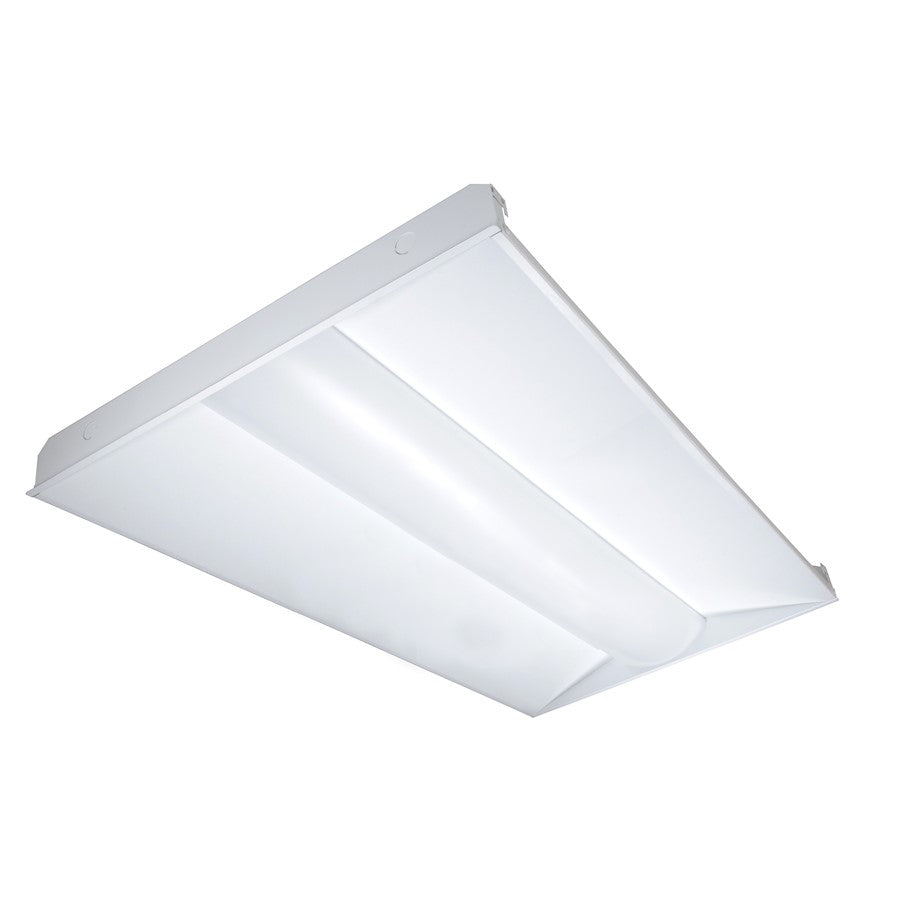

The Nuvo Lighting 65-307 LED troffer is a high-output, utility-grade fixture designed for grid ceilings in offices, warehouses, retail spaces, and covered utility areas. With a sleek white finish and low-profile 2.75-inch height, it integrates seamlessly into standard drop ceilings. The 3500K color temperature provides a neutral white light that balances warmth and clarity, while the 90+ CRI ensures accurate color rendering. Dimmable via 0-10V controls, this troffer offers flexible light levels for various tasks.
Best for
- Commercial offices and conference rooms with standard 2x4 grid ceilings
- Warehouses and storage areas requiring bright, even illumination
- Retail spaces needing high-CRI lighting for accurate product display
- Covered patios, carports, or utility rooms rated for damp locations
- Spaces where 0-10V dimming is desired for energy savings
Not ideal for
- Residential living rooms or bedrooms - this is a commercial-grade troffer, not a decorative fixture
- Wet locations like exposed outdoor areas without overhead cover
- Spaces with ceilings under 8 ft - the 2.75-inch depth is fine, but the large footprint may overwhelm small rooms
How bright is it?
6543 lumens - equivalent to roughly a 65W fluorescent troffer or a 400W incandescent. This is very bright, suitable for general ambient lighting in medium to large rooms (up to 200 sq ft). It can serve as the primary light source in a commercial or utility space.
Light color and feel
3500K neutral white - a balanced tone between warm and cool, often used in commercial settings for a clean, professional look. With a CRI of 90+, colors appear vibrant and accurate, making it suitable for retail or design studios. Dimmable via 0-10V controls for adjustable ambiance.
Sizing and fit
Dimensions: 42 x 24 x 2.75 inches. Designed for standard 2x4 ft grid ceilings. The low profile (2.75 in) allows installation in ceilings with limited plenum space. Weight: 80 lbs (shipping weight 4.63 lbs - likely a typo; actual fixture weight is substantial). Ensure ceiling grid can support the weight.
Specifications
- Finish: White
- Avg Rated Hours: 50000
- Color Temperature: 3500K
- CRI: 90+
- Dimmable: 0-10V Dimming Only
- DLC Approved: Yes
- DLC ID: PMX4KHD6
- Lumens: 6543
- Safety Listing: CETLus - Damp
- Volts: 100-277
- Watts: 65
- Style: Utility
- Warranty: 5 Year Limited
- Overall Dimensions: 41.59(D) x 23.59(W) x 2.75(H)
Frequently asked
Is the bulb included? This is an integrated LED fixture; no bulb replacement needed.
Is it dimmable, and what dimmer should I use? Yes, dimmable via 0-10V dimming controls (low-voltage dimmer required). Not compatible with standard TRIAC dimmers.
Can I install this in a bathroom or outdoors? It is damp-rated, suitable for covered outdoor areas or bathrooms with no direct water exposure. Not for wet locations.
What's the warranty? 5 Year Limited Warranty.
Does this work with a standard 120V outlet? Yes, it operates on 100-277V, including standard US 120V wiring.
