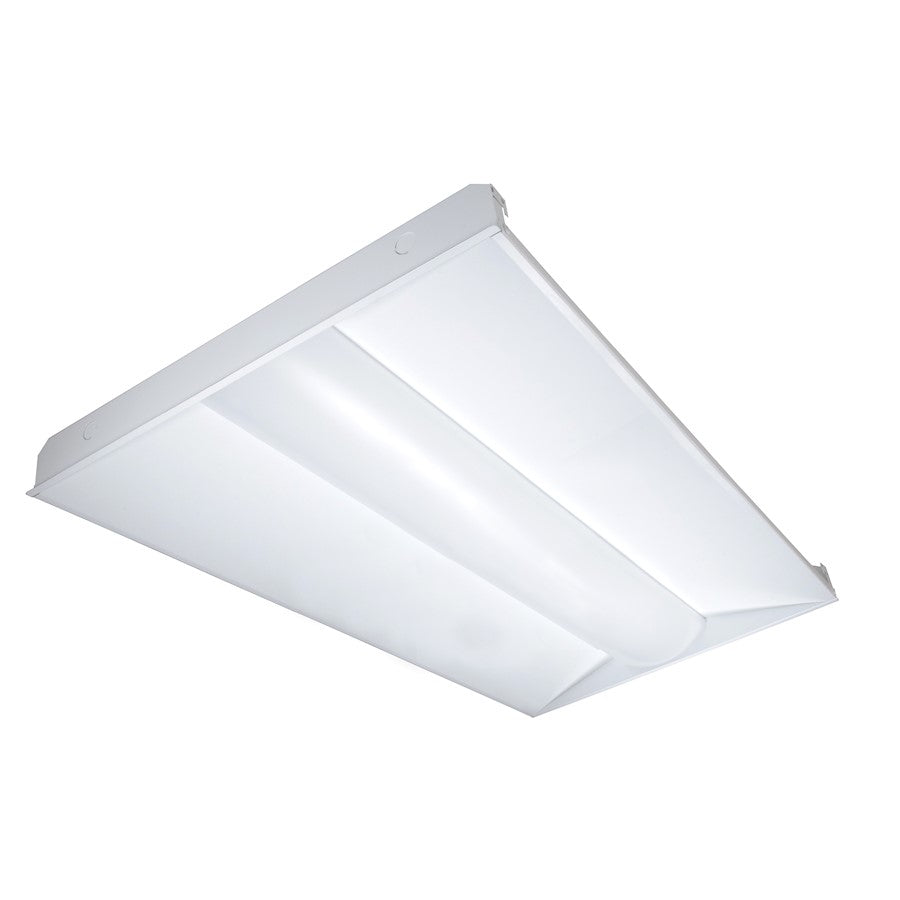

A 2ft x 4ft LED troffer for offices, schools, and commercial spaces, delivering 4533 lumens of 5000K daylight in a white finish.
The Nuvo Lighting 65-306 is a utility-grade LED troffer designed for grid ceilings in professional environments. With a high CRI of 90+ and 0-10V dimming capability, it provides bright, accurate light for task-oriented spaces. The damp-rated housing allows use in covered areas like restrooms or entryways.
Best for
- Office ceilings with standard 2x4 ft grid, replacing fluorescent troffers for energy savings
- Commercial spaces like retail floors, conference rooms, and lobbies needing bright, even illumination
- Schools and institutional settings where high CRI supports visual tasks
- Covered entryways or restrooms with damp-rated ceilings
Not ideal for
- Residential living spaces - the 5000K daylight color temperature is too cool for cozy rooms
- Wet locations like open patios or shower stalls - damp-rated only
- Spaces with non-standard ceiling grids without adapter kits
How bright is it?
4533 lumens - comparable to a 300W incandescent or a 4-lamp T8 fluorescent fixture. This is very bright, suitable for primary lighting in rooms up to 200 sq ft. Not intended as accent or ambient-only light.
Light color and feel
5000K cool daylight - a crisp, white light similar to midday sun. Enhances contrast and alertness, ideal for task-oriented environments. CRI 90+ ensures accurate color rendering for detailed work. Dimmable via 0-10V controls for adjustable brightness.
Sizing and fit
Overall dimensions: 42 x 24 x 3 in (L x W x H). Designed to fit standard 2x4 ft drop ceilings with a T-grid. The low profile (3 in) allows installation in shallow plenums.
Specifications
- Finish: White
- Avg Rated Hours: 50000
- Color Temperature: 5000K
- CRI: 90+
- Dimmable: 0-10V Dimming Only
- DLC Approved: Yes
- DLC ID: P6YPPEG3
- Lumens: 4533
- Safety Listing: CETLus - Damp
- Volts: 100-277
- Watts: 40
- Style: Utility
- Warranty: 5 Year Limited
- Overall Dimensions: 41.59(D) x 23.59(W) x 2.75(H)
Frequently asked
Is the bulb included? This is an integrated LED fixture; no bulb replacement needed.
Is it dimmable, and what dimmer should I use? Yes, dimmable via 0-10V dimming controls (not standard phase-cut dimmers).
Can I install this in a bathroom or outdoors? It is damp-rated, suitable for covered areas like bathrooms (not in direct water spray) but not for wet locations.
What's the warranty? 5 Year Limited Warranty.
Does it work with standard 120V wiring? Yes, it operates on 100-277V, compatible with standard US 120V circuits.
