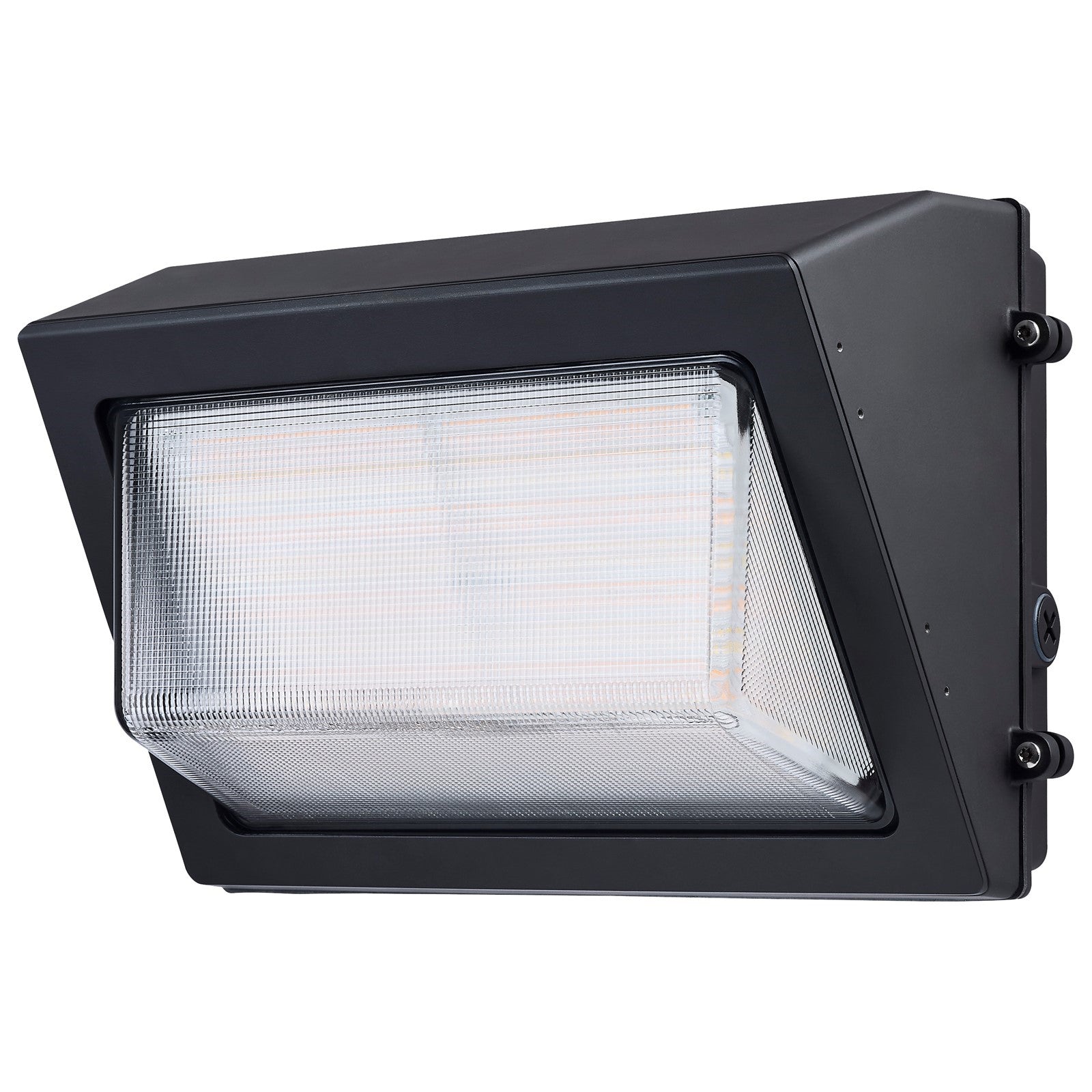

A 120W/100W/80W selectable LED wall pack for high-output outdoor commercial and industrial lighting, finished in bronze.
This Nuvo Lighting wall pack delivers powerful, efficient illumination for large perimeters, parking lots, and industrial sites. Its rugged die-cast aluminum housing and borosilicate glass lens are built for demanding environments, while the integrated bypassable photocell automates dusk-to-dawn operation. With field-selectable wattage, CCT, and beam angle, you can customize the light to your specific needs.
Best for
- Large commercial building perimeters, illuminating entryways and walkways
- Parking lots and garages, providing bright, uniform coverage
- Industrial facilities, such as loading docks and storage yards
- Outdoor areas where wet-location rated fixtures are required
- Security lighting, with 6kV surge protection and 50,000-hour life
Not ideal for
- Indoor residential spaces, as this is designed for outdoor utility use
- Decorative accent lighting, given its utilitarian style
- Areas needing a narrow beam, as the minimum beam spread is 60 degrees
How bright is it?
With selectable wattage, this wall pack produces 11,858 to 18,221 lumens. At the 120W setting, it's comparable to a 400W metal halide fixture, making it ideal for large areas. At the 80W setting, it still provides ample light for most commercial applications.
Light color and feel
Choose from 3000K (soft white), 4000K (neutral white), or 5000K (daylight) to set the ambiance. 3000K offers a warm, inviting glow; 4000K is crisp and clean; 5000K mimics daylight for maximum visibility. With a CRI of 80, colors appear natural. The fixture is 0-10V dimmable for adjustable light levels.
Sizing and fit
This wall pack measures 14.36 inches wide, 14.36 inches deep, and 9.3 inches high, with a weight of 8.2 pounds. It's designed for wall mounting on commercial buildings and should be installed by a qualified electrician.
Specifications
- Fixture Finish: Bronze
- Style: Utility
- Bulb Wattage: 120W/100W/80W
- Lamp Shape: Integrated LED
- ANSI Base: Integrated
- Lamp Base: Integrated
- Bulb Included: Integrated
- Dimmable: True
- Dimmable: 0-10V Dimming
- Voltage: 120V-347V
- Lumens: 11858L-18221L
- Color Temperature: 3000K/4000K/5000K K
- CRI: 80
- Beam Selectable (60-degrees/90-degrees/110-degrees)
- 3 CCT Selectable (3000K/4000K/5000K)
- 3 Wattage Selectable (120W/100W/80W)
- 6kV Surge Protection
- IP65 Rated
- Die-Cast Aluminum Housing with Borosilicate Glass
- Integrated By-Passable Photocell
- 120-347V Range Voltage and 0-10V Dimmable
- 50,000 Life Hours
- 5 Year Warranty
- Assembly Required: True
- Location Rating: Wet
- Safety Location: CULUS - Listed
- Indoor/Outdoor: Outdoor
- CA Prop 65: Lead
- Warranty: 5-Years
- HID Equivalent: 200W-400W
- Color Temperature: Soft White to Natural Light
- Average Hours Rated: 50000
- Wattage Selectable: True
- CCT Selectable: True
- Operating Temperature: -40F to +122F (-40C to +50C)
- DLC: True
- Title 20: Exempt
- CEC: Lawful for sale in California
Frequently asked
Is the bulb included? Yes, the LED is integrated, so no separate bulb is needed.
Is it dimmable, and what dimmer should I use? Yes, it's dimmable with a 0-10V dimmer (not included).
Can I install this in a bathroom or outdoors? Yes, it's rated for wet locations, making it suitable for outdoor use.
What's the warranty? It comes with a 5-year warranty.
How do I select the wattage and CCT? The fixture has switches on the housing to select between 120W/100W/80W and 3000K/4000K/5000K.
