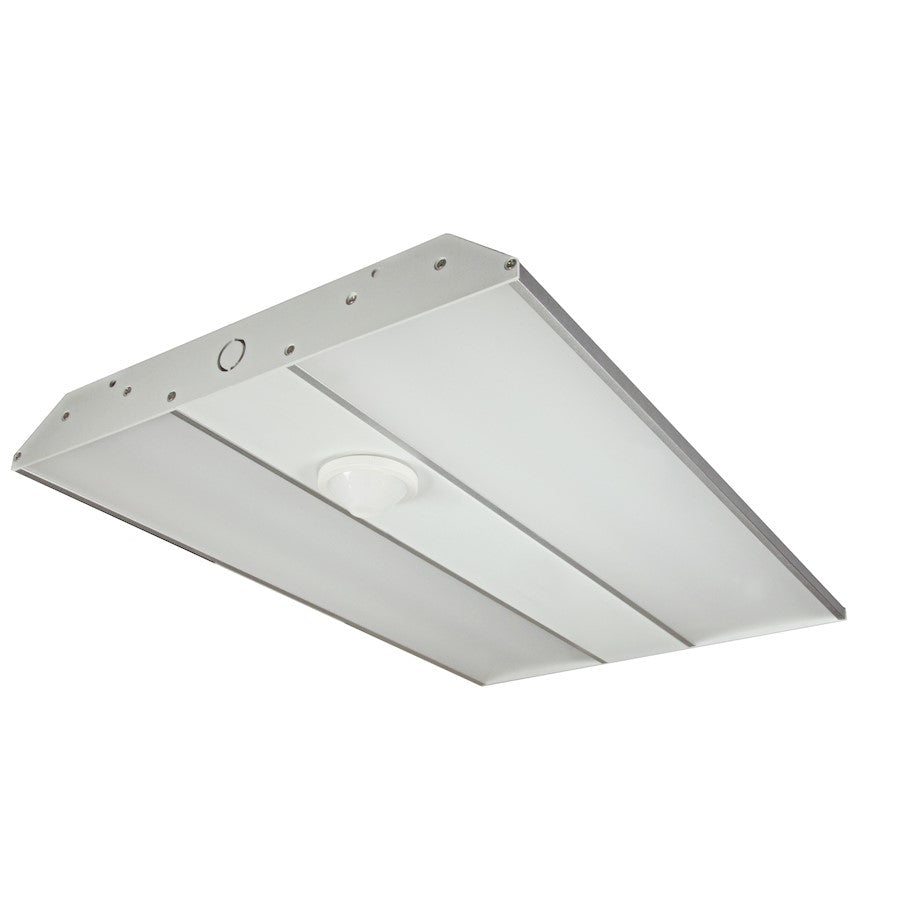

A 2-foot linear hi-bay LED flush mount for warehouses, garages, and commercial spaces, delivering 9750 lumens of 4000K cool white light in a durable aluminum finish.
This Nuvo Lighting hi-bay fixture is built for high-ceiling utility areas where reliable, energy-efficient illumination is critical. The aluminum housing is rugged and lightweight, and the integrated LED array provides long-lasting 50,000-hour performance. With 0-10V dimming capability and optional occupancy sensor compatibility, it offers flexible control for demanding environments.
Best for
- Warehouses and distribution centers with ceiling heights 15-25 ft, providing bright ambient light
- Garages and workshops where 9750 lumens easily illuminates workbenches and vehicle bays
- Commercial and industrial spaces requiring 4000K neutral white light for task visibility
- Retail backrooms and storage areas needing energy-efficient, low-maintenance lighting
- Spaces with 0-10V dimming systems for adjustable light levels
Not ideal for
- Residential living spaces or bedrooms - the 9750-lumen output is too intense for typical home rooms
- Wet or damp locations - this fixture is rated for dry locations only
- Spaces with ceilings under 10 ft - the light spread may cause glare
- Applications requiring a replaceable light source - the LED is integrated and non-replaceable
How bright is it?
9750 lumens - comparable to a 75W LED or roughly a 600W incandescent. This is very bright, suitable for large commercial areas. It can replace multiple older fluorescent fixtures in a warehouse or garage.
Light color and feel
4000K cool white - a neutral, crisp tone that enhances visibility and reduces eye strain in task-oriented spaces. CRI 80 provides adequate color rendering for most industrial and storage applications. 0-10V dimming allows you to lower brightness when full output isn't needed.
Sizing and fit
Dimensions: 22 in diameter x 16 in width x 2 in height. This compact linear form factor fits standard T-grid ceilings or surface mounts. Ideal for ceilings 15-25 ft high for optimal light distribution.
Specifications
- Finish: Aluminum
- Avg Rated Hours: 50000
- Color Temperature: 4000K
- CRI: 80
- Dimmable: 0-10V Dimming Only
- Lumens: 9750
- Photocell: Optional Occupancy Sensor
- Replaceable Light Source: No
- Volts: 100-277
- Style: Utility
- Warranty: 5 Year Limited
- Overall Dimensions: 22.00(D) x 15.94(W) x 1.97(H)
Frequently asked
Is the bulb included? The light source is integrated LED; no bulb replacement needed.
Is it dimmable, and what dimmer should I use? Yes, dimmable via 0-10V dimming system (requires compatible 0-10V dimmer, not included).
Can I install this in a bathroom or outdoors? No, this fixture is rated for dry locations only.
What's the warranty? 5 Year Limited warranty from Nuvo Lighting.
Does it work with a standard wall switch? Yes, it works with standard on/off switches. For dimming, a 0-10V dimmer is required.
