A 1x4 LED troffer retrofit kit for upgrading existing fluorescent troffers in commercial and office spaces, finished in matte white.

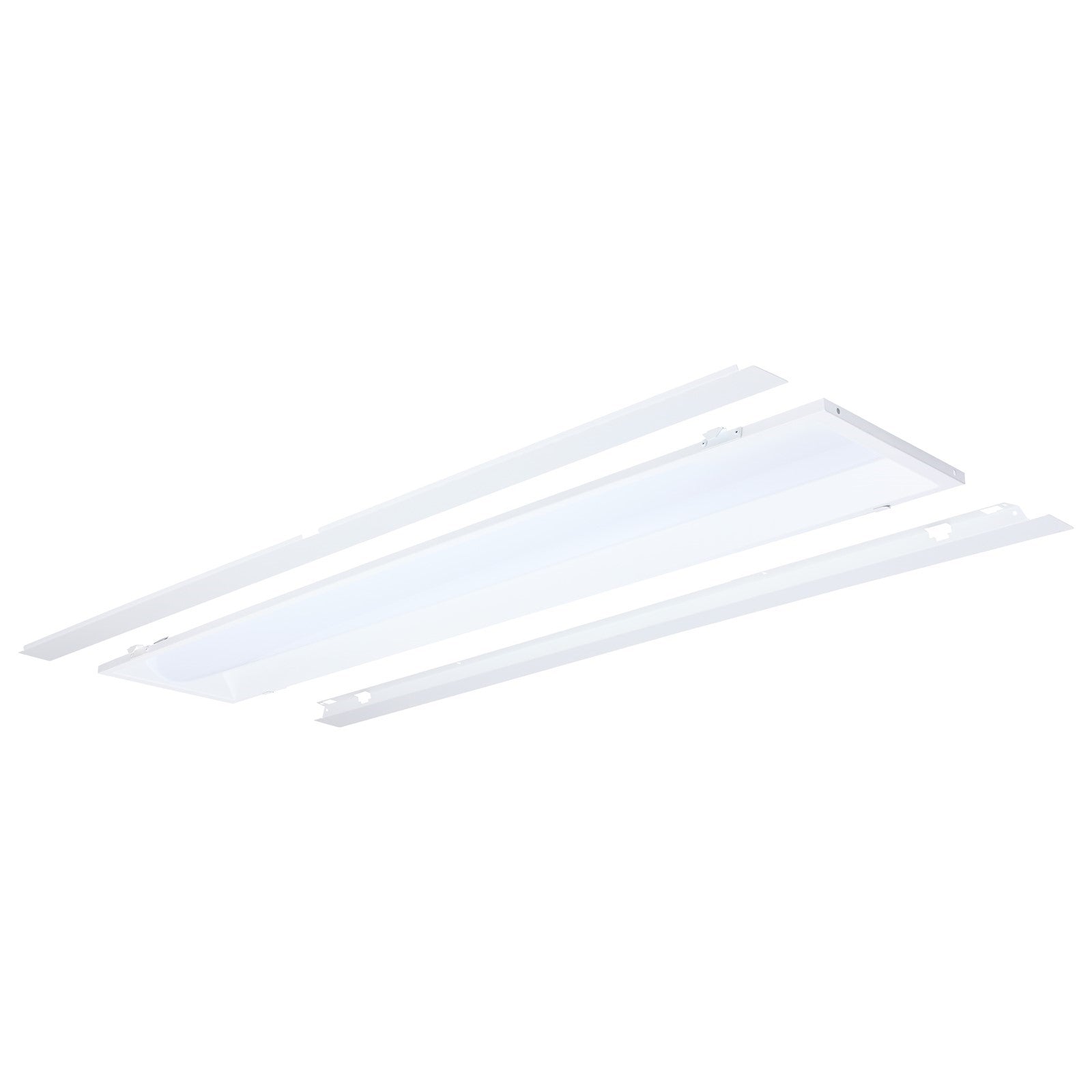

The Nuvo Lighting 65-1300 is a center basket troffer retrofit door kit designed to replace legacy fluorescent fixtures with modern LED performance. It fits into existing troffer housings, reducing installation time and waste. With field-selectable wattage (20W/30W/40W) and color temperature (3500K/4000K/5000K), you can customize the light output. The integrated safety tether simplifies installation, and the durable steel construction ensures long-lasting performance.
Best for
- Office buildings and commercial spaces upgrading from fluorescent troffers
- Retail stores and warehouses needing bright, efficient lighting
- Schools and institutional buildings seeking energy savings
- Spaces with existing 1x4 troffer housings for quick retrofit
- Areas requiring damp-rated fixtures, such as covered porches or bathrooms
Not ideal for
- Residential rooms with low ceilings where a flush mount or recessed can is more appropriate
- Outdoor areas exposed to direct rain - this is rated for damp locations only
- Spaces without existing troffer housings, as this is a retrofit kit
How bright is it?
This retrofit kit delivers 2500 to 5000 lumens depending on the selected wattage. At 5000 lumens, it's about as bright as a 125W incandescent bulb, suitable for general lighting in commercial spaces. At 2500 lumens, it's comparable to a 60W incandescent, good for accent or task lighting.
Light color and feel
Choose from 3500K (neutral white), 4000K (cool white), or 5000K (natural light) to set the mood. 3500K offers a warm, inviting glow; 4000K is crisp and clean; 5000K mimics daylight, ideal for task-oriented spaces. With a CRI of 80+, colors appear natural and vibrant. The fixture is dimmable via 0-10V dimming for flexible control.
Sizing and fit

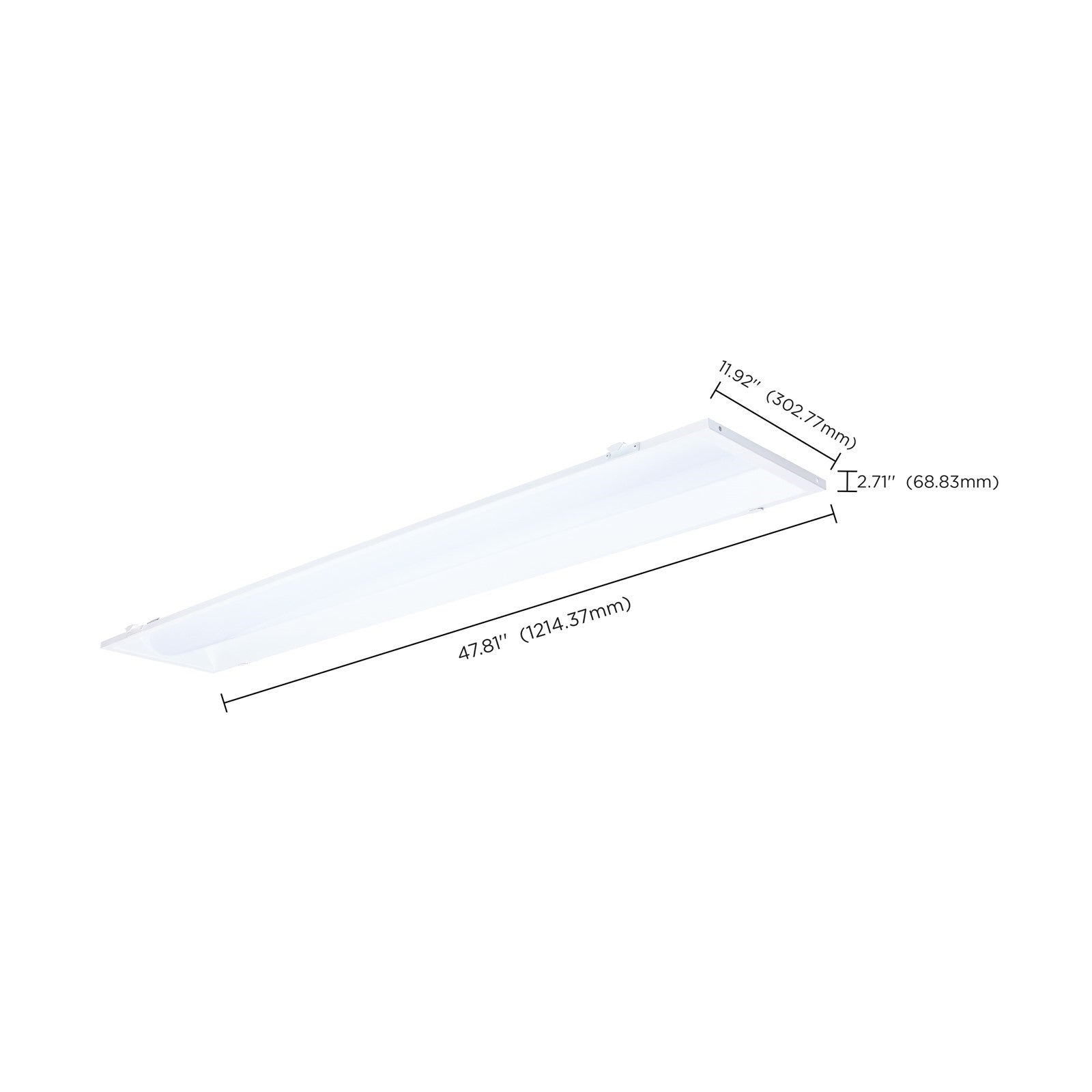

This 1x4 troffer retrofit kit measures 47.81 inches long, 11.92 inches wide, and 2.71 inches high. It is designed to fit into standard 1x4 troffer housings. The slim profile allows for easy installation and integration into existing ceilings.
Specifications
- Fixture Finish: Matte White
- Style: Utility
- Bulb Wattage: 40W/30W/20W
- Lamp Shape: Integrated LED
- ANSI Base: Integrated
- Bulb Included: Integrated
- Dimmable: True (0-10V Dimming)
- Voltage: 120V-277V
- Lumens: 5000L/3750L/2500L
- Color Temperature: 3500K/4000K/5000K
- CRI: 80+
- Field Selectable (3 wattages and 3 CCT)
- Reduces Upgrade Material Waste
- 1x4-Foot Steel Construction
- 0-10V Dimmable
- Integrated Safety Tether
- IC Rated
- Damp Location Rated
- 50,000 Hour Functional Life
- 5 Year Warranty
- Assembly Required: True
- Location Rating: Damp
- Safety Location: CETLUS - Classified
- Indoor/Outdoor: Indoor
- CA Prop 65: Lead
- Warranty: 5-Years
- Incandescent Equivalent: 125W
- Fluorescent Equivalent: 2 x 32W T8
- Average Hours Rated: 50000
- Wattage Selectable: True
- CCT Selectable: True
- Operating Temperature: -4F to +104F (-20C to +40C)
- DLC: True
- Title 20: Exempt
- CEC: Lawful for sale in California
Frequently asked
Is the bulb included? Yes, the LED is integrated.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via 0-10V dimming. Use a compatible 0-10V dimmer.
Can I install this in a bathroom or outdoors? It is rated for damp locations, so it can be used in bathrooms but not in wet outdoor areas.
What's the warranty? 5-year warranty.
Does this work with any troffer housing? It is designed to retrofit into standard 1x4 troffer housings, but check compatibility with your existing housing.
