A high-output LED linear high bay for expansive commercial and industrial spaces, with selectable wattage, beam angle, and color temperature in a rugged white die-cast aluminum housing.

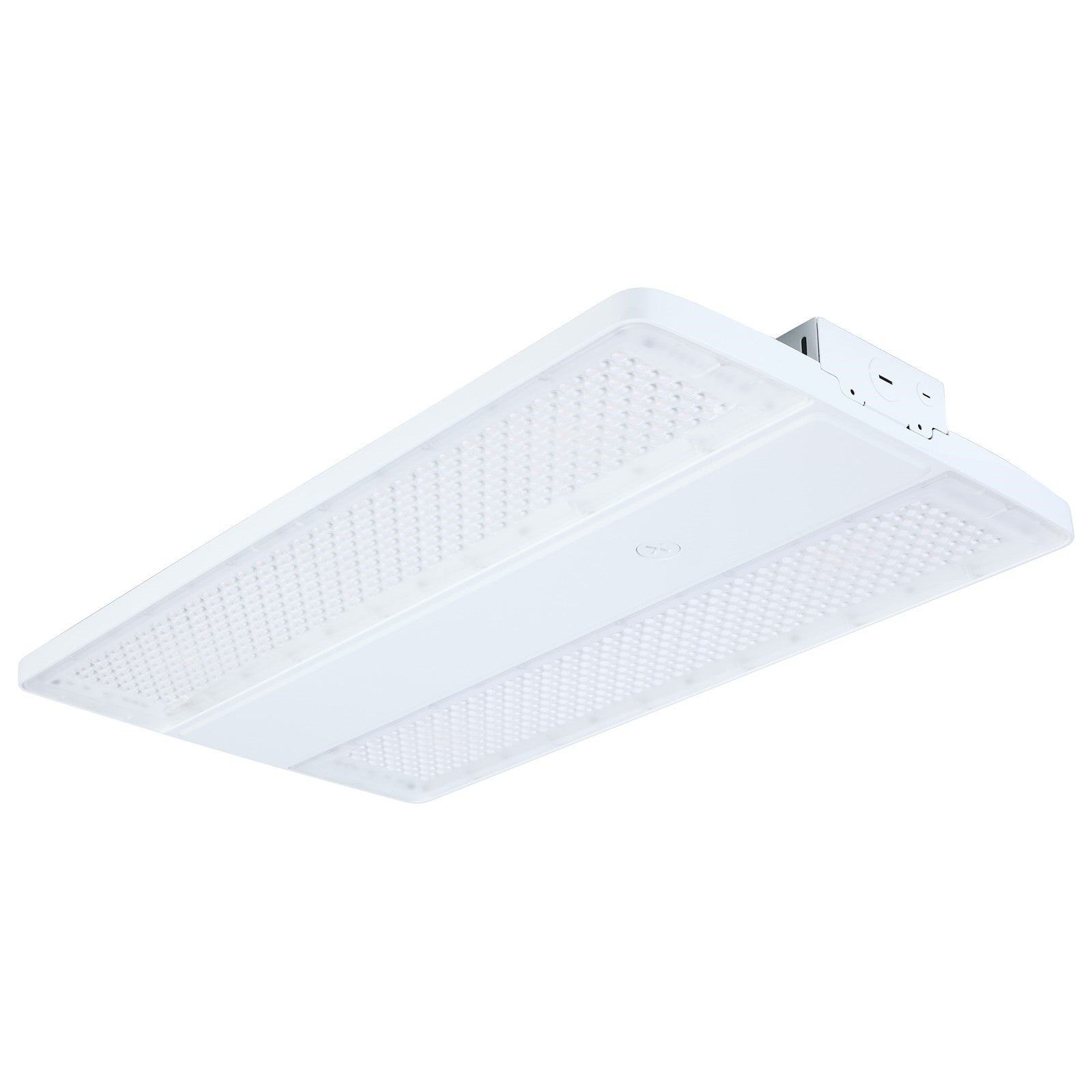

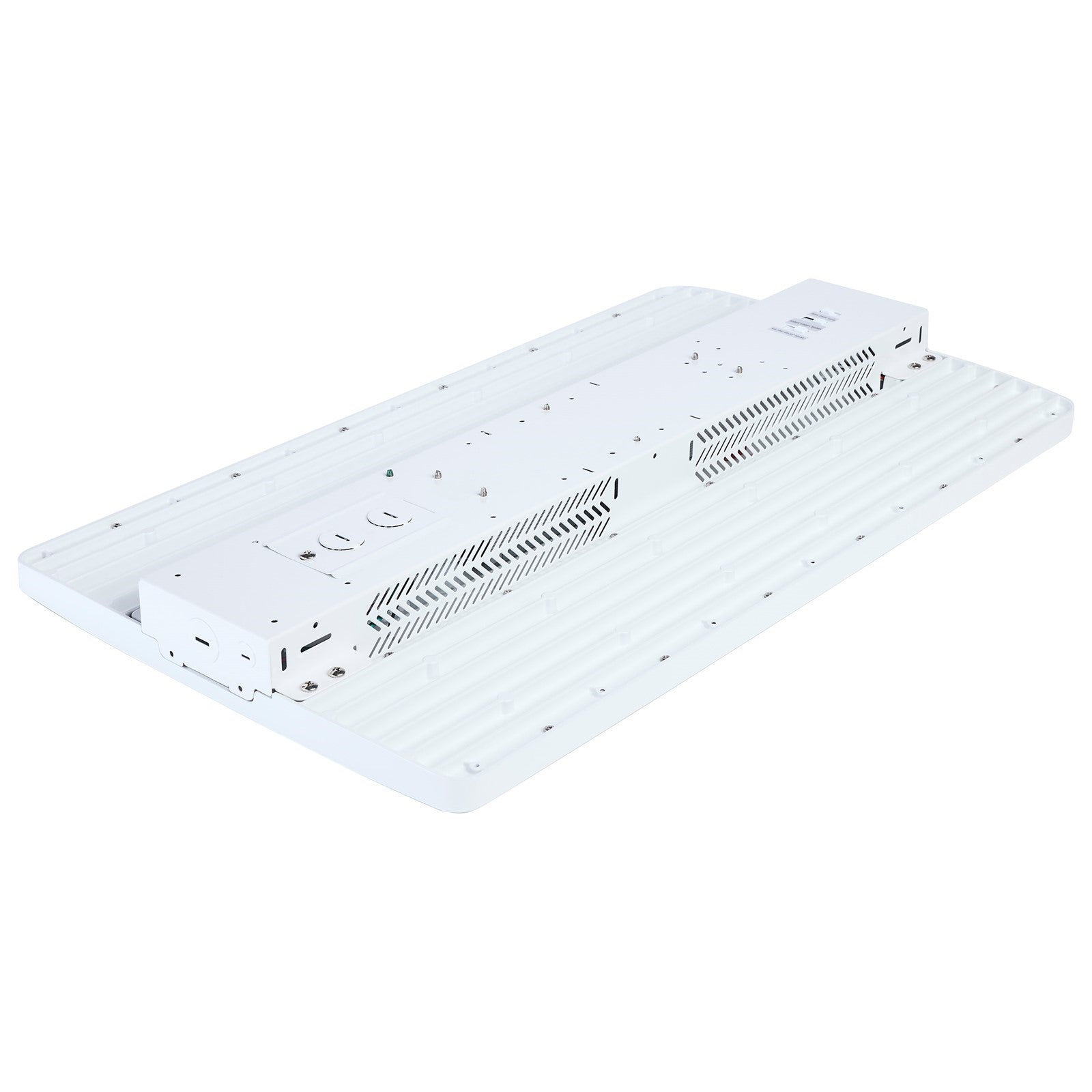

The SATCO NUVO 65-1513 delivers maximum output for high-ceiling environments. Field-selectable wattage (255W/295W/320W) generates 37,800 to 48,500 lumens with efficacy up to 151 LPW. Choose from three beam distributions (45x100, 65x95, or 90x90) and three CCTs (3000K/4000K/5000K). Built with a die-cast aluminum housing and polycarbonate lens, it supports universal 120-347V operation, includes an integrated sensor port and suspension kit, and is IP20 and IK09 rated for wet locations.
Best for

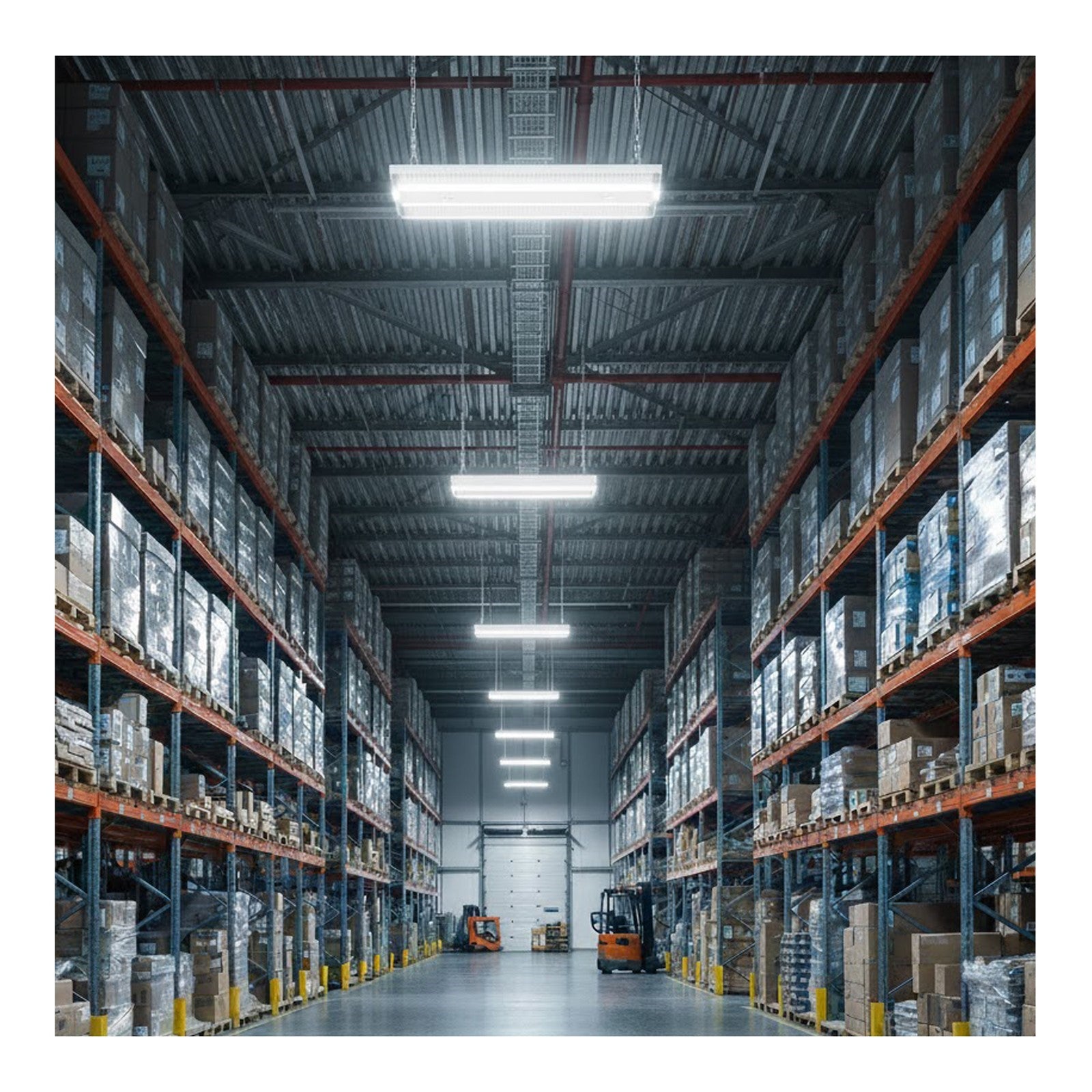

- Warehouses and distribution centers with ceiling heights over 20 ft
- Gymnasiums and indoor sports facilities needing uniform, high-lumen coverage
- Manufacturing floors and assembly lines requiring selectable beam control
- Large retail showrooms and big-box stores
Not ideal for
- Residential rooms or low ceilings under 12 ft – the output is too intense
- Outdoor uncovered areas – rated for damp/wet locations but not direct rain exposure
How bright is it?
37,800 to 48,500 lumens depending on wattage setting – comparable to a 250-320W metal halide fixture. Ideal for primary ambient lighting in large spaces, not for accent or task lighting.
Light color and feel
Selectable 3000K (soft white), 4000K (neutral white), or 5000K (natural light). 3000K provides a warm, inviting glow; 4000K is crisp and clean; 5000K simulates daylight for precision tasks. CRI 80 ensures adequate color rendering for most commercial applications. Fully dimmable via 0-10V.
Sizing and fit
Overall dimensions: 22 in diameter x 12.4 in wide x 42.89 in high. Includes a 41-inch suspension kit for mounting. Suitable for ceilings 15-40 ft high.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 3000K/4000K/5000K
- Bulb Wattage: 320W/295W/255W
- Bulb Average Hours: 50000
- Bulb Lumens: 37800L-48500L
- Lamp Shape: Integrated LED
- Bulb CRI: 80
- Voltage: 120V-347V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Sensor: Daylight
- Operating Temperature: -40F to +122F (-40C to +50C)
- Color Temperature: Soft White to Natural Light
- Beam Selectable (45x100/65x95/90x90)
- 3 CCT Selectable (3000K/4000K/5000K)
- 3 Wattage Selectable (320W/295W/255W)
- 6kV Surge Protection
- Die-Cast Aluminum Housing with IK09 Rated PC Lens
- Integrated Sensor Port
- 120-347V Range Voltage and 0-10V Dimmable
- 41" Suspension Kit Included
- 50,000 Life Hours
- 5 Year Warranty
- Dimmable: True
- Driver Included: True
- Assembly Required: True
- Safety Rating: CULUS - Listed Listed
- For Use in Damp Locations
- Warranty Info: 5-Years
Frequently asked
Is the bulb included? Yes, integrated LED – no replacement needed.
Is it dimmable, and what dimmer should I use? Yes, 0-10V dimming compatible with standard 0-10V dimmers.
Can I install this in a bathroom or outdoors? Rated for damp locations, suitable for covered outdoor areas but not direct rain.
What's the warranty? 5-year warranty.
How do I select the wattage and CCT? Via switches on the fixture before installation – no tools required.
