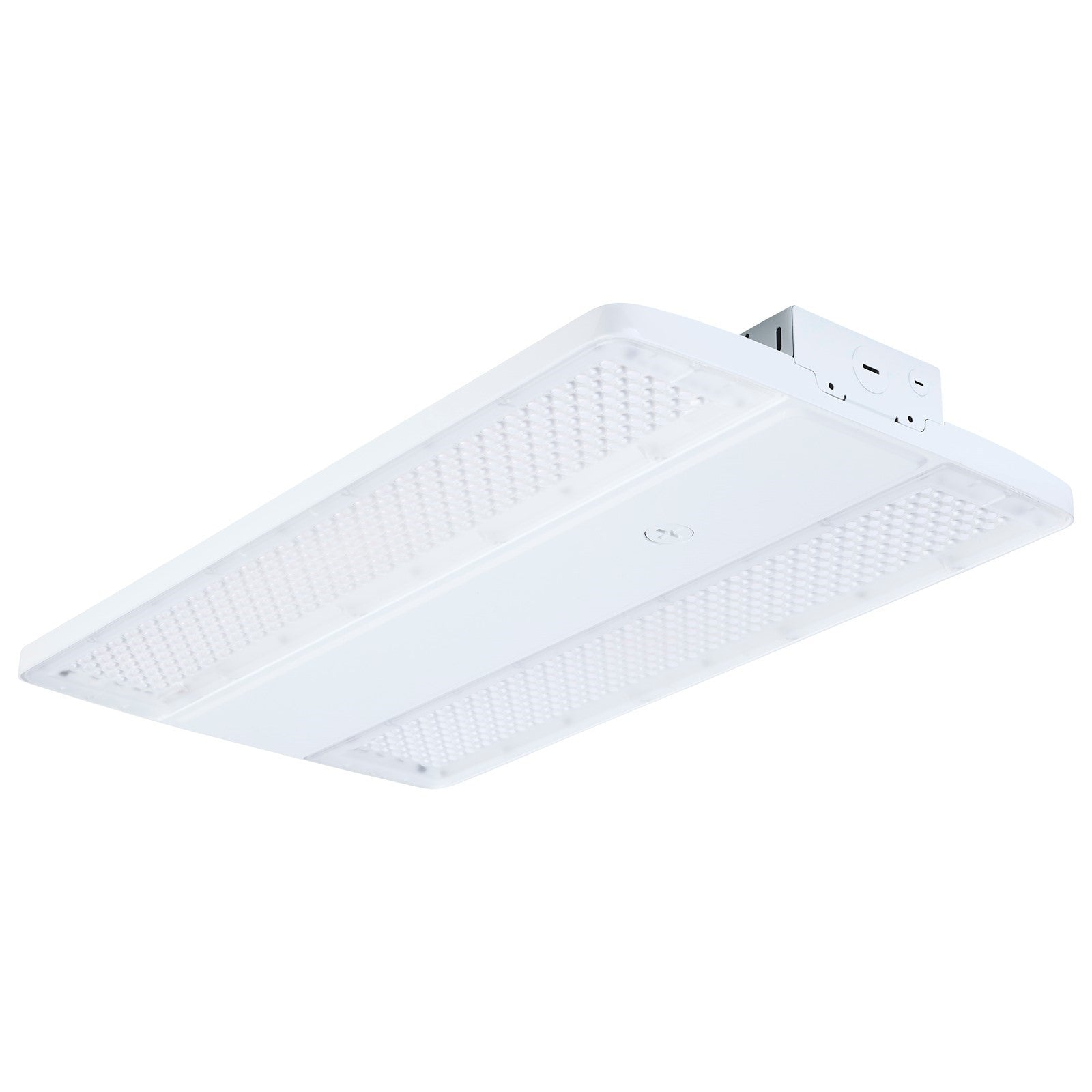

A 20-inch linear LED high bay flush mount for high-lumen commercial and industrial spaces, offering field-selectable wattage (180W/220W/240W) and CCT (3000K/4000K/5000K) with up to 38,000 lumens in a white die-cast aluminum housing.
The Nuvo 65-1512 Linear High Bay delivers maximum output for large-scale environments like distribution centers, manufacturing plants, and big-box retail. Its die-cast aluminum housing with IK09-rated polycarbonate lens ensures durability, while selectable beam distributions (45x100, 65x95, 90x90) adapt to various layouts. The integrated sensor port and included suspension kit simplify installation.
Best for

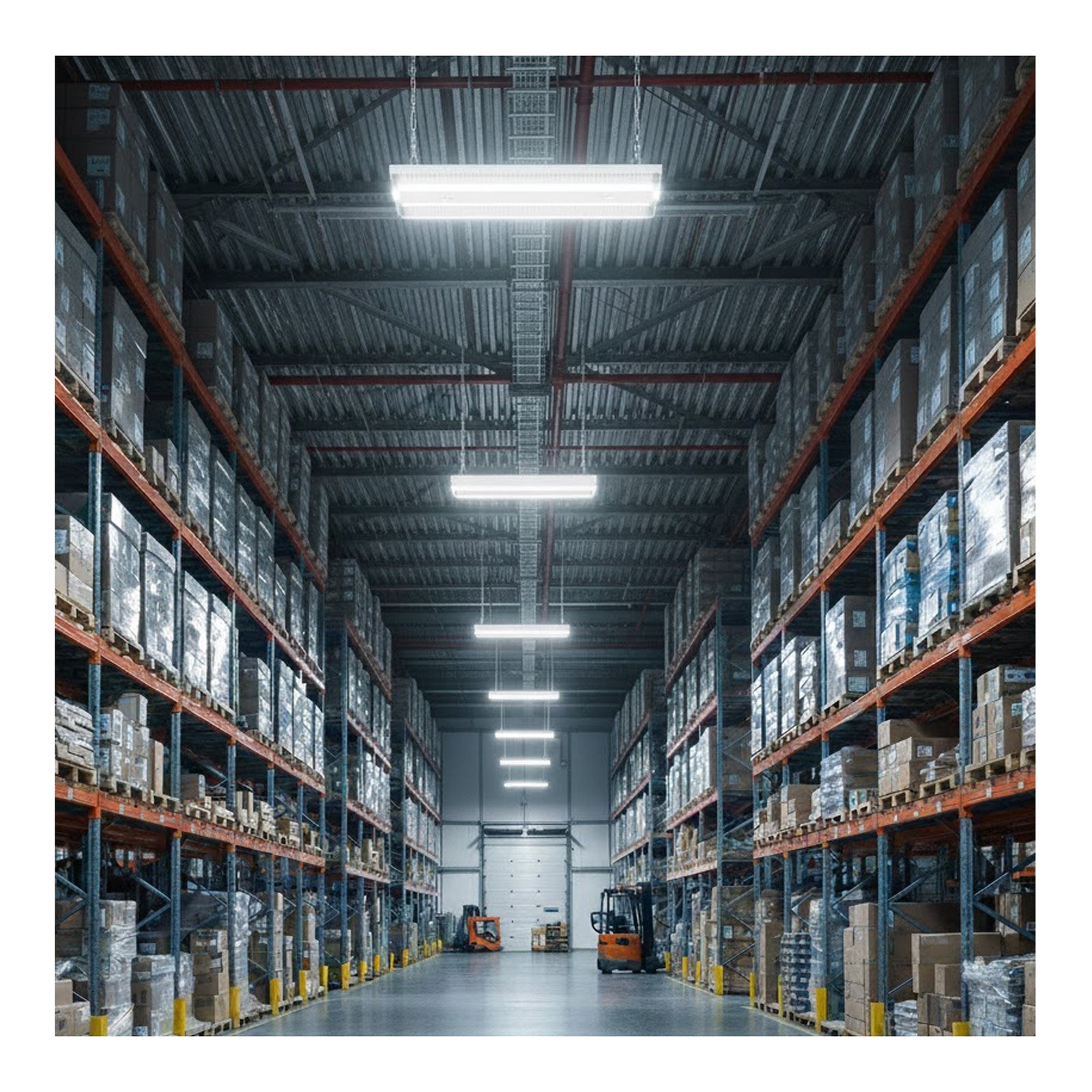

- Large distribution centers and warehouses with ceiling heights of 25-45 ft, providing extremely bright, uniform light
- Manufacturing plants and assembly lines requiring high lumen output and flexible beam angles
- Big-box retail stores and showrooms needing powerful overhead lighting
- Damp locations such as covered loading docks or unconditioned storage areas
- Spaces with 120-347V power systems and 0-10V dimming requirements
Not ideal for
- Residential rooms or low ceilings under 20 ft - the high output may be overwhelming
- Wet locations with direct water exposure (damp-rated only)
- Decorative or low-profile applications
How bright is it?
Up to 38,000 lumens at 240W - comparable to a 250W metal halide fixture. This is extremely bright, suitable for primary lighting in very large commercial spaces. At the lowest setting (180W), it produces 28,000 lumens.
Light color and feel
Selectable CCT: 3000K (warm white), 4000K (neutral white), or 5000K (daylight). CRI 80 provides adequate color rendering. Fully dimmable via 0-10V control.
Sizing and fit

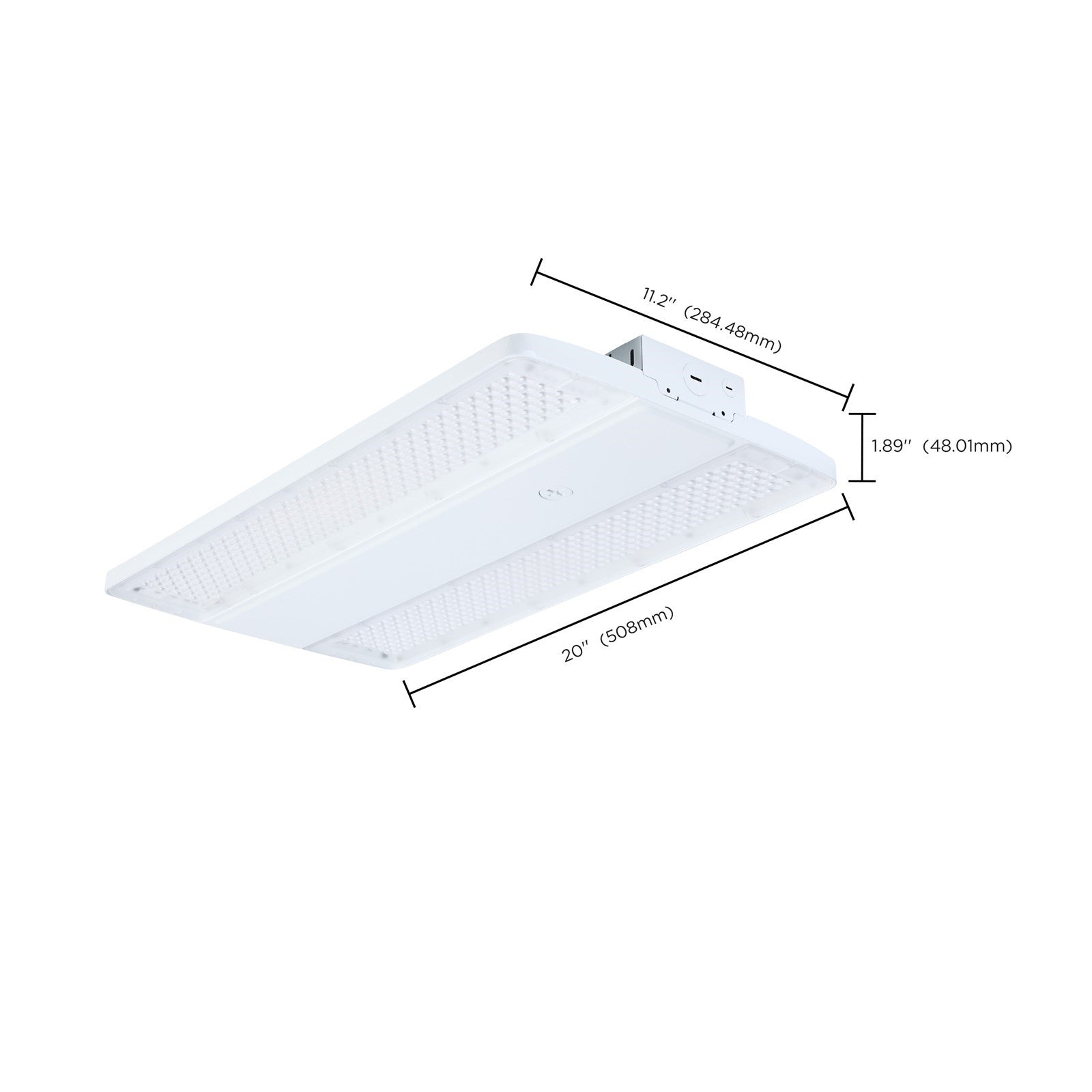

Dimensions: 20"(D) x 11.2"(W) x 42.89"(H) - includes suspension kit. Suitable for ceiling heights from 20 to 45 ft. Weight: 7.26 lbs.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 3000K/4000K/5000K
- Bulb Wattage: 240W/220W/180W
- Bulb Average Hours: 50000
- Bulb Lumens: 28000L-38000L
- Lamp Shape: Integrated LED
- Bulb CRI: 80
- Voltage: 120V-347V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Sensor: Daylight
- Operating Temperature: -40F to +122F (-40C to +50C)
- Color Temperature: Soft White to Natural Light
- Beam Selectable (45x100/65x95/90x90)
- 3 CCT Selectable (3000K/4000K/5000K)
- 3 Wattage Selectable (240W/220W/180W)
- 6kV Surge Protection
- Die-Cast Aluminum Housing with IK09 Rated PC Lens
- Integrated Sensor Port
- 120-347V Range Voltage and 0-10V Dimmable
- 41" Suspension Kit Included
- 50,000 Life Hours
- 5 Year Warranty
- Dimmable: True
- Driver Included: True
- Assembly Required: True
- Safety Rating: CULUS - Listed Listed
- For Use in Damp Locations
- Warranty Info: 5-Years
- Overall Dimensions: 20"(D) x 11.2"(W) x 42.89"(H)
- Item Weight: 7.26 lbs.
Frequently asked
Is the bulb included? Yes, integrated LED.
Is it dimmable, and what dimmer should I use? Yes, 0-10V dimmable. Use a compatible 0-10V dimmer.
Can I install this in a bathroom or outdoors? It is rated for damp locations, suitable for covered outdoor areas or bathrooms with no direct water spray.
What's the warranty? 5-year warranty.
Does it come with a suspension kit? Yes, a 41" suspension kit is included.
