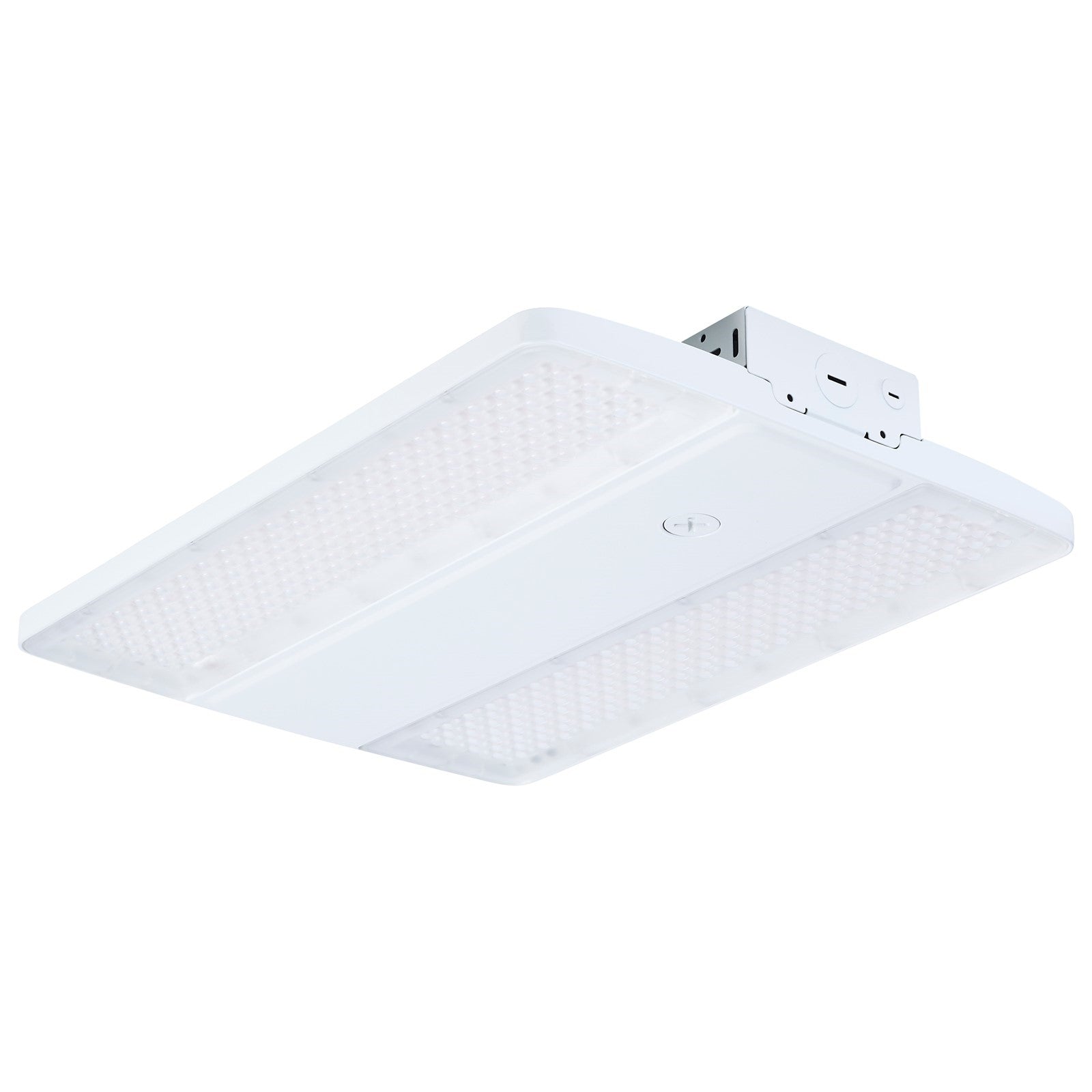

A 15-inch linear LED high bay flush mount for higher-output commercial and industrial spaces, offering field-selectable wattage (120W/135W/160W) and CCT (3000K/4000K/5000K) with up to 24,200 lumens in a white die-cast aluminum housing.
The Nuvo 65-1511 Linear High Bay is designed for demanding environments like large warehouses, manufacturing plants, and distribution centers. Its die-cast aluminum housing with IK09-rated polycarbonate lens ensures durability, while selectable beam distributions (45x100, 65x95, 90x90) adapt to various layouts. The integrated sensor port and included suspension kit simplify installation.
Best for

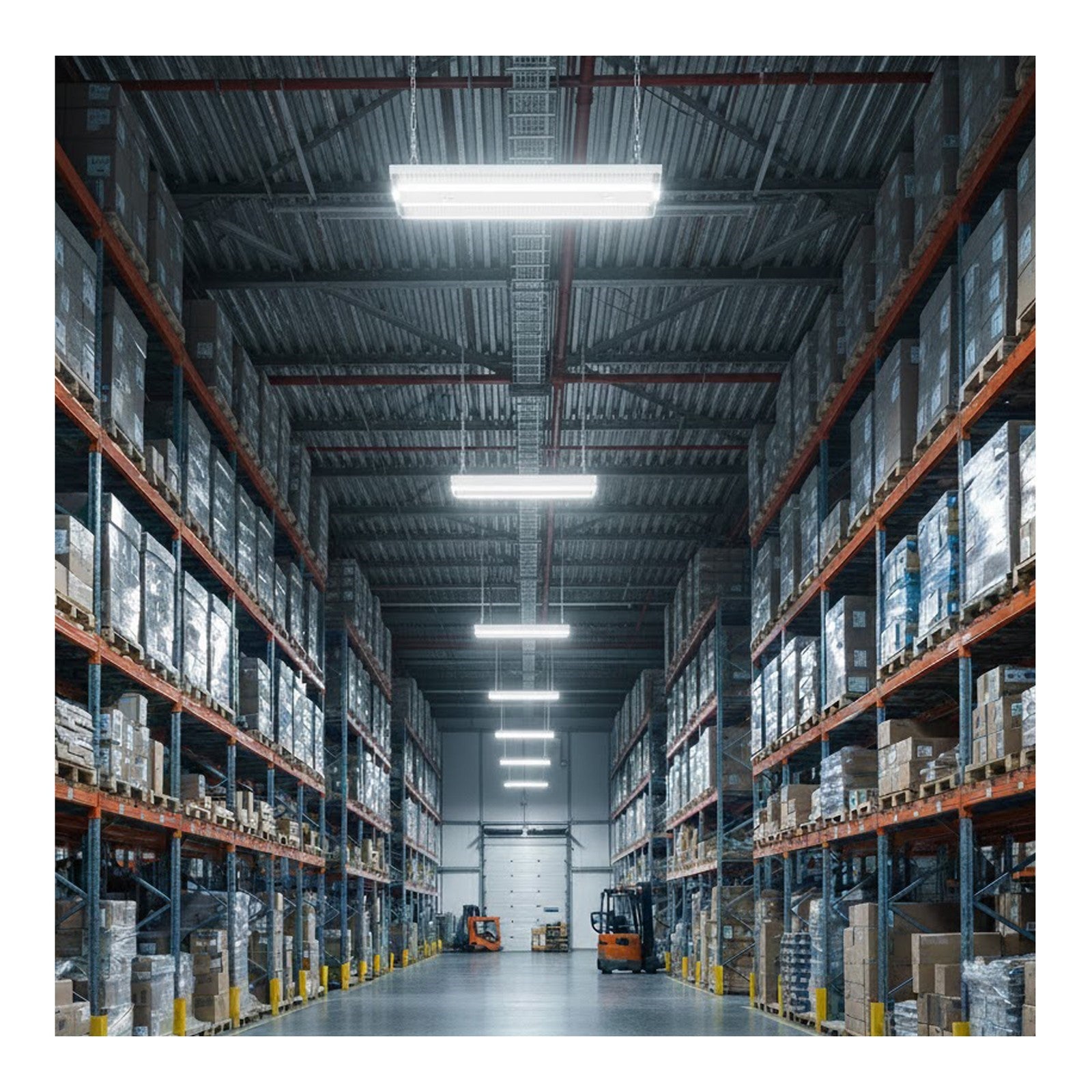

- Large warehouses and distribution centers with ceiling heights of 20-35 ft, providing bright, uniform light
- Manufacturing and assembly lines requiring high lumen output and flexible beam angles
- Gymnasiums and indoor sports facilities needing powerful overhead lighting
- Damp locations such as covered loading docks or unconditioned storage areas
- Spaces with 120-347V power systems and 0-10V dimming requirements
Not ideal for
- Residential rooms or low ceilings under 15 ft - the high output may be excessive
- Wet locations with direct water exposure (damp-rated only)
- Decorative or low-profile applications
How bright is it?
Up to 24,200 lumens at 160W - comparable to a 150W metal halide fixture. This is very bright, suitable for primary lighting in large commercial spaces. At the lowest setting (120W), it produces 17,600 lumens.
Light color and feel
Selectable CCT: 3000K (warm white), 4000K (neutral white), or 5000K (daylight). CRI 80 provides adequate color rendering. Fully dimmable via 0-10V control.
Sizing and fit

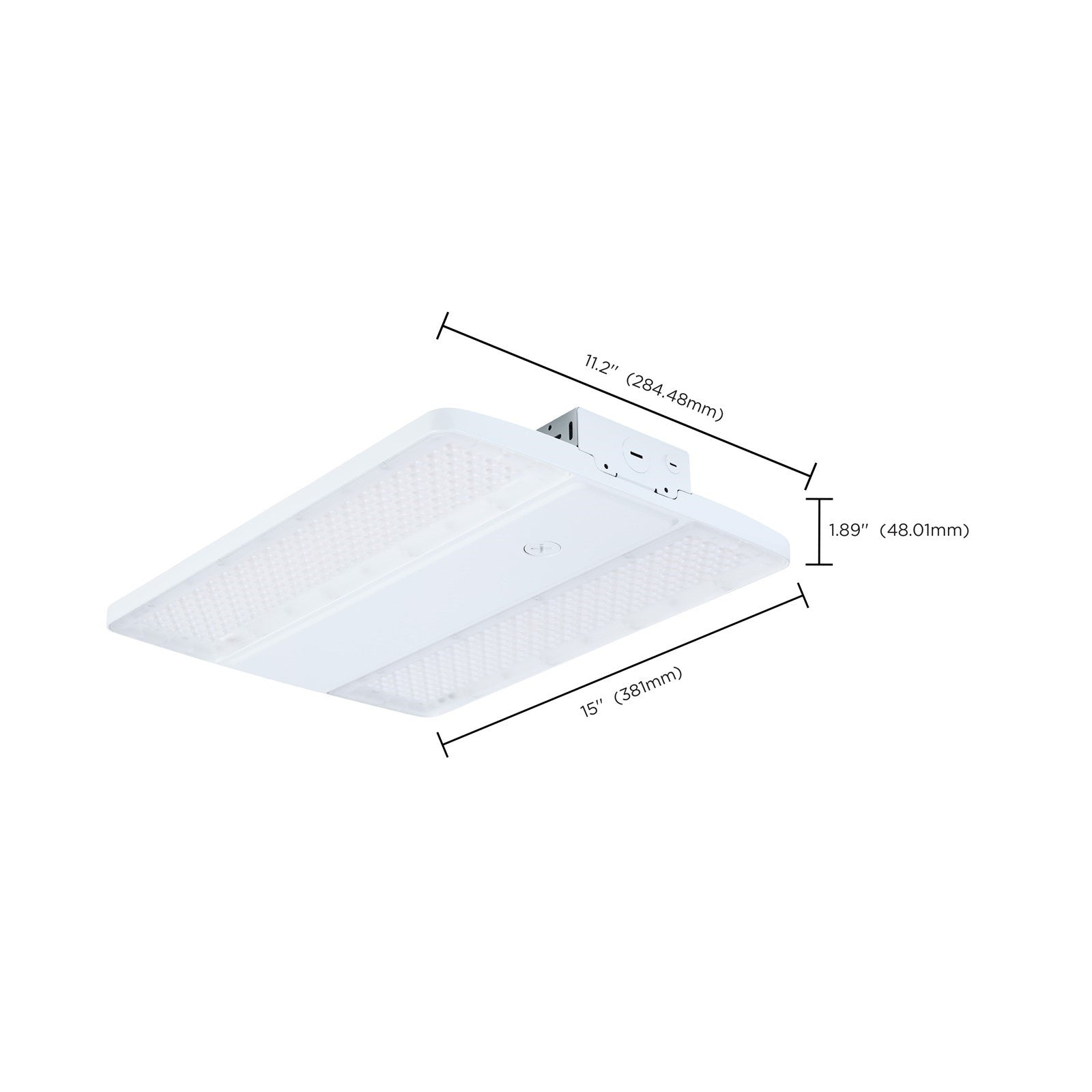

Dimensions: 15"(D) x 11.2"(W) x 42.89"(H) - includes suspension kit. Suitable for ceiling heights from 15 to 35 ft. Weight: 5.5 lbs.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 3000K/4000K/5000K
- Bulb Wattage: 160W/135W/120W
- Bulb Average Hours: 50000
- Bulb Lumens: 17600L-24200L
- Lamp Shape: Integrated LED
- Bulb CRI: 80
- Voltage: 120V-347V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Sensor: Daylight
- Operating Temperature: -40F to +122F (-40C to +50C)
- Color Temperature: Soft White to Natural Light
- Beam Selectable (45x100/65x95/90x90)
- 3 CCT Selectable (3000K/4000K/5000K)
- 3 Wattage Selectable (160W/135W/120W)
- 6kV Surge Protection
- Die-Cast Aluminum Housing with IK09 Rated PC Lens
- Integrated Sensor Port
- 120-347V Range Voltage and 0-10V Dimmable
- 41" Suspension Kit Included
- 50,000 Life Hours
- 5 Year Warranty
- Dimmable: True
- Driver Included: True
- Assembly Required: True
- Safety Rating: CULUS - Listed Listed
- For Use in Damp Locations
- Warranty Info: 5-Years
- Overall Dimensions: 15"(D) x 11.2"(W) x 42.89"(H)
- Item Weight: 5.5 lbs.
Frequently asked
Is the bulb included? Yes, integrated LED.
Is it dimmable, and what dimmer should I use? Yes, 0-10V dimmable. Use a compatible 0-10V dimmer.
Can I install this in a bathroom or outdoors? It is rated for damp locations, suitable for covered outdoor areas or bathrooms with no direct water spray.
What's the warranty? 5-year warranty.
Does it come with a suspension kit? Yes, a 41" suspension kit is included.
