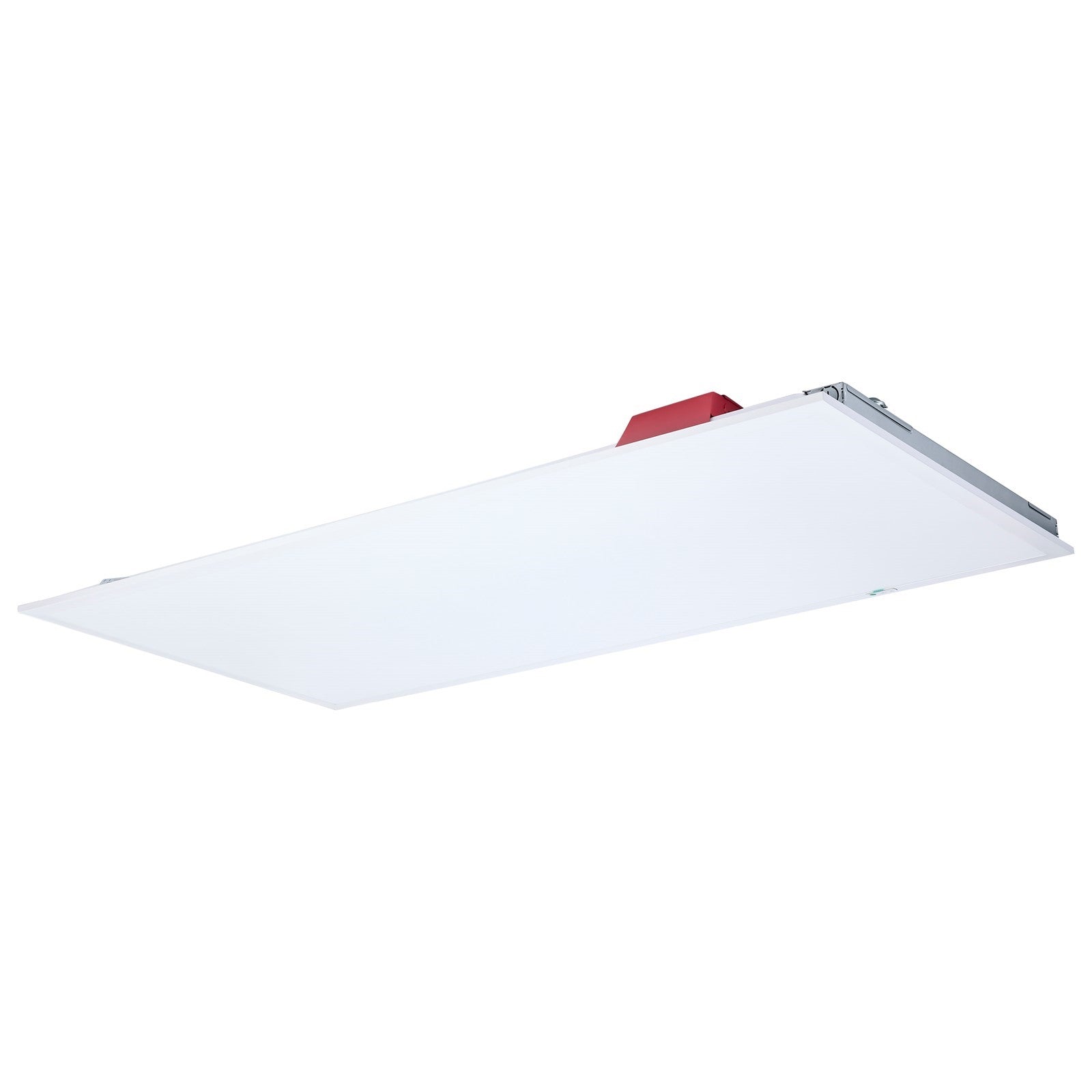

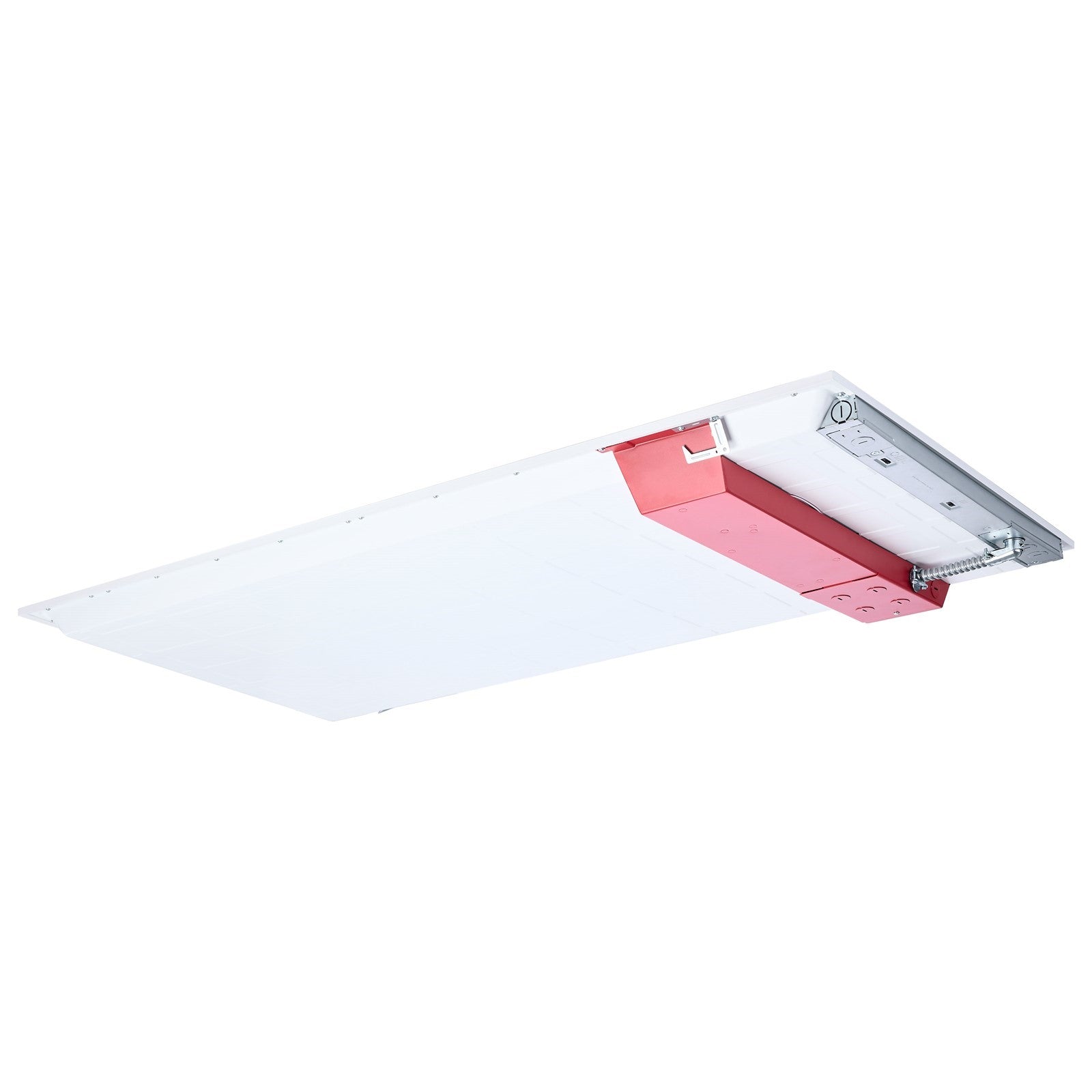

A 2x4-foot backlit LED panel with integrated emergency battery, ideal for commercial offices, schools, and healthcare facilities needing reliable emergency lighting at 120-347V.
The Nuvo 65-1676 Backlit Panel delivers efficient, selectable illumination with three wattage and color temperature options. Its steel body and die-cast aluminum trim with seamless corners provide a clean, professional look, while the polystyrene lens ensures even light distribution. The integrated emergency battery offers 90 minutes of runtime, making it a safe choice for code-compliant installations.
Best for
- Commercial offices with drop ceilings, providing uniform ambient light over workstations
- Schools and classrooms where selectable CCT (3500K/4000K/5000K) adapts to different activities
- Healthcare facilities requiring damp-rated fixtures with emergency backup
- Retail spaces needing bright, energy-efficient overhead lighting
- Any 120-347V application where emergency battery backup is required by code
Not ideal for
- Residential living rooms or bedrooms - the utility style and size are better suited to commercial spaces
- Outdoor or wet locations - rated for damp locations only
- Spaces with ceilings under 8 ft - the 2x4 footprint may overwhelm small rooms
How bright is it?
Selectable output from 3750 to 6250 lumens - comparable to three to five 60W incandescent bulbs. At 6250 lumens, it's bright enough to serve as primary lighting for a 10x12 ft room; at 3750 lumens, it's suitable for accent or task lighting in larger spaces.
Light color and feel
Choose from 3500K (neutral white), 4000K (cool white), or 5000K (daylight). 3500K offers a warm, inviting tone for collaborative spaces; 5000K mimics natural daylight, ideal for detail-oriented tasks. CRI 80+ ensures decent color rendering. Dimmable down to 10% via 0-10V dimmer for flexible ambiance.
Sizing and fit
Measures 47.76 x 23.74 x 2.6 inches - a standard 2x4 ft drop ceiling tile replacement. Fits T-grid ceilings with 15/16-inch or 9/16-inch grid. The low profile (2.6 in) works in spaces with limited plenum depth.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 3500K/4000K/5000K
- Bulb Wattage: 30W/40W/50W
- Bulb Average Hours: 50000
- Bulb Lumens: 3750L/4500L/6250L
- Lamp Shape: Integrated LED
- Bulb CRI: 80+
- Voltage: 120V-347V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Operating Temperature: +1.4F to +113F (-17C to +45C)
- Color Temperature: Neutral White to Natural Light
- Field Selectable - 3 CCT and 3 Wattage
- 2X4 Panel
- Emergency Battery Backup Model
- 120-347 Voltage
- Steel Body with Die-cast Aluminum Trim for Seamless Corners
- TAA Compliant
- Damp Location Rated
- 5 Year Warranty
- 50,000 Hour Functional Life
- Dimmable: True
- Assembly Required: True
- Safety Rating: CULUS - Certified Listed
- For Use in Damp Locations
- Warranty Info: 5-Years
- Overall Dimensions: 47.76"(D) x 23.74"(W) x 2.6"(H)
- Item Weight: 10.69 lbs.
Frequently asked
Is the bulb included? Yes, integrated LED - no replacement needed.
Is it dimmable, and what dimmer should I use? Yes, dimmable to 10% using a 0-10V dimmer (not included).
Can I install this in a bathroom or outdoors? It is rated for damp locations, so it can be used in bathrooms or covered patios, but not in direct rain or wet areas.
What's the warranty? 5-year warranty.

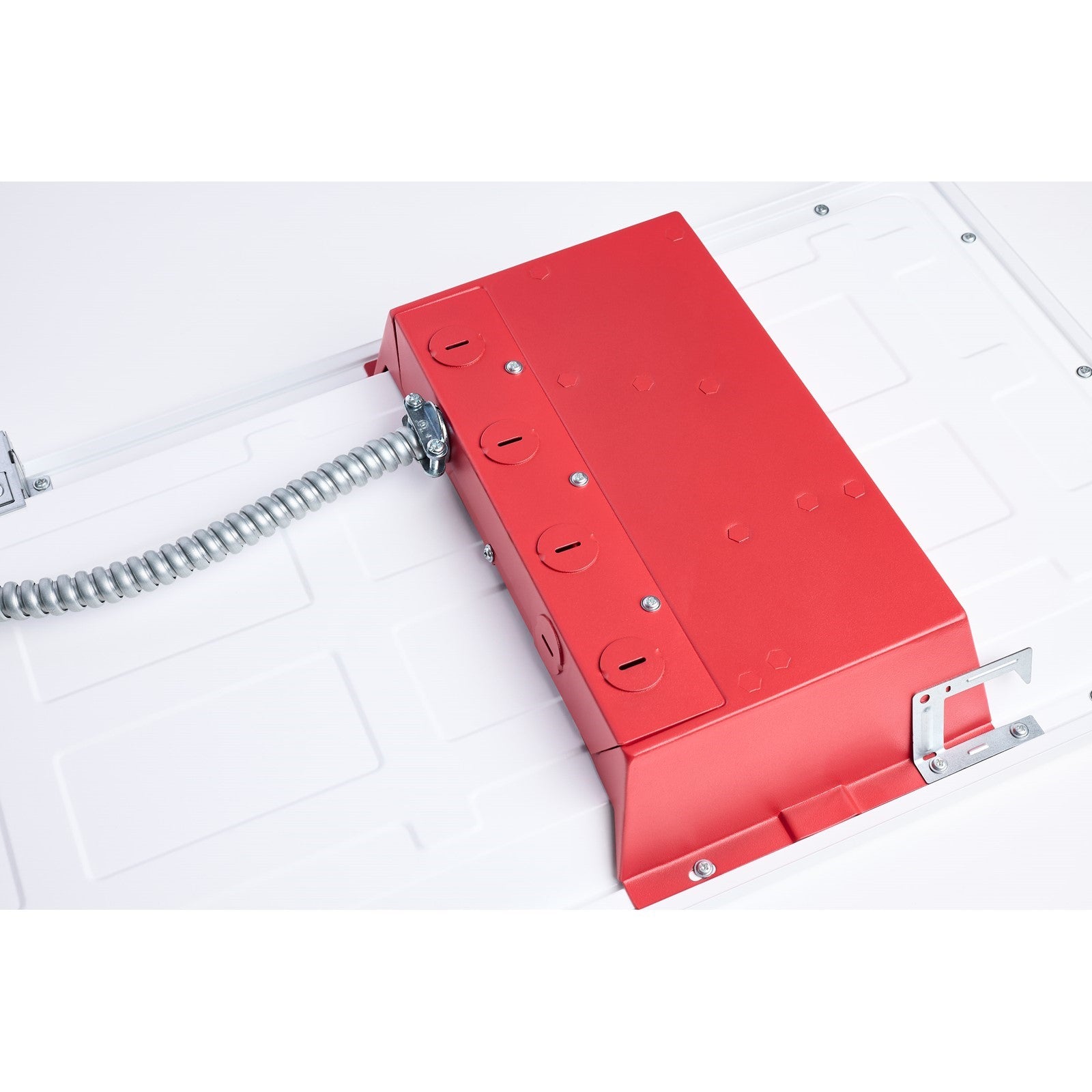

How does the emergency battery work? The integrated battery provides 90 minutes of emergency light during power outages, with a red indicator light for status.
