A 1x4-foot backlit LED panel with integrated emergency battery, perfect for narrow corridors, small offices, and commercial spaces needing reliable emergency lighting.

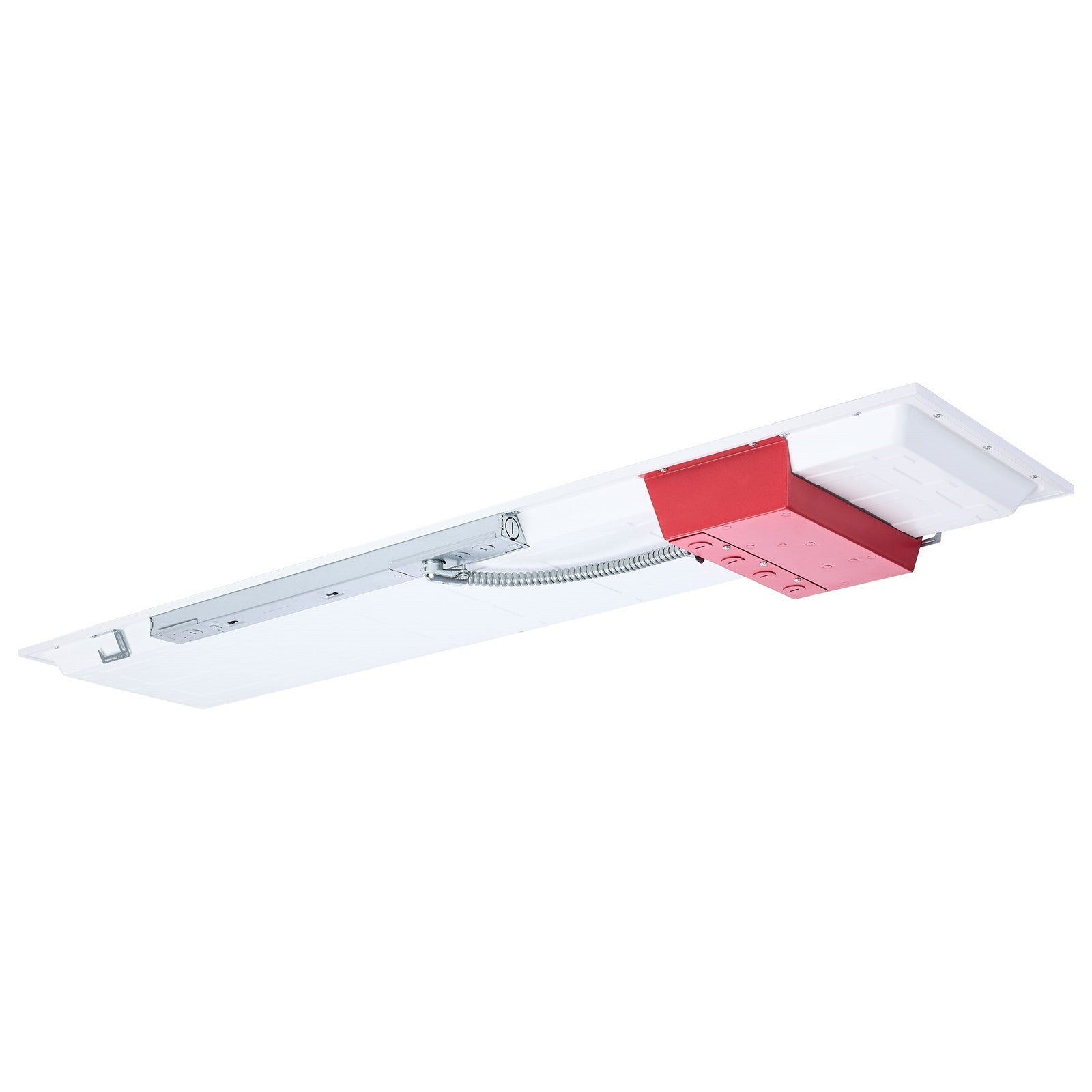

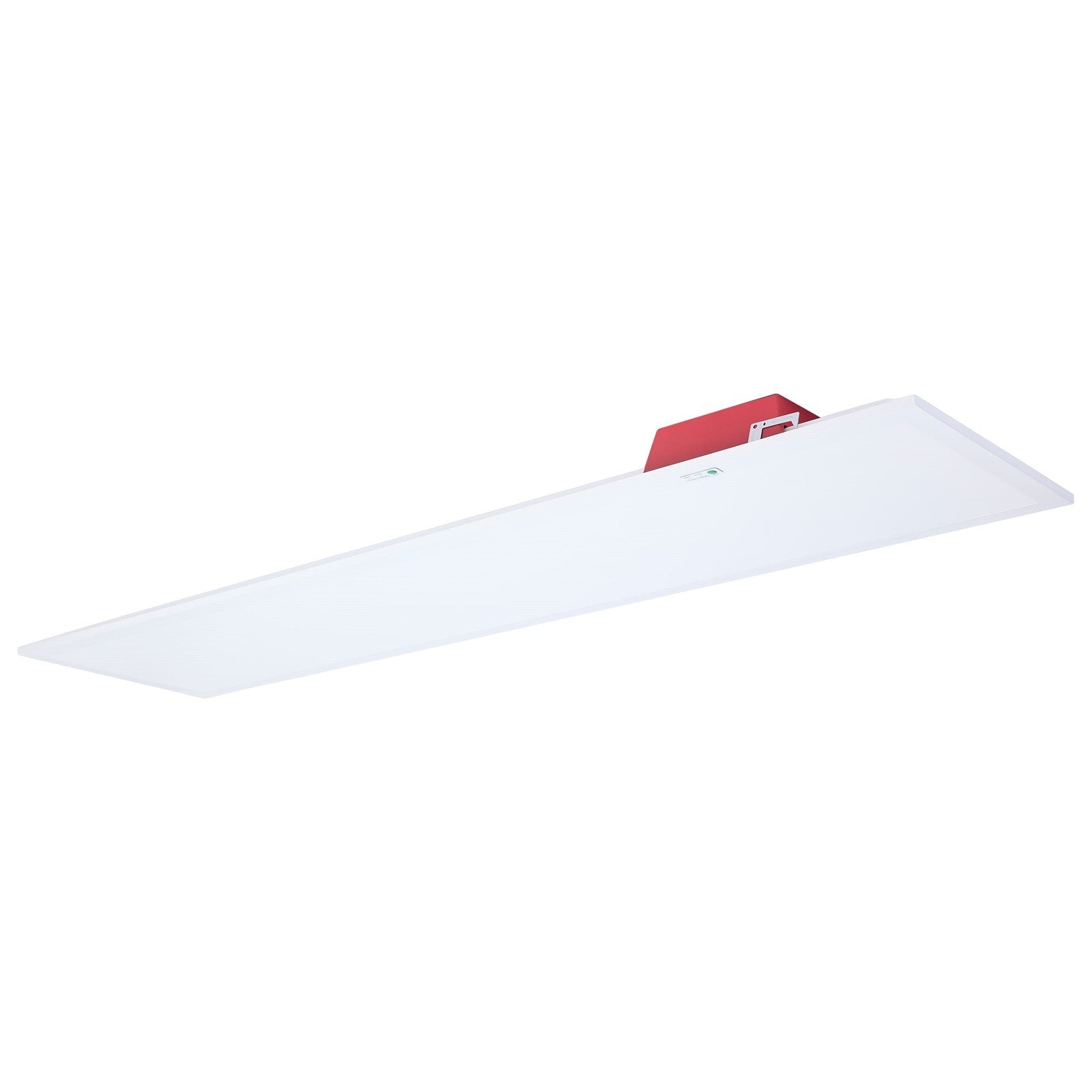

The Nuvo 65-1667 Backlit Panel offers selectable wattage and color temperature in a slim 1x4 footprint. Its steel body and die-cast aluminum trim ensure durability, while the polystyrene lens provides uniform light. The integrated emergency battery delivers 90 minutes of backup, making it ideal for code-compliant installations in hallways and utility areas.
Best for
- Office corridors and hallways where a narrow fixture fits the ceiling grid
- Small private offices or conference rooms needing adjustable brightness
- Retail aisles and display areas requiring even, energy-efficient light
- Schools and institutional buildings with drop ceilings
- Any 120-277V application where emergency backup is required
Not ideal for
- Large open-plan spaces - the 1x4 size may require multiple units to achieve adequate brightness
- Residential living rooms - the utility style is more commercial
- Outdoor or wet locations - damp rated only
How bright is it?
Selectable from 2500 to 5000 lumens - comparable to two to four 60W incandescent bulbs. At 5000 lumens, it can light a small room; at 2500 lumens, it's suitable for accent or task lighting.
Light color and feel
Choose 3500K (neutral white), 4000K (cool white), or 5000K (daylight). 4000K is a popular choice for offices, balancing alertness and comfort. CRI 80+ for decent color rendering. Dimmable to 10% via 0-10V dimmer.
Sizing and fit
Measures 47.76 x 11.93 x 2.6 inches - a standard 1x4 ft drop ceiling tile replacement. Fits T-grid ceilings with 15/16-inch or 9/16-inch grid. Low profile works in shallow plenums.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 3500K/4000K/5000K
- Bulb Wattage: 20W/30W/40W
- Bulb Average Hours: 50000
- Bulb Lumens: 2500L/3750L/5000L
- Lamp Shape: Integrated LED
- Bulb CRI: 80+
- Voltage: 120V-277V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Operating Temperature: +1.4F to +113F (-17C to +45C)
- Color Temperature: Neutral White to Natural Light
- Field Selectable - 3 CCT and 3 Wattage
- 1X4 Panel
- Emergency Battery Backup Model
- 120-277 Voltage
- Steel Body with Die-cast Aluminum Trim for Seamless Corners
- TAA Compliant
- Damp Location Rated
- 5 Year Warranty
- 50,000 Hour Functional Life
- Dimmable: True
- Assembly Required: True
- Safety Rating: CULUS - Certified Listed
- For Use in Damp Locations
- Warranty Info: 5-Years
- Overall Dimensions: 47.76"(D) x 11.93"(W) x 2.6"(H)
- Item Weight: 6.39 lbs.
Frequently asked
Is the bulb included? Yes, integrated LED.
Is it dimmable, and what dimmer should I use? Yes, dimmable to 10% using a 0-10V dimmer.
Can I install this in a bathroom or outdoors? Damp location rated - suitable for bathrooms or covered patios, but not wet areas.
What's the warranty? 5-year warranty.

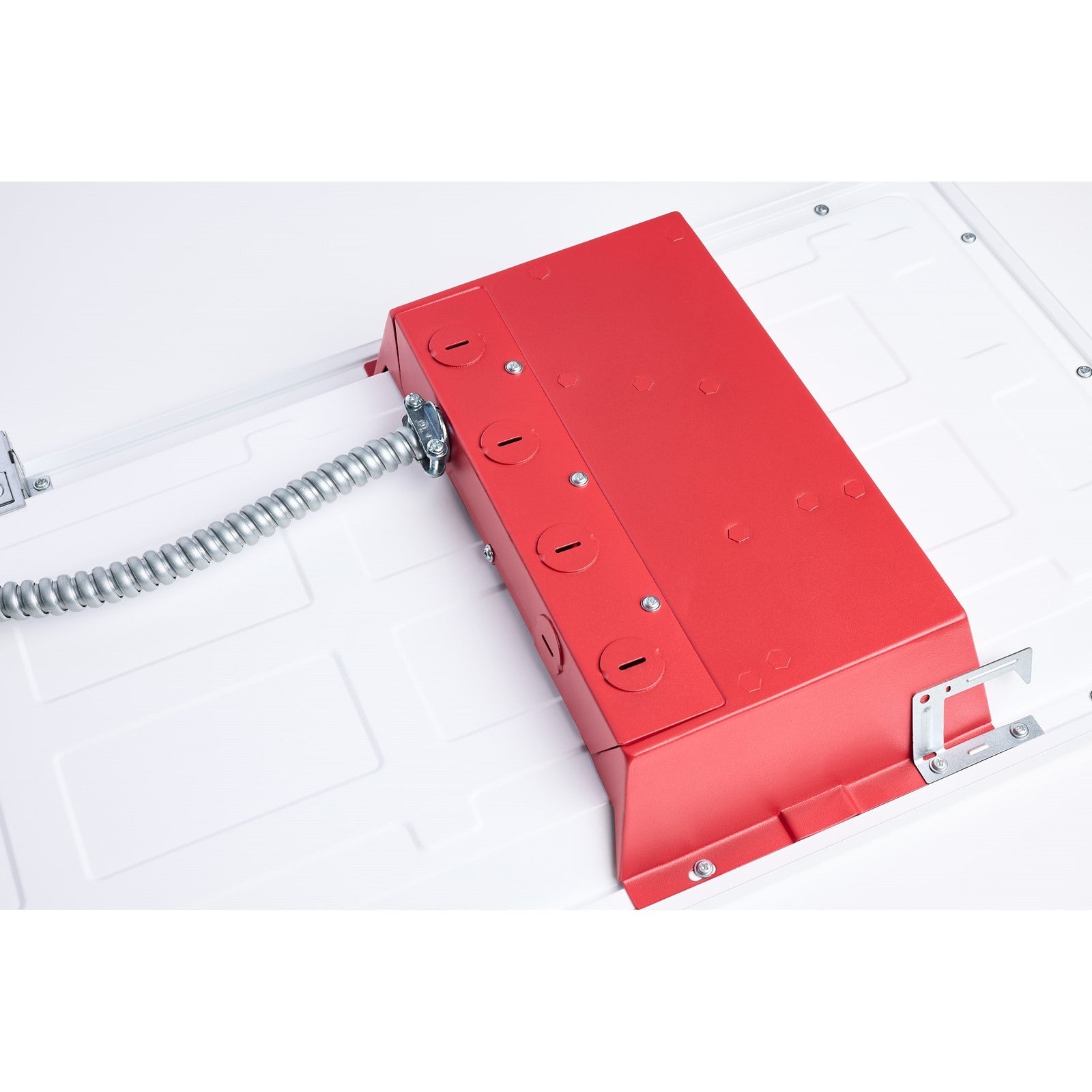

How does the emergency battery work? Provides 90 minutes of emergency light during power outages, with a red indicator light.
Ships from our warehouse in 1-4 Business Days
