A 4-inch fire-rated LED downlight for kitchens, hallways, and multi-family buildings, with a flat lens and selectable color temperature.

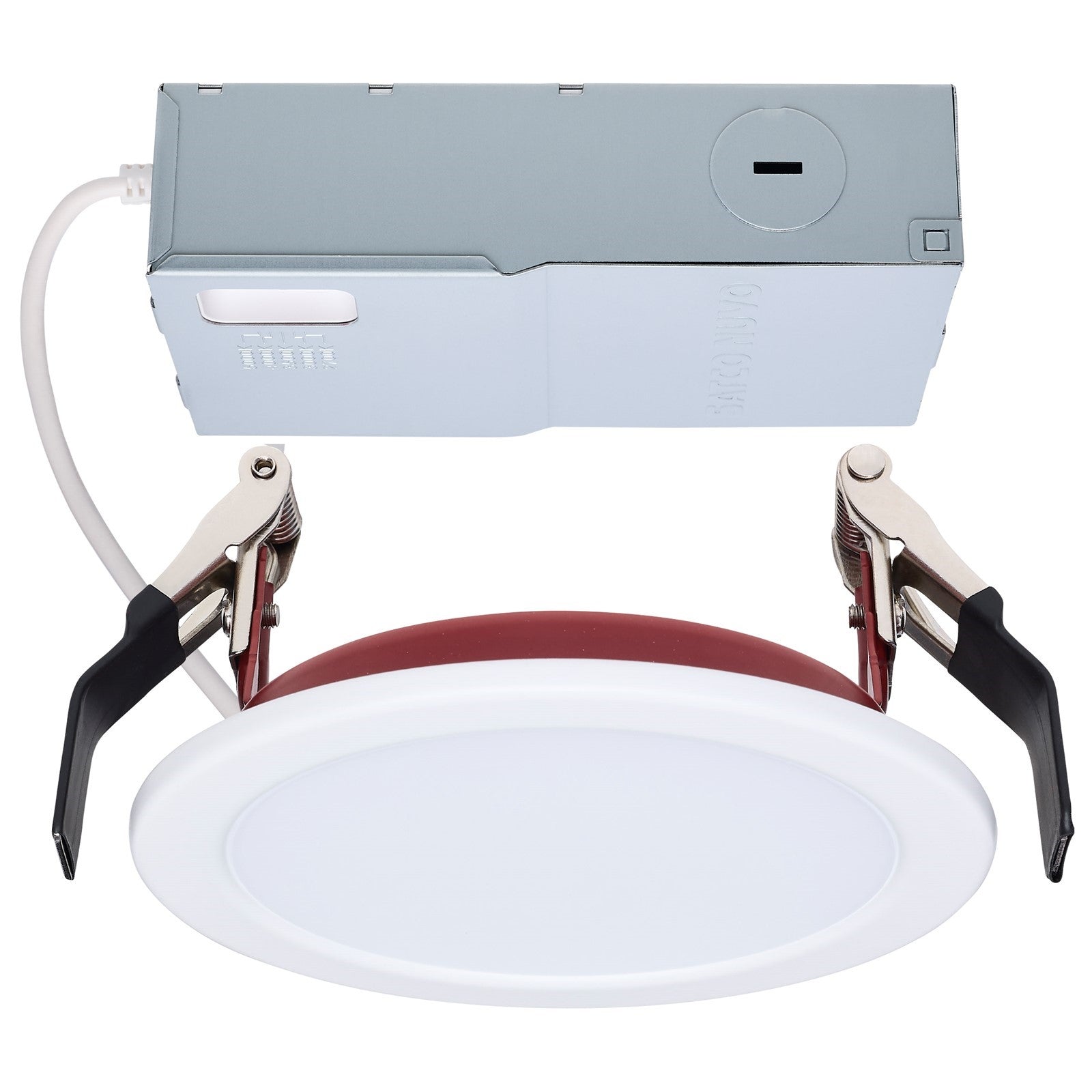

The Nuvo Fire Rated S11864R1 is a slim, low-profile downlight engineered for fire-resistant ceiling assemblies. Its white finish and red-painted backplate make it easy to identify during inspections. With 10 watts and 820 lumens, it replaces a 60W incandescent while providing 90 CRI light. The flat lens design offers a clean, modern look.
Best for
- Kitchens and hallways needing bright, energy-efficient light
- Multi-family and commercial buildings with fire-rated ceilings
- Ceiling assemblies up to 2 3/8 inches thick
- Spaces requiring 2-hour fire protection
- Residential bathrooms and covered areas (wet rated)
Not ideal for
- Outdoor installations - this model is rated for indoor use only
- Ceilings thicker than 2 3/8 inches without verification
How bright is it?
820 lumens - about as bright as a 60W incandescent bulb, suitable for general and task lighting in most rooms.
Light color and feel
Selectable 2700K-5000K - from warm white to natural daylight. 90 CRI renders colors accurately. Dimmable with forward or reverse phase dimmers at 120V.
Sizing and fit
Measures 4.74 in diameter and 0.88 in high. Slim housing fits fire-rated ceiling assemblies up to 2 3/8 inches thick.
Specifications
- Fixture Finish: White / Red
- Style: Specialty
- Bulb Wattage: 10W
- Lamp Shape: Integrated LED
- ANSI Base: Integrated
- Lamp Base: Integrated
- Bulb Included: Integrated
- Dimmable: True
- Dimmable: Forward (TRIAC) or Reverse Phase; 120V only
- Voltage: 120V
- Lumens: 820L
- Color Temperature: 2700K/3000K/3500K/4000K/5000K K
- CRI: 90+
- Fire Rated up to 2-Hours
- Red Painted Backplate for Easy Identification
- 5 CCT Selectable
- 90 CRI High Quality Illumination
- 4" Flat Lens Model
- 120 Volts with Phase-Cut Dimming
- Wet Location Rated
- IC Rated and AirTight
- 50,000 Hour Functional Life
- 5 Year Warranty
- Assembly Required: True
- Location Rating: Wet
- Safety Location: CULUS - Certified
- Indoor/Outdoor: Indoor
- CA Prop 65: Lead
- Energy Star: True
- Warranty: 5-Years
- Incandescent Equivalent: 60W
- Color Temperature: Warm White to Natural Light
- Average Hours Rated: 50000
- CCT Selectable: True
- Operating Temperature: -4F to +104F (-20C to +40C)
- Title 20: Exempt
- Title 24: True
- CEC: Lawful for sale in California
Frequently asked
What is it made of? Integrated LED with white and red painted housing.
Where in the home does this work best? Kitchens, hallways, and bathrooms with fire-rated ceilings.
How is it mounted or assembled? Recessed into ceiling, assembly required.
What's the warranty? 5-year warranty.
Is it compatible with sloped ceilings? Not specified by manufacturer.
