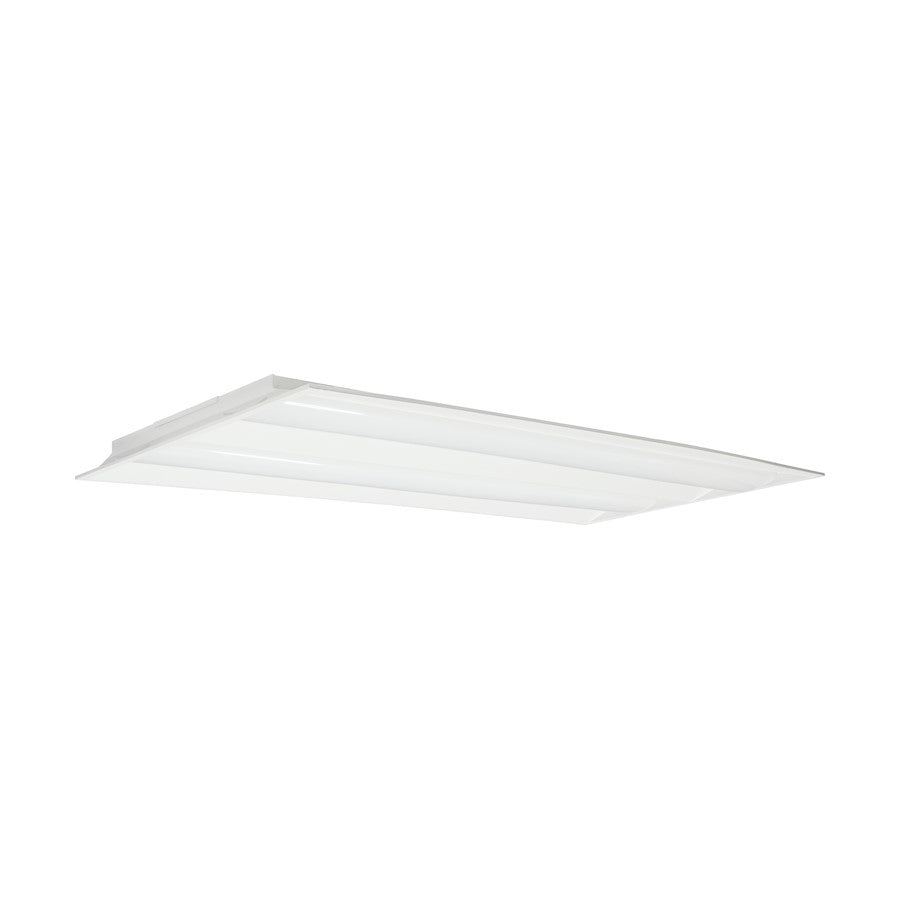

A 2x4 foot LED troffer with a double basket design, selectable color temperature and lumen output, ideal for commercial and utility spaces like offices, retail stores, and warehouses.
This Nuvo Lighting troffer combines energy-efficient LED technology with a classic double basket diffuser for even, flicker-free illumination. The selectable CCT (3500K/4000K/5000K) and lumen output (3300-5750 lumens) let you customize the light to suit your space, while the white finish blends into standard drop ceilings. Rated for damp locations, it's suitable for covered areas.
Best for
- Commercial offices with standard 2x4 drop ceilings, providing bright, uniform ambient light
- Retail stores needing adjustable color temperature to highlight merchandise
- Warehouses and utility areas where high lumen output and energy efficiency are priorities
- Covered patios or damp-rated indoor spaces like laundry rooms or basements
- Spaces requiring flicker-free lighting for video or sensitive tasks
Not ideal for
- Residential living rooms or bedrooms - the 2x4 form factor and utility style are better suited to commercial settings
- Wet locations such as outdoor uncovered areas or shower stalls - damp rated only
- Low ceilings under 8 ft - the troffer is designed for drop ceilings with typical clearance
How bright is it?
Selectable lumen output from 3300 to 5750 lumens. At the highest setting (5750 lumens), it's comparable to a 400W incandescent or a typical 2-lamp T8 fluorescent troffer - bright enough to light a 15x15 ft room as the primary source. The lowest setting (3300 lumens) is similar to a 200W incandescent, suitable for ambient fill in smaller spaces.
Light color and feel
Choose from 3500K (warm white, cozy), 4000K (neutral white, crisp), or 5000K (daylight, energizing). 3500K flatters warm-toned interiors, while 5000K is ideal for task-oriented spaces. CRI of 80 is standard for commercial lighting - colors appear natural but not as vivid as high-CRI options. Fully dimmable with compatible dimmers (not included).
Sizing and fit
Fits standard 2x4 ft drop ceiling grids. Overall dimensions: 48 in (W) x 24 in (L) x 23.74 in (H) - note the height is the fixture depth. Weight: 12.46 lbs. Ensure ceiling plenum depth accommodates the fixture.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 3500K/4000K/5000K
- Bulb Lumens: 3300L - 5750L
- Bulb CRI: 80
- Wattage: 30W/40W/50W
- Voltage: 100V-277V
- CEC: 0
- Flicker Free: Yes
- For Use in Damp Locations
- Safety Rating: CULus
- Overall Dimensions: 48"(W) x 24"(L) x 23.74"(H)
- Item Weight: 12.46 lbs.
Frequently asked
Is the bulb included? Yes, the LED array is integrated - no replaceable bulbs.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable. Use a compatible 0-10V dimmer for best performance.
Can I install this in a bathroom or outdoors? It is rated for damp locations, so it can be used in covered outdoor areas or bathrooms with no direct water exposure. Not for wet locations.
What's the warranty? Manufacturer warranty details not specified - please contact Nuvo Lighting for warranty information.
How do I select the CCT and lumen output? The fixture has a switch on the driver that lets you choose between 3500K, 4000K, or 5000K and between 30W, 40W, or 50W settings before installation.
