A 24-inch linear LED high bay for warehouses, food processing plants, and other industrial spaces that require frequent washdowns, with selectable wattage and color temperature.

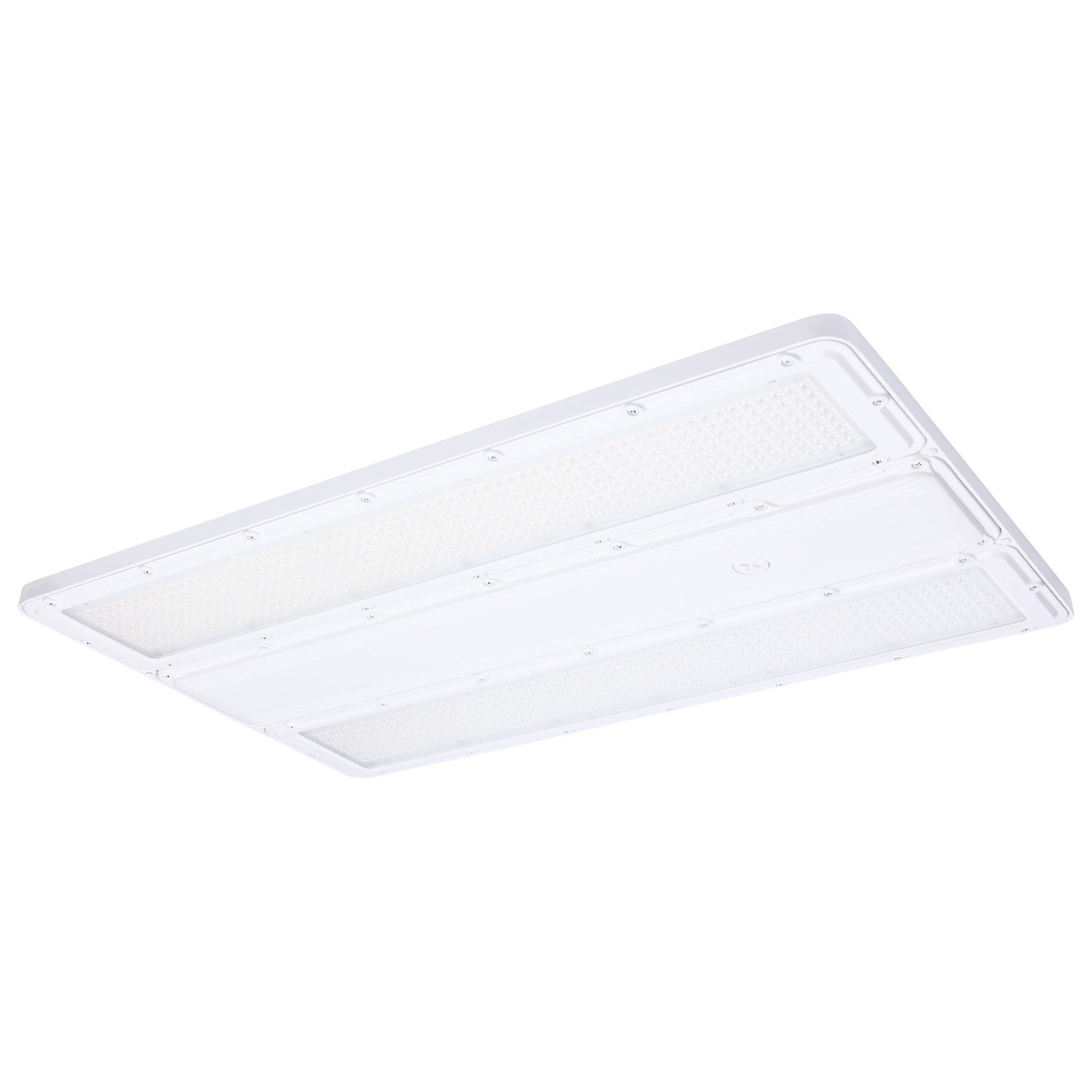

The Nuvo 65-1172 Linear IP69K High Bay delivers powerful, adjustable illumination for high-ceiling environments. Its rugged design withstands rigorous washdown conditions, featuring an IP69K rating, IK10 impact-resistant polycarbonate lens, and 6kV surge protection. With on-site selectable wattages (240W/220W/180W) and CCT options (3000K/4000K/5000K), you can tailor light output and color to your specific application. The fixture operates on 120-347V, is 0-10V dimmable, and includes an integrated 3.5mm auxiliary port for sensor connectivity.
Best for

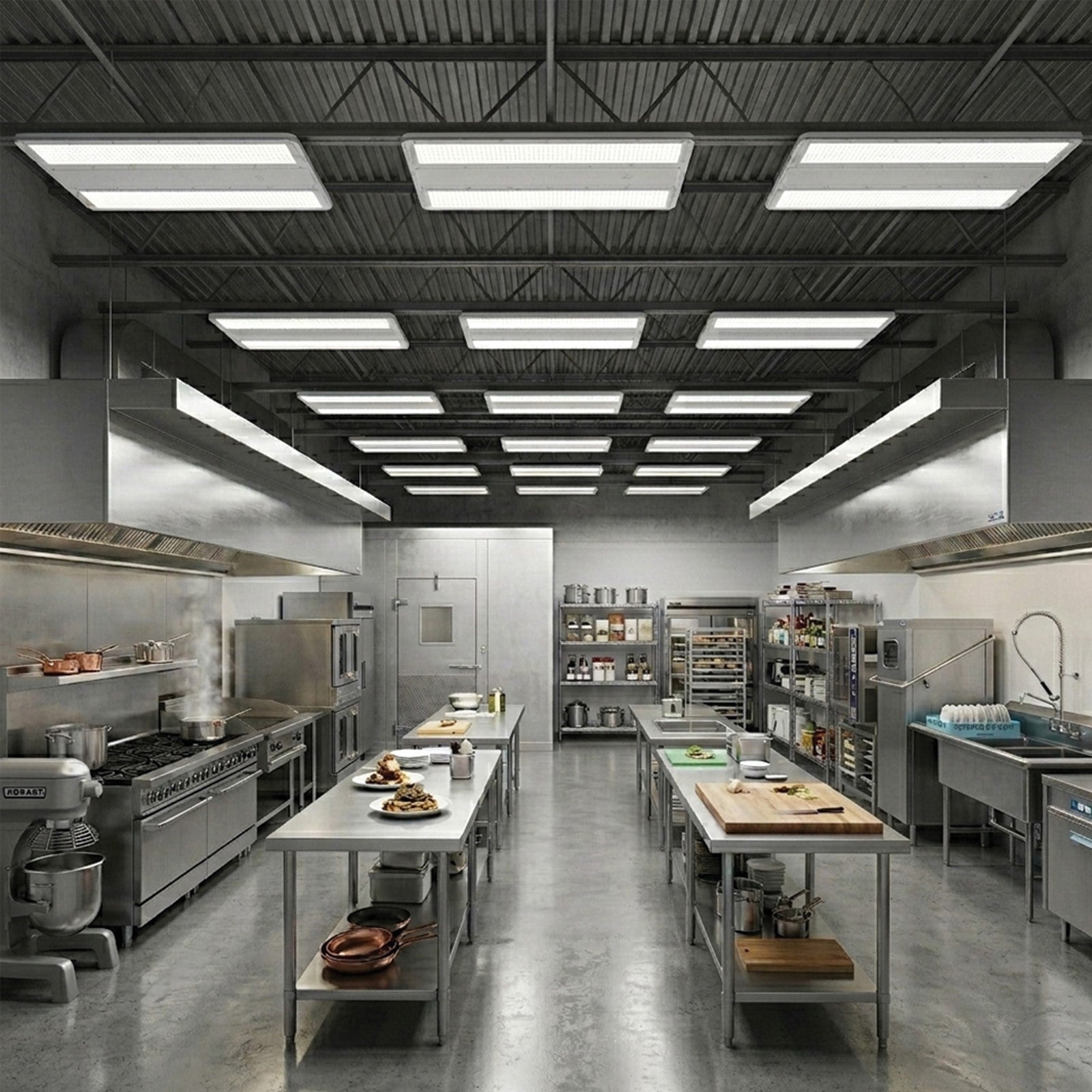

- Warehouses and distribution centers with ceiling heights of 20-40 ft, providing broad, even illumination
- Food processing and packaging facilities requiring NSF-approved, IP69K-rated fixtures for high-pressure, high-temperature washdowns
- Manufacturing floors and assembly lines where adjustable light levels and color temperatures improve visibility and reduce eye strain
- Cold storage and refrigerated warehouses, with an operating range of -40°F to +131°F
- Commercial garages and vehicle maintenance bays needing durable, impact-resistant lighting
Not ideal for
- Residential living spaces or retail showrooms where a more decorative fixture is desired
- Low ceilings under 15 ft, as the high lumen output may cause glare
- Applications requiring a round or UFO-style form factor
How bright is it?
Selectable lumen output: 37,600 lumens (240W), 33,000 lumens (220W), or 28,900 lumens (180W). At the highest setting, it's comparable to a 250W metal halide fixture, suitable for illuminating large areas as a primary light source. At the lowest setting, it's similar to a 175W metal halide, ideal for ambient or task lighting.
Light color and feel
Selectable CCT: 3000K (soft white, warm and inviting), 4000K (natural white, neutral and crisp), or 5000K (cool white, bright and alert). The 80 CRI provides adequate color rendering for most industrial tasks. The fixture is 0-10V dimmable, allowing further fine-tuning of light levels.
Sizing and fit

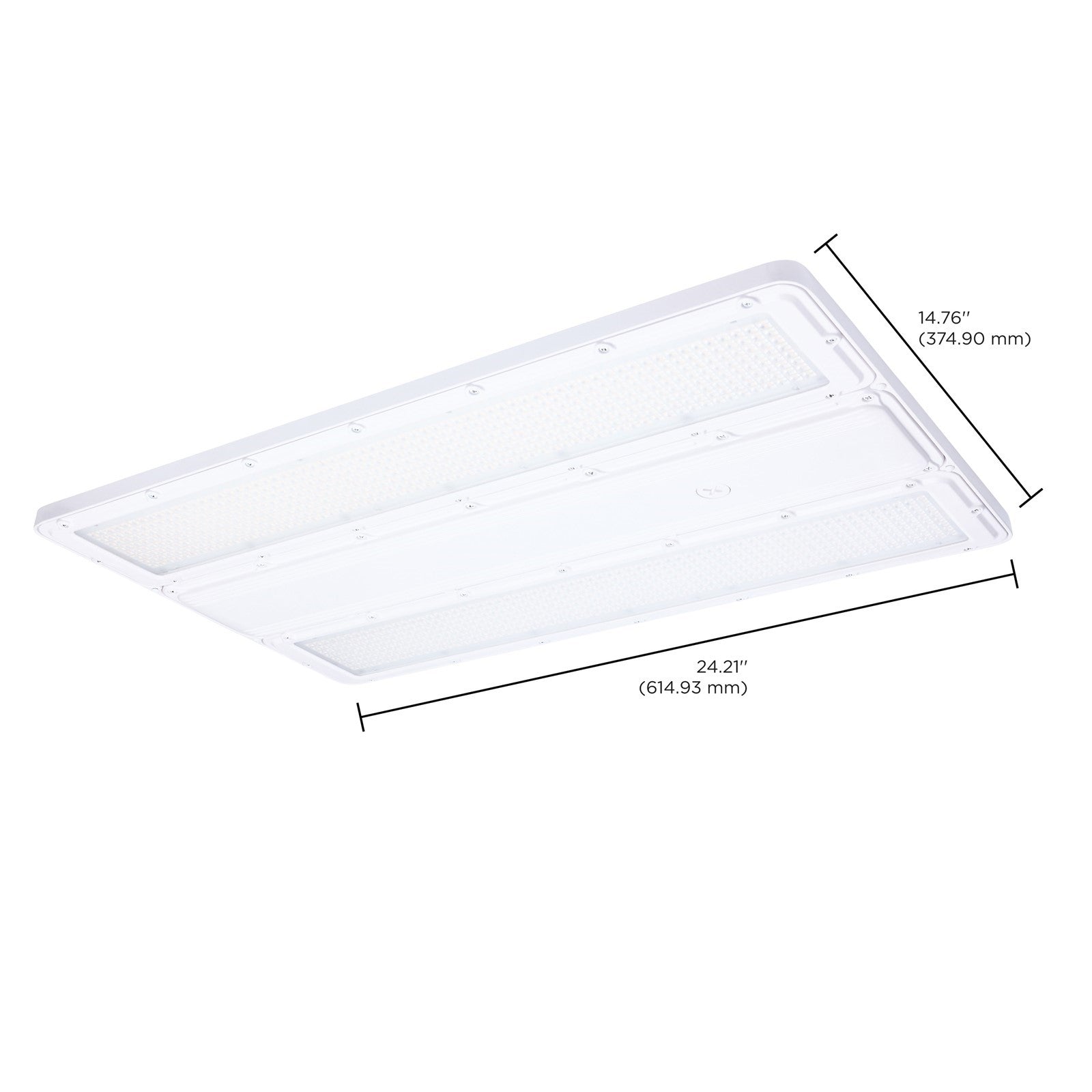

Dimensions: 24.21" (L) x 14.76" (W) x 2.44" (H). Weighs 15.6 lbs. Designed for surface or suspended mounting using the included chains and hooks. Suitable for ceilings 15 ft and higher.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 3000K/4000K/5000K
- Bulb Wattage: 240W/220W/180W
- Bulb Average Hours: 50000
- Bulb Lumens: 37600L-28900L
- Lamp Shape: Integrated LED
- Bulb CRI: 80
- Voltage: 120V-347V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Operating Temperature: -40F to +131F (-40C to +55C)
- Color Temperature: Soft White to Natural Light
- IP69K and IK10 Rated & NSF Approved
- Designed for thermal washdown environments
- Range Voltage 120-347V
- Integrated Sensor Port with Waterproof Plug
- 6kV Surge Protection
- 3 Wattage and 3 CCT Selectable
- 0-10V Dimmable
- 50,000 Life Hours
- 5 Year Warranty
- Dimmable: True
- Driver Included: True
- Assembly Required: True
- Safety Rating: CULUS - Certified Listed
- For Use in Wet Locations
- Warranty Info: 5-Years
Frequently asked
Is the bulb included? Yes, the LED is integrated and not replaceable.
Is it dimmable, and what dimmer should I use? Yes, it is 0-10V dimmable. Use a compatible 0-10V dimmer (not a standard TRIAC dimmer).
Can I install this in a bathroom or outdoors? This fixture is rated for wet locations and has an IP69K rating, making it suitable for outdoor covered areas and indoor washdown environments, but not for direct outdoor exposure without cover.
What's the warranty? 5-year limited warranty.
Does it come with mounting hardware? Yes, suspension chains and hooks are included.
