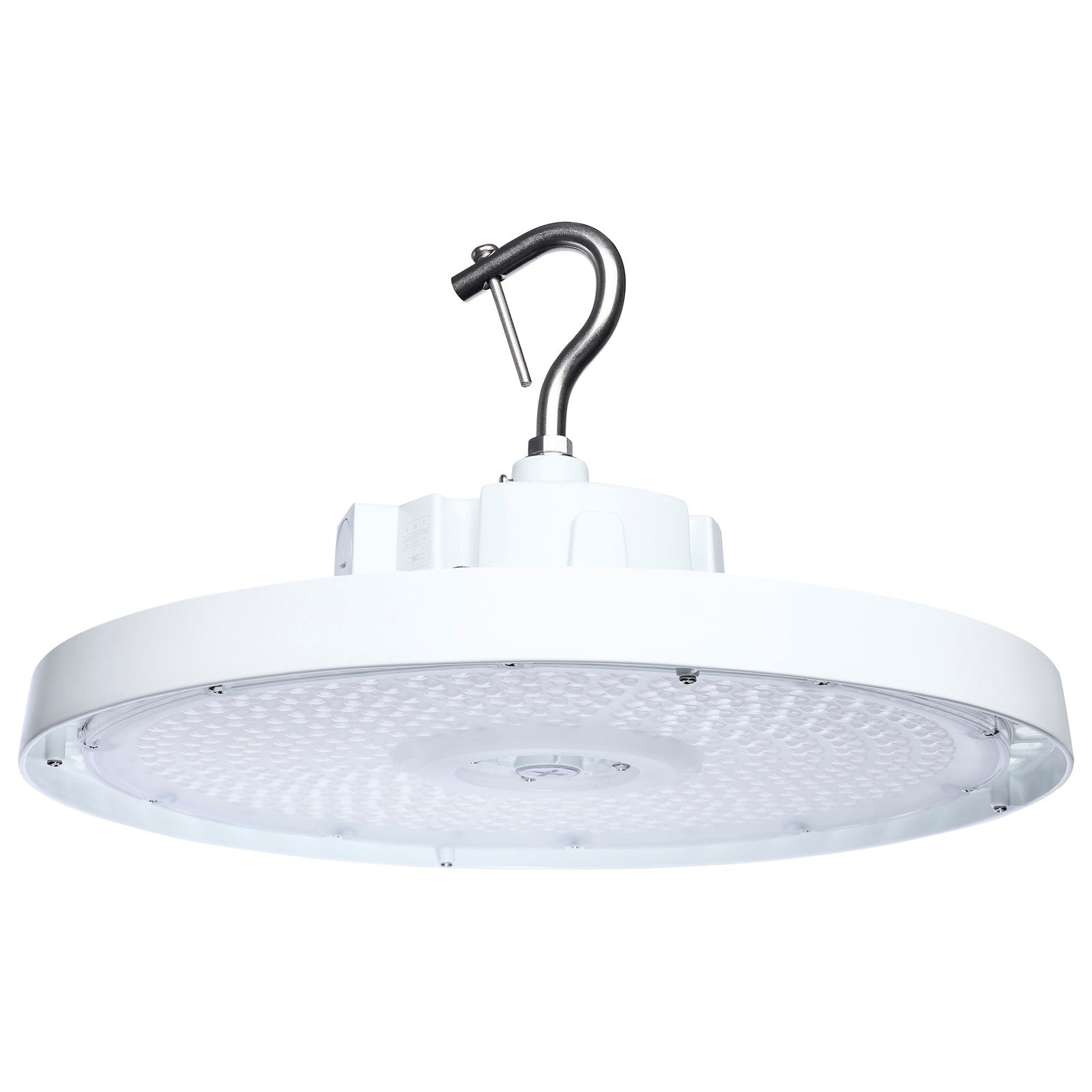

A 14-inch round LED high bay flush mount for commercial and industrial spaces, offering field-selectable wattage (150W/200W/240W) and CCT (3000K/4000K/5000K) with up to 37,938 lumens in a white die-cast aluminum housing.
The Nuvo 65-1523 Round High Bay is engineered for maximum output in large-scale environments like warehouses, manufacturing floors, and distribution centers. Its die-cast aluminum housing with IK08-rated PC lens ensures durability, while the NEMA 4X (IP65) rating allows use in wet locations. With beam angle selectability (60°/80°/100°) and 0-10V dimming, this fixture provides precise control over illumination.
Best for

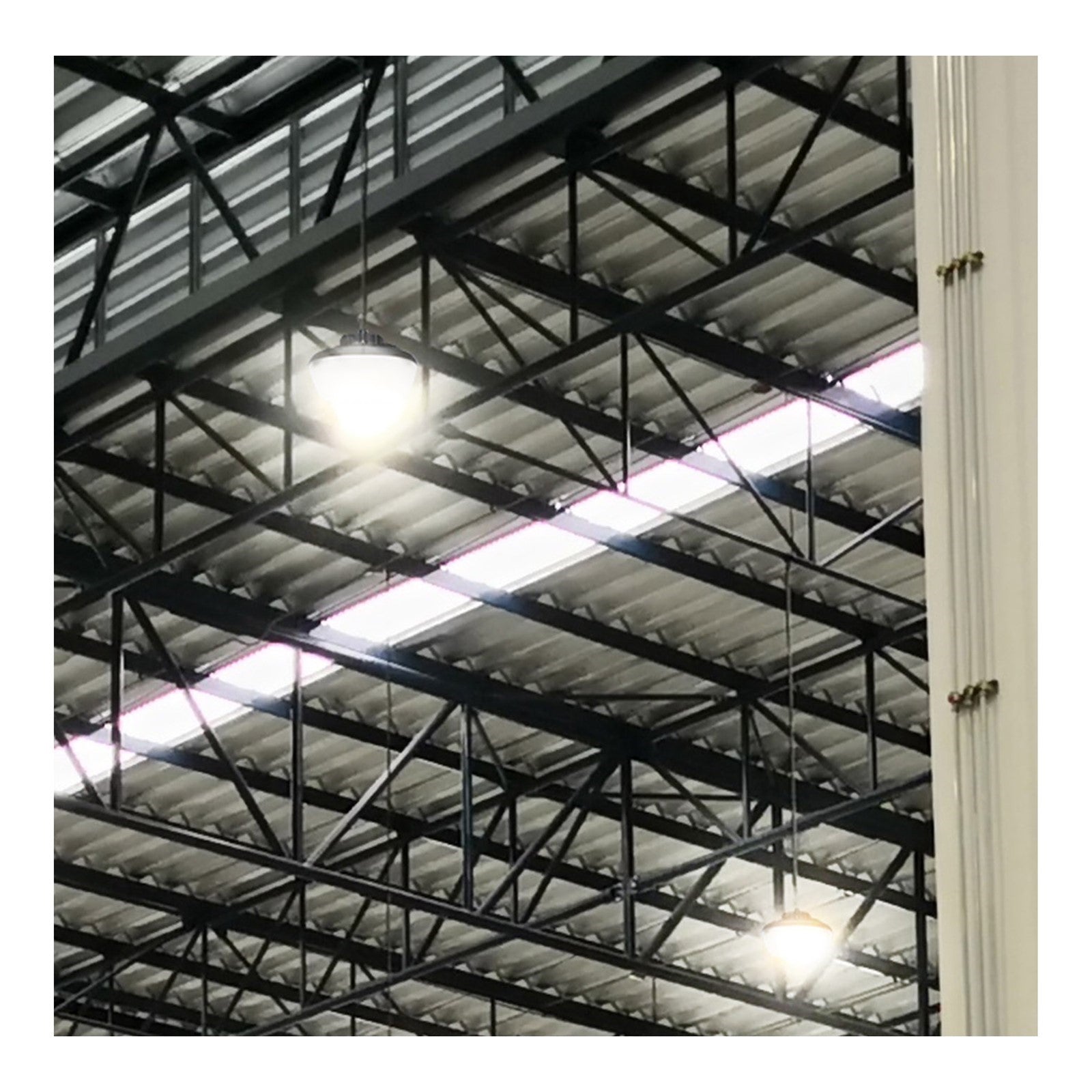

- Warehouses and distribution centers with ceiling heights of 20-40 ft, providing uniform high-bay lighting
- Manufacturing and assembly floors requiring bright, adjustable light levels (up to 37,938 lumens)
- Wet or damp environments such as covered loading docks or cold storage areas (IP65 rated)
- Spaces needing flexible beam angles (60°, 80°, or 100°) to focus light on aisles or work areas
- Facilities with 120-347V power systems, compatible with universal voltage
Not ideal for
- Residential rooms or low ceilings under 15 ft - the high lumen output may be overwhelming
- Indoor-only dry locations where IP65 rating is unnecessary
- Applications requiring a decorative or low-profile aesthetic
How bright is it?
Up to 37,938 lumens at 240W - comparable to a 250W metal halide fixture. This is extremely bright, suitable for primary lighting in large commercial spaces. At the lowest setting (150W), it produces 22,822 lumens, still sufficient for most high-bay applications.
Light color and feel
Selectable CCT: 3000K (warm white, soft golden tone), 4000K (neutral white, crisp and clean), or 5000K (daylight, bluish-white for high visibility). CRI 80 provides decent color rendering for general tasks. Fully dimmable via 0-10V control for energy savings.
Sizing and fit

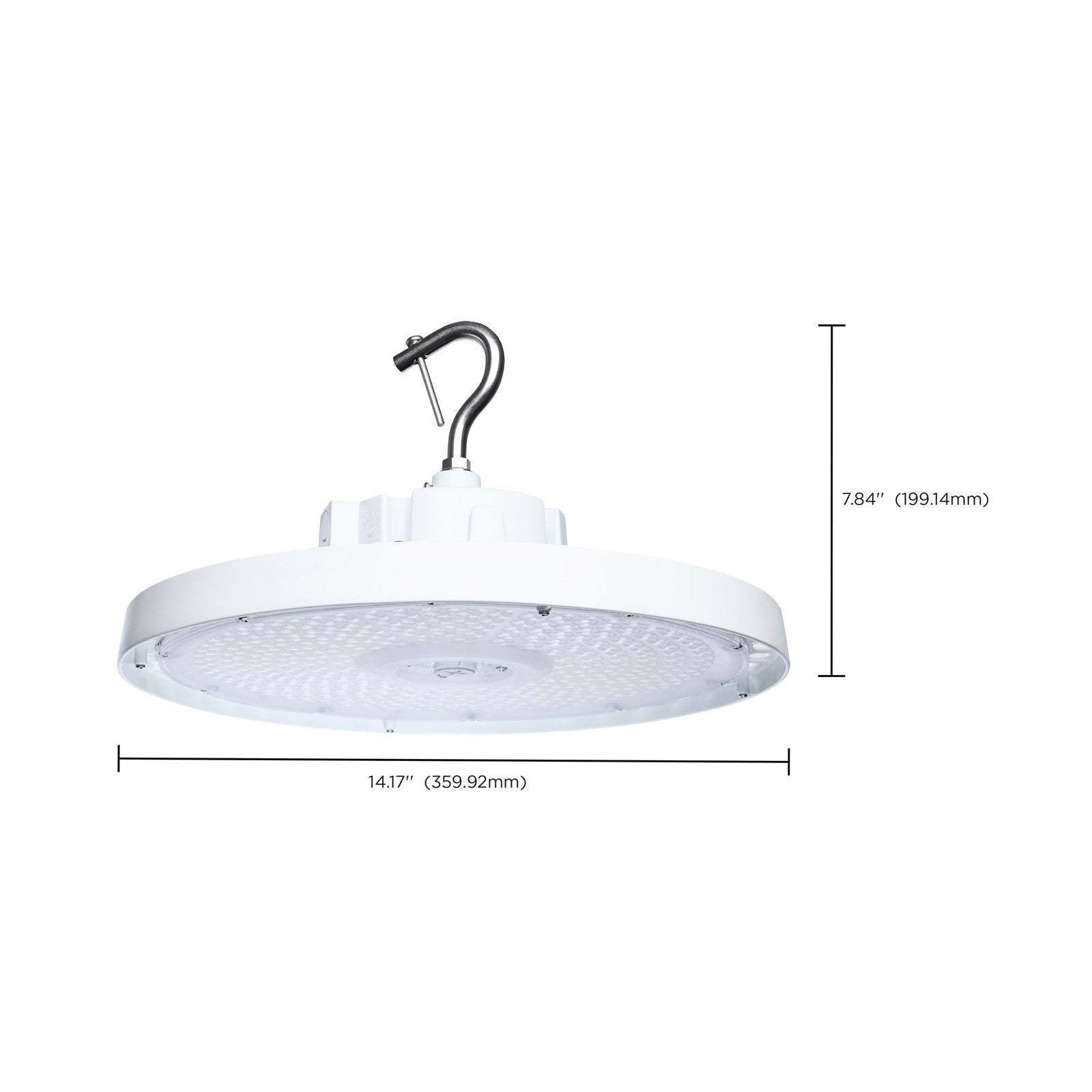

Dimensions: 14.17" diameter x 7.84" height. Fits standard junction boxes. Suitable for ceiling heights from 15 to 40 ft. Weight: 6.83 lbs.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 3000K/4000K/5000K
- Bulb Wattage: 240W/200W/150W
- Bulb Average Hours: 50000
- Bulb Lumens: 22822L-37938L
- Lamp Shape: Integrated LED
- Bulb CRI: 80
- Voltage: 120V-347V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Sensor: Optional
- Operating Temperature: -40F to +122F (-40C to +50C)
- Color Temperature: Soft White to Natural Light
- Beam Selectable (60-degree/80-degree/100-degree)
- 3 CCT Selectable (3000K/4000K/5000K)
- 3 Wattage Selectable (240W/200W/150W)
- 6kV Surge Protection
- NEMA 4X (IP65) Rated
- Die-Cast Aluminum Housing with IK08 Rated PC Lens
- Integrated Sensor Port
- 120-347V Range Voltage and 0-10V Dimmable
- 50,000 Life Hours
- 5 Year Warranty
- Dimmable: True
- Driver Included: True
- Assembly Required: True
- Safety Rating: CULUS - Listed Listed
- For Use in Wet Locations
- Warranty Info: 5-Years
- Overall Dimensions: 14.17"(D) x 14.17"(W) x 7.84"(H)
- Item Weight: 6.83 lbs.
Frequently asked
Is the bulb included? Yes, integrated LED - no replacement needed.
Is it dimmable, and what dimmer should I use? Yes, 0-10V dimmable. Use a compatible 0-10V dimmer (not standard phase-cut).
Can I install this in a bathroom or outdoors? Yes, it is rated for wet locations (IP65), suitable for covered outdoor areas, warehouses, and damp environments.
What's the warranty? 5-year warranty.
How do I select the wattage and CCT? Via switches on the fixture before installation - no tools required.
