A high-output round LED UFO high bay with selectable wattage and beam angle, designed for high-ceiling warehouses, gyms, and industrial spaces with wet-location requirements.

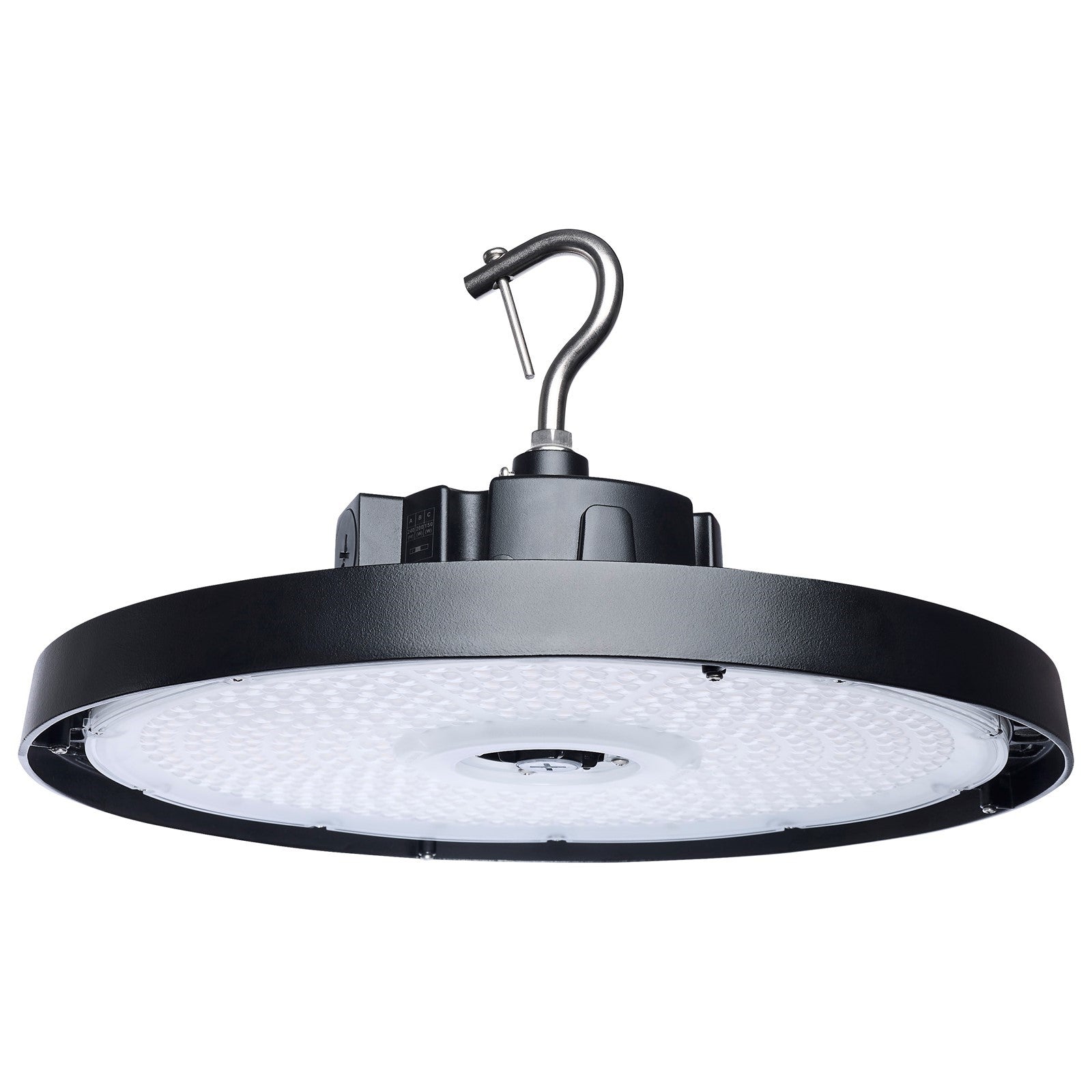

The Nuvo 65-1521 Round Highbay delivers powerful illumination in a black die-cast aluminum housing. With field-selectable wattage (150W/200W/240W), CCT (3000K/4000K/5000K), and beam angle (60°/80°/100°), it offers flexible lighting control for mounting heights up to 40 ft. The IP65-rated housing and IK08-rated polycarbonate lens ensure durability in harsh environments.
Best for

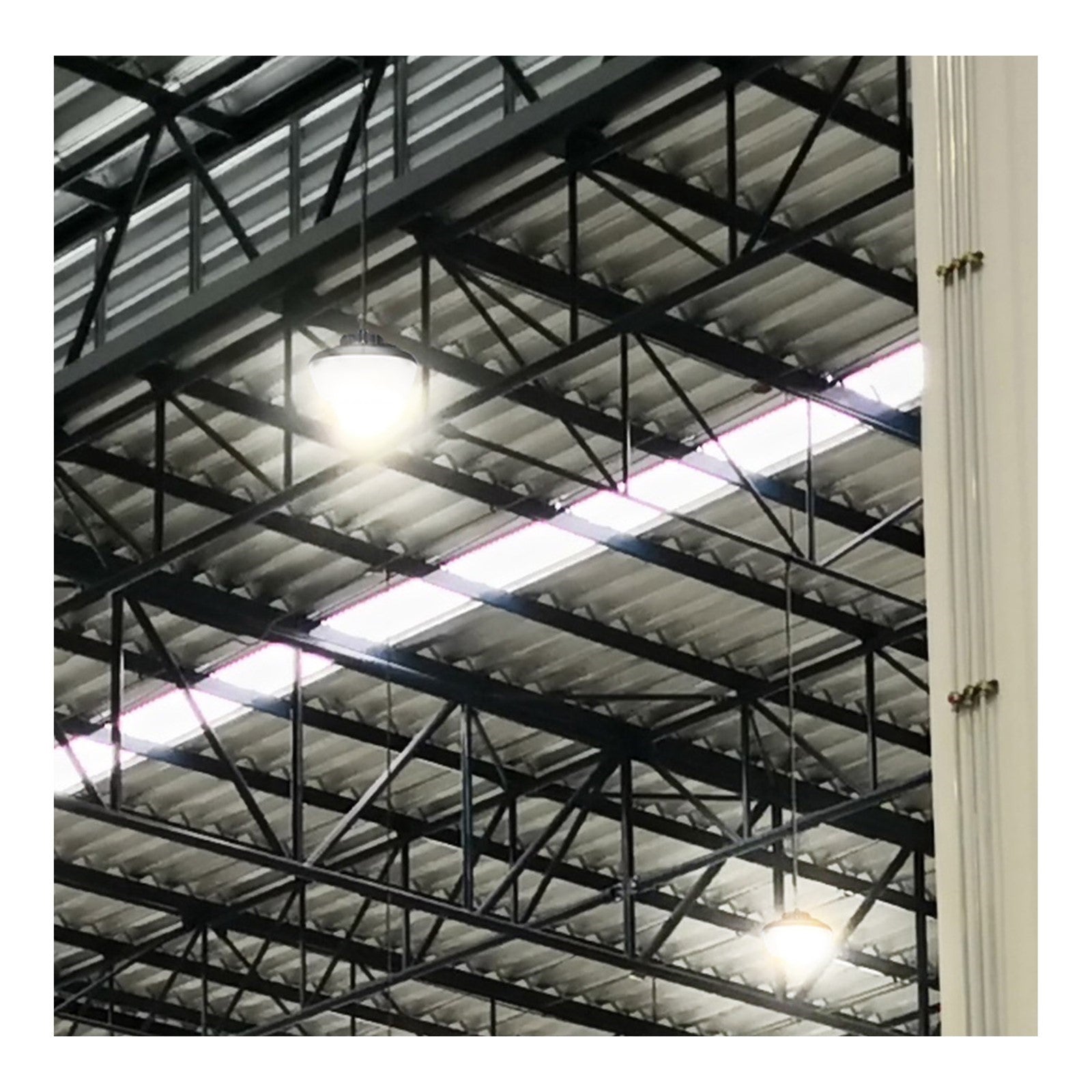

- Warehouses and distribution centers with ceiling heights of 20-40 ft
- Large gymnasiums and indoor sports arenas
- Industrial manufacturing facilities and assembly lines
- Wet locations such as covered loading docks or car washes
- Spaces requiring 120-347V voltage range and 0-10V dimming
Not ideal for
- Residential living rooms or bedrooms where a decorative fixture is preferred
- Low ceilings under 15 ft due to the fixture's intensity and size
- Spaces requiring a linear or panel form factor
How bright is it?
Selectable lumen output: 22,822 lumens (150W), 31,615 lumens (200W), or 37,938 lumens (240W). At the highest setting, it's comparable to a 2,400W incandescent bulb, suitable for very high bay applications. Efficacy up to 158 LPW ensures energy efficiency.
Light color and feel
Choose from 3000K (soft white, warm and inviting), 4000K (cool white, bright and neutral), or 5000K (daylight, crisp and alert). CRI 80 provides adequate color rendering for industrial tasks. The fixture is 0-10V dimmable for fine control.
Sizing and fit

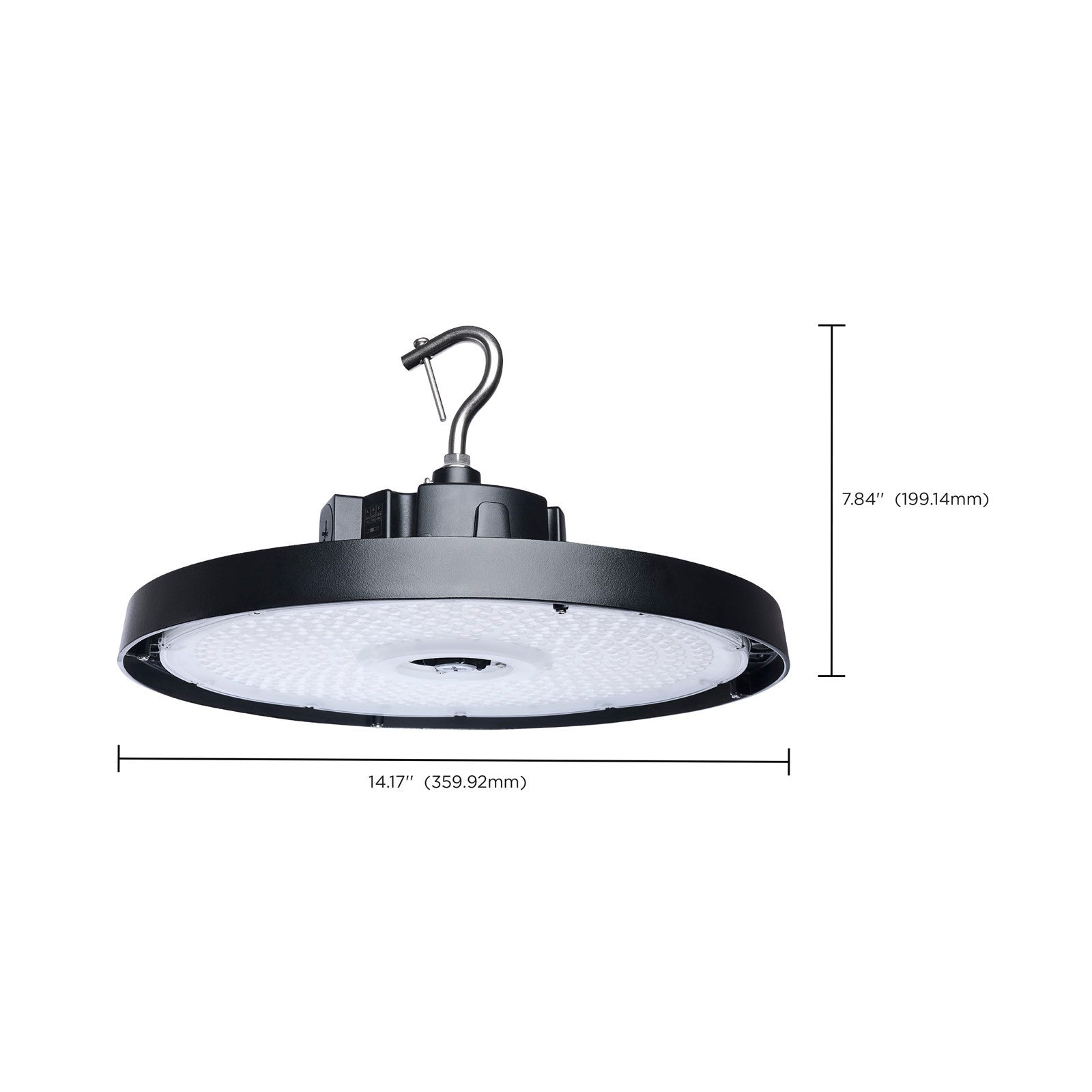

Dimensions: 14.17 x 14.17 x 7.84 inches. Larger round design for higher wattage. Weight: 6.83 lbs. Suitable for mounting heights from 20 to 40 ft.
Specifications
- Finish: Black
- Style: Utility
- Bulb Color Temp: 3000K/4000K/5000K
- Bulb Wattage: 240W/200W/150W
- Bulb Average Hours: 50000
- Bulb Lumens: 22822L-37938L
- Lamp Shape: Integrated LED
- Bulb CRI: 80
- Voltage: 120V-347V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Sensor: Optional
- Operating Temperature: -40F to +122F (-40C to +50C)
- Color Temperature: Soft White to Natural Light
- Beam Selectable (60-degree/80-degree/100-degree)
- 3 CCT Selectable (3000K/4000K/5000K)
- 3 Wattage Selectable (240W/200W/150W)
- 6kV Surge Protection
- NEMA 4X (IP65) Rated
- Die-Cast Aluminum Housing with IK08 Rated PC Lens
- Integrated Sensor Port
- 120-347V Range Voltage and 0-10V Dimmable
- 50,000 Life Hours
- 5 Year Warranty
- Dimmable: True
- Driver Included: True
- Assembly Required: True
- Safety Rating: CULUS - Listed Listed
- For Use in Wet Locations
- Warranty Info: 5-Years
Frequently asked
Is the bulb included? Yes, the LED is integrated and not replaceable.
Is it dimmable, and what dimmer should I use? Yes, it is 0-10V dimmable. Use a compatible 0-10V dimmer.
Can I install this in a bathroom or outdoors? It is rated for wet locations (IP65), so it can be used outdoors exposed to rain or in car washes.
What's the warranty? 5-year warranty.
What beam angles are available? The fixture is field-selectable for 60°, 80°, or 100° beam spread.
Ships from our warehouse in 1-4 Business Days
