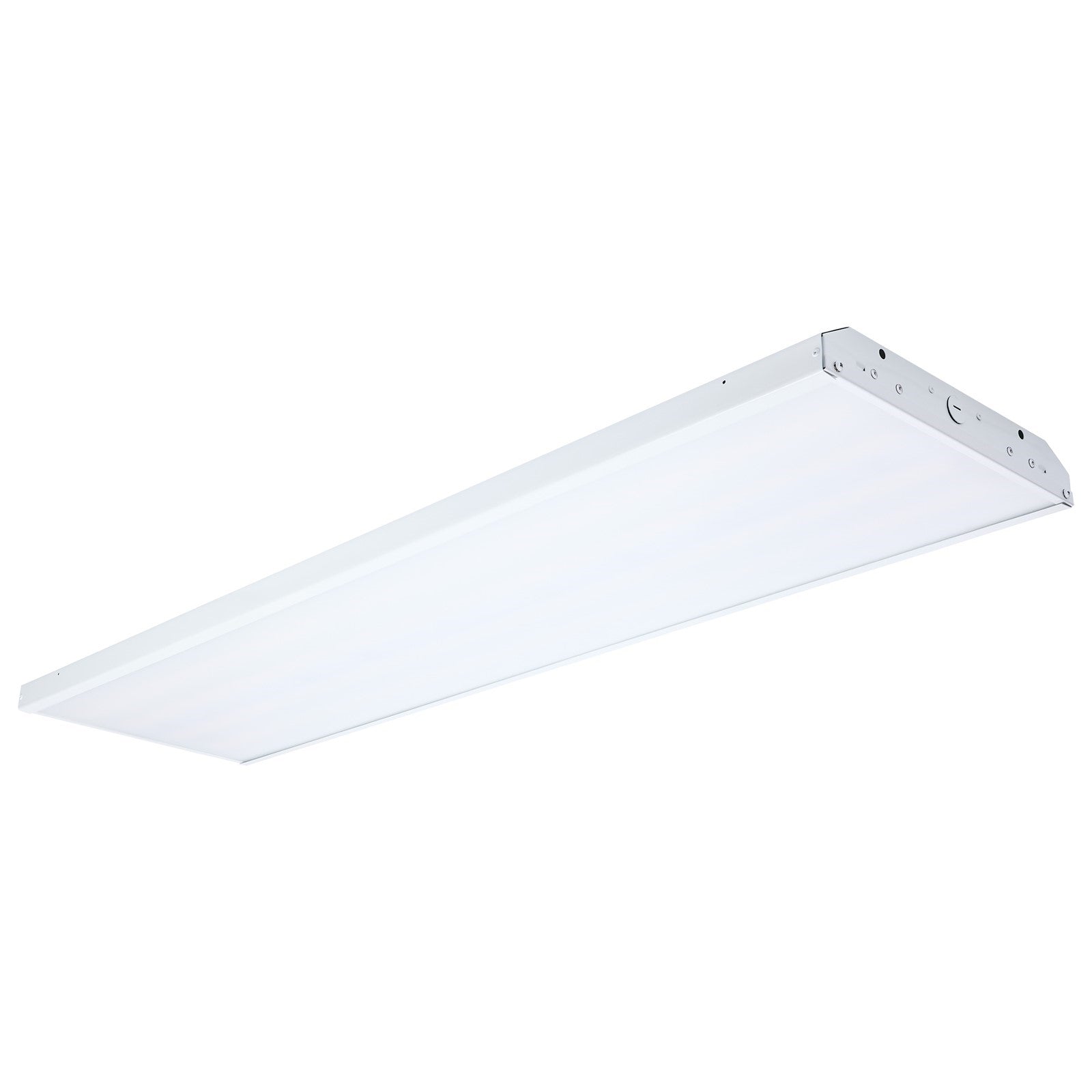

A versatile 4-foot LED linear high bay for commercial and industrial spaces, with selectable wattage and color temperature in a durable white steel housing.
The SATCO NUVO 65-1040 delivers powerful, adjustable illumination for large interior spaces. Selectable wattage (100W/150W/200W) produces up to 30,000 lumens with a wide 120-degree beam angle. Choose from three CCTs (3500K/4000K/5000K) to match the environment. The steel housing is damp-location rated, includes 0-10V dimming and 6kV surge protection, and comes with a 4-foot suspension kit and V-clips for easy installation.
Best for

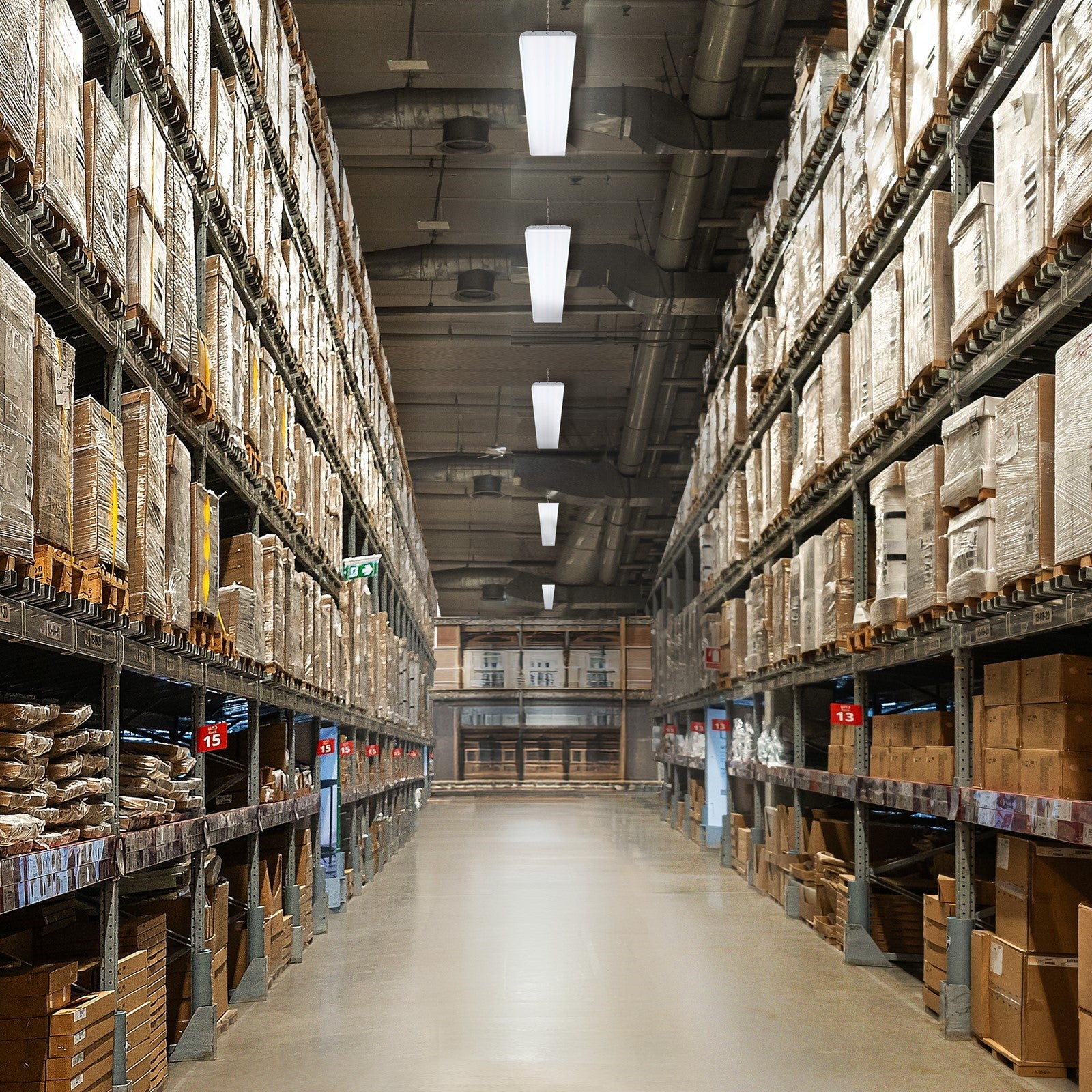

- Warehouses and distribution centers with ceilings 15-30 ft high
- Industrial workshops and assembly areas needing bright, uniform light
- Large retail spaces and showrooms
- Gymnasiums and indoor sports facilities
Not ideal for
- Residential rooms or low ceilings under 10 ft – too bright and bulky
- Outdoor uncovered areas – damp location rated only
How bright is it?
15,000 to 30,000 lumens depending on wattage – comparable to a 100-200W metal halide. Suitable for primary ambient lighting in large spaces.
Light color and feel
Selectable 3500K (neutral white), 4000K (cool white), or 5000K (natural light). 3500K offers a warm neutral tone; 4000K is crisp; 5000K simulates daylight. CRI 80 for adequate color rendering. Fully dimmable via 0-10V.
Sizing and fit

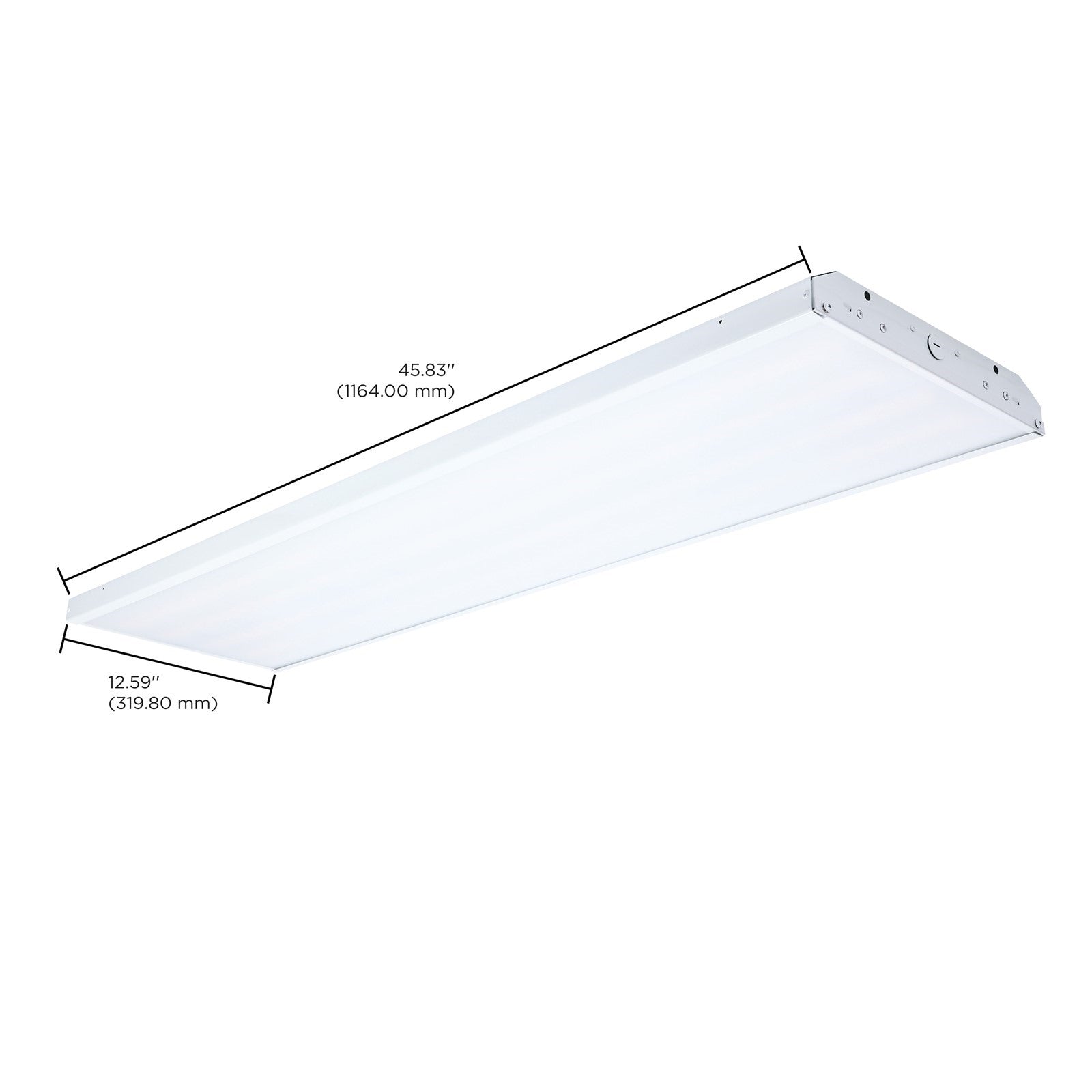

Overall dimensions: 45.83 in length x 12.59 in width x 2.8 in height. Includes 4-foot suspension kit. Suitable for ceilings 12-30 ft high.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 3500K/4000K/5000K
- Bulb Wattage: 200W/150W/100W
- Bulb Average Hours: 50000
- Bulb Lumens: 30000L/22500L/15000L
- Lamp Shape: Integrated LED
- Bulb CRI: 80
- Voltage: 120V-277V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Operating Temperature: -4F to +104F (-20C to +40C)
- Color Temperature: Neutral White to Natural Light
- 3 Wattage Selectable (200W/150W/100W)
- 3 CCT Selectable (3500K/4000K/5000K)
- 6kV Surge Protection
- Steel Construction with Polystyrene Lens
- 120-277V Range Voltage
- 0-10V Dimmable
- 4' Suspension Kit and V-Clips Included
- 50,000 Life Hours
- 5 Year Warranty
- Dimmable: True
- Driver Included: True
- Assembly Required: True
- Safety Rating: CULUS Listed
- For Use in Damp Locations
- Warranty Info: 5-Years
Frequently asked
Is the bulb included? Yes, integrated LED.
Is it dimmable, and what dimmer should I use? Yes, 0-10V dimming compatible with standard 0-10V dimmers.
Can I install this in a bathroom or outdoors? Rated for damp locations, suitable for covered outdoor areas but not direct rain.
What's the warranty? 5-year warranty.
Can I use this with a sensor? Yes, optional PIR and microwave sensors are available for enhanced control.
