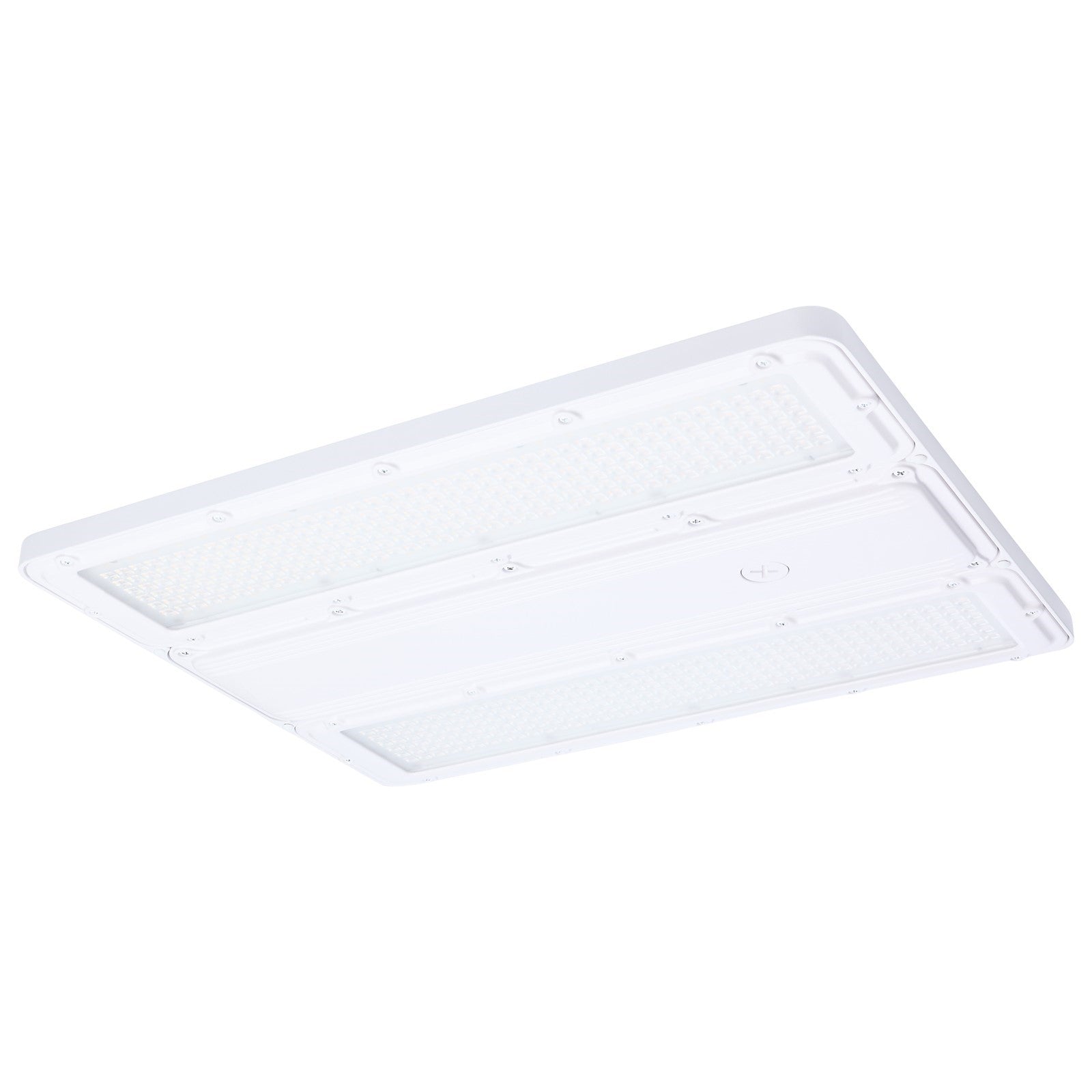

A compact, IP69K-rated LED linear high bay for demanding washdown environments, with selectable wattage and color temperature in a white polycarbonate housing.

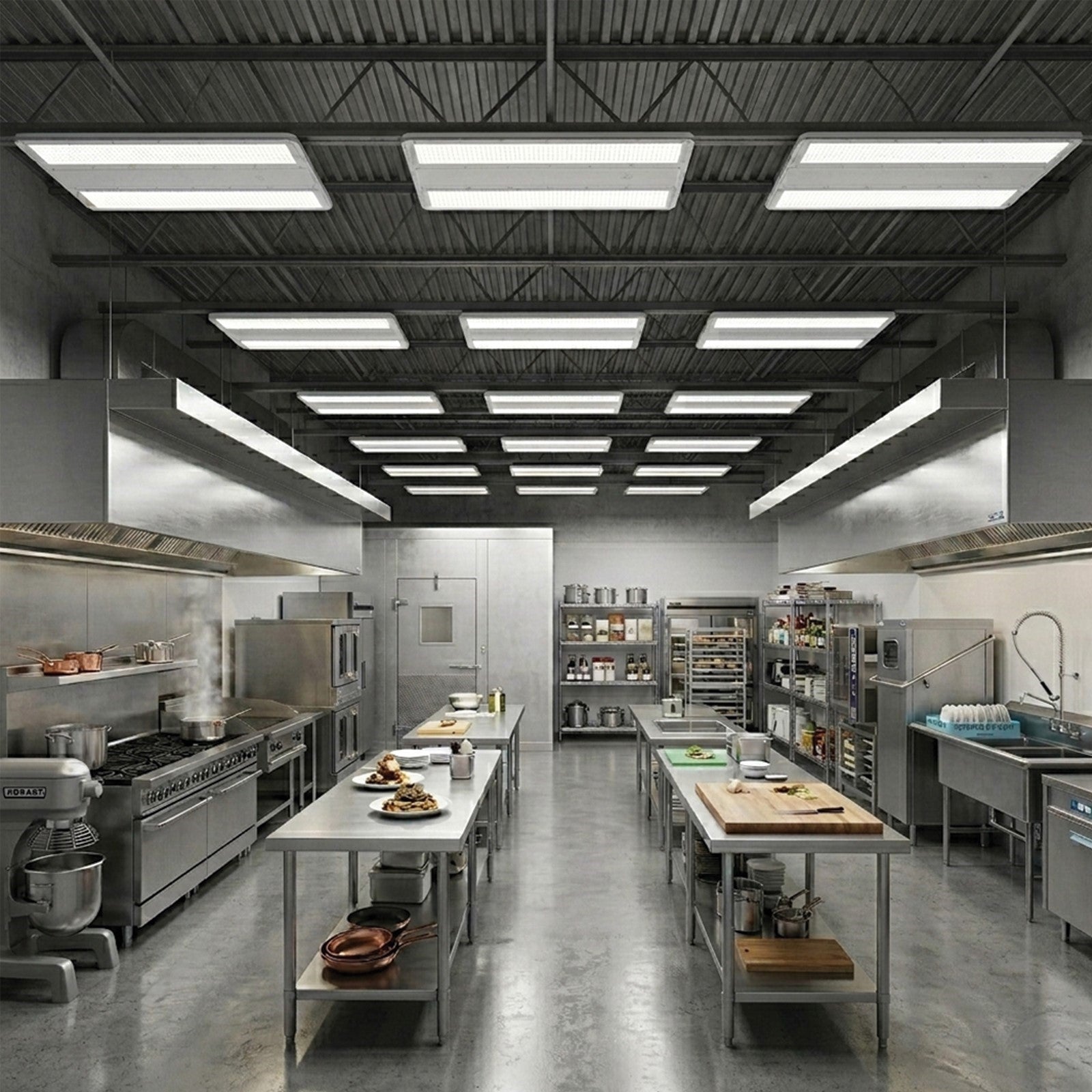

The SATCO NUVO 65-1170 is engineered for harsh conditions like food processing plants and industrial kitchens. Field-selectable wattage (70W/90W/105W) and CCT (3000K/4000K/5000K) provide flexibility. With an IP69K rating, IK10 impact resistance, and NSF approval, it withstands high-pressure, high-temperature washdowns. Includes 6kV surge protection, 0-10V dimming, and an integrated sensor port.
Best for
- Food processing and packaging facilities requiring frequent washdowns
- Commercial kitchens and breweries
- Pharmaceutical and cleanroom environments
- Industrial spaces with high humidity or dust
Not ideal for
- Residential or low-ceiling spaces – designed for industrial use
- Areas needing very high lumen output (over 20,000 lumens)
How bright is it?
11,200 to 15,900 lumens depending on wattage – comparable to a 70-105W metal halide. Suitable for task and ambient lighting in medium-sized industrial spaces.
Light color and feel
Selectable 3000K (soft white), 4000K (neutral white), or 5000K (natural light). 3000K for warm ambiance; 4000K for clean, neutral light; 5000K for precision tasks. CRI 80. Fully dimmable via 0-10V.
Sizing and fit

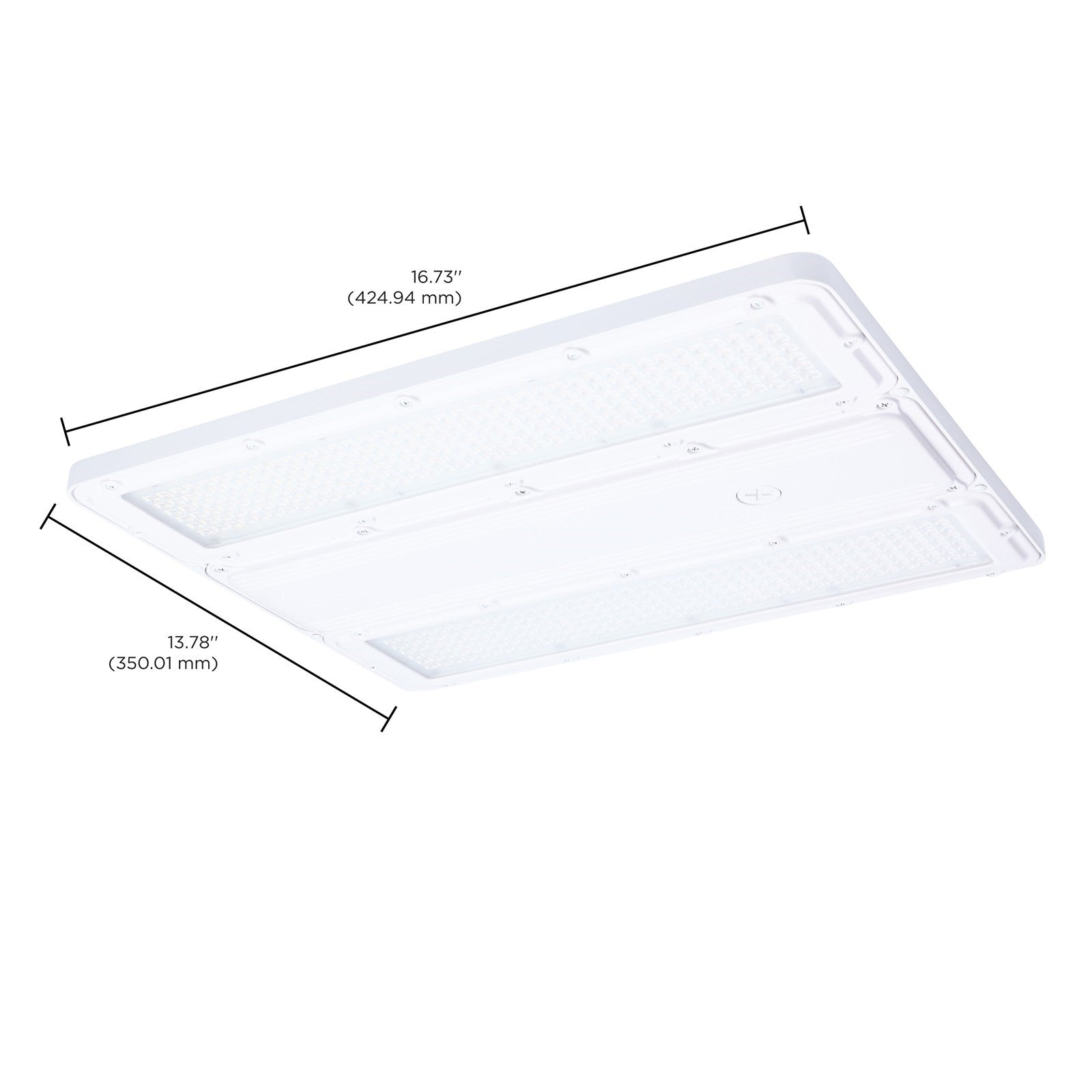

Overall dimensions: 16.77 in length x 13.78 in width x 2.44 in height. Includes suspension chains and hooks. Suitable for ceilings 10-20 ft high.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 3000K/4000K/5000K
- Bulb Wattage: 105W/90W/70W
- Bulb Average Hours: 50000
- Bulb Lumens: 15900L-11200L
- Lamp Shape: Integrated LED
- Bulb CRI: 80
- Voltage: 120V-347V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Operating Temperature: -40F to +131F (-40C to +55C)
- Color Temperature: Soft White to Natural Light
- IP69K and IK10 Rated & NSF Approved
- Designed for thermal washdown environments
- Range Voltage 120-347V
- Integrated Sensor Port with Waterproof Plug
- 6kV Surge Protection
- 3 Wattage and 3 CCT Selectable
- 0-10V Dimmable
- 50,000 Life Hours
- 5 Year Warranty
- Dimmable: True
- Driver Included: True
- Assembly Required: True
- Safety Rating: CULUS - Certified Listed
- For Use in Wet Locations
- Warranty Info: 5-Years
Frequently asked
Is the bulb included? Yes, integrated LED.
Is it dimmable, and what dimmer should I use? Yes, 0-10V dimming compatible with standard 0-10V dimmers.
Can I install this in a bathroom or outdoors? Rated for wet locations, suitable for outdoor covered areas and washdown environments.
What's the warranty? 5-year warranty.
What does IP69K mean? It withstands high-pressure, high-temperature washdowns, ideal for food processing.
