With its killer sci-fi style and smart functionality—thanks to our exclusive Modern Forms app—Orb is the ultimate case of smart meets cool. Its DC motor runs 70% more efficient than traditional AC fans and always keeps quiet, and Orb is breathtaking when finished in a sleek carbon fiber or Porsche-worthy silver.
- Part of the Orb Collection
- Finish: Carbon Fiber
- Made of Aluminum
- Blade Finish: Carbon Fiber
- Blade Made of ABS
- Style: Modern
- (1) 13W LED Bulb
- Bulb Base: LED Module
- Bulb Color Temp: 3000
- Bulb Average Hours: 50000
- Bulb Lumens: 1100
- Bulb CRI: 90
- Voltage: 120
- Modern Forms Fans pair with the smart home tech you know and love, including Google Assistant, Amazon Alexa, Samsung Smart Things, Ecobee, Control4, and Josh AI. Coming Soon: Savant, Lutron Homeworks, and Nest.
- Free app download: Sync with our exclusive Modern Forms app to control fan speed, use smart features like breeze mode, adaptive learning, create groups, and reduce energy costs.

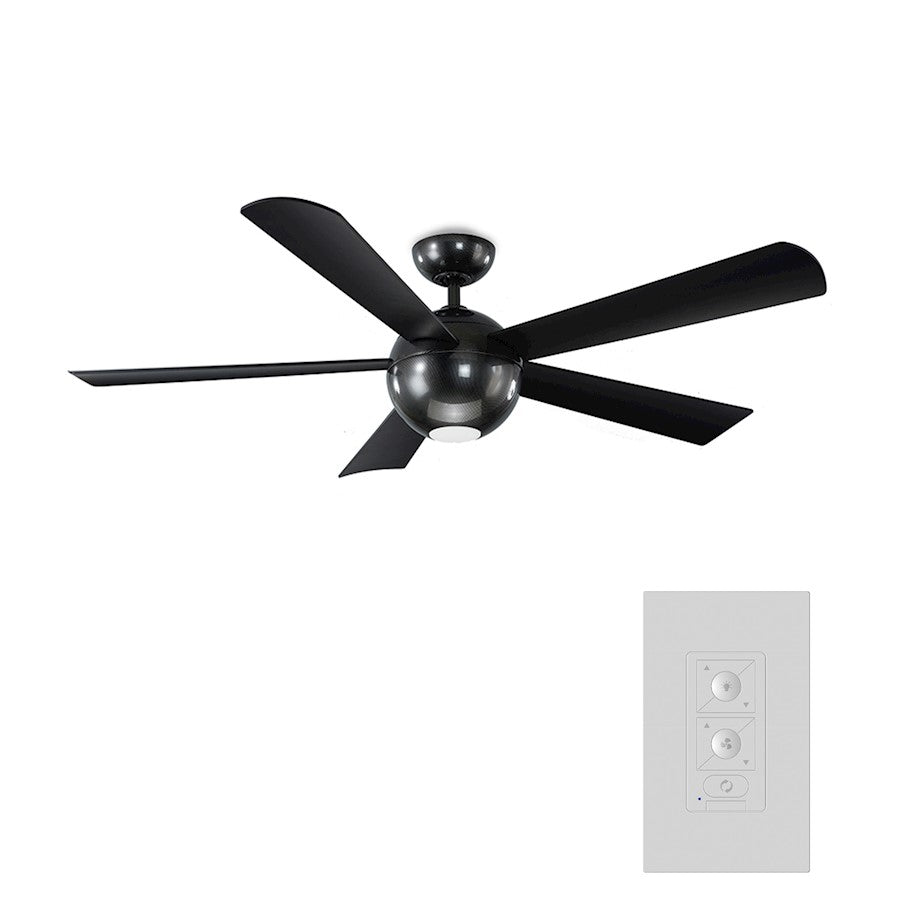

- RF hardwired wall control included for local control. Additional switches are available for 3 or 4 way setup (Part# F-WC-WT). Battery operated RF remote control with wall cradle sold separately (Part # F-RC-WT). Can be controlled through an Android or iOS wall mounted tablet with Wi-fi.
- Modern Forms Fans are made with incredibly efficient and completely silent DC motors and are up to 70% more efficient than traditional fans. Every fan is factory-balanced and sound tested to ensure each fan will never wobble, rattle or click.
- Replaceable LED luminaire powered by WAC Lighting, features smooth and continuous brightness control. Available in 2700K, 3000K, and 3500K options, order accordingly. An optional cover is included to conceal luminaire.
- ETL, cETL, UL, cUL, CSA CAN Wet Location Listed for indoor or outdoor applications. Can be installed on slope ceilings up to a 32 degree slope (XF-SCK Slope Ceiling Kit available for slopes 32-45 Degrees). Downrods sold separately for longer lengths.
- RF Remote Control (Sold Separately) with on/off, 6 speed, reverse, and dim to 1%, Android or iOS Device App Included
- RF Control with on/off, 6 speed, reverse, and dim to 1%, Android or iOS Device App Included
- Number of Blades: 5
- Blade Span: 62"
- Blades Included: Yes
- Blade Pitch: 13
- Light Kit Included: Yes
- Light Kit Type: LED
- Cap Included: True
- Light Direction: Down
- Airflow Efficiency: 177
- Sloped Ceiling Adaptable: Yes
- Maximum Slope: 32
- Low Ceiling Adaptable: Yes
- Dimmable: Yes
- ADA: Yes
- Motor Type: DC
- Motor Size: 125 X 25
- Length of Electrical Wire: 80"
- Safety Rating: ETL, cETL, UL, cUL, CSA CAN Listed
- For Use in Wet Locations
- Warranty Info: 5 years LED module, lifetime on the motor, and 1 year for all other parts.
Overall Dimensions: 38"(L) x 23"(W) x 11.02"(H)
Blade Dimensions: 25.5"(L) x 10"(H)
Fan Width: 62"
Body Diameter: 11
Canopy Diameter: 7
Total Height: 16"
Hanging Weight: 21 lbs.
Item Weight: 21.46 lbs.
