Product Details
Shipping

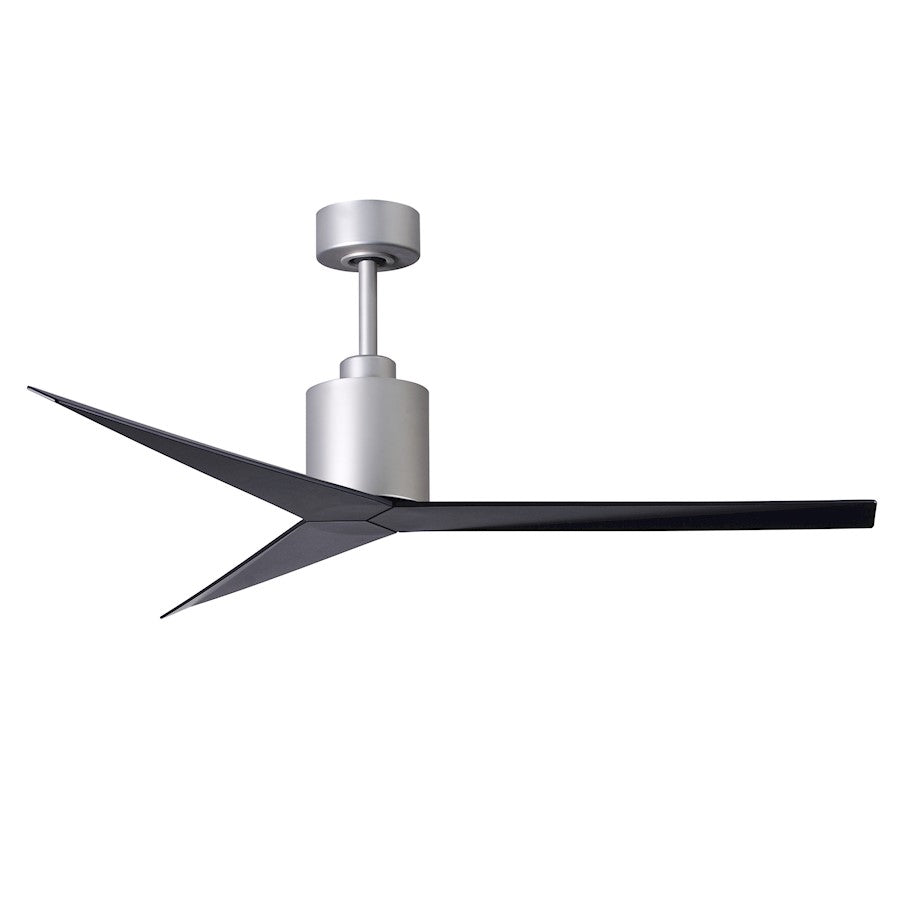

Designed by Chicago architect Stephen Katz in 2013, the Eliza blends a beautiful technically derived form with superior function and movement. The unique blade shape is designed to maximize air movement at the outer edge of the blade. The result is more efficient air velocity rings, less blade drag and greater motor optimization. Equally important is the Eliza fan’s stationary visual statement which combines modern utility with minimalist geometry. With superior function and movement the unique blade shape is designed to maximize air movement at the outer edge of the blade. The result is more efficient air velocity rings, less blade drag and greater motor optimization.
- Part of the Eliza Collection
- Finish: Matte Black or Brushed Nickel or Gloss White
- Made of Cast Aluminum, Heavy Stamped Steel
- Blade Finish: Old Oak Tone or Matte Black or Barn Wood or Brushed Nickel or Gloss White or Gray Ash or Walnut Tone
- Blade Made of ABS
- Style: Contemporary, Transitional
- Voltage: 110 or 220
- Number of Blades: 3
- Blade Pitch: 27-Degrees
- Airflow Efficiency(CFM/Watt High): 164.16
- Control Type: Remote Control and Wall Control
- CFM (High): 5439
- CFM (Low): 1633
- RPM: Low: 52/ High: 172
- Motor Type: DC
- Motor Speeds: 6-Speed
- Energy efficient, ultra-quiet, six speed, reversible DC motor with new, reliable technology.
- Constructed of cast aluminum and heavy stamped steel
- Includes standard 10" downrod. The fan can be mounted with any of the following downrod lengths: (sold separately) 5", 10", 20", 30", 48" and 72".
- Standard Equipment: Vaulted ceiling mount canopy for up to 30 degrees.
- Standard Equipment: One six speed hand-held and one six speed decora style, white wall mounted control. Both controls reverse direction of fan.
- ABS All weather System protected blades.
- IP21 Rating - Protected against solid objects up to 12mm/0.47in and vertically falling drops of water
- WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Stem: 10"L x 1"Dia
- Assembly Required: Assembly Required
- Safety Rating: ETL cETL Listed
- For Use in Interior/Exterior Wet (Not Recommended For Salt Water/Ocean Front Applications) Locations
- Warranty Info: Limited Lifetime Warranty
Overall Dimensions: 12"(H) x 56"(Dia)
Canopy Dimensions: 2"(H) x 6"(Dia)
Blade Dimensions: 56"(Dia)
Item Weight: 14 lbs.
Ships from our warehouse in 1-4 Business Days
