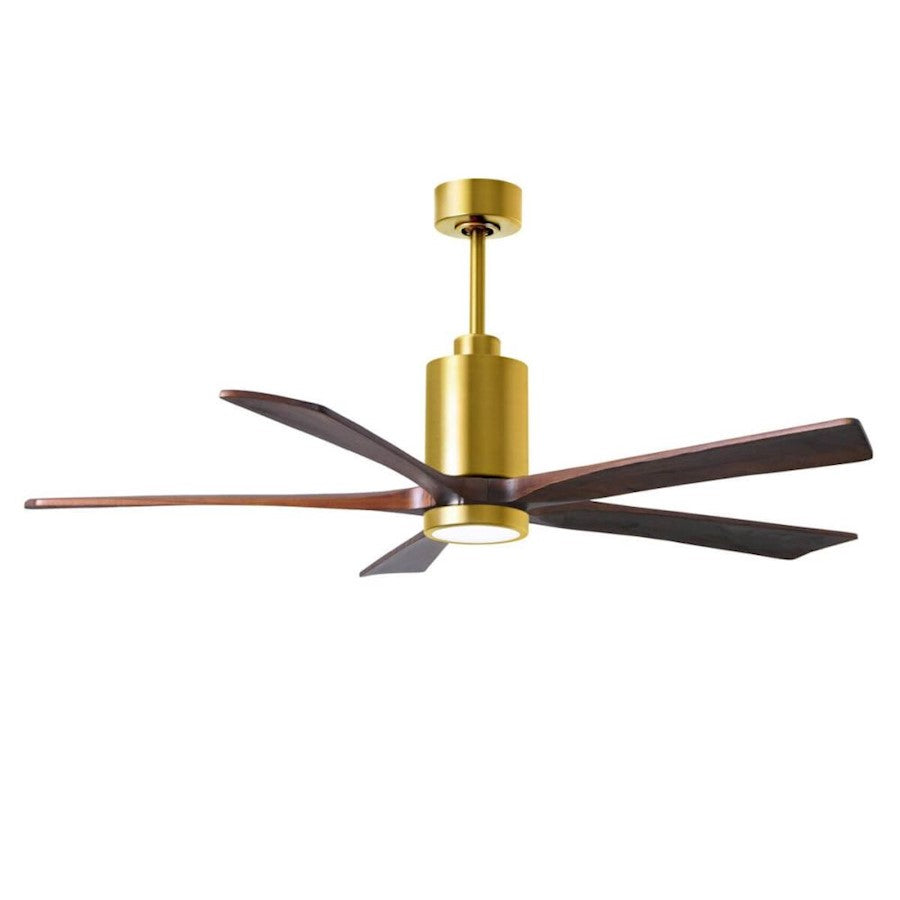

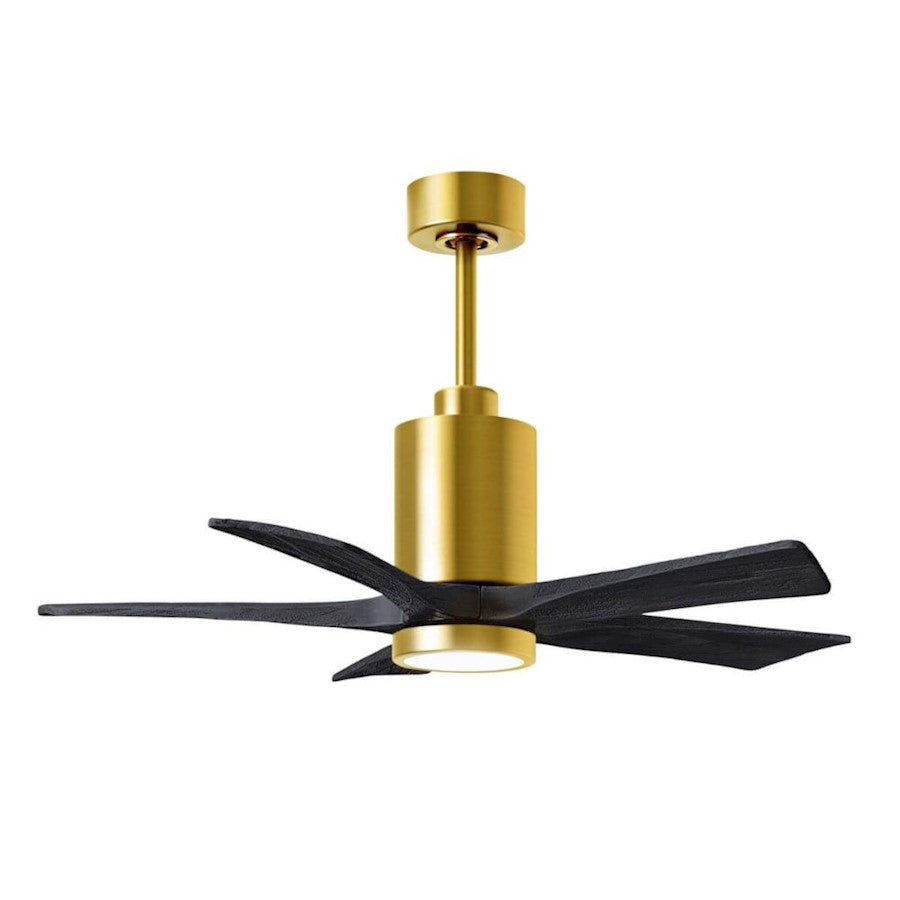

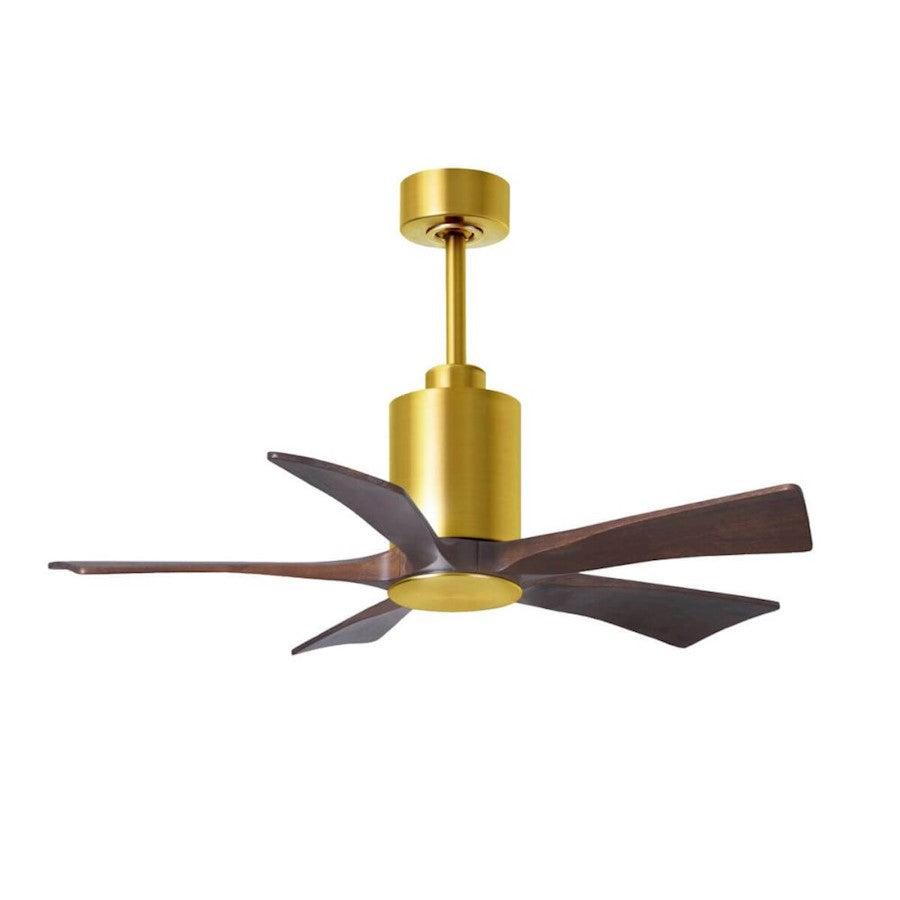

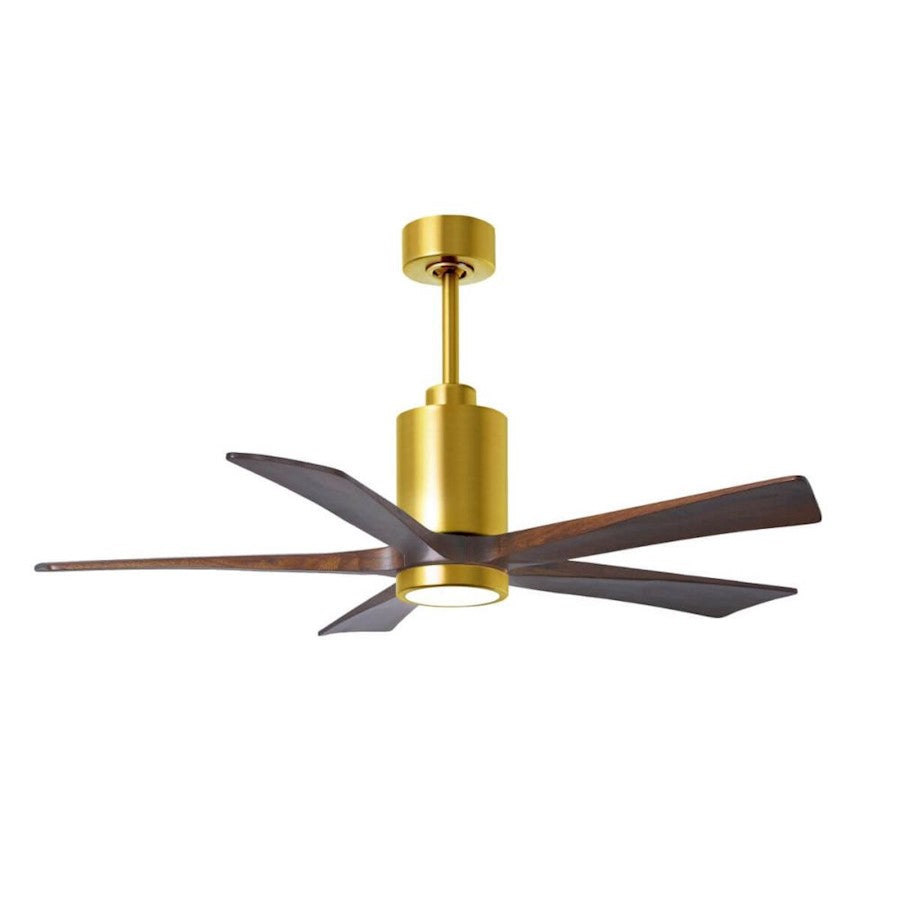

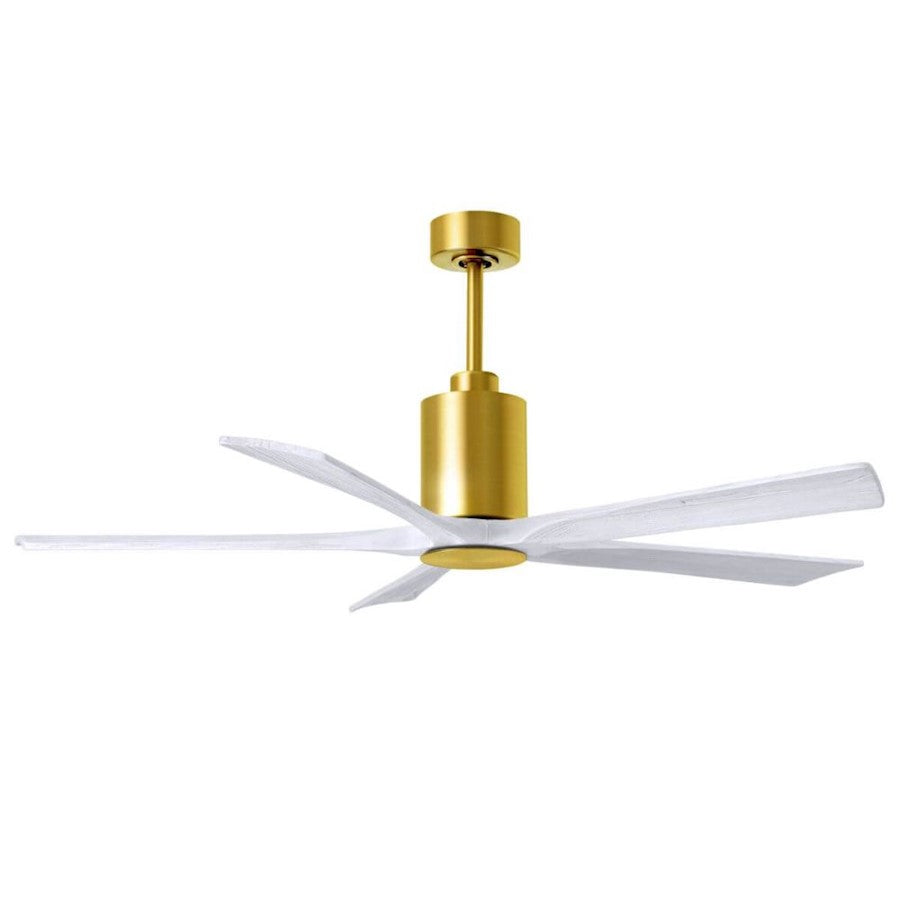

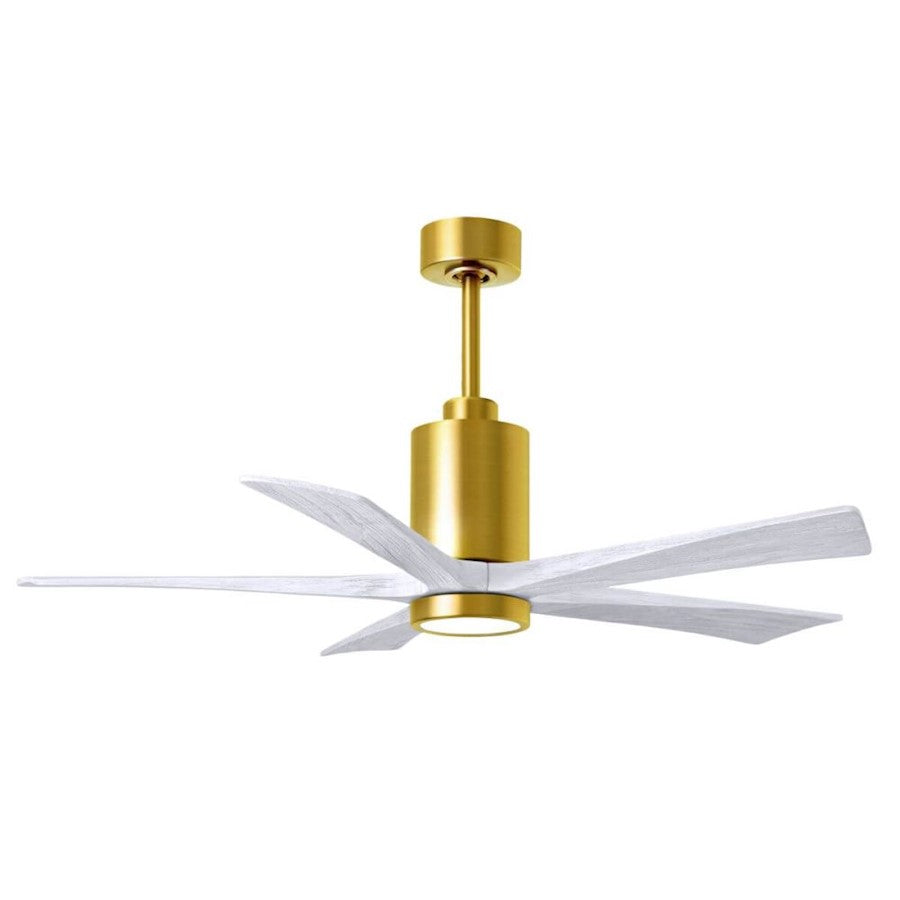

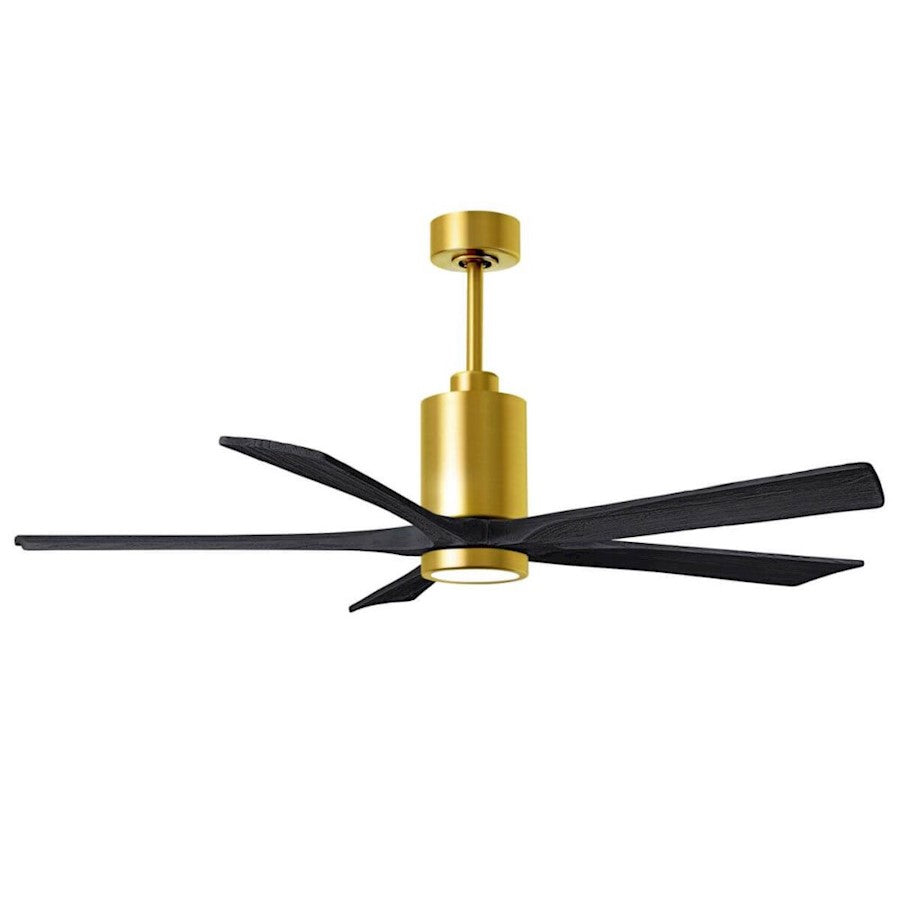

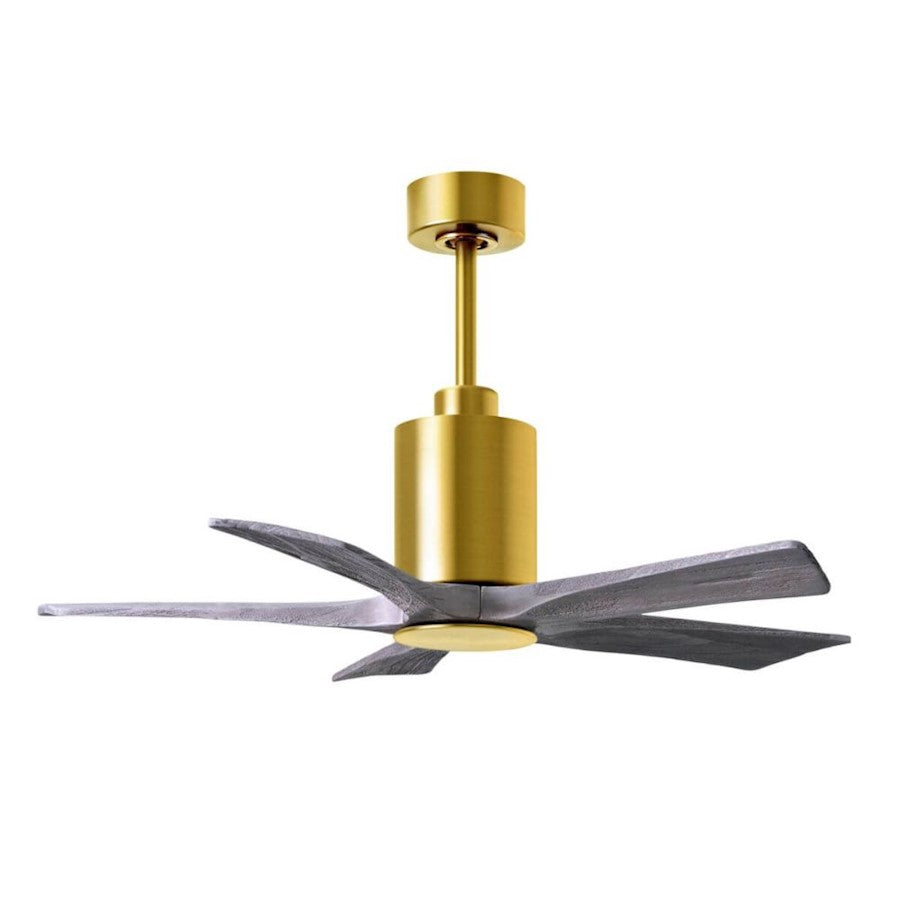

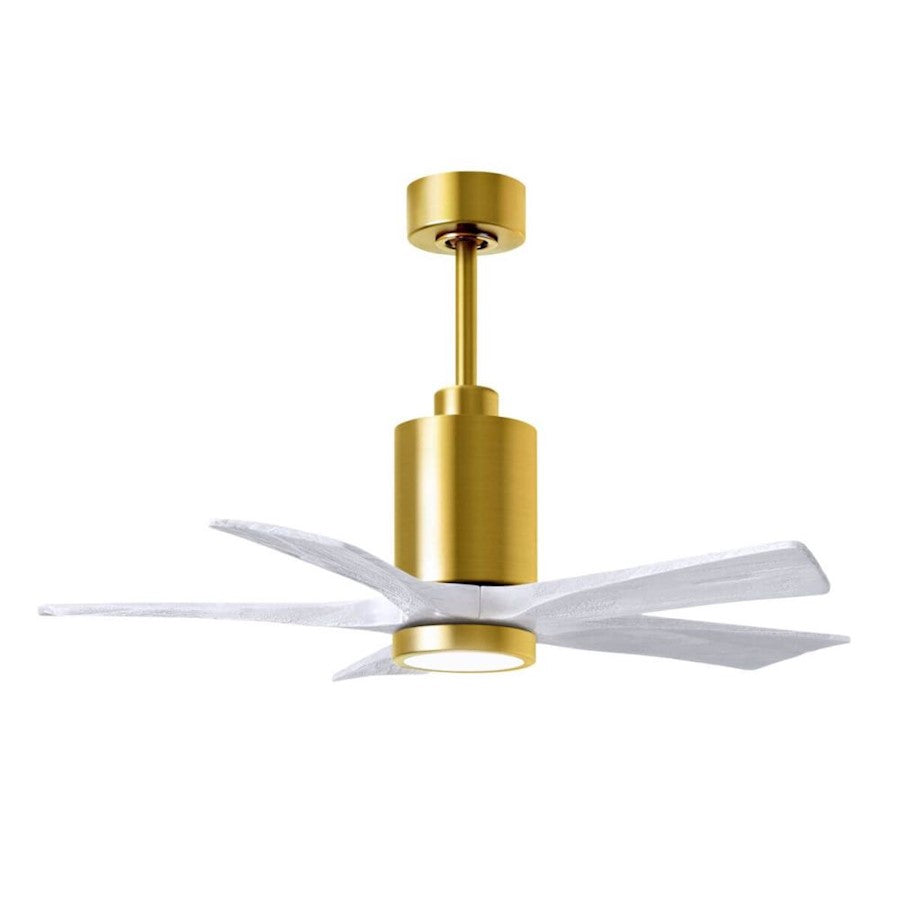

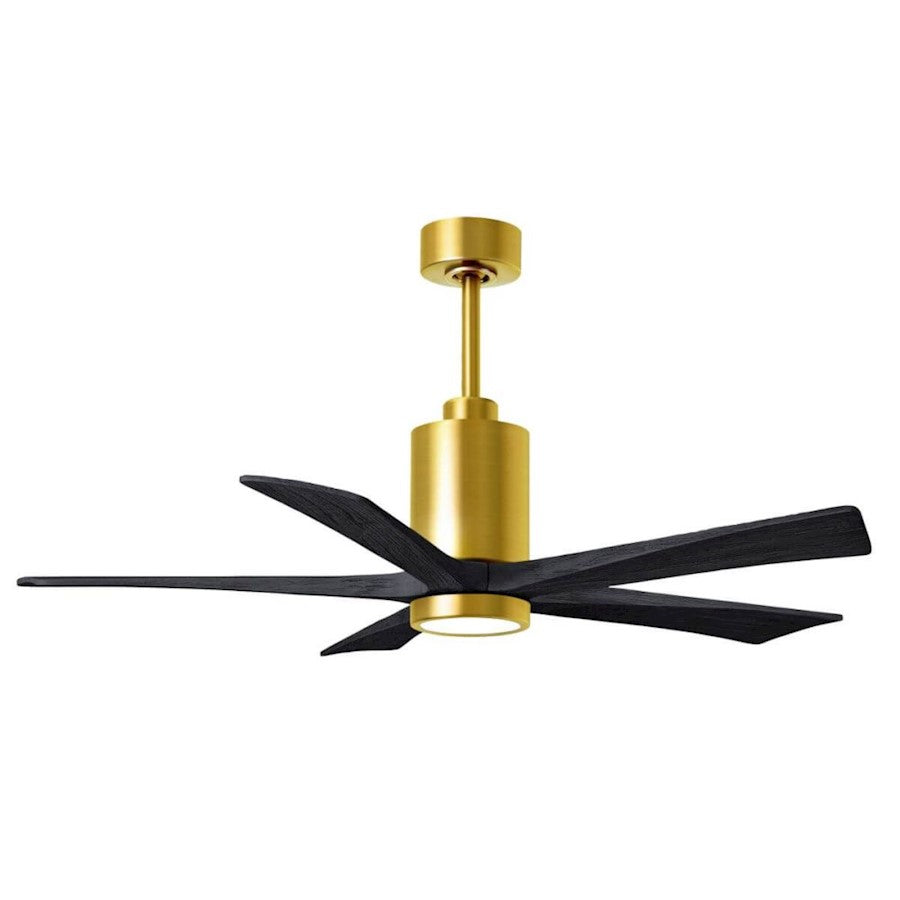

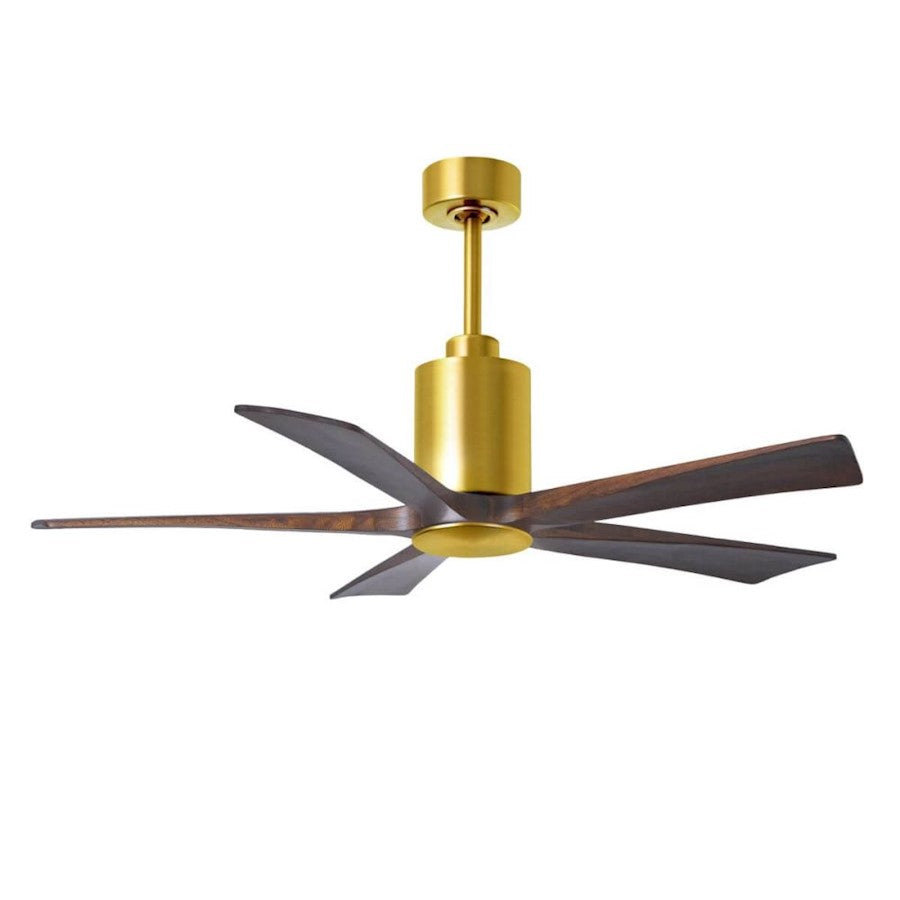

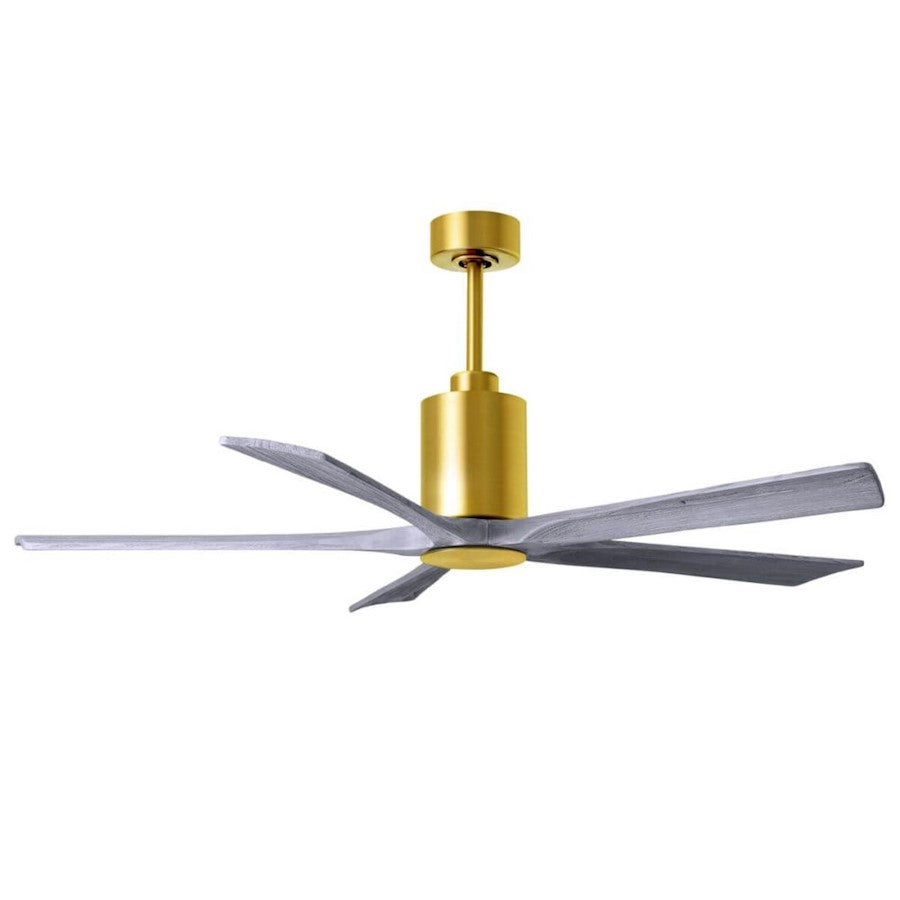

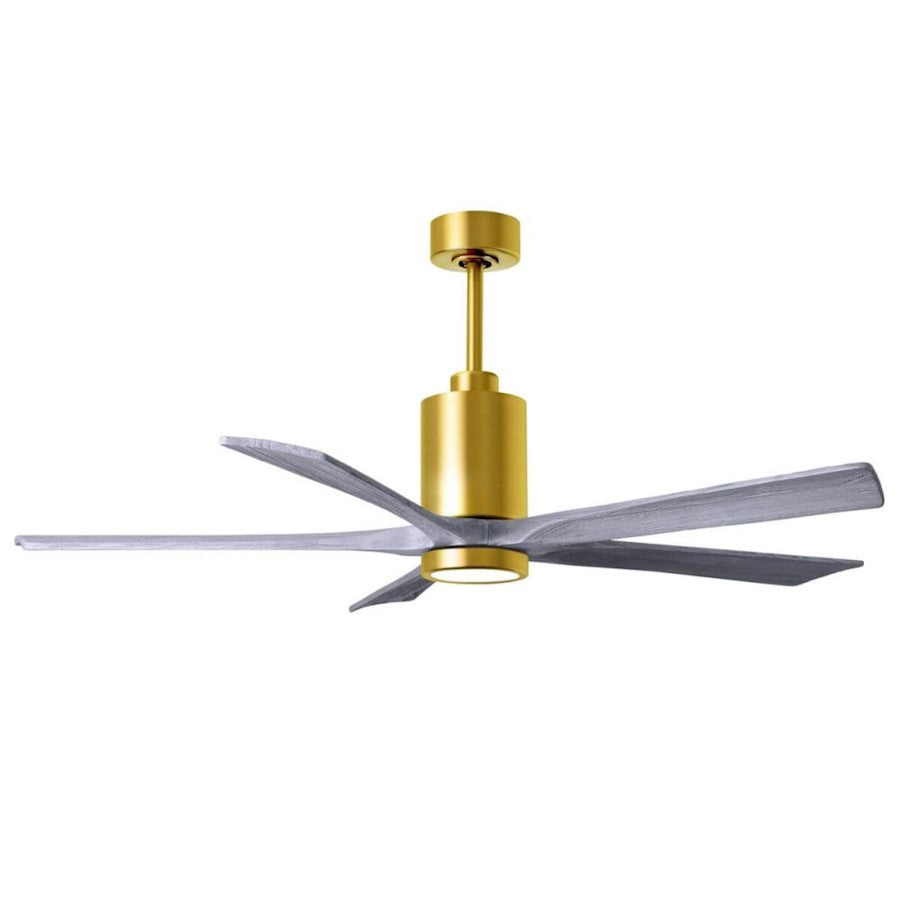

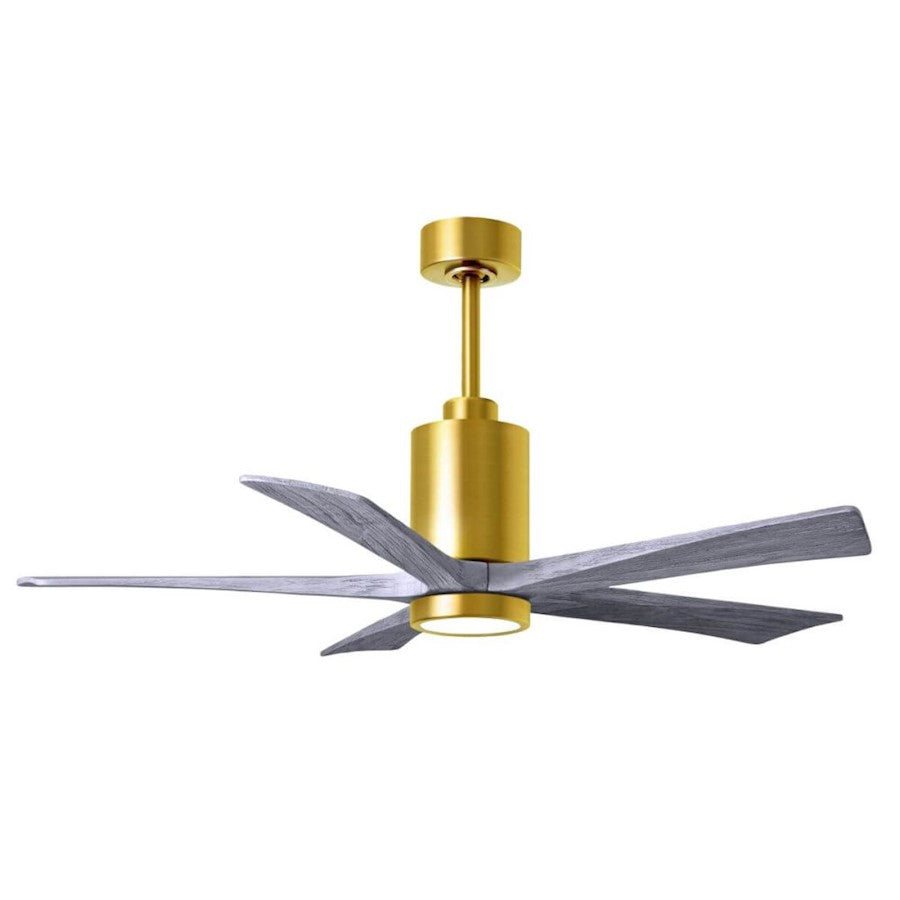

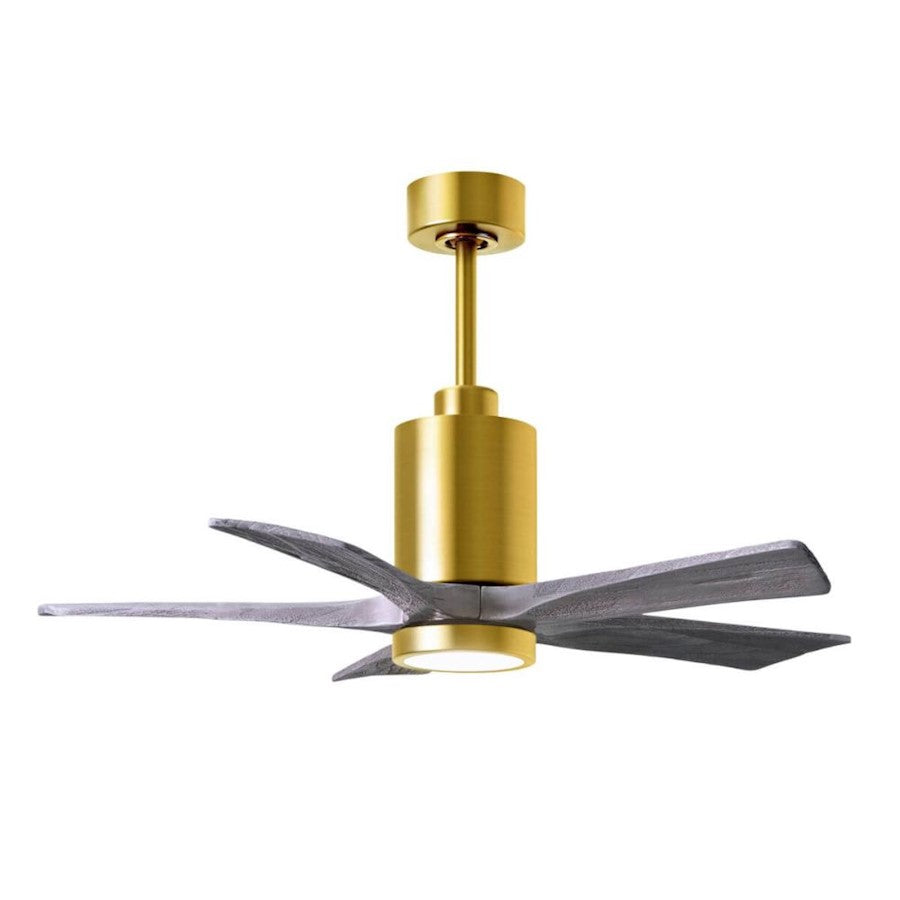

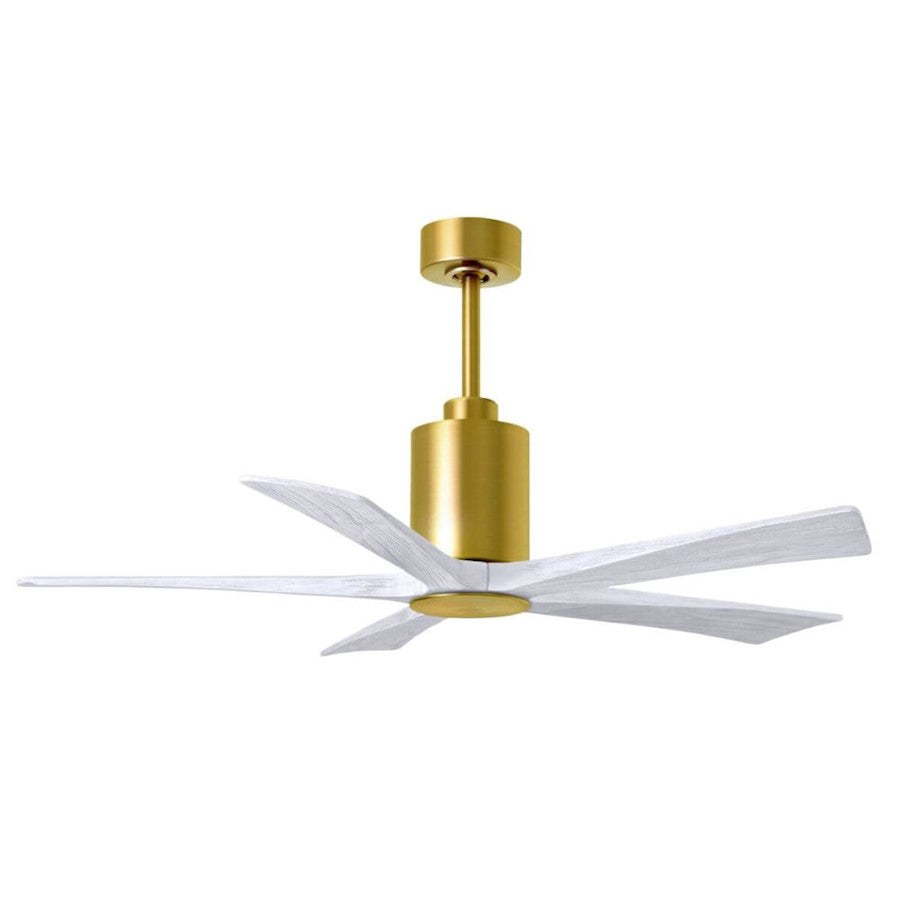

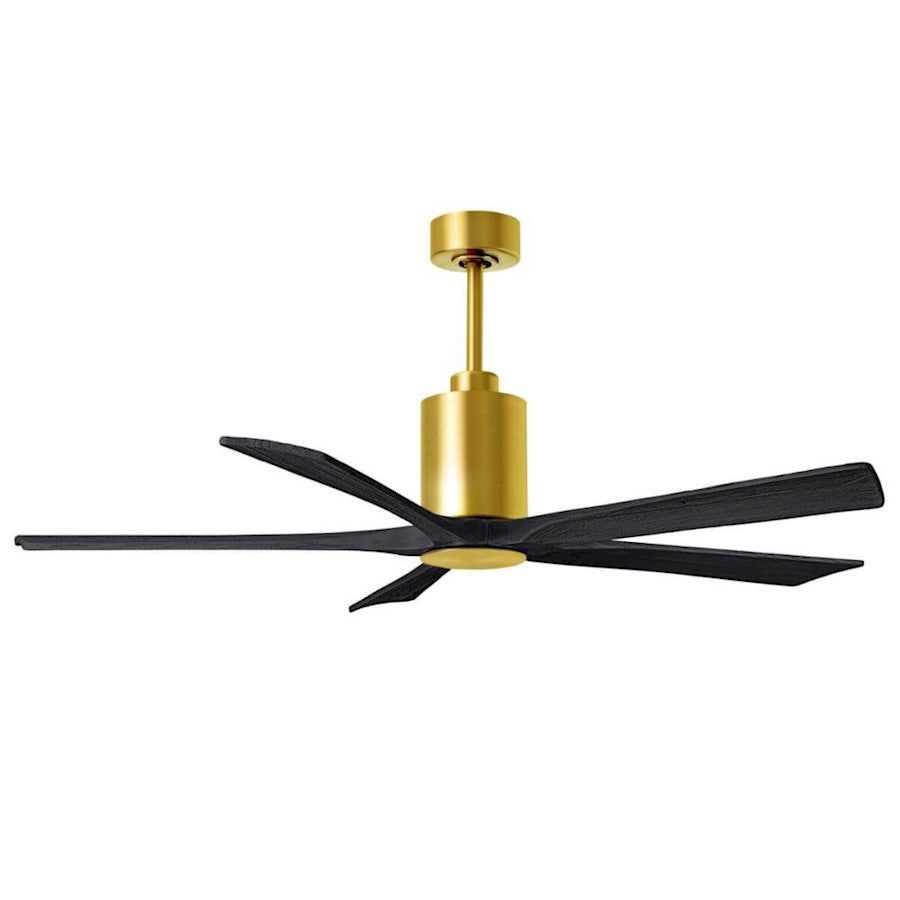

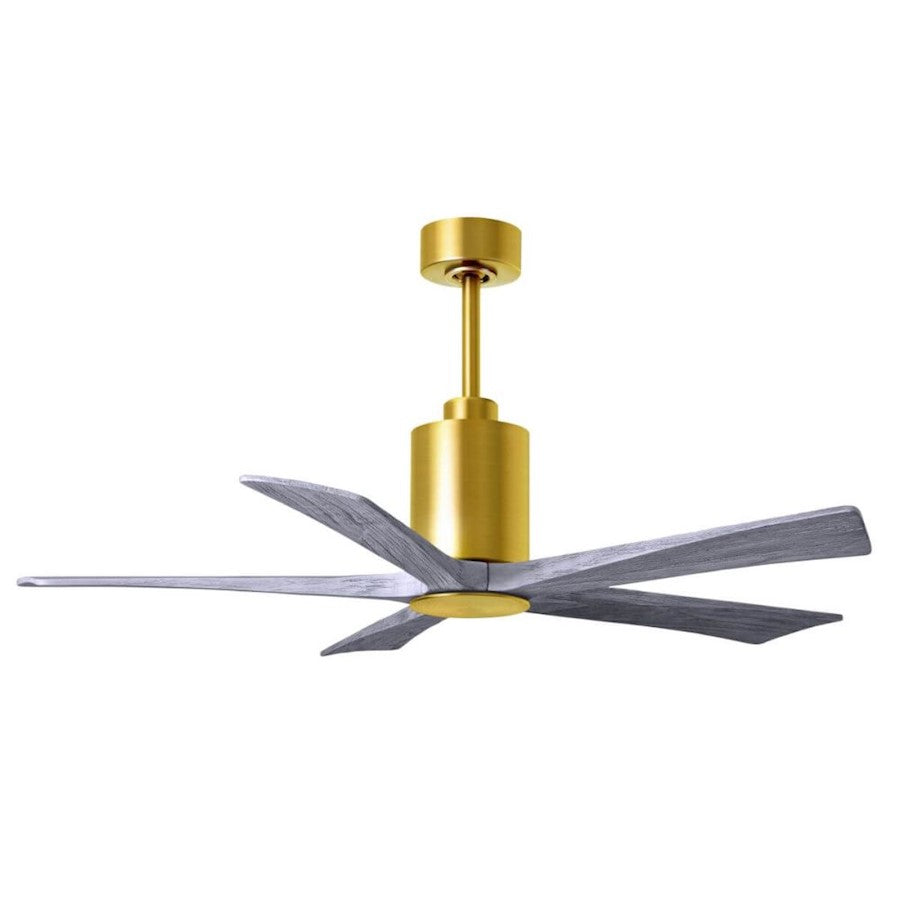

A complement to any commercial or residential space, the Patricia–5 seamlessly combines innovation with simple, refined design. Its elegant aesthetic belies its robust construction. Solid wood blades revolve around a balanced, cylindrical DC motor housing. Air is circulated efficiently with barely more than a whisper. An eco-conscious LED light kit completes the package, making Patricia–5 sophisticated, efficient and green.
- Part of the Patricia-3 Collection
- Finish: Brushed Brass
- Made of Cast aluminum, heavy stamped steel
- Blade Finish: Matte Black or Matte White or Barnwood or Walnut
- Blade Material: Solid Wood
- Shade Finish: Frosted
- Shade Material: Glass
- Wood Color: Matte Black or Matte White or Barnwood or Walnut
- Style: Contemporary||Transitional
- (1) 16W Integrated LED Bulb
- Bulbs Included
- Bulb Color Temp: 3075K
- Bulb Average Hours: 60000
- Bulb Lumens: 690
- Incandescent Equivalent: 75W
- Bulb CRI: 90
- Voltage: 110 or 220
- 42" or 52" or 60" diameter with five solid wood, matte black or matte white or barnwood tone or walnut-stained machine-cut blades.
- Energy efficient, ultra-quiet, 6-speed, reversible DC motor with new, reliable technology
- Constructed of cast aluminum and heavy stamped steel
- Includes 10" downrod
- Vaulted ceiling canopy for up to 30 degrees
- 6-speed hand-held control and 6-speed Decora style, white wall mounted. Both controls reverse direction of fan
- Solid wood CNC cut blades
- IP20 rated
- 0.47 or 0.46 AMP
- Compatible with flat or vault ceilings
- Can be mounted with any one of the following downrod lengths: 5", 10", 20", 30", 48", 72"
- Light kit longevity if used 6 hours/day: 27.4 years
- Overall drop: 14"
- Not recommended for coastal, saltwater and chlorine locations
- Only compatible with included controllers
- Motor Type: DC
- Control Type: Remote Control, Wall Control
- Control Included: Yes
- Motor Wattage: 30.47 or 31.80 or 31.64
- High CFM: 4385.75 or 5524 or 5547
- Low CFM: 917 or 1398 or 3247
- Low Average: 2651.5 or 3461 or 4397
- RPM: Low: 53/ or 51/ High: 221 or 186 or 87
- Fan Wattage at High Speed: 30.47 or 31.80 or 31.64
- Number of Blades: 5
- Blade Span: 42 or 52 or 60
- Blade Pitch: 15-Degrees
- Reversible Motor: Yes
- Stem: 10"L x 1"Dia
- Number of Speeds: 6-Speed
- Dimmable: Yes
- Assembly Required: Full Assembly
- Product Care: 1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.)2. Clean your fan periodically to help maintain its new appearance over the years. Use only a soft brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer to minimize discoloration or tarnishing. Do not use water when cleaning. This could damage the motor, or the wood, or possibly cause an electrical shock.3. You can apply a light coat of furniture polish to the wood blades for additional protection and enhanced beauty. Cover small scratches with a light application of shoe polish.4. There is no need to oil your fan. The motor has permanently lubricated bearings.
- Safety Rating: ETL/cETL Listed
- For Use in Indoor/Outdoor/Damp Locations
- Prop 65: WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Warranty Info: Limited Lifetime for Motor/1 year for components
Small Overall Dimensions: 13"(H) x 42"(Dia)
Canopy Dimensions: 2"(H) x 6"(Dia)
Shade Dimensions: 12"(H) x 6"(Dia)
Blade Width: 7 lbs.
Item Weight: 19 lbs.
Medium Overall Dimensions: 13"(H) x 52"(Dia)
Canopy Dimensions: 2"(H) x 6"(Dia)
Shade Dimensions: 12"(H) x 6"(Dia)
Blade Width: 7 lbs.
Item Weight: 19 lbs.
Large Overall Dimensions: 13"(H) x 60"(Dia)
Canopy Dimensions: 2"(H) x 6"(Dia)
Shade Dimensions: 12"(H) x 6"(Dia)
Blade Width: 7 lbs.
Item Weight: 19 lbs.
